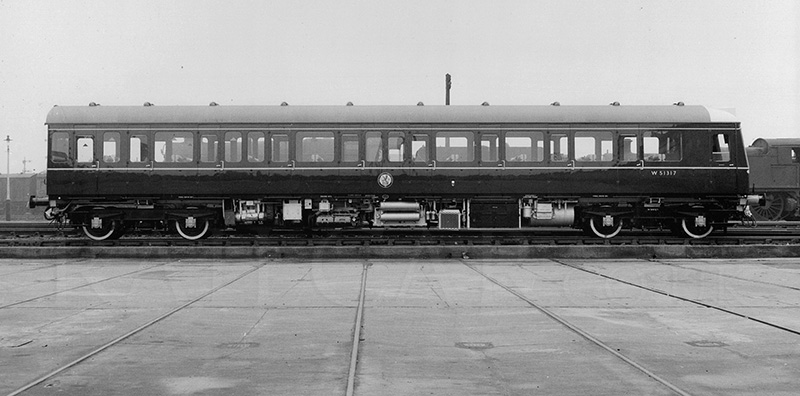

Class 118 BRC&W 3-car DMUs


Introduced: 1960
Coupling code: Blue Square
Underframe: 64ft 6in
Engines: Leyland 150hp
Transmission: Mechanical


Class 118

While the modernisation plan was underway, orders had to be placed with outside contractors to ensure quick delivery as BR workshops were already fully committed to the DMU building programme. One of these companies was the familiar builder the Birmingham Carriage & Wagon Company which built these 15 sets.

The order from the British Transport Commission was announced in October 1958 as part of the Western Region dieselisation scheme. 168 vehicles were announced, 57 DMBS, 57 DMSs and 54 TCs. BRC&W were to build 45 on them, 15 of each type, forming 15 sets. Pressed Steel in Scotland were to build the remainder (the almost identical Class 117s). The fifteen three car sets were delivered to Plymouth Laira for services in Devon and Cornwall, West of Newton Abbott and Bristol for the Bristol - Taunton area.

Over the years the sets were also based at Reading, Cardiff and Birmingham.

One set achieved fame being painted yellow as an advertisement for British Telecom in the late '80s.

The last vehicles were withdrawn in 1994, two vehicles saw sandite use and one vehicle entered preservation.

Summary
Description
Diagrams
Official
Numbering
Liveries
Operations
Non-Passenger Use
Images

Details about the preserved Class 118 vehicle can be found here.
