Class 127 Derby 4-car DMUs


Introduced: 1959
Coupling code: Blue Square (later Red Triangle)
Underframe: 64ft 6in
Engines: Rolls Royce 238hp
Transmission: Hydraulic


Class 127

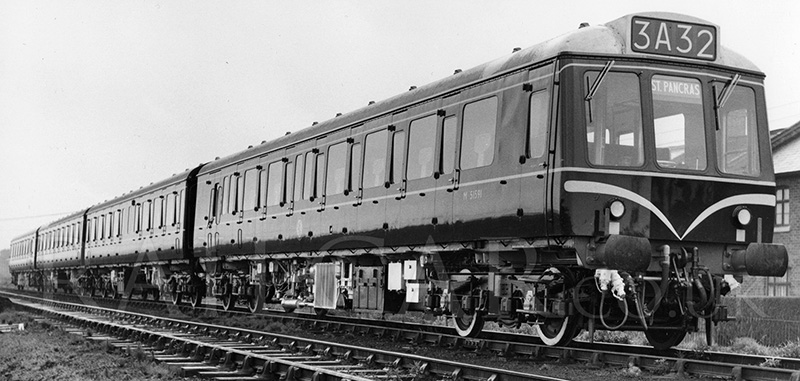

Thirty of these sets were built, each formed of 2xDMBS, TS and TSL. They were high density sets with no gangway connections, with seats for 352 2nd class passengers, later reduced to 348. Rarely venturing from the intensively worked St. Pancras to Bedford line, this earned them the name Bed-Pan units.

Built with a blue square control system problems with driver errors when coupled to gearbox units meant the vehicles were reclassified as red triangle units.

They lasted in passenger service on the line until electrification in '83 when the power cars were withdrawn, although a good few went into parcels use. A lot of trailers were transferred to Tysley and lasted another ten years.

Summary
Background
Description
Power Train
Interiors
Numbering
Liveries
Operations
Decline
Parcels Use
Images

Details about preserved Class 127s can be found here.

Also relavant is the article "Working the DMUs" by Cricklewood Driver Arno Brooks.
