Class 112/3 Cravens 2-car DMUs


Introduced: 1960
Coupling code: Blue Square
Underframe: 57ft 6in
Engines: Rolls Royce 238hp
Transmission: Mechanical (Class 112) / Hydraulic (Class 113)


Class 113

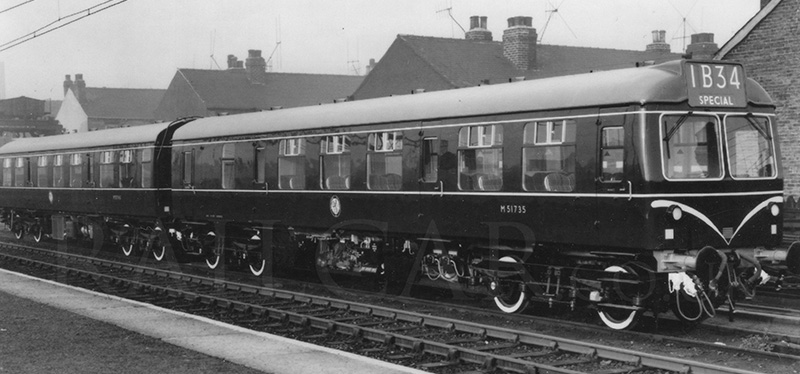

Both these classes used the standard Cravens body type used for Class 105s but had a single engine (the only DMU types other than railbuses to originally do so).

All were formed into power twins, 25 of each type, the hydraulic sets could be identified by a 4-character headcode box.

The cars were built for services in the LMR Central Division and in the Liverpool - St Helens area, where the gradients in the Lancashire & Yorkshire area required more power. The gross weight of a fully occupied set was approximately 70 tons, giving 6.8hp per ton.

Both types also spent some time working from Cricklewood, and were withdrawn by 1969. None survive.

Summary
Description
Numbering
Liveries
Operations
Decline
Non-Passenger Use
Images

No vehicles were preserved.

Thanks to Andrew Dyson for additional information.
