DMU Bogies
Wheels and Axles
Each bogie would have two wheelsets — a wheelset comprised an axle and two wheels.
Wheels
All DMU wheels were 36" diameter, and had renewable tyres. In the Steel, Peech and Tozer advert the axle closest has the tyre shown on the left, and a wheel without a tyre on the right.
Axles
There were three distinct types of axles:
- those that would accomodate a final drive
- those that would accomodate a pulley to drive a generator
- plain axles

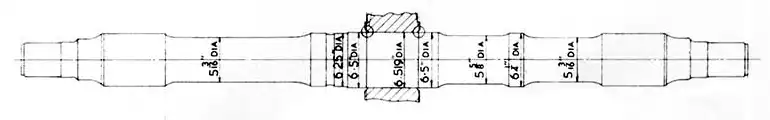

These diagrams show examples of each of the three types, there were many variations of each depending on the type of vehicle it was fitted to. The diagrams are taken from the booklet "Axle diagrams, DMU Stock", it shows that 29 different axles were in use on DMUs in 1984.
