Servicing Consumables
Information from Dean Forest DMU Group, Llangollen Railcar Group, Shakerstone DMU Group and BR VMI.
Leyland 680/1

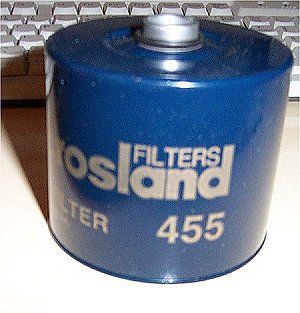

Fuel filter - Crosland 455 / Coopers AZF010 / Fleetguard FF145 (note from Chris Bull - FRAM give alternative (C11838PL) but it doesn't have the extended metal ring on the top and so falls over in bowl when tightening up and so fuel by passes it!!! see picture by Chris Bull)
Oil filter - FRAM CH2857 / Crosland 654 / Fleetguard LF4007
Engine oil - any 15W/40, which can also be used for governor, engine air intake, oil separator, other general lubrication
Right Angle Fan Drive Oil - Any generic 40 monograde oil such as Batoyle Turbomaster Plus 40
Leyland 680/4041, L11
Oil filter - Crosland 2060 / FRAM PH4827 / Fleetguard LF3472
Fuel Filter - FRAM C5582 / Fleetguard FF5287
Leyland Albion 900 series
Fuel filter - Crosland 455 (note from Chris Bull - FRAM give alternative (C11838PL) but it doesn't have the extended metal ring on the top and so falls over in bowl when tightening up and so fuel by passes it!!! see pic)
Rolls Royce C8
Fuel filter - Crosland 455 (note from Chris Bull - FRAM give alternative (C11838PL) but it doesn't have the extended metal ring on the top and so falls over in bowl when tightening up and so fuel by passes it!!! see pic)
Oil filter - Crosland 510 / FRAM CH856PL
R14 gearbox
Oil filter - FRAM CH815PL1 or FRAM CH2832 or Crosland 414 / Fleetguard LF 566 / Coopers GP236 (LK26)
Oil - Shell Tellus 46 (or Batoyle Apollo 46MG) (or Morris LIQUAMATIC 27 A)
Seal no's - taken from the rings themselves by Chris Bull. Different ring no's
could be from different manufacturers. The first number also corresponds to the
Blue Stripe description/order number taken from a supply invoice.
1st - 585281 or 6801 or DSL 129/003
2nd - 585282 or 6802 or DSL 129/095
3rd - 585283 or 6803 or V.S. 201-148-310
4th - 585287 or 6804.
Fluid Couplings
Oil - SFR Type D47
Final Drives
Oil - Any generic 40 monograde oil such as Batoyle Turbomaster Plus 40
Smiths heaters
Fuel filter - Fram C11838PL.
Exhauster Oil Seperator
Generic 15W/40 as engine oil
NOTE: Should these reference notes be used in practice, the reader is advised to double check the items quoted. No liability can be accepted for errors and omissions.
