Asbestos


A 1958 advert from JW Roberts Ltd, their Limpet sprayed blue asbestos was used in most, if not all, of the vehicles that had this material.

Many of British Railways First Generation DMUs contained asbestos when new. Until circa 1959 most used blue asbestos as an insulation in the walls and ceilings, some had it in the floors (sometimes this was just sprayed on the underside and thus exposed). This usage was also promoted as reducing the drumming of panels and as a rust-inhibitor. From 1959 Derby and Derby design vehicles began to use glass fibre insulation instead, other manufactures continued with asbestos.

White asbestos was not unknown in floors to give protection from heat generated under vehicles. There were other uses of other types of asbestos in smaller quantities, such as a white asbestos blanket around the small toilet flush tank.

Asbestos Removal

In the 1970s British Rail began removing the asbestos from some types — mainly those that were seem as having a longer lifespan (see types with NTP codes of A and A1 in the 1974 National Traction Plan), however on some types it proved much more difficult (and thus expensive) to remove, and those were treated in reduced numbers. Removal required the complete stripping of a vehicle's interior including all wall and ceiling panelling. On Met-Camm and Derby types this was relatively easily as most of this unscrewed from a timber framework, on Swindon vehicles a lot of panelling was screwed into the steel frame (meaning broken screws and remedial work). The design of Swindon vehicles included a box section that required the steel panelling to be cut off from the bottom of the bodyside along the length of the vehicle to remove the asbestos from inside.

Ground covered in blue material with part dismantled vehicle

Cohen's Kettering, the ground covered in blue asbestos. Tony Wilkins.

Disposal

Many early withdrawals of vehicles insulated with blue asbestos were cut up in the open air.

In later years vehicle disposal was restricted to companies that had proper contained facilities for its removal, such as MC Metals (Springburn) and Vic Berry's (Leicester) - the latter company also did some asbestos stripping of vehicles that were still in use.

1984 vehicle survey

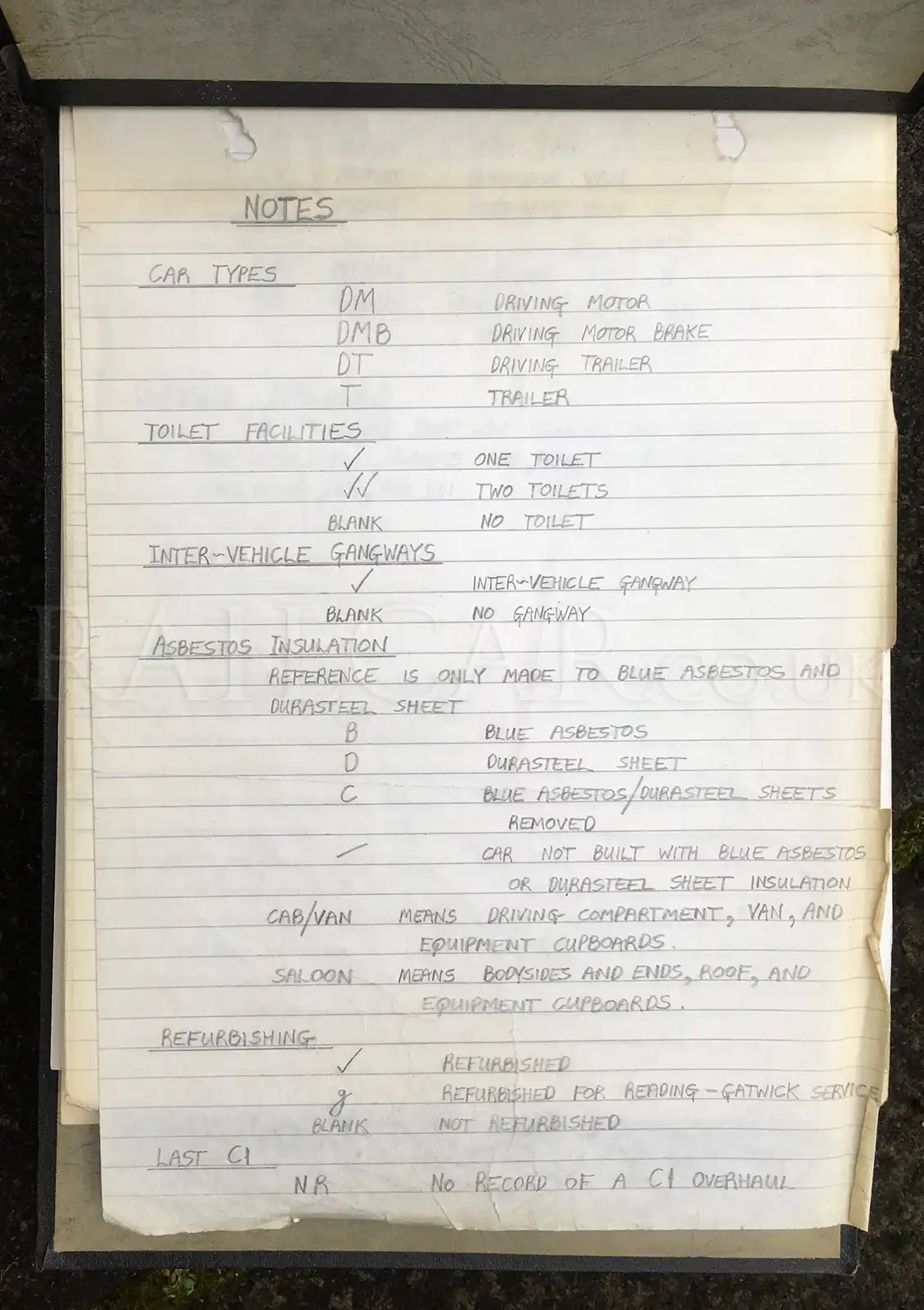

The pages below are from a vehicle log kept by the RTC at Derby dated circa 1984 which included the blue asbestos / Durasteel sheet status for each vehicle.

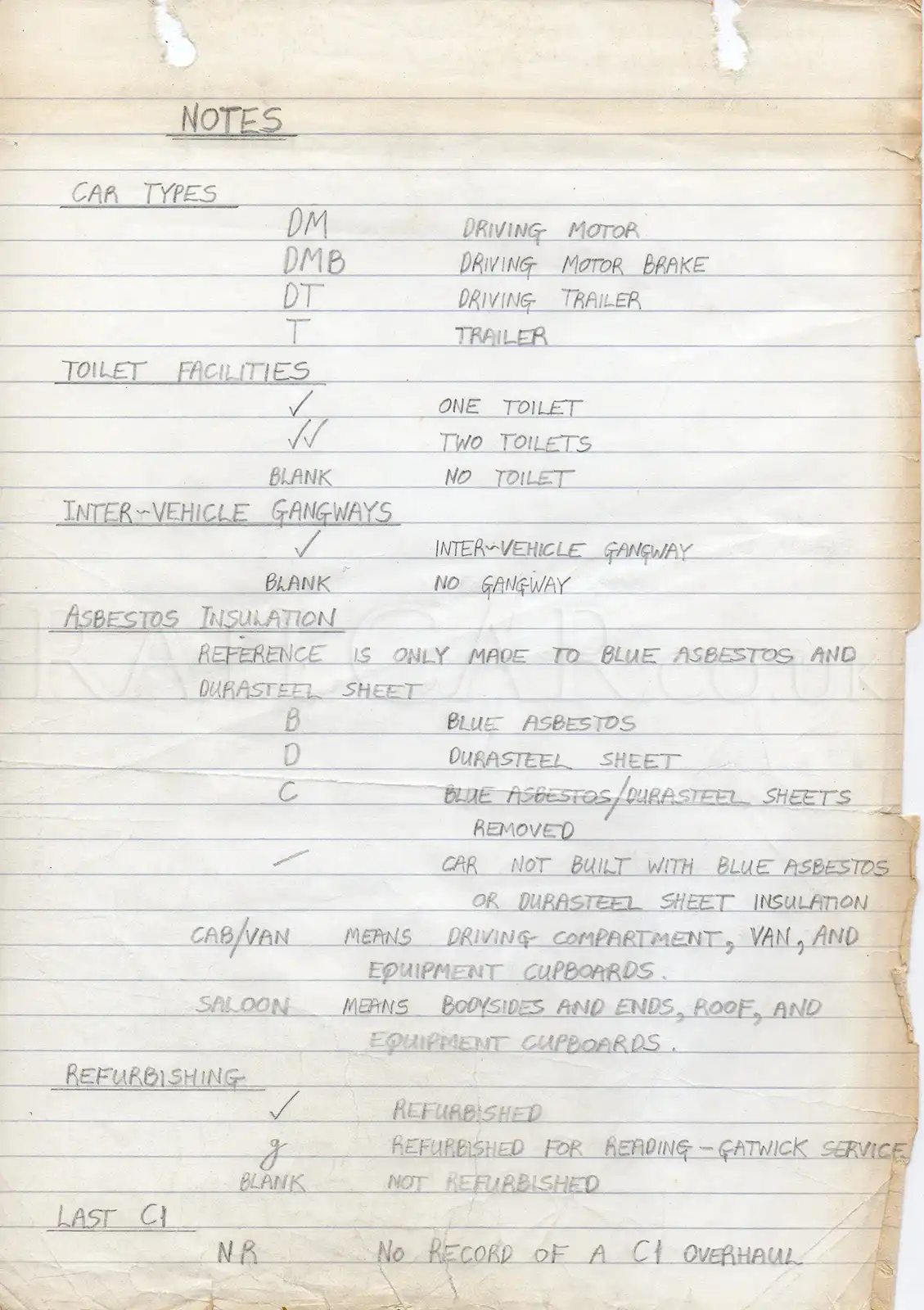

The codes for the asbestos columns are: B - blue asbestos; C - blue asbestos / Durasteel sheet removed; D - Durasteel sheet; / not built with blue asbestos or Durasteel sheet.

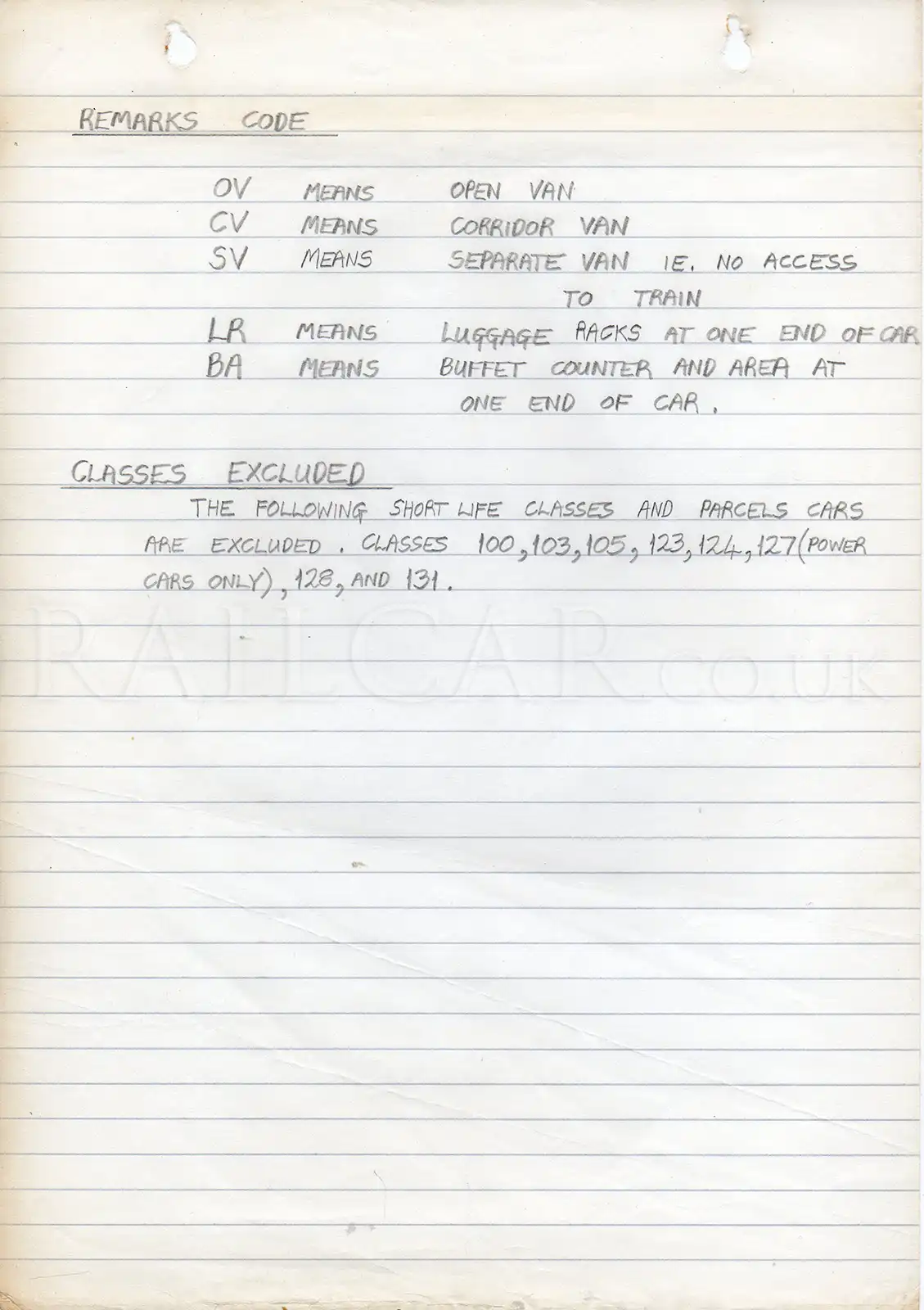

In the remarks column OV means open van (no cage); CV corridor van (cage fitted); SV separate van (no access to passenger accomodation; LR luggage racks at one end of car; and BA mean buffet counter and area at one end of car.

Some types that were due for withdrawal or were parcel cars were not included (100, 103, 105, 123, 124, 127 (power cars), 128 and 131), the classes that were are: 101, 104, 107, 108, 110, 111, 114, 115, 117, 118, 119, 120, 121, 122 and 127 (centre cars).

Class 101

Pages 1 - 32

RTC DMU vehicle log page 1

53138 - 53159

RTC DMU vehicle log page 2

53160 - 53180

RTC DMU vehicle log page 3

53181 - 53201

RTC DMU vehicle log page 4

53202 - 53222

RTC DMU vehicle log page 5

53223 - 53243

RTC DMU vehicle log page 6

53244 - 53264

RTC DMU vehicle log page 7

53265 - 53310

RTC DMU vehicle log page 8

53311 - 53330

RTC DMU vehicle log page 9

53331 - 51179

RTC DMU vehicle log page 10

51180 - 51200

RTC DMU vehicle log page 11

51201 - 51220

RTC DMU vehicle log page 12

51221 - 51241

RTC DMU vehicle log page 13

51242 - 51432

RTC DMU vehicle log page 14

51433 - 51453

RTC DMU vehicle log page 15

51454 - 51498

RTC DMU vehicle log page 16

51499 - 51519

RTC DMU vehicle log page 17

51520 - 51539

RTC DMU vehicle log page 18

51795 - 51808

RTC DMU vehicle log page 19

54050 - 54069

RTC DMU vehicle log page 20

54070 - 54089

RTC DMU vehicle log page 21

54218 - 54349

RTC DMU vehicle log page 22

54350 - 54369

RTC DMU vehicle log page 23

54370 - 54389

RTC DMU vehicle log page 24

54390 - 54410

RTC DMU vehicle log page 25

54411

RTC DMU vehicle log page 26

59042 - 59067

RTC DMU vehicle log page 27

59068 - 59088

RTC DMU vehicle log page 28

59089 - 59122

RTC DMU vehicle log page 29

59123 - 59528

RTC DMU vehicle log page 30

59529 - 59550

RTC DMU vehicle log page 31

59551 - 59687

RTC DMU vehicle log page 32

59688 - 59692

Class 104

Pages 33 - 43

DMU vehicle log page 33

53420 - 53442

DMU vehicle log page 34

53443 - 53464

DMU vehicle log page 35

53465 - 53484

DMU vehicle log page 36

53485 - 53507

DMU vehicle log page 37

53508 - 53530

DMU vehicle log page 38

53531 - 53572

DMU vehicle log page 39

53577 - 53598

DMU vehicle log page 40

54175 - 54189

DMU vehicle log page 41

59137 - 59144

DMU vehicle log page 42

59218 - 59240

DMU vehicle log page 43

78601 / 78851

Class 107

Pages 44 - 48

RTC DMU vehicle log page 44

51985 - 52005

RTC DMU vehicle log page 45

52006 - 52025

RTC DMU vehicle log page 46

52026 - 52036

RTC DMU vehicle log page 47

59782 - 59801

RTC DMU vehicle log page 48

59802 - 59807

Class 108

Pages 49 - 64

RTC DMU vehicle log page 49

53599 - 53622

RTC DMU vehicle log page 50

53623 - 53643

RTC DMU vehicle log page 51

53644 - 53942

RTC DMU vehicle log page 52

53943 - 53964

RTC DMU vehicle log page 53

53965 - 53987

RTC DMU vehicle log page 54

51416 - 51901

RTC DMU vehicle log page 55

51902 - 51924

RTC DMU vehicle log page 56

51925 - 51945

RTC DMU vehicle log page 57

51947 - 52054

RTC DMU vehicle log page 58

52055 - 52065

RTC DMU vehicle log page 59

54190 - 54210

RTC DMU vehicle log page 60

54212 - 54241

RTC DMU vehicle log page 61

54242 - 54263

RTC DMU vehicle log page 62

54264 - 54487

RTC DMU vehicle log page 63

54488 - 54504

RTC DMU vehicle log page 64

59245 - 59390

Class 110

Pages 65 - 69

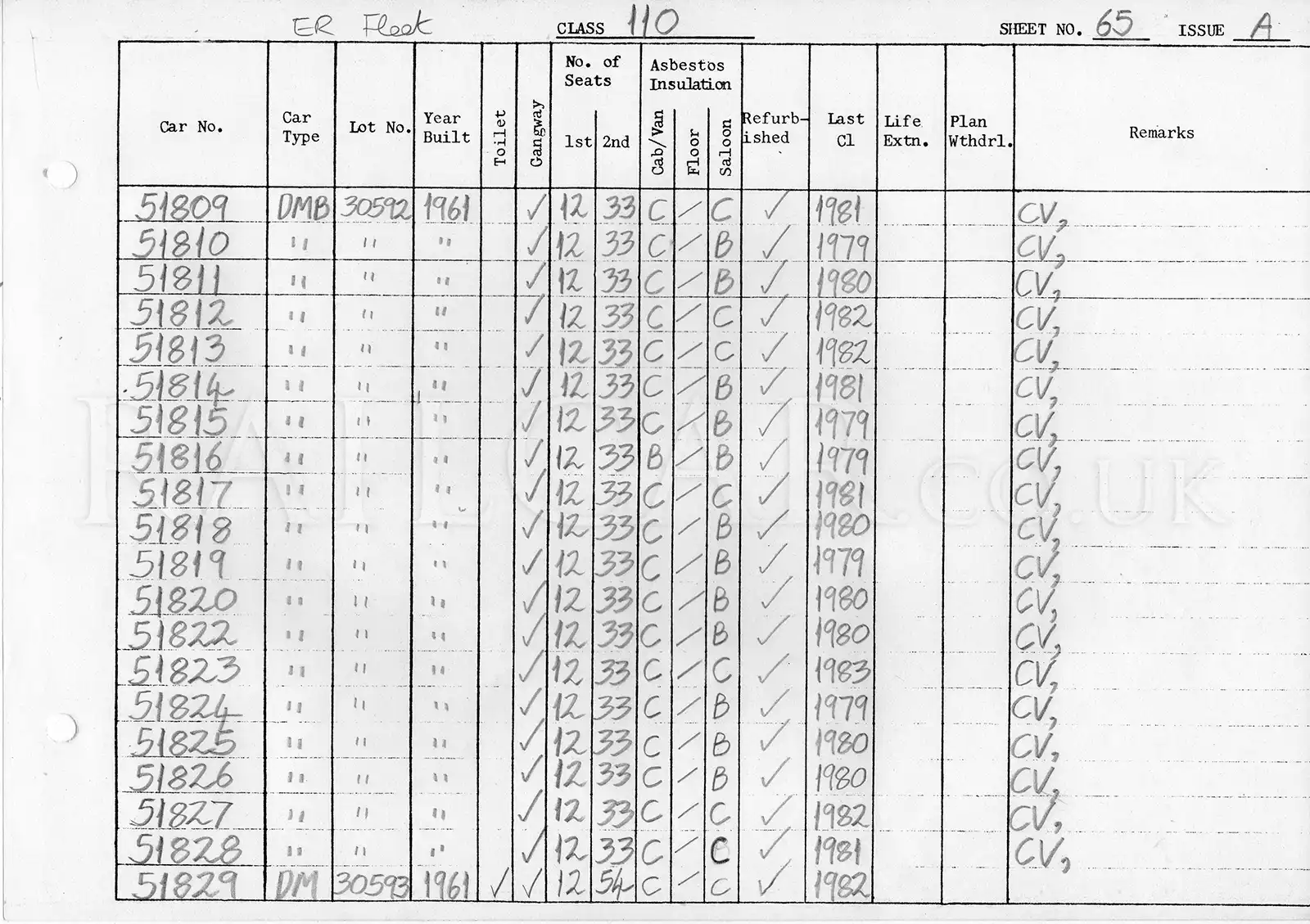

RTC DMU vehicle log page 65

51809 - 51829

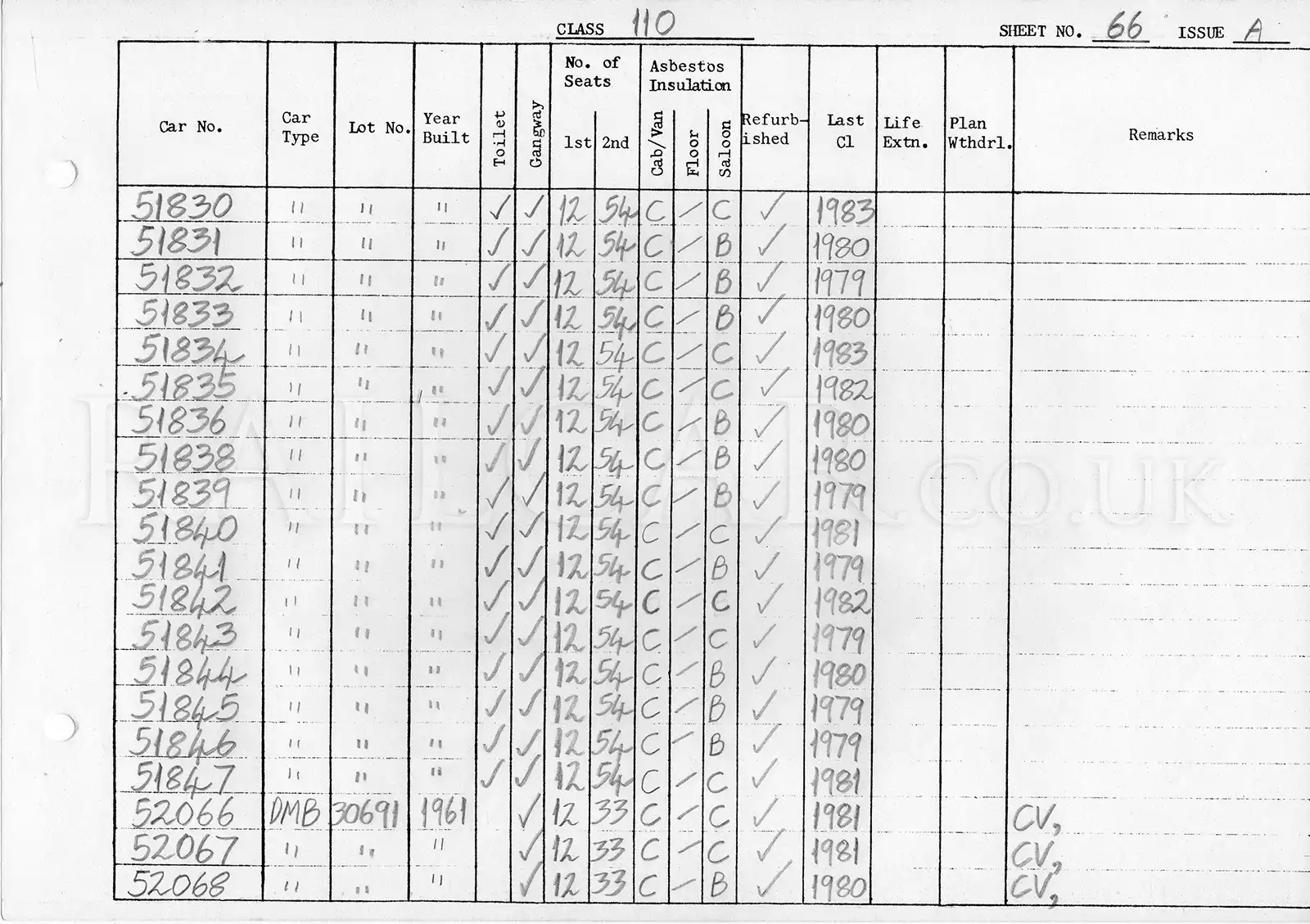

RTC DMU vehicle log page 66

51830 - 52068

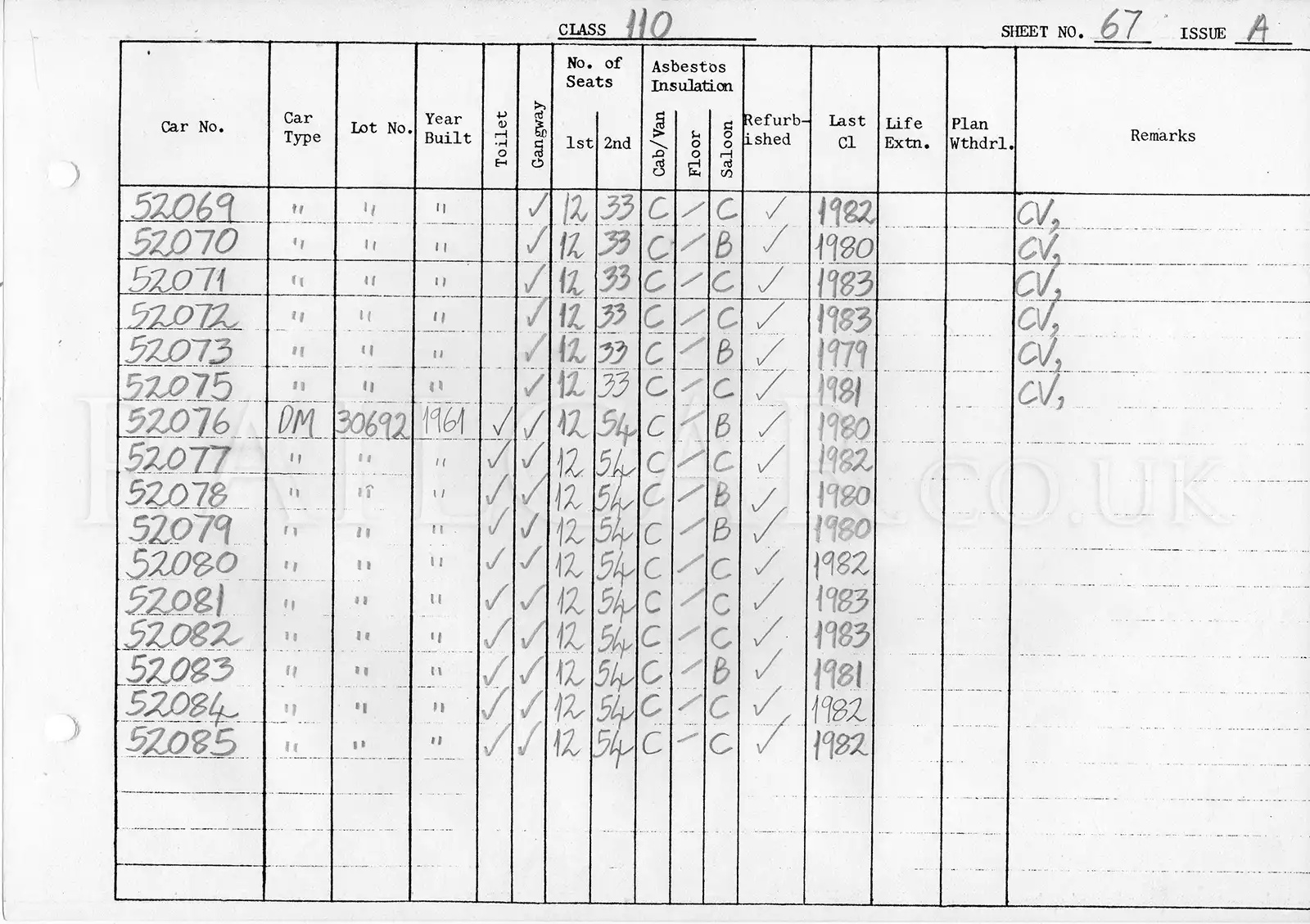

RTC DMU vehicle log page 67

52069 - 52085

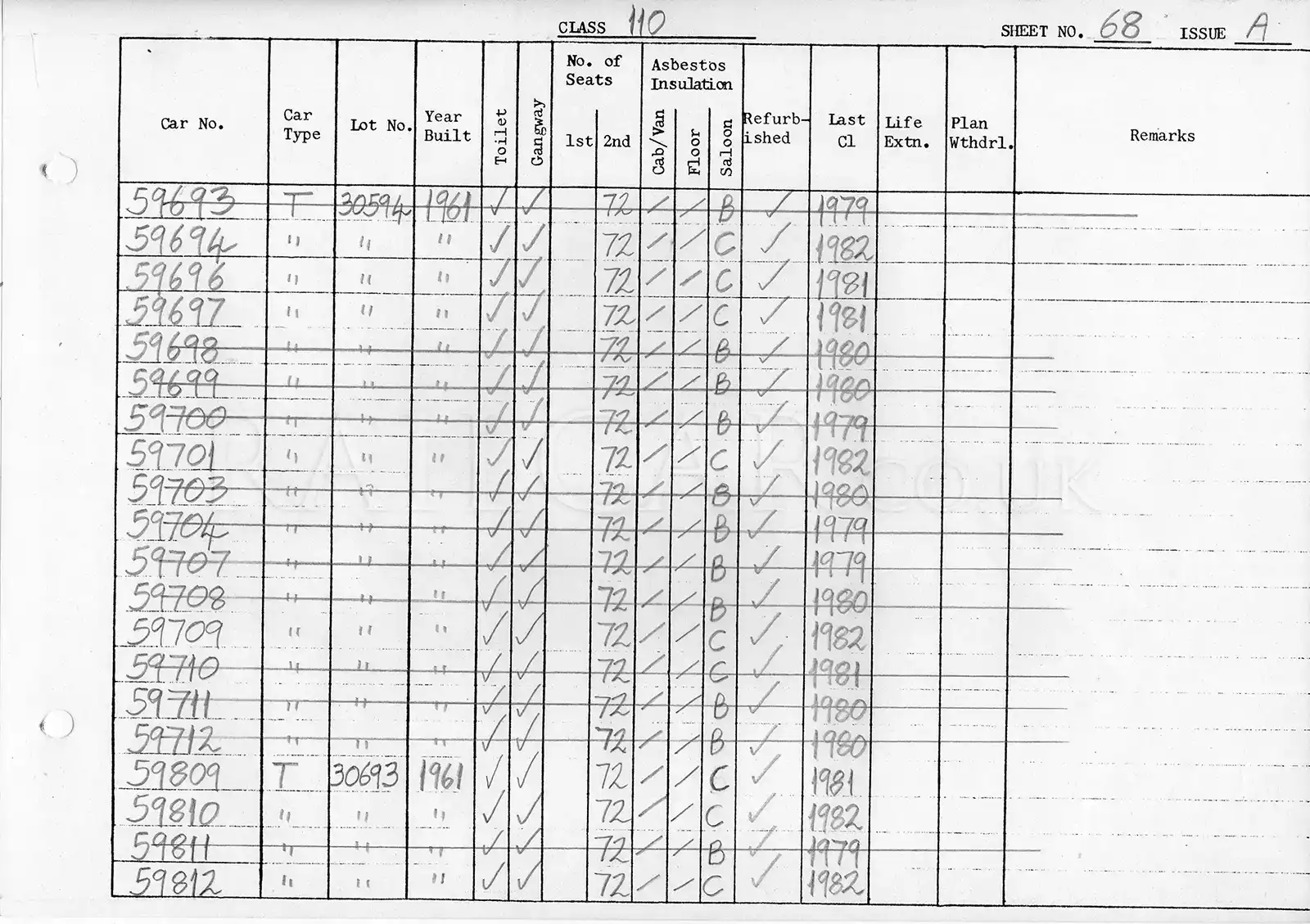

RTC DMU vehicle log page 68

59693 - 59812

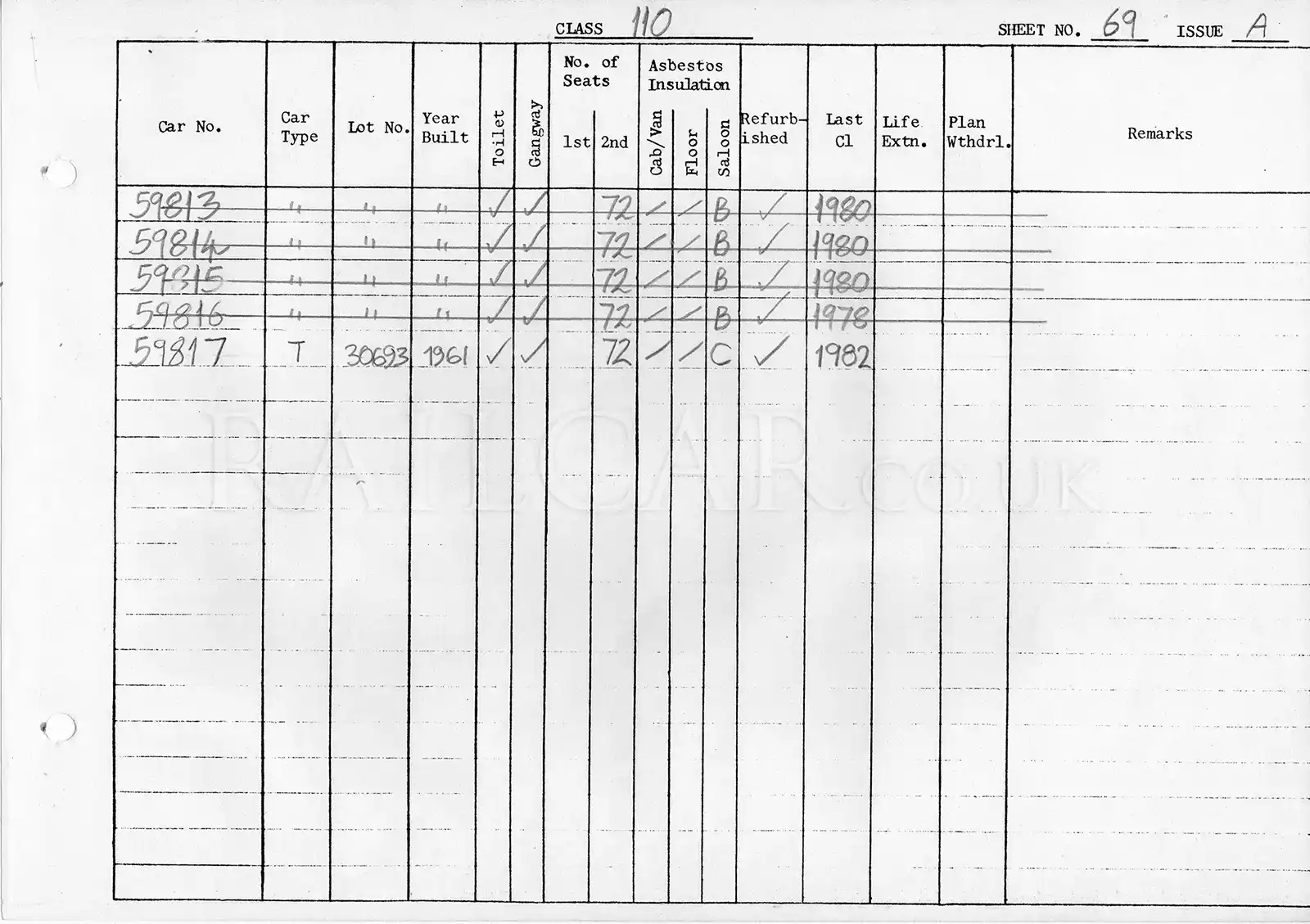

RTC DMU vehicle log page 69

59813 - 59817

Class 111

Pages 70 - 75

RTC DMU vehicle log page 70

53134 - 51544

RTC DMU vehicle log page 51

51545 - 51559

RTC DMU vehicle log page 72

54090 - 54093

RTC DMU vehicle log page 73

59100 - 59572

RTC DMU vehicle log page 74

78706 - 78724

RTC DMU vehicle log page 75

78956 - 78974

Class 114

Pages 76 - 81

RTC DMU vehicle log page 76

53001 - 53020

RTC DMU vehicle log page 77

53021 - 53043

RTC DMU vehicle log page 78

53044 - 53049

RTC DMU vehicle log page 79

54001 - 54021

RTC DMU vehicle log page 80

54022 - 54042

RTC DMU vehicle log page 81

54043 - 54049

Class 115

Pages 82 - 90

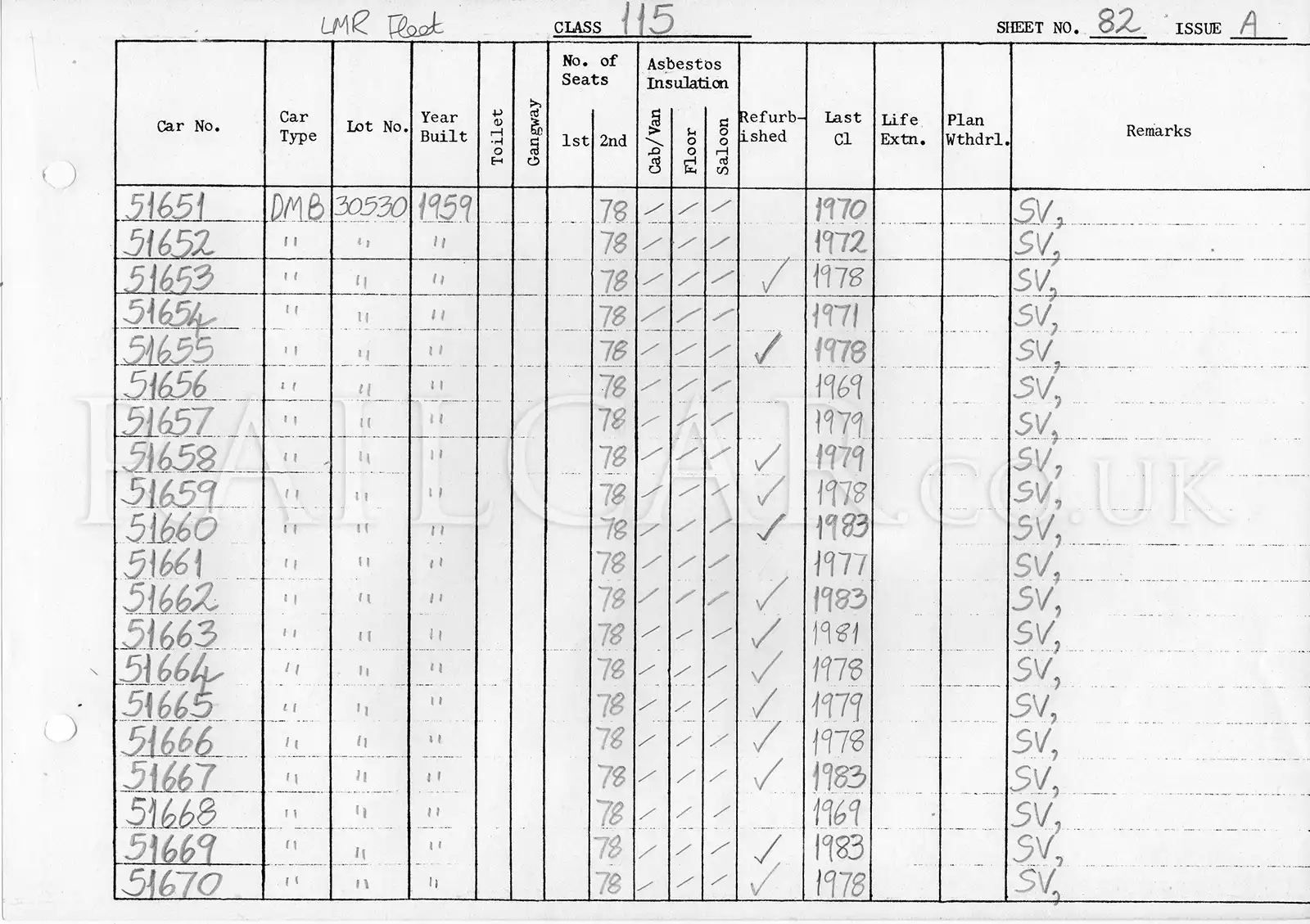

RTC DMU vehicle log page 82

51651 - 51670

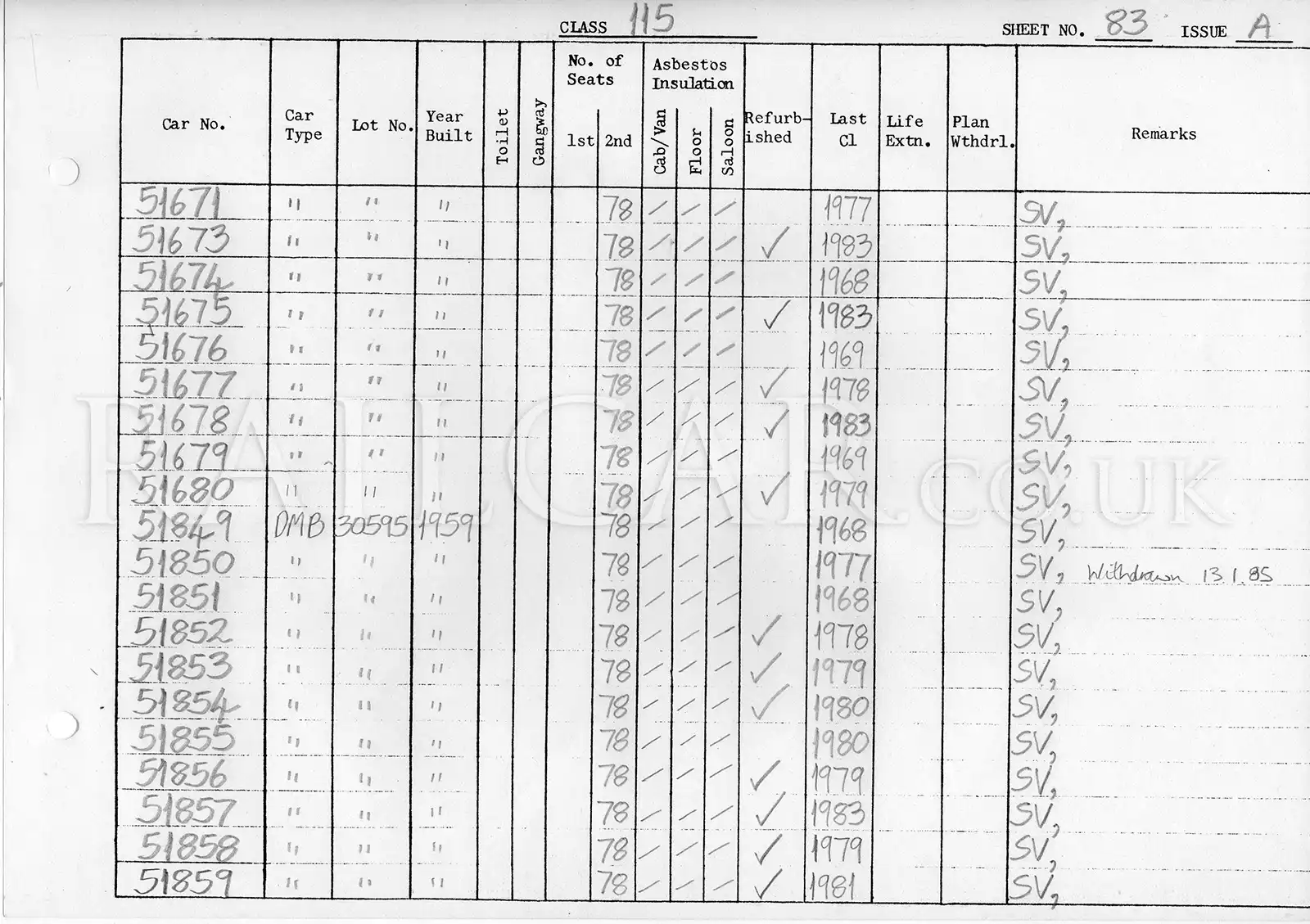

RTC DMU vehicle log page 83

51671 - 51859

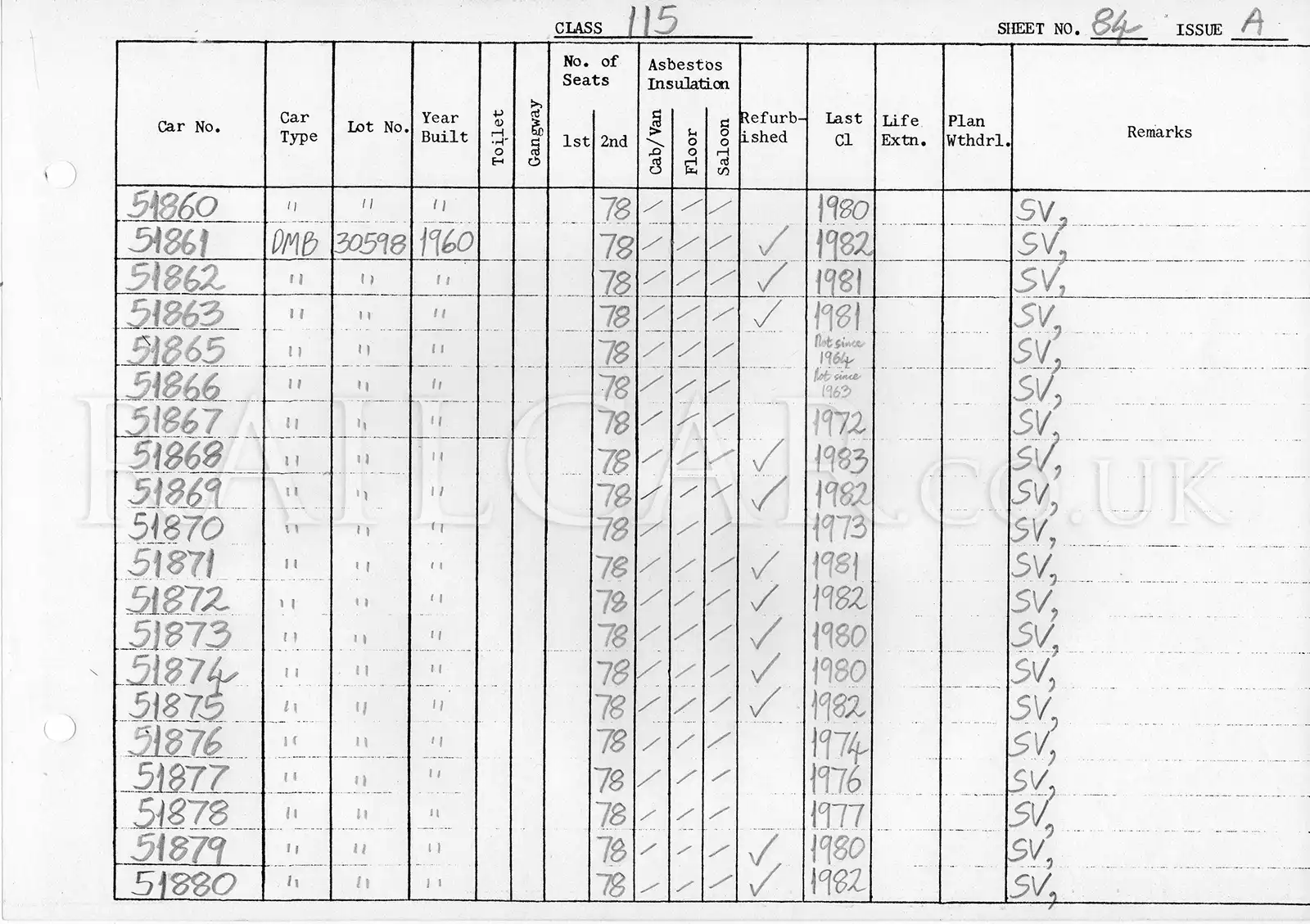

RTC DMU vehicle log page 84

51860 - 51880

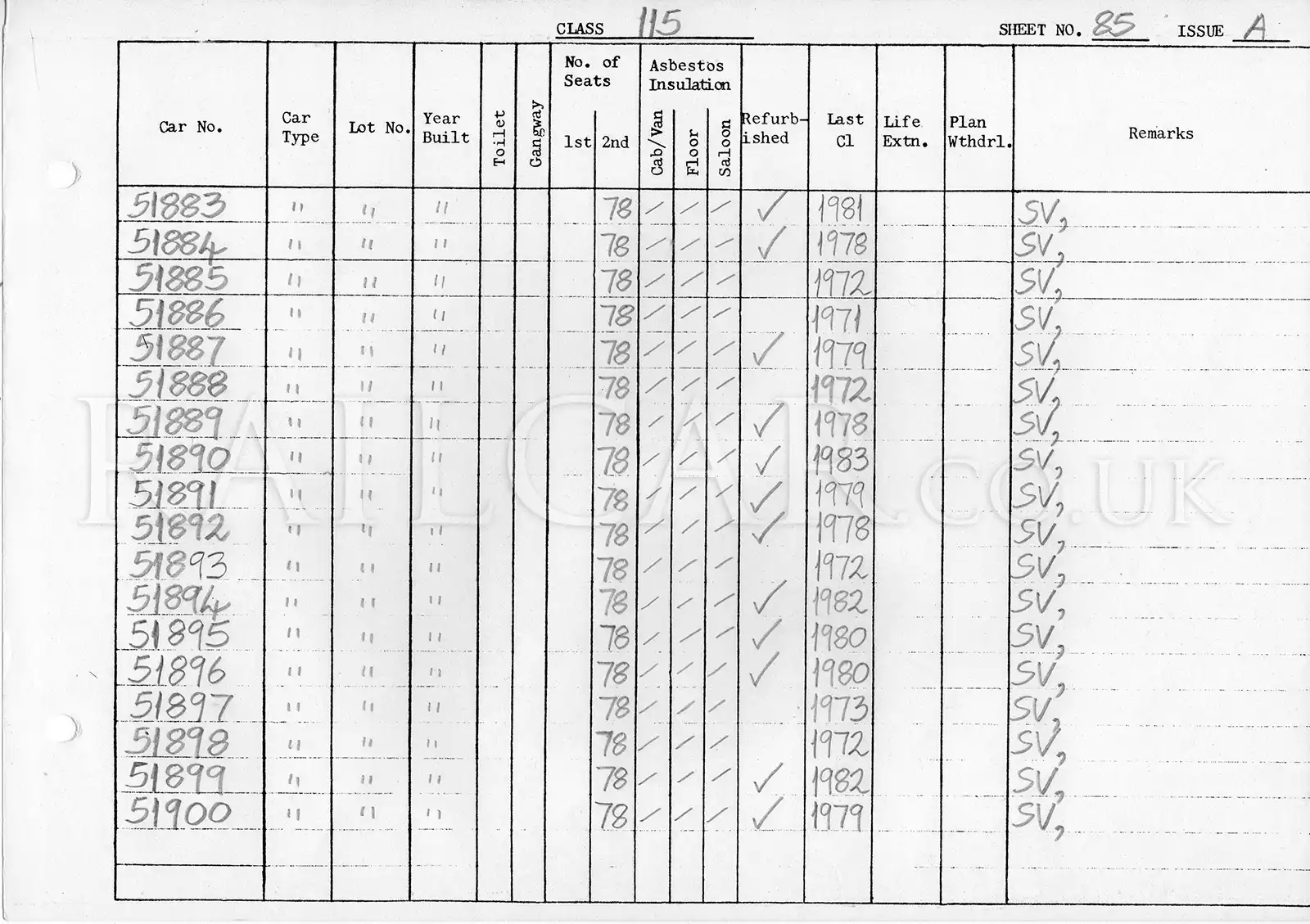

RTC DMU vehicle log page 85

51883 - 51900

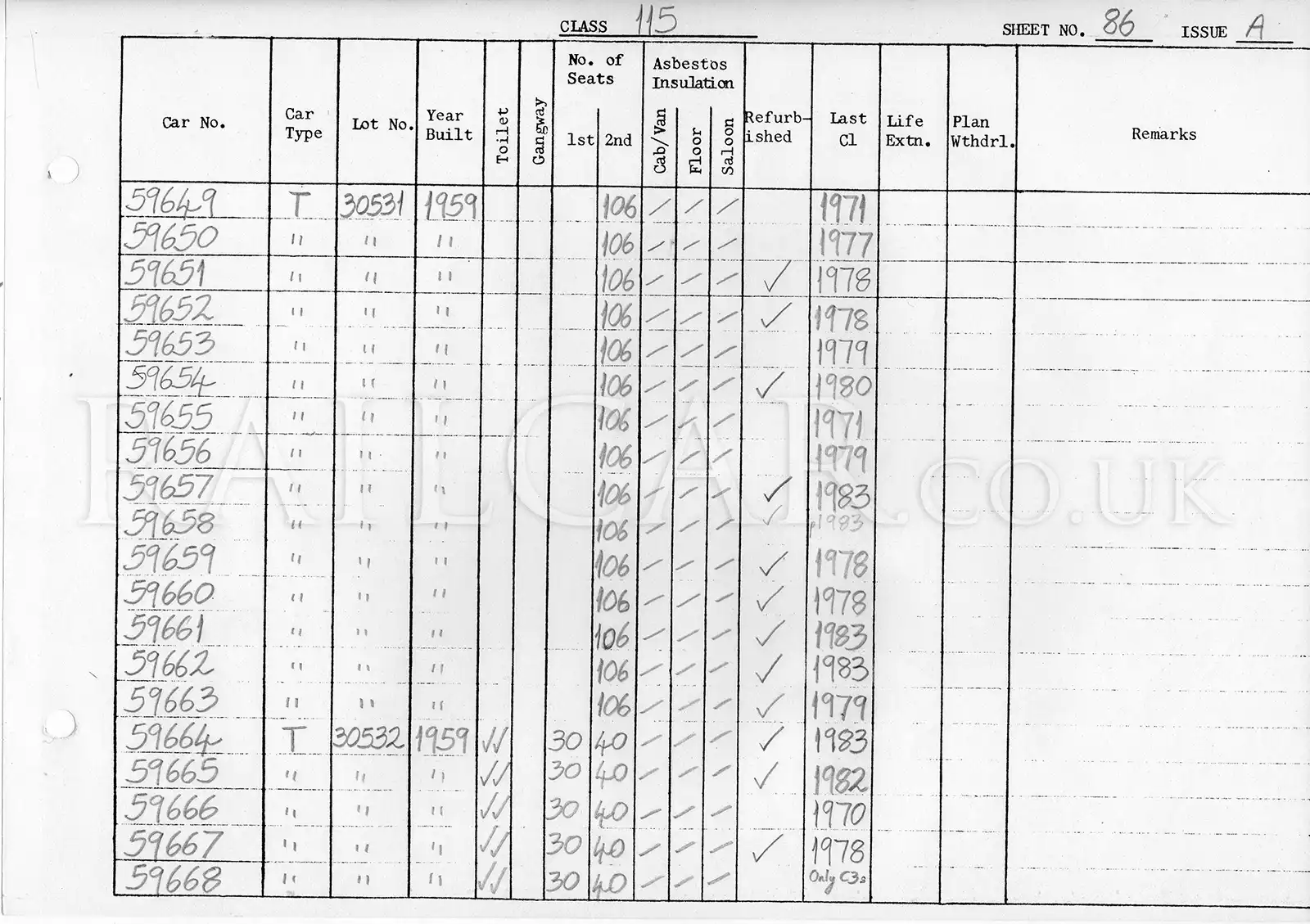

RTC DMU vehicle log page 86

59649 - 59668

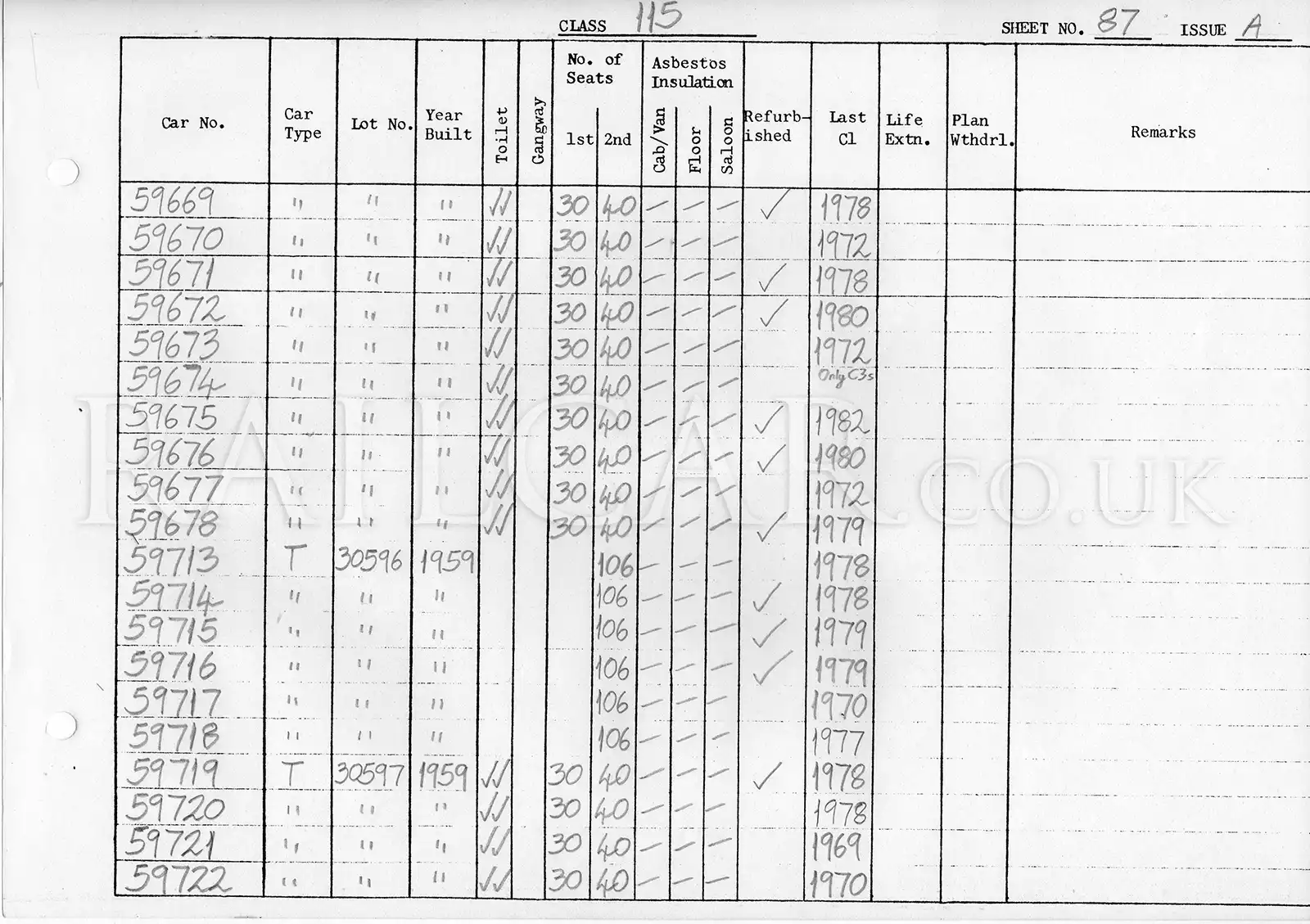

RTC DMU vehicle log page 87

59669 - 59722

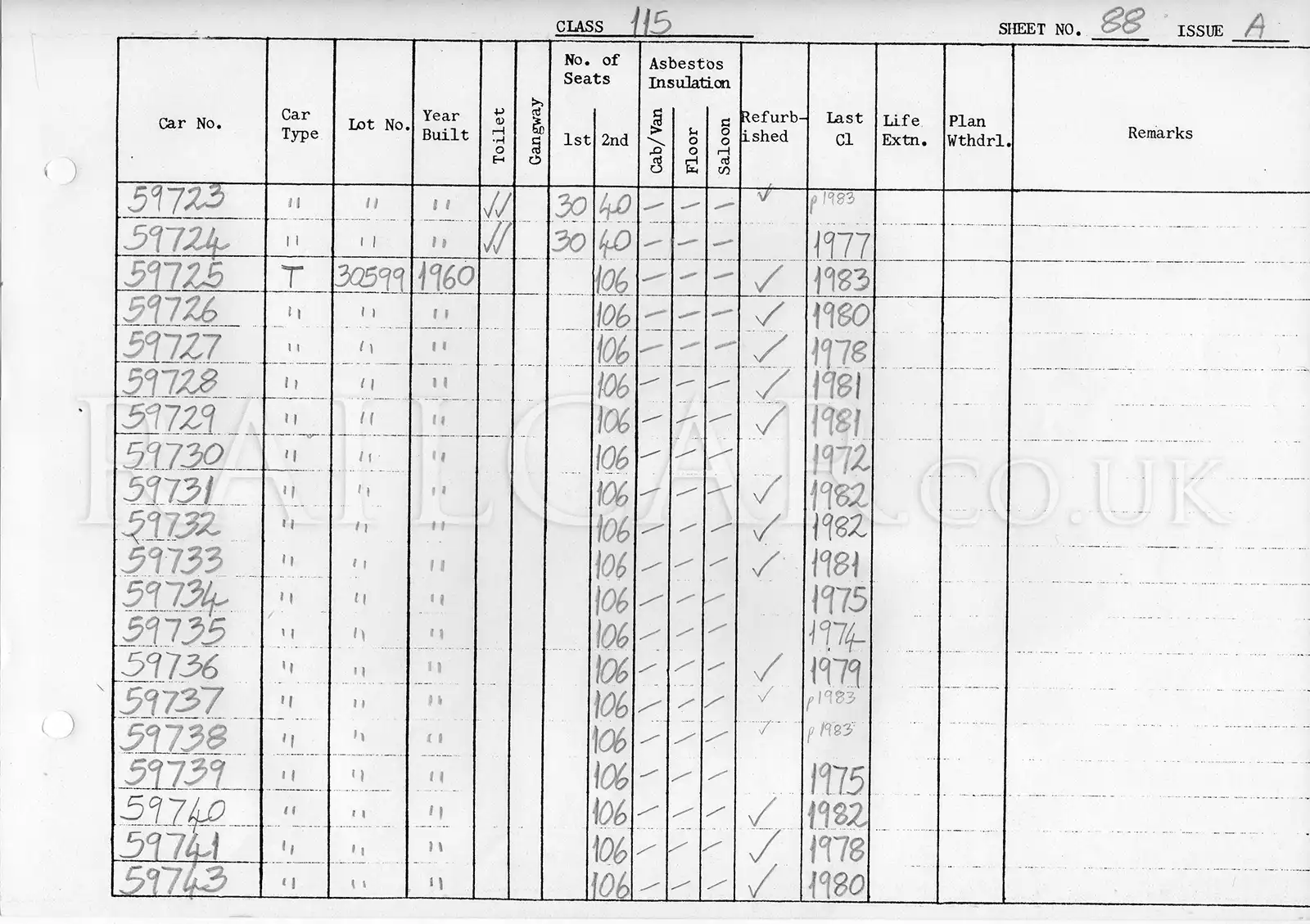

RTC DMU vehicle log page 88

59723 - 59743

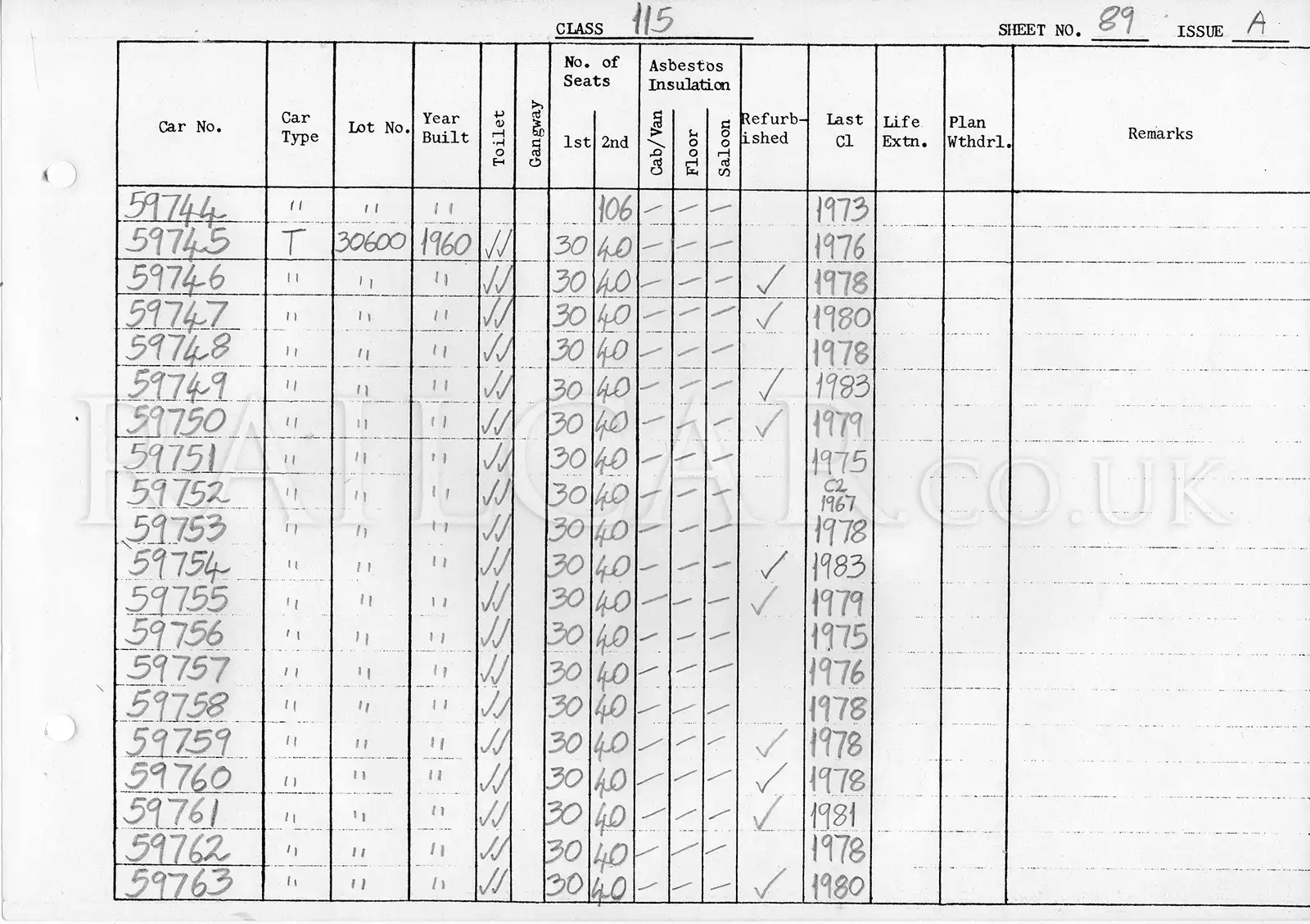

RTC DMU vehicle log page 89

59744 - 59763

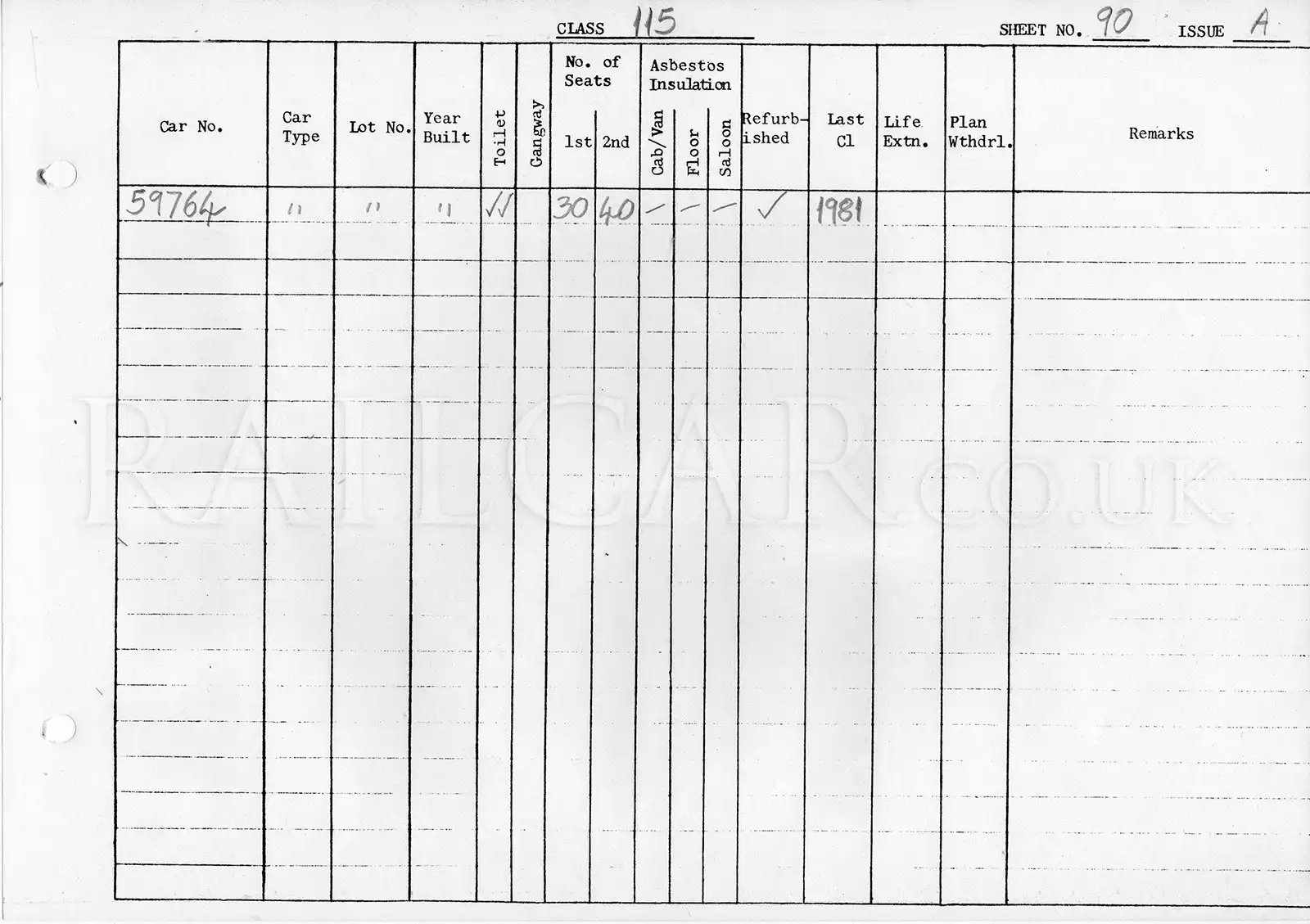

RTC DMU vehicle log page 90

59764

Class 116

Pages 91 - 106

RTC DMU vehicle log page 91

53050 - 53070

RTC DMU vehicle log page 92

53071 - 53091

RTC DMU vehicle log page 93

53092 - 53112

RTC DMU vehicle log page 94

53113 - 53818

RTC DMU vehicle log page 95

53819 - 53838

RTC DMU vehicle log page 96

53839 - 53858

RTC DMU vehicle log page 97

53859 - 53880

RTC DMU vehicle log page 98

53881 - 53900

RTC DMU vehicle log page 99

53901 - 53920

RTC DMU vehicle log page 100

53921 - 51145

RTC DMU vehicle log page 101

51146 - 51153

RTC DMU vehicle log page 102

59001 - 59021

RTC DMU vehicle log page 103

59026 - 59330

RTC DMU vehicle log page 104

59331 - 59352

RTC DMU vehicle log page 105

59353 - 59374

RTC DMU vehicle log page 106

59375 - 59448

Class 117

Pages 107 - 113

RTC DMU vehicle log page 107

51332 - 51351

RTC DMU vehicle log page 108

51352 - 51372

RTC DMU vehicle log page 109

51373 - 51392

RTC DMU vehicle log page 110

51393 - 51413

RTC DMU vehicle log page 111

51414 - 51415

RTC DMU vehicle log page 112

59484 - 59503

RTC DMU vehicle log page 113

59504 - 59522

Class 118

Pages 114 - 116

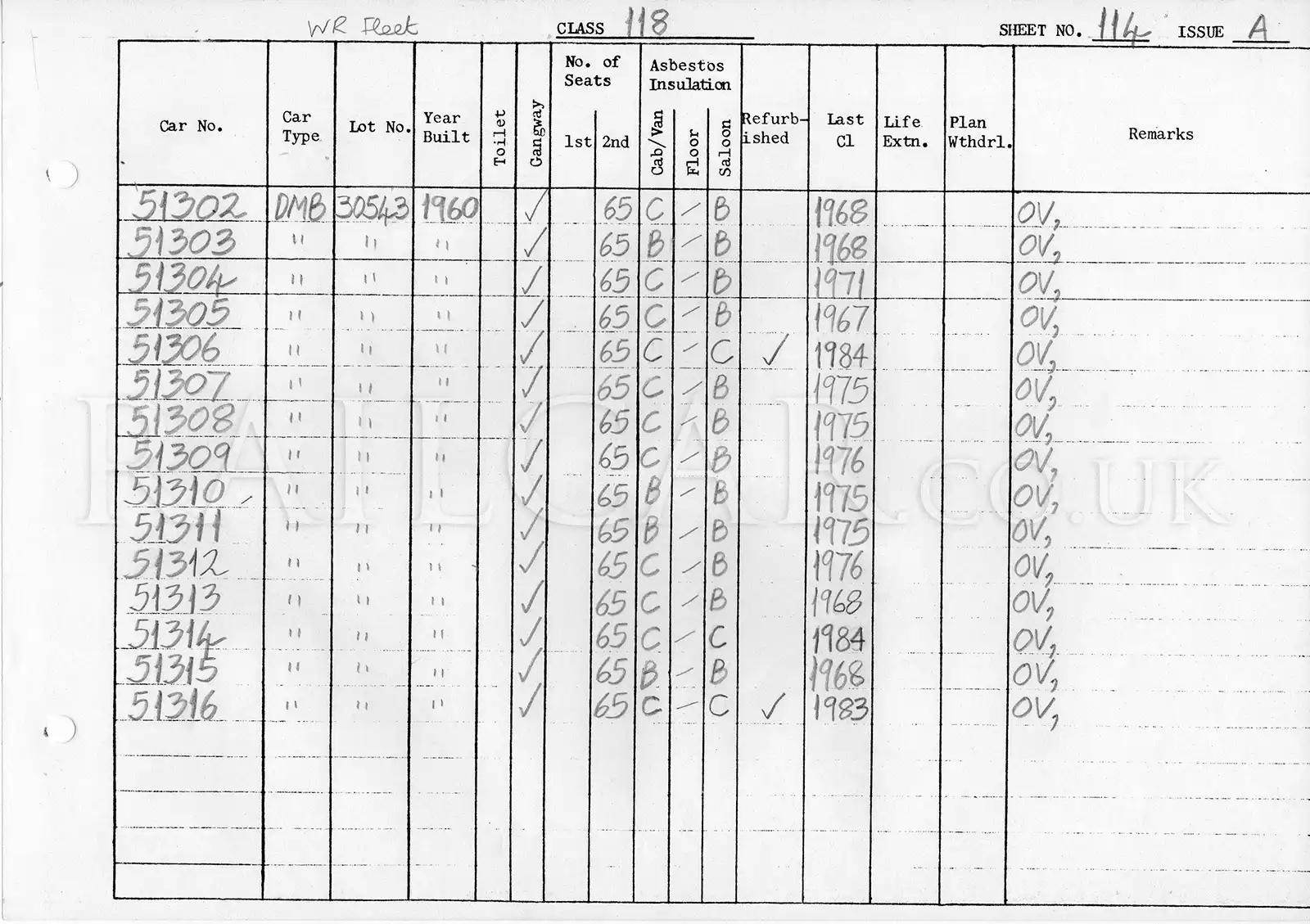

RTC DMU vehicle log page 114

51302 - 51316

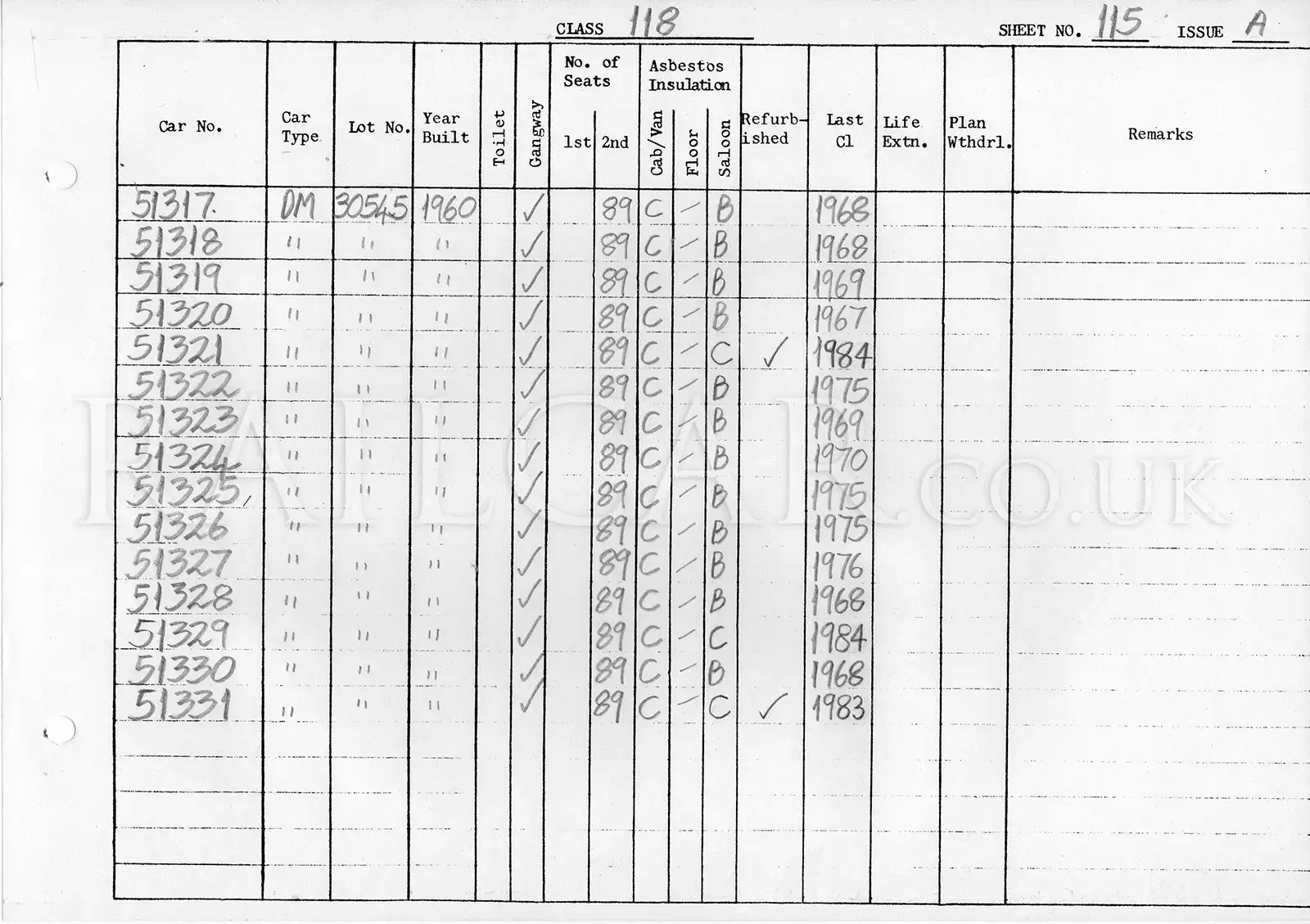

RTC DMU vehicle log page 115

51317 - 51331

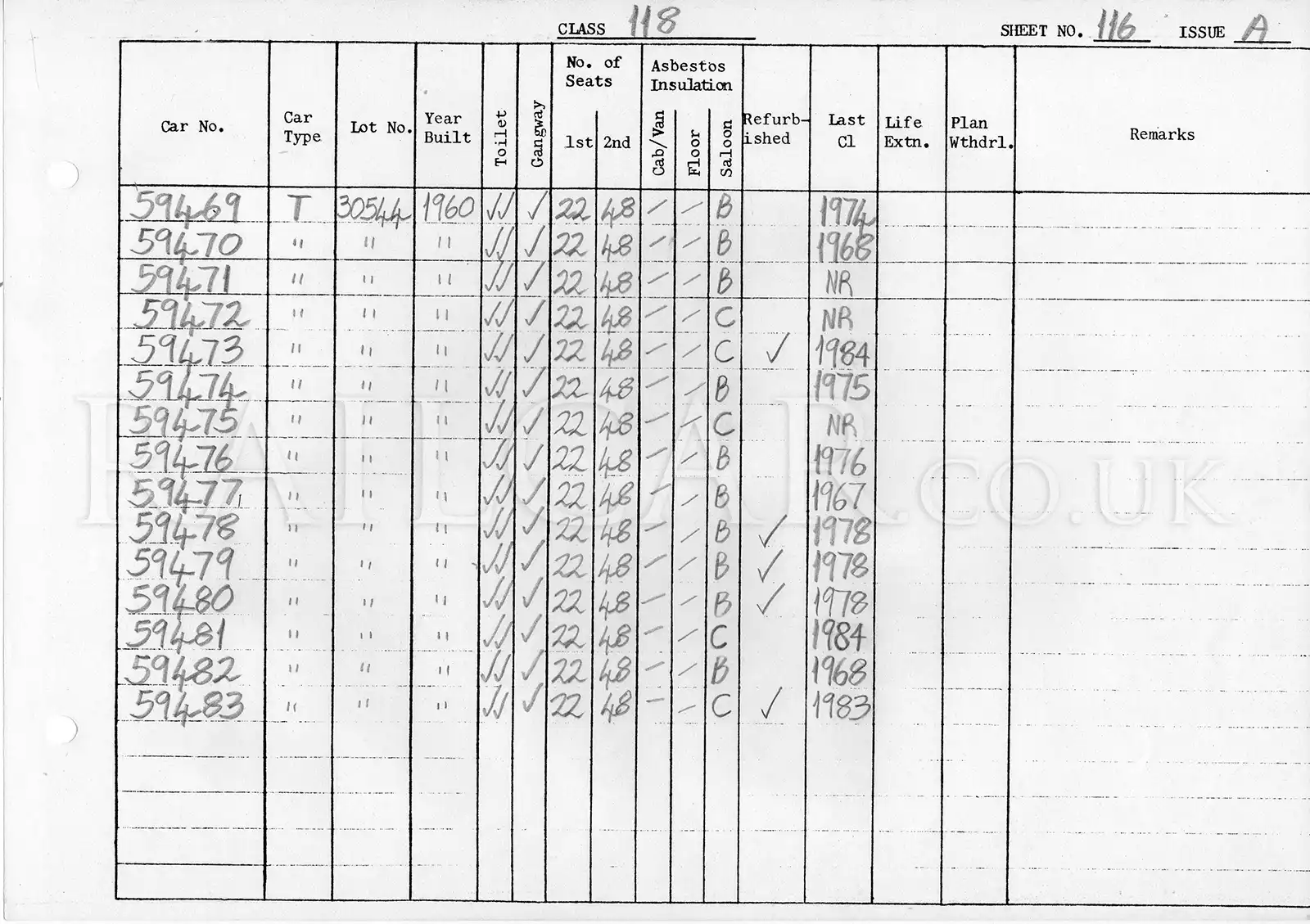

RTC DMU vehicle log page 116

59469 - 59483

Class 119

Pages 117 - 121

DMU vehicle log page 117

51052 - 51073

DMU vehicle log page 118

51074 - 51095

DMU vehicle log page 119

51096 - 51107

DMU vehicle log page 120

59413 - 59432

DMU vehicle log page 121

59433 - 59437

Class 120

Pages 122 - 131

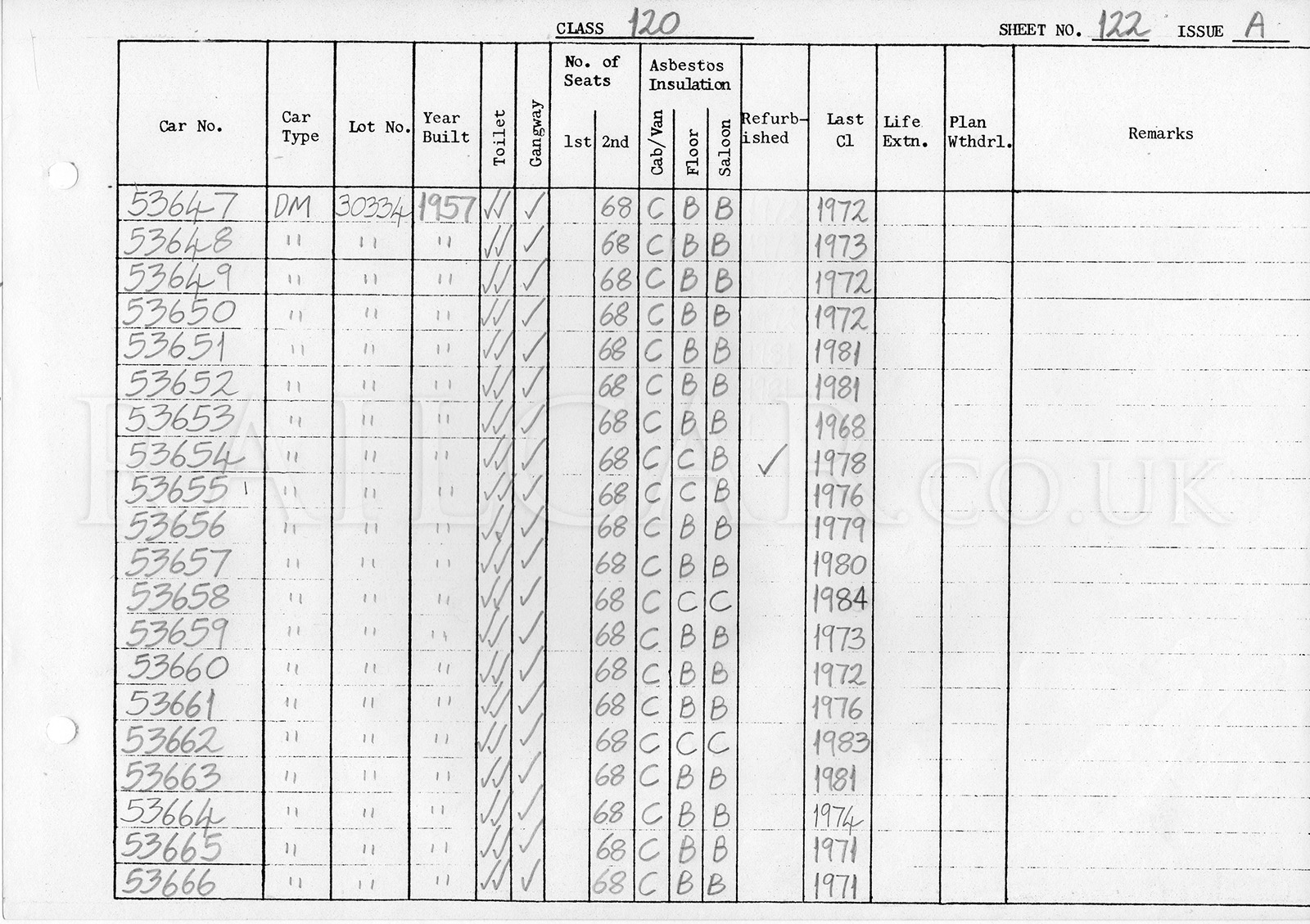

DMU vehicle log page 122

53647 - 53666

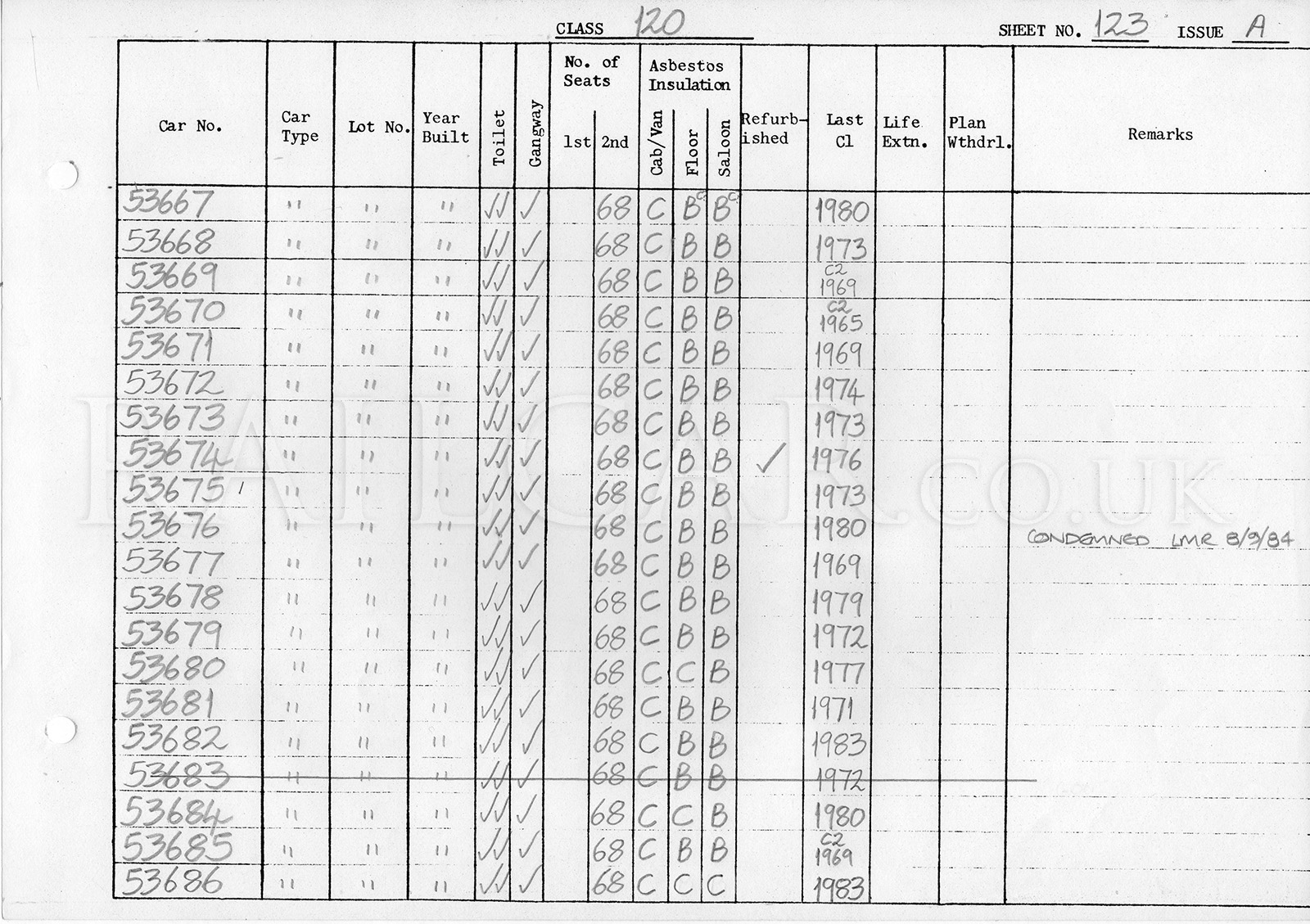

DMU vehicle log page 123

53667 - 53686

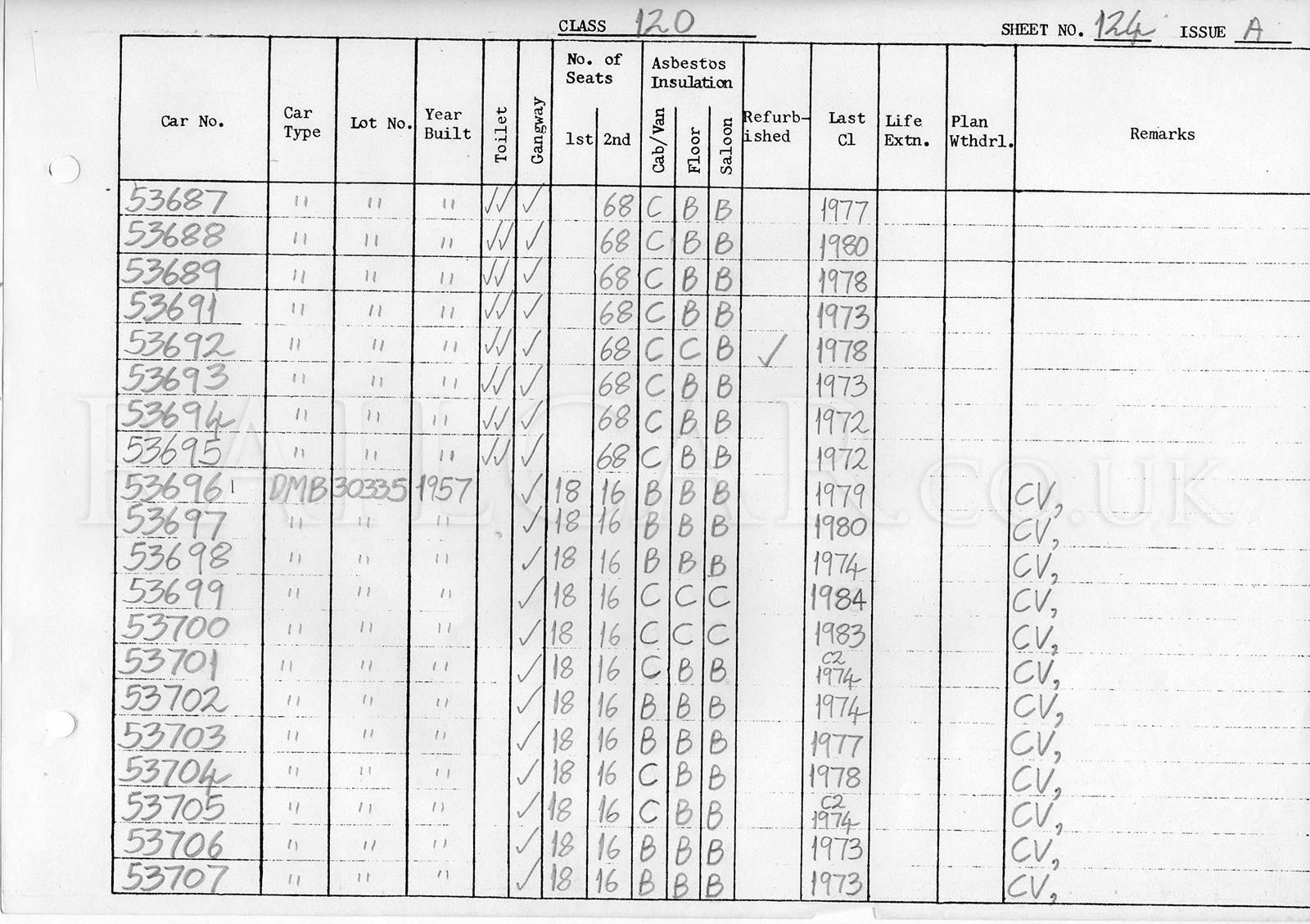

DMU vehicle log page 124

53687 - 53707

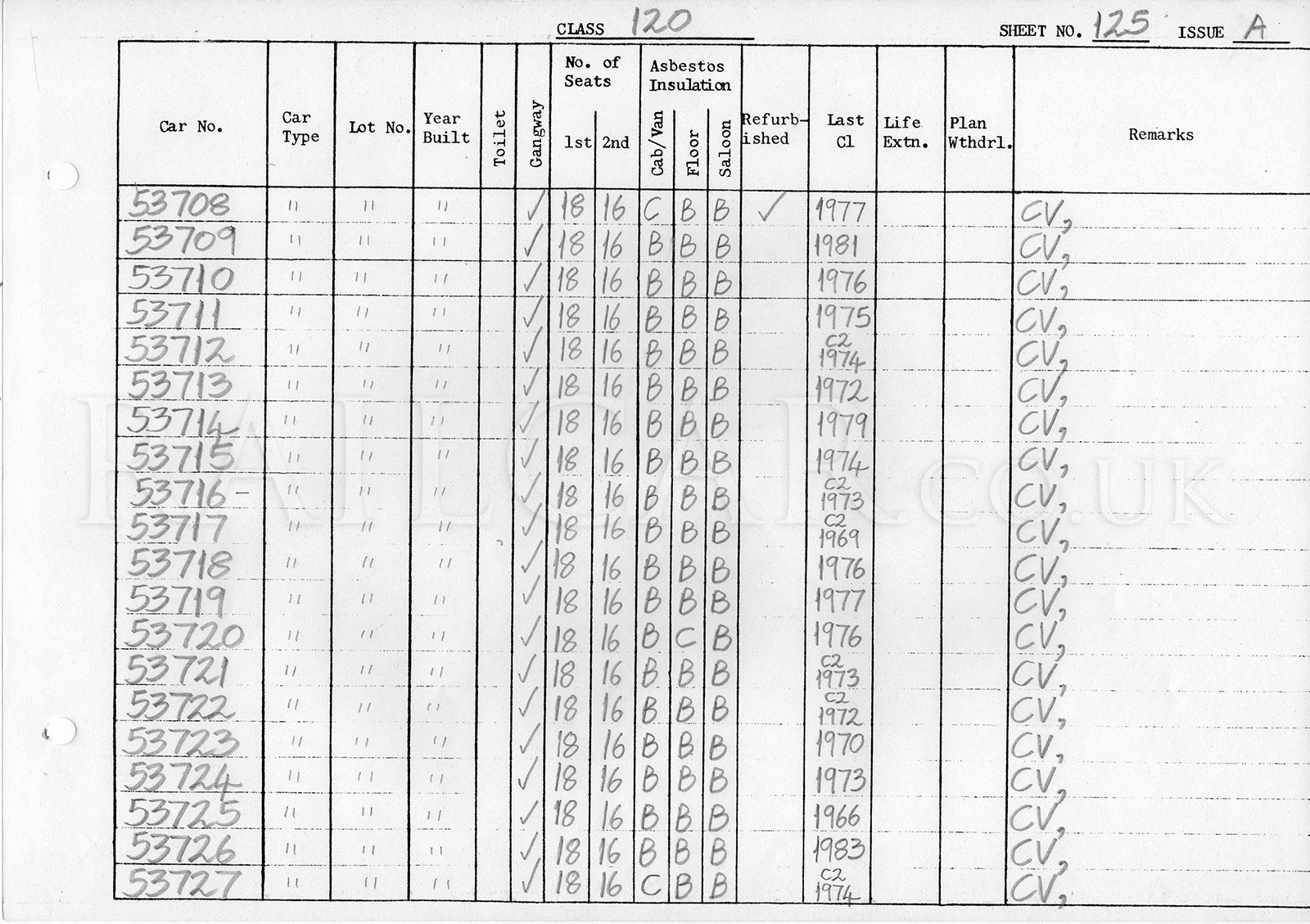

DMU vehicle log page 125

53708 - 53727

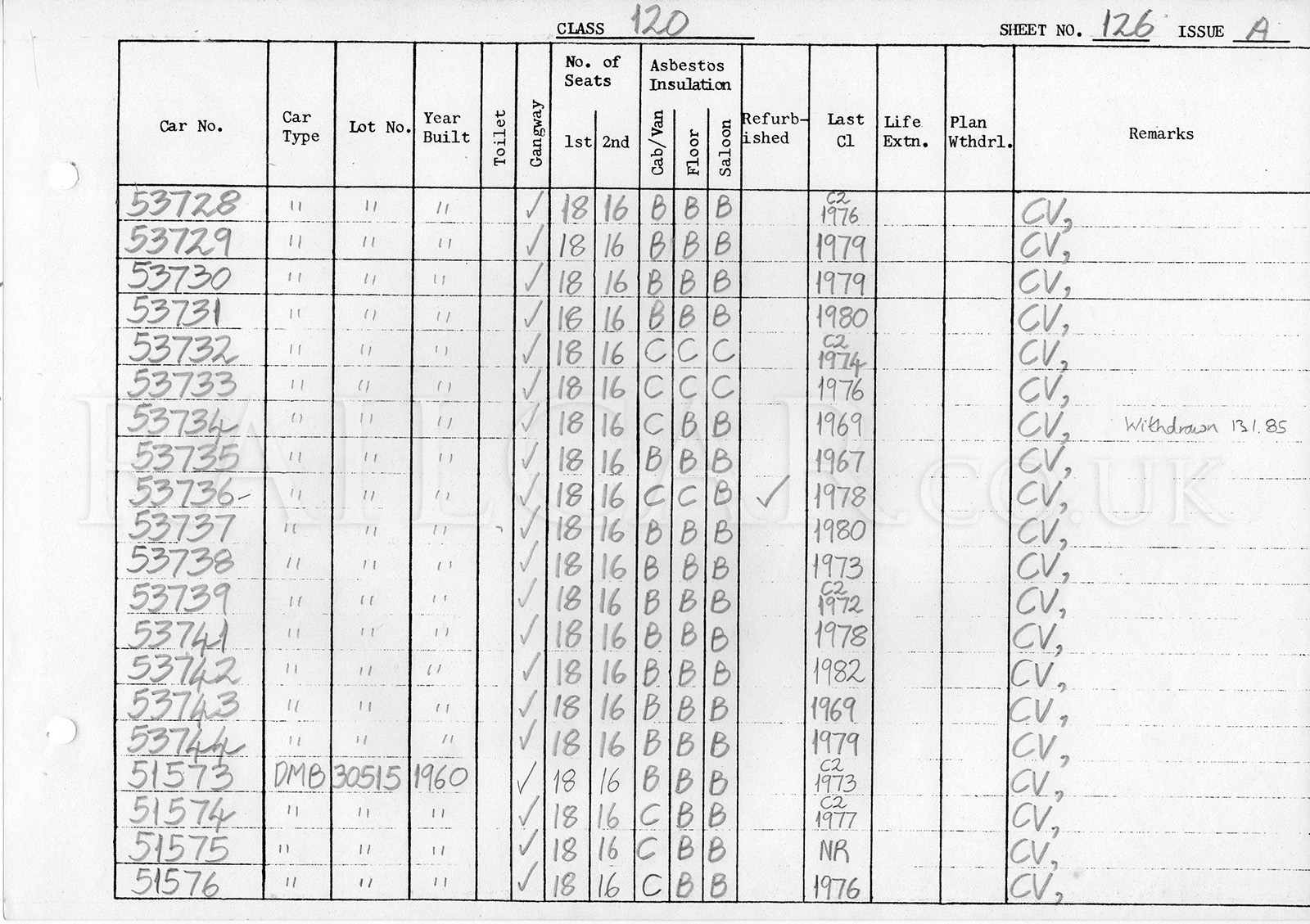

DMU vehicle log page 126

53728 - 51576

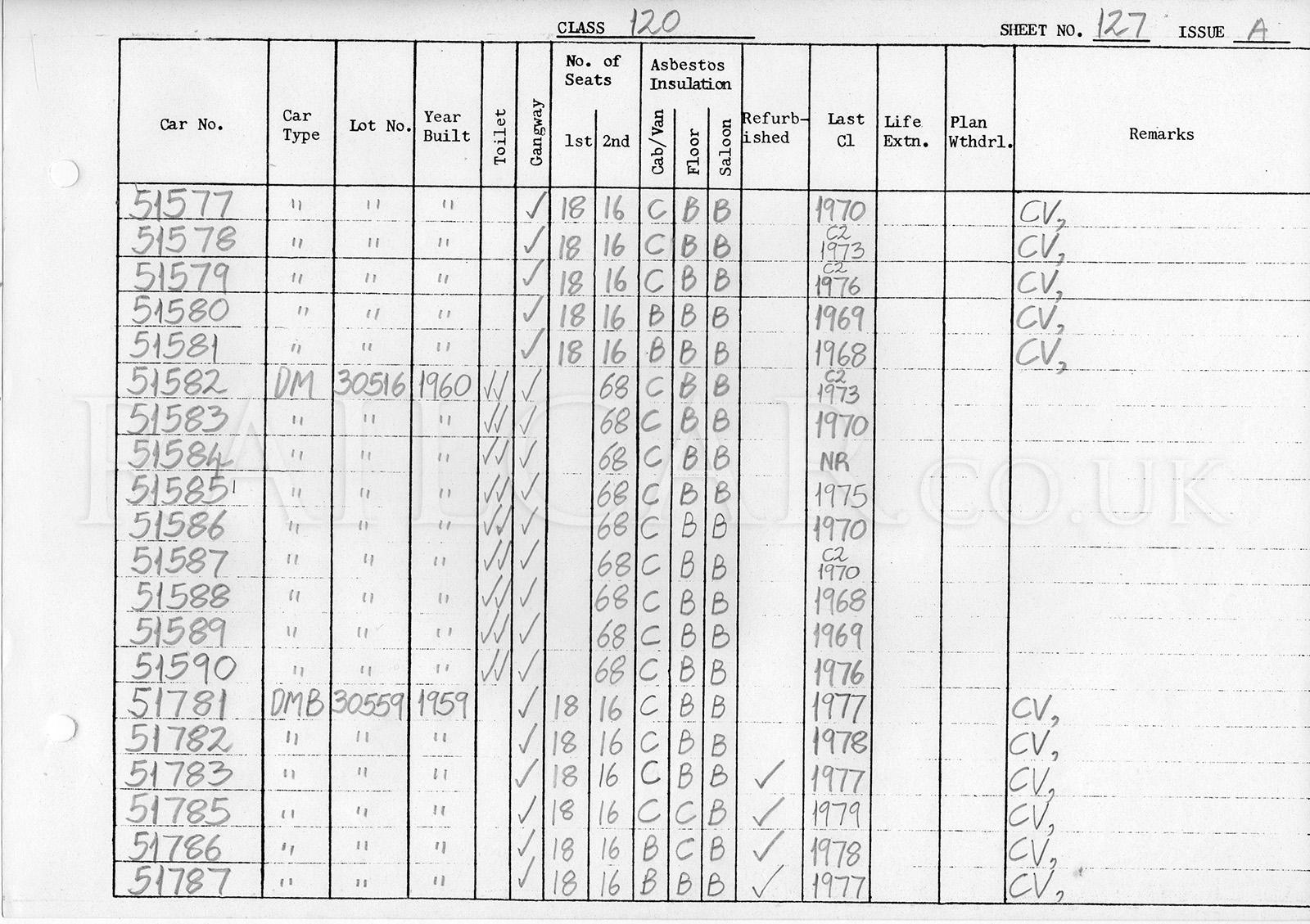

DMU vehicle log page 127

51577 - 51787

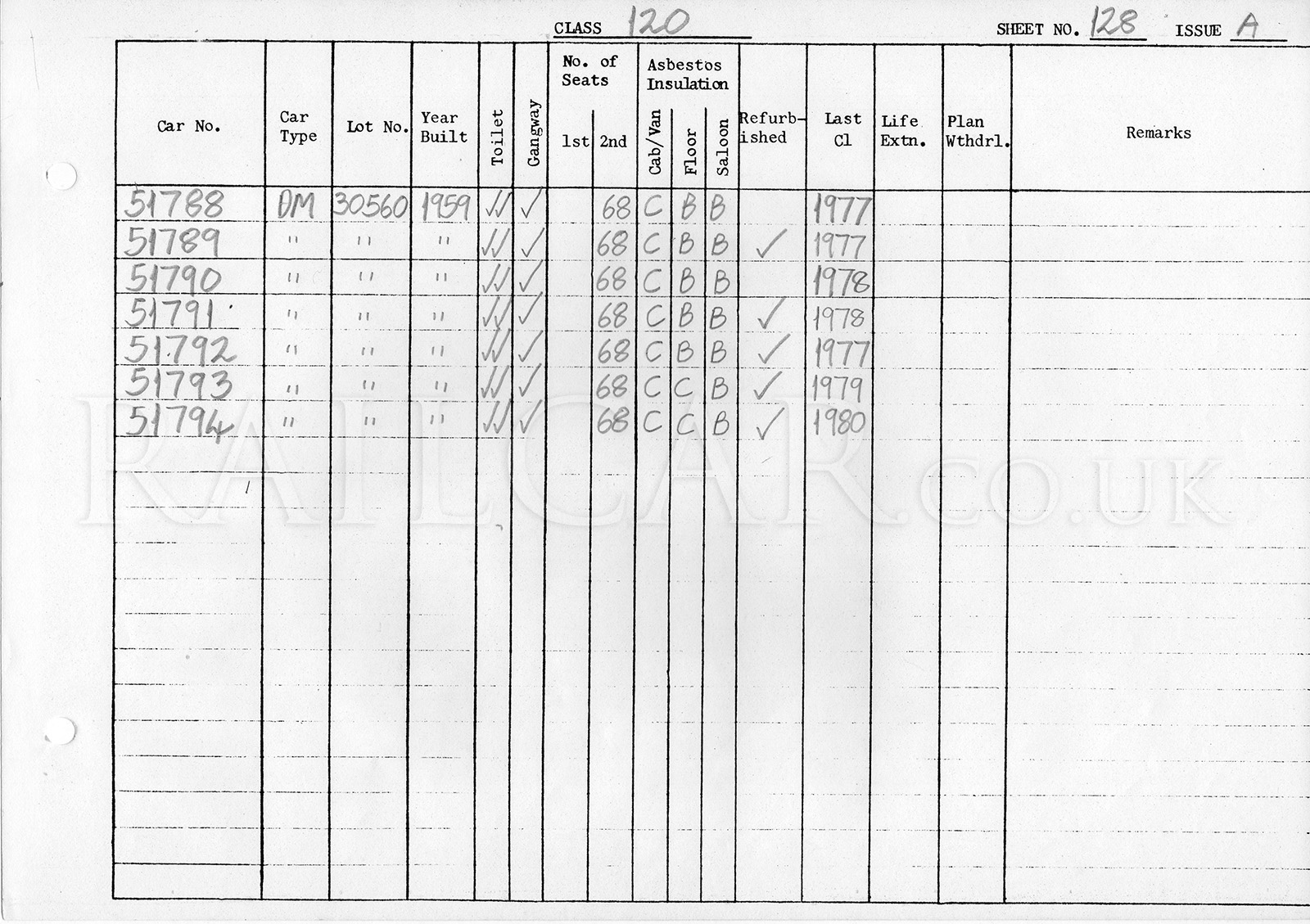

DMU vehicle log page 128

51788 - 51794

DMU vehicle log page 129

59256 - 59284

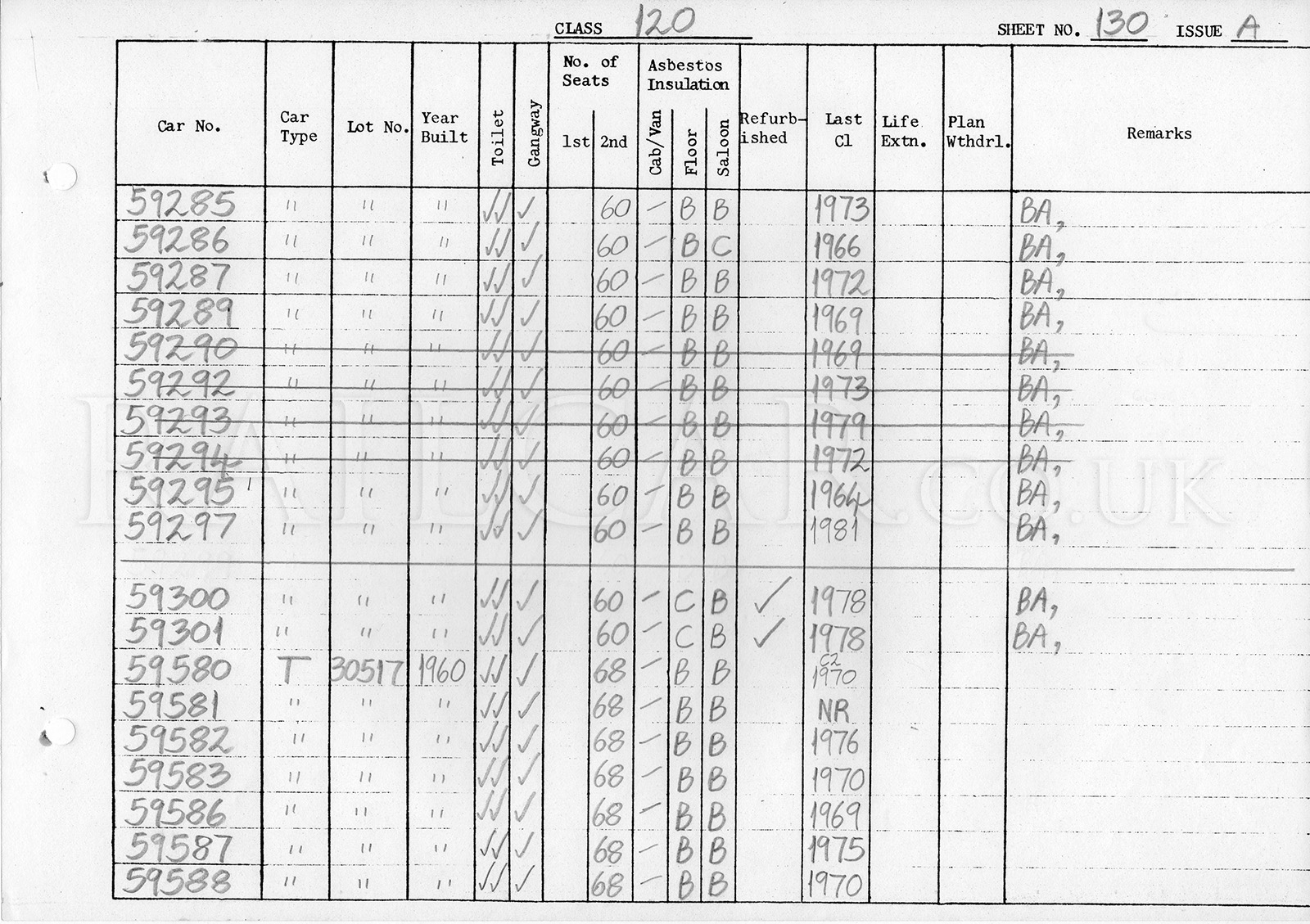

DMU vehicle log page 130

59285 - 59588

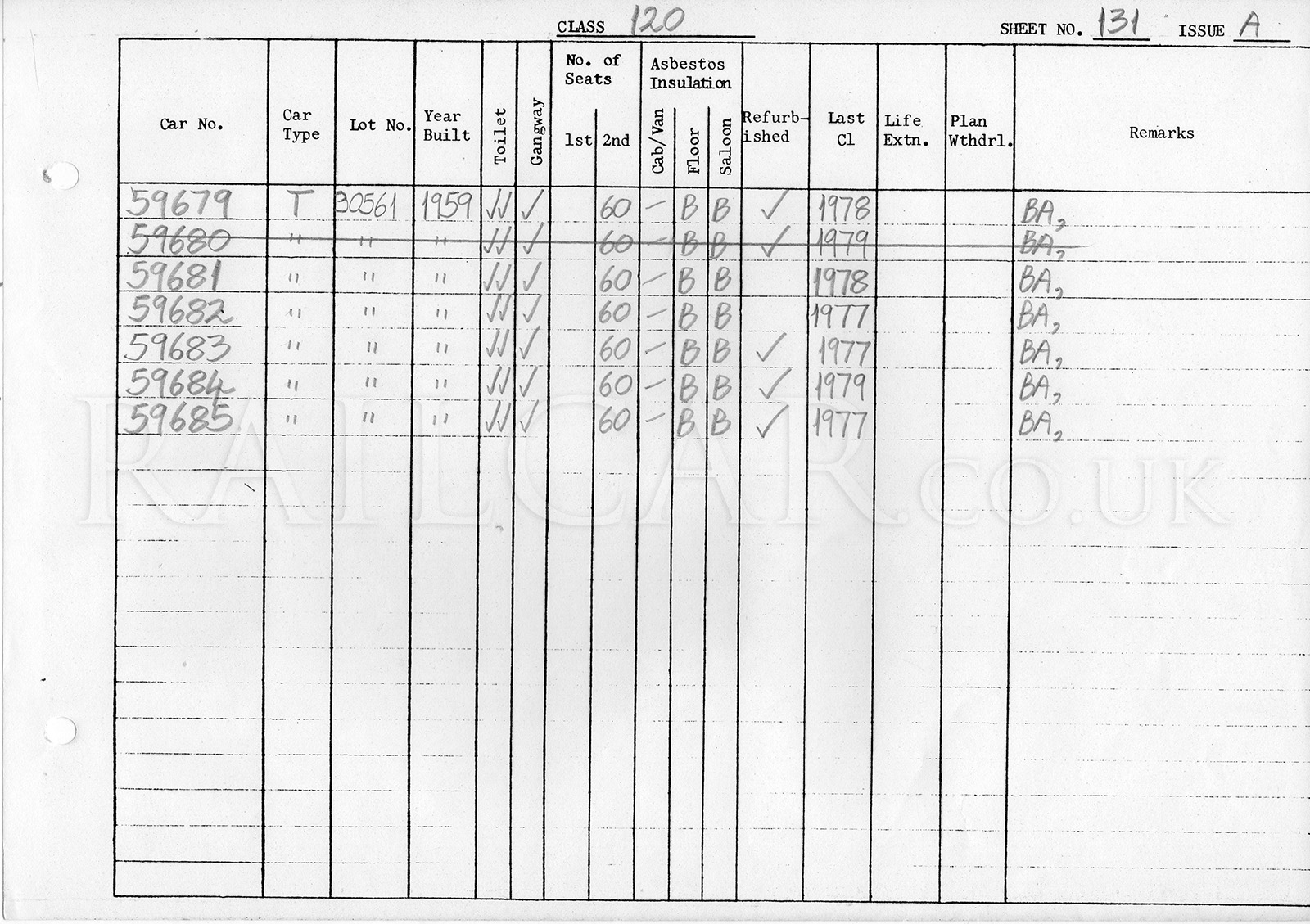

DMU vehicle log page 131

59679 - 59685

Class 121

Pages 132 - 133

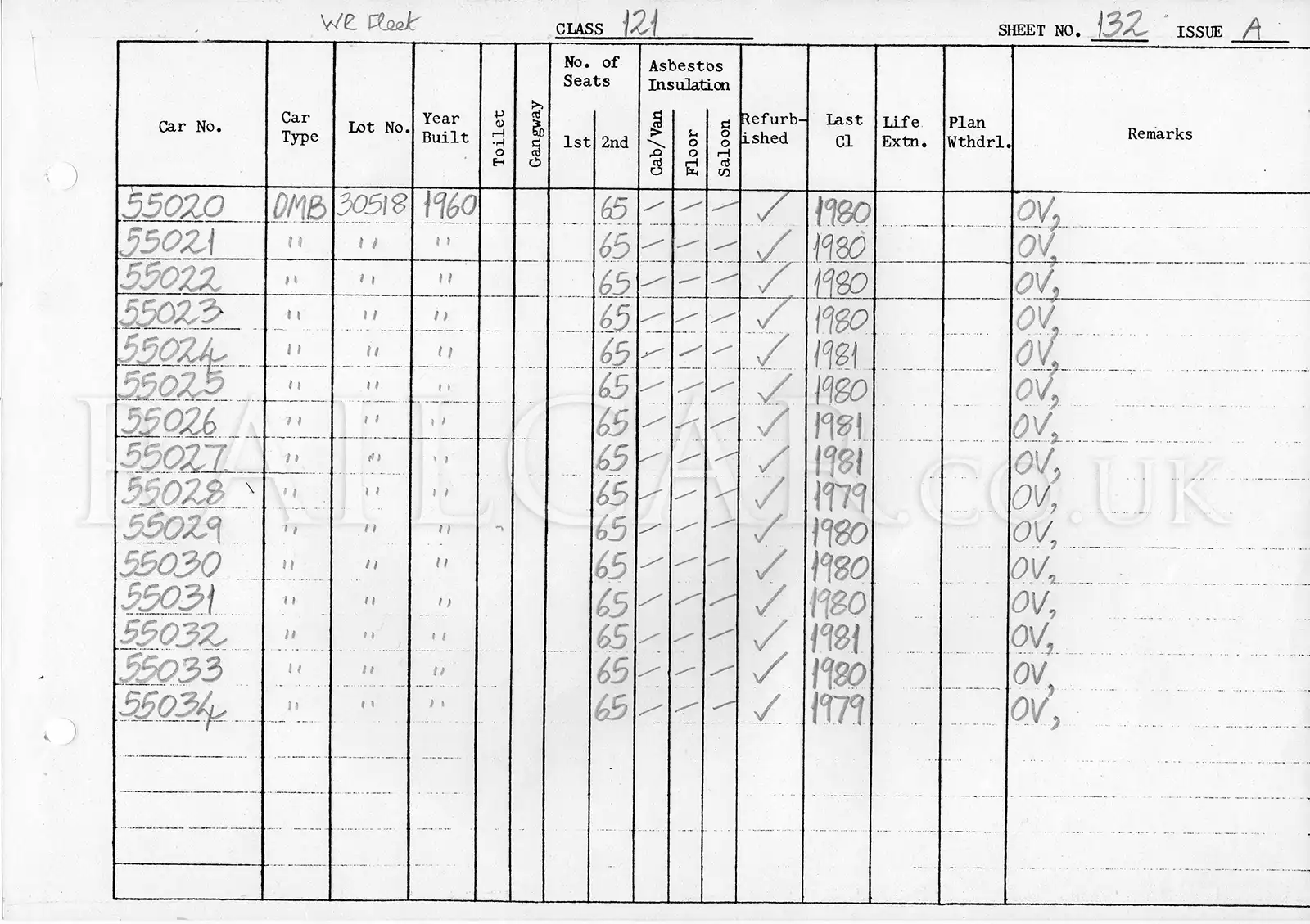

DMU vehicle log page 132

55020 - 55034

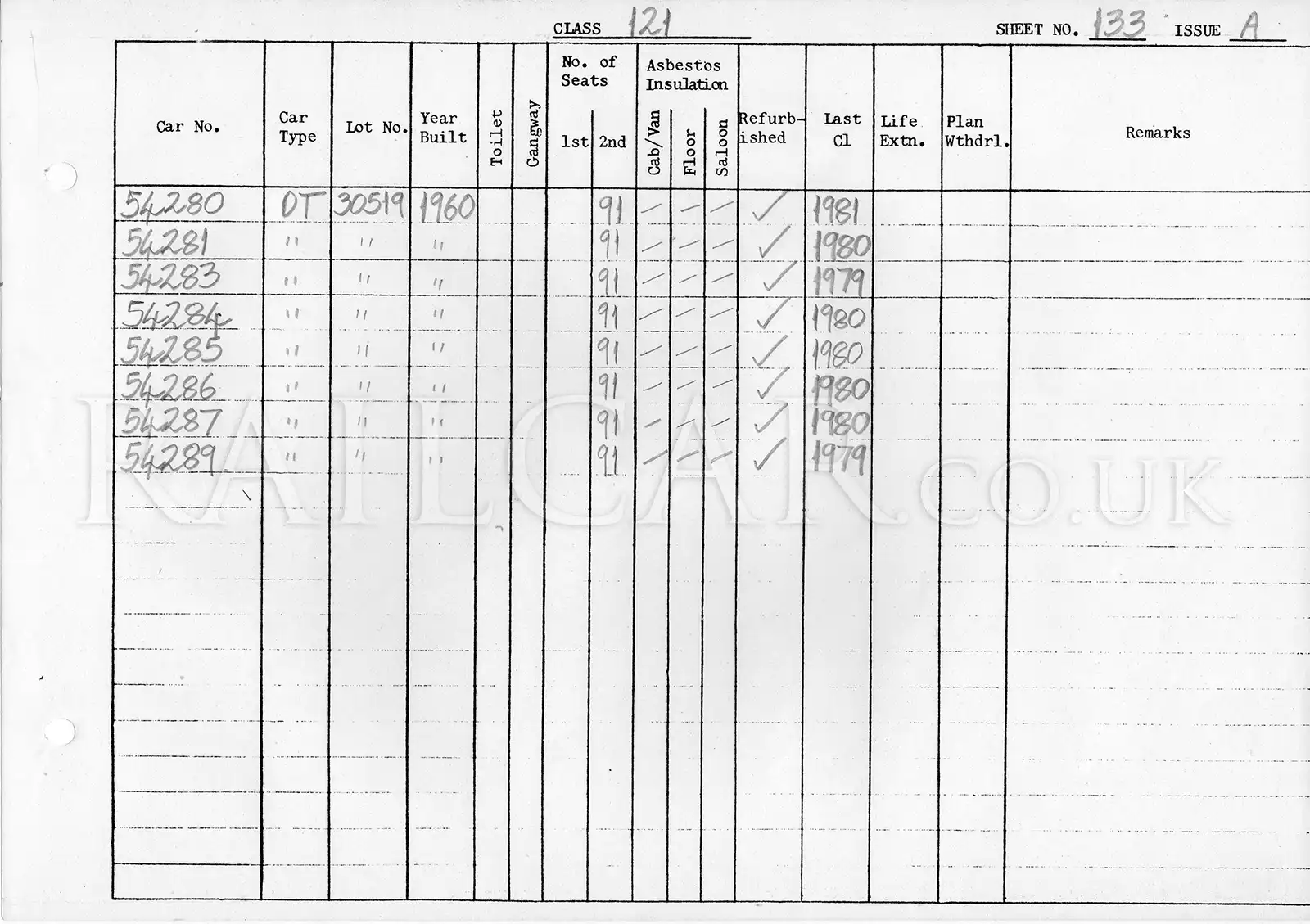

DMU vehicle log page 133

54280 - 54289

Class 122

Page 134

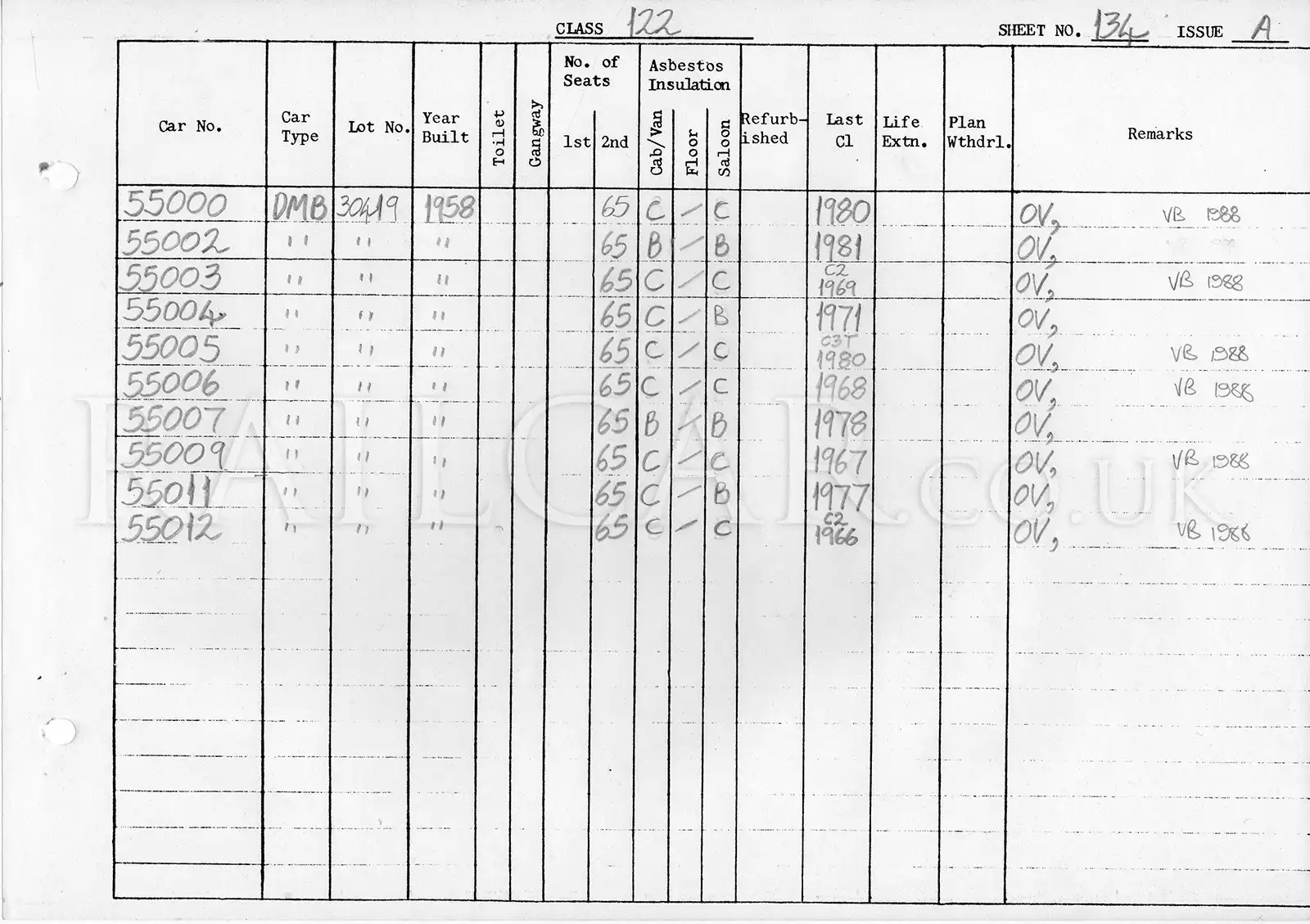

DMU vehicle log page 134

55000 - 55012

Class 127

Pages 135 - 137

RTC DMU vehicle log page 135

59589 - 59610

RTC DMU vehicle log page 136

59611 - 59633

RTC DMU vehicle log page 137

59634 - 59648
