Class 119 GRC&W Cross-Country 3-car DMUs


Diagrams

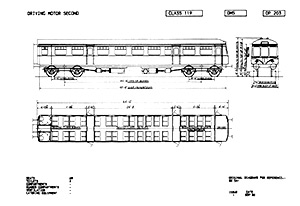

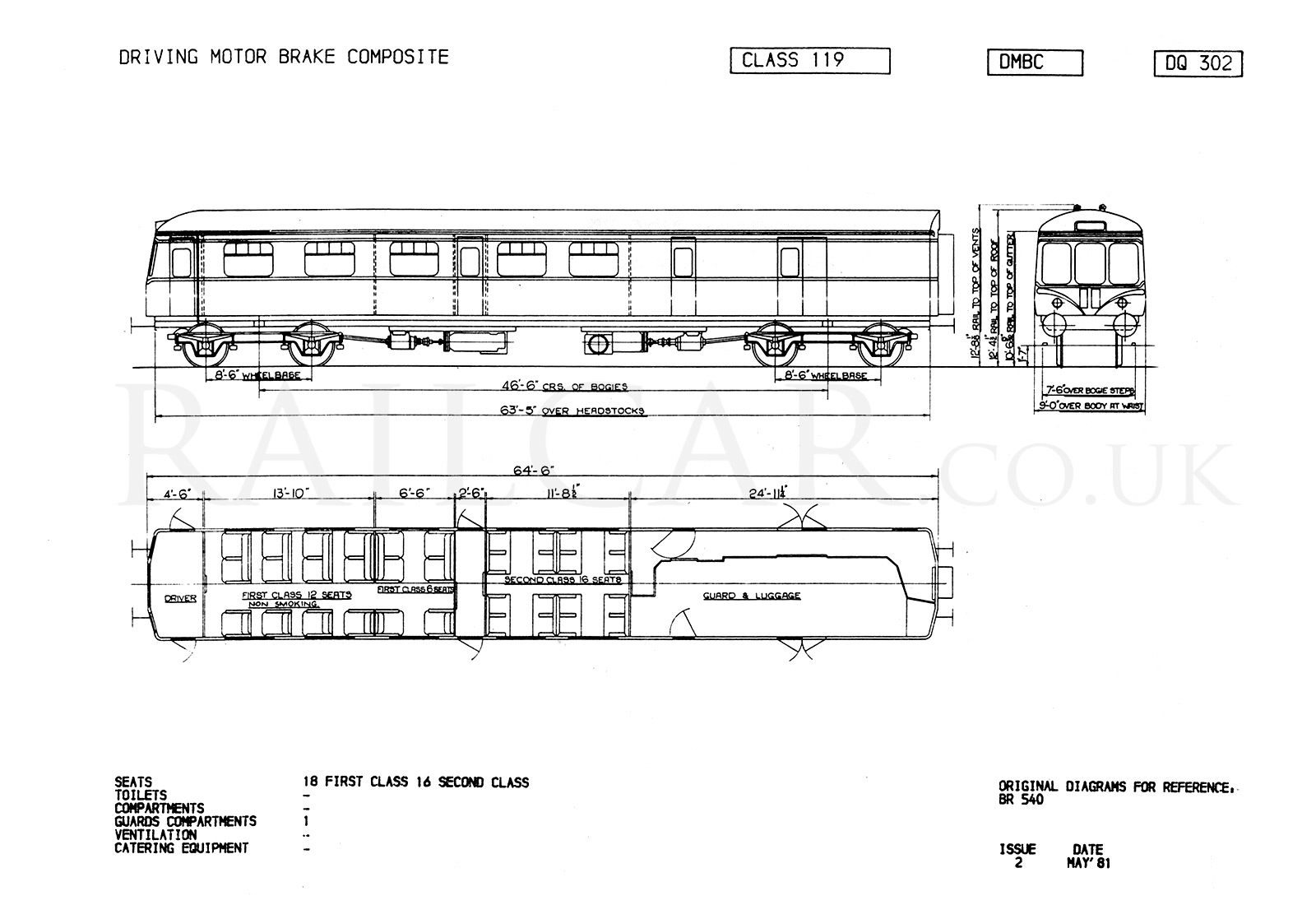

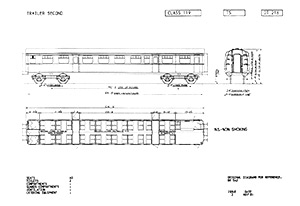

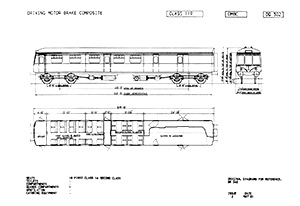

BR 540 (DMBC), BR 542 (TBSL) and BR 541 (DMS)

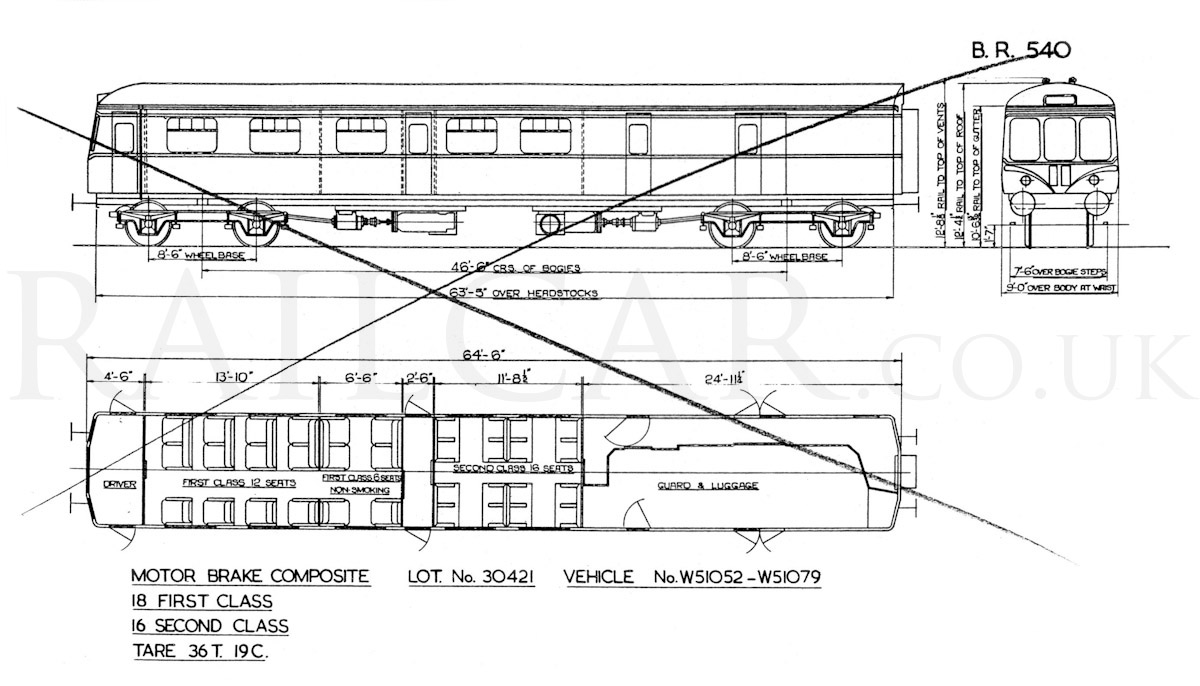

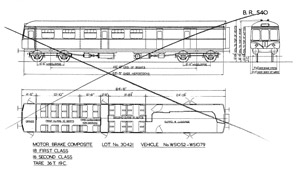

Alternate version for the DMBS, same drawings but text in different position:



Design Codes

DMBC: DQ302, TBS: DT216, DMS: DP203

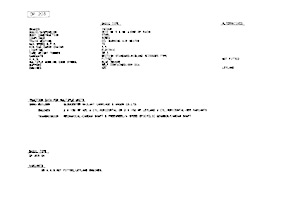

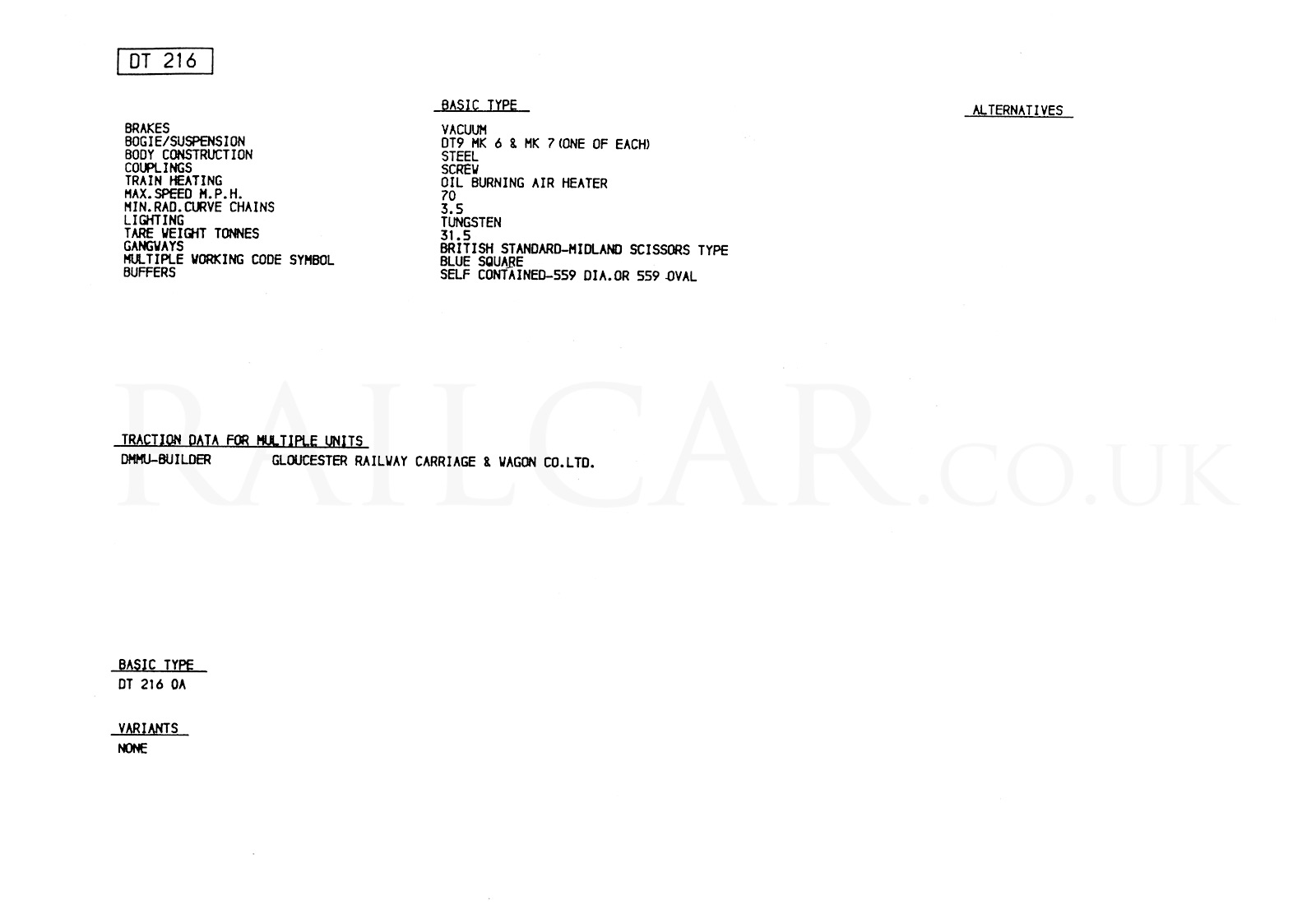

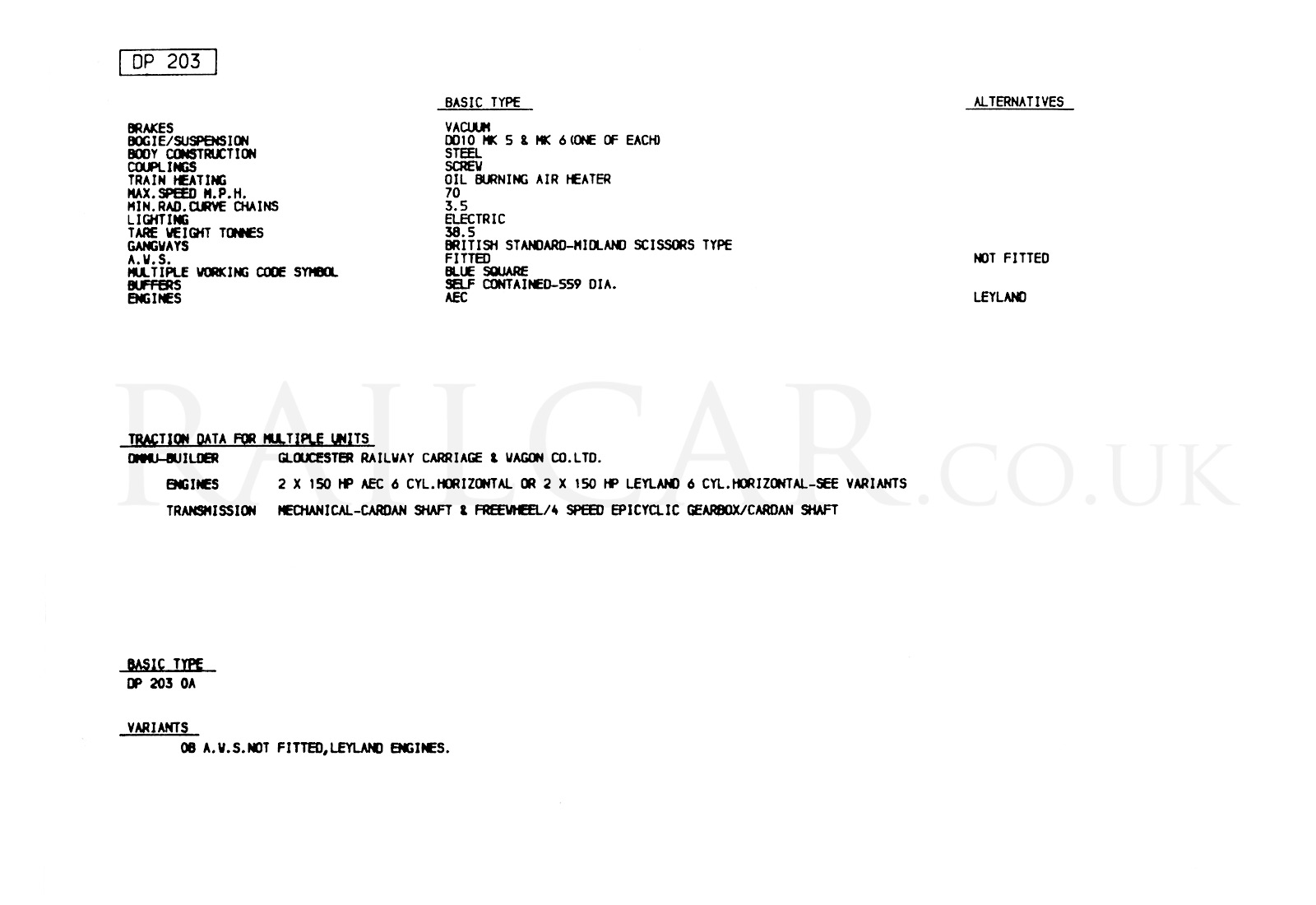

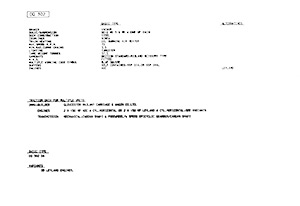

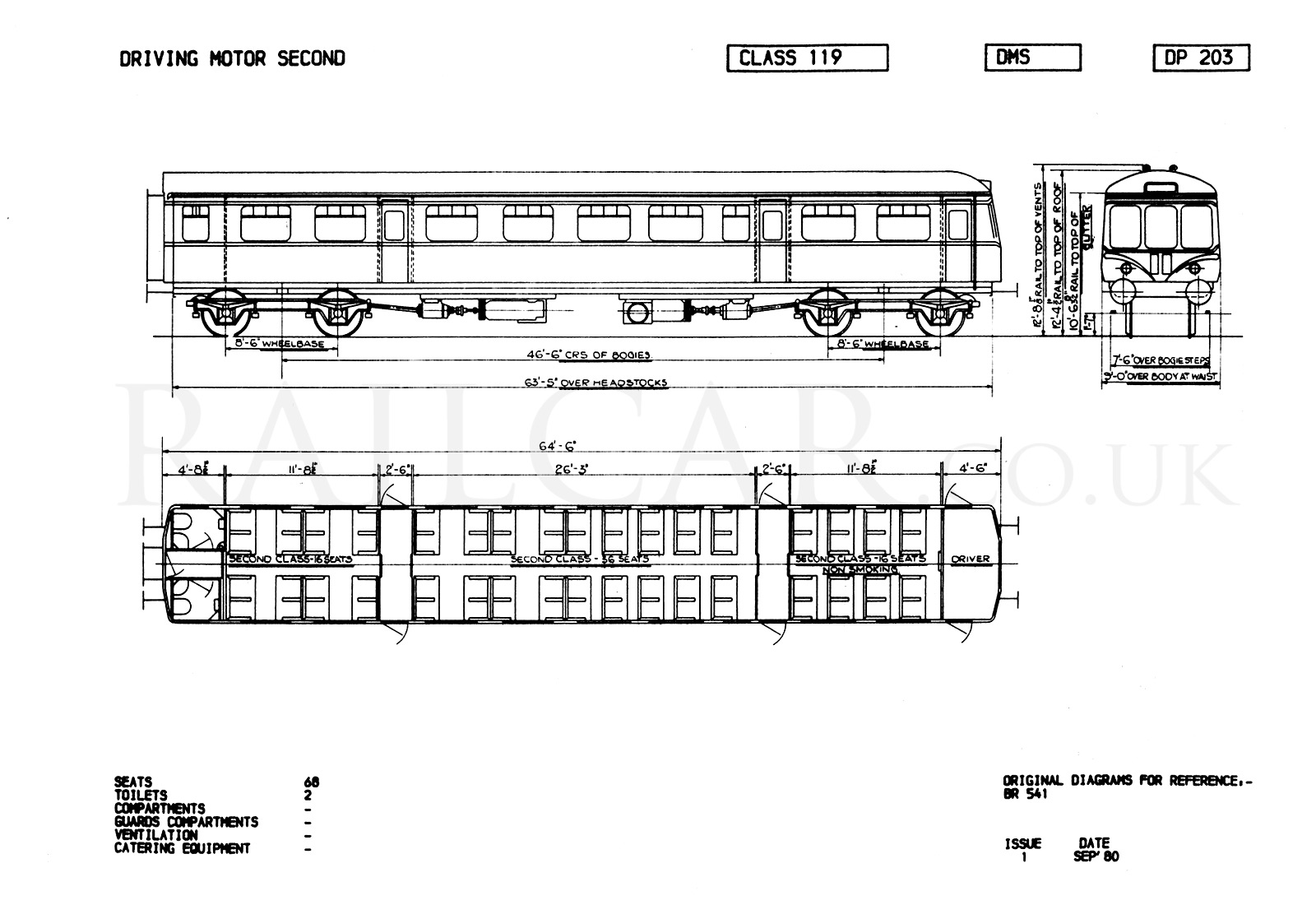

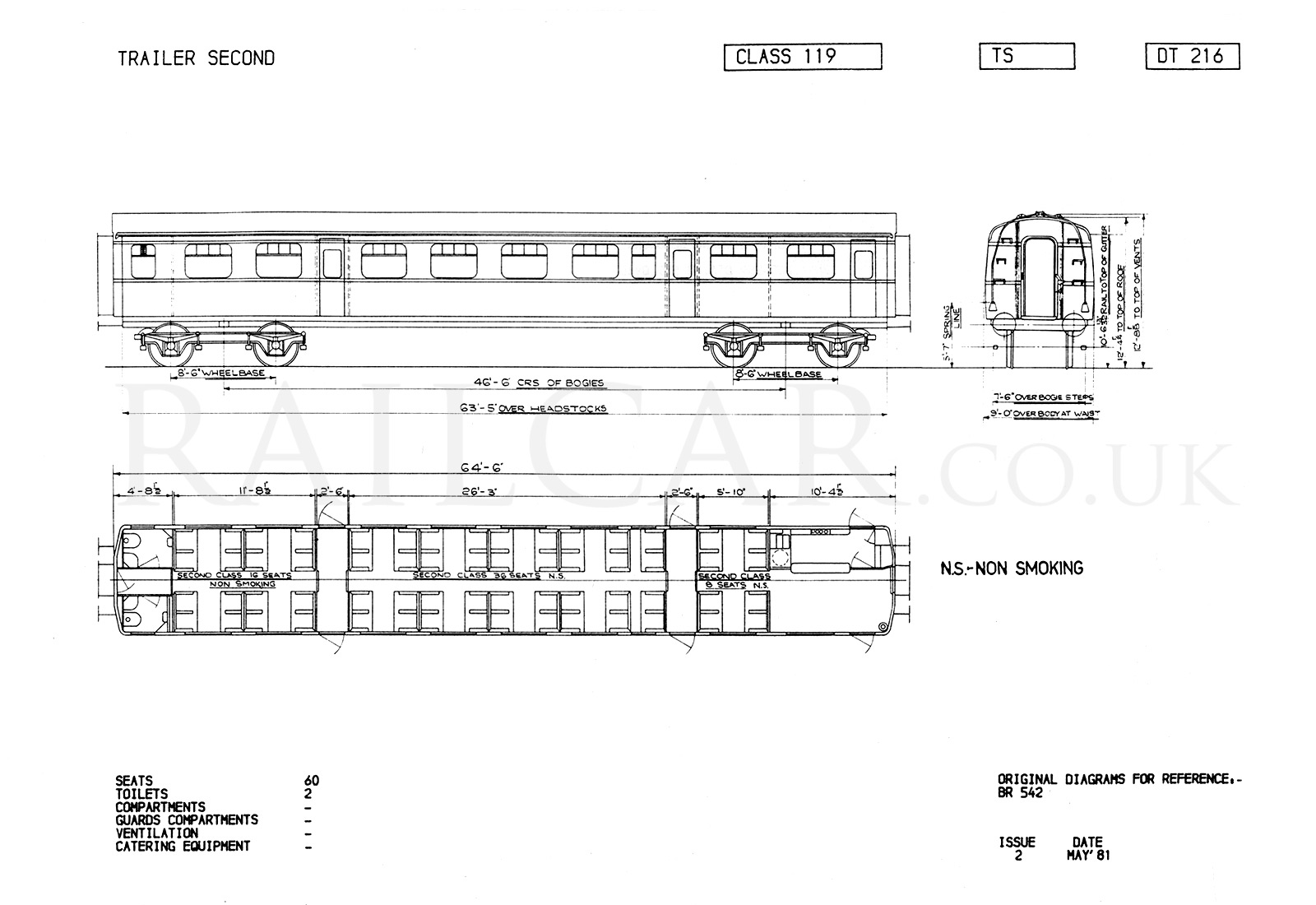

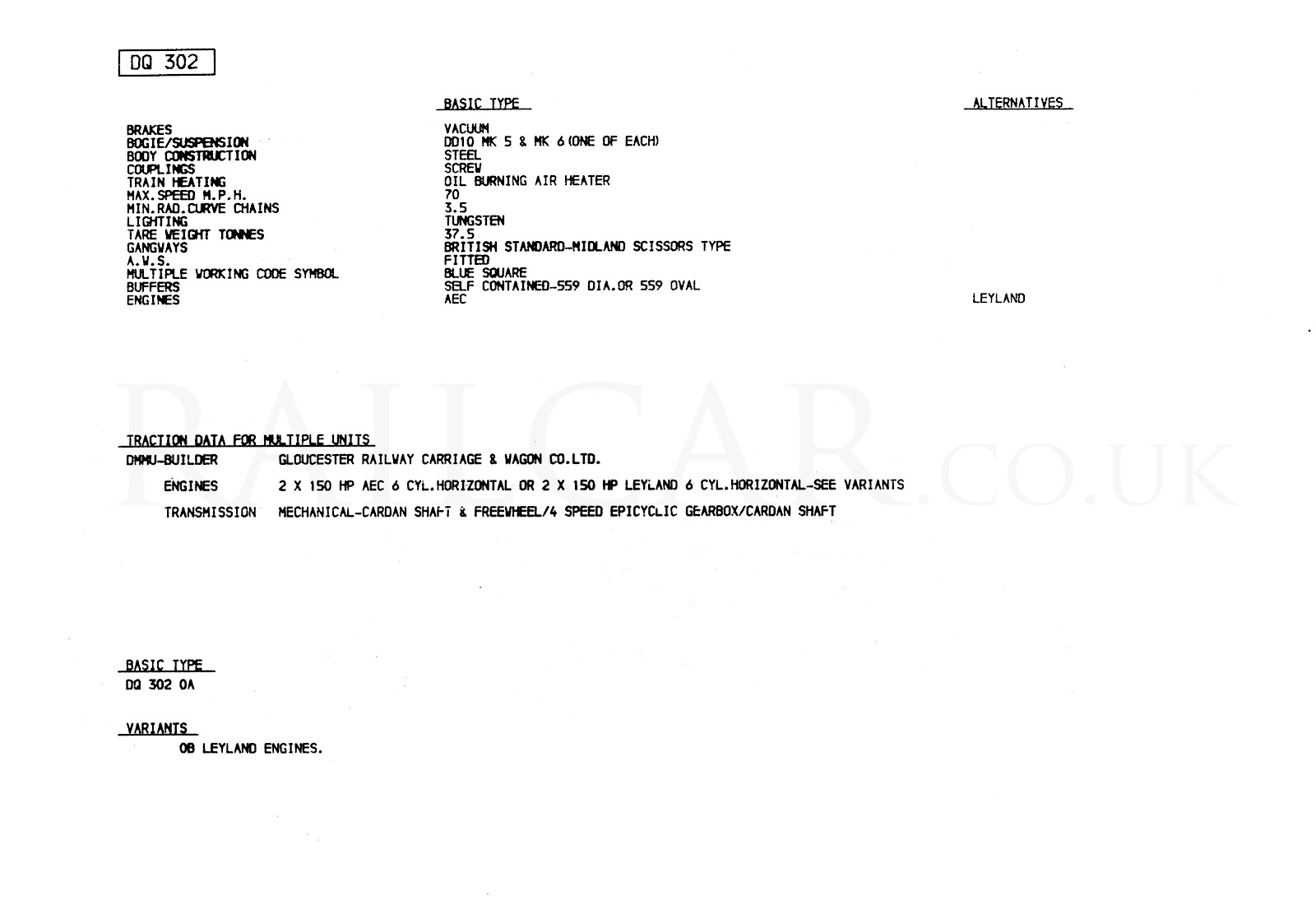

DMU Design code DQ302 DMU Design code DQ302 reverse DMU Design code DT216 DMU Design code DT216 reverse DMU Design code DP203 DMU Design code DP203 reverse

Details about preserved Class 119s can be found here.

Thanks to Jim Poor (Gloucester Railcar Trust) for additional information.
