Gresham & Craven Limited


Application Drawings

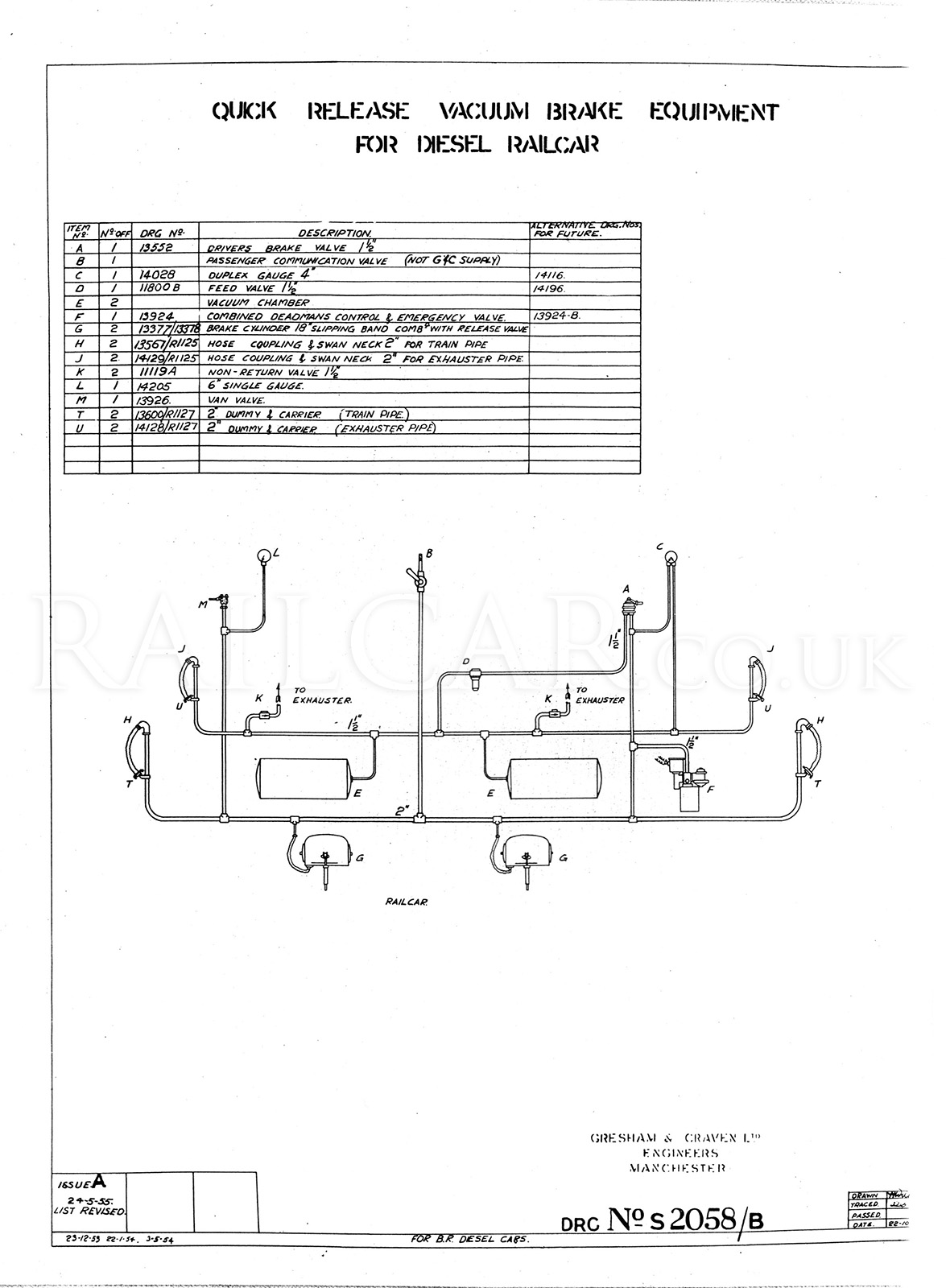

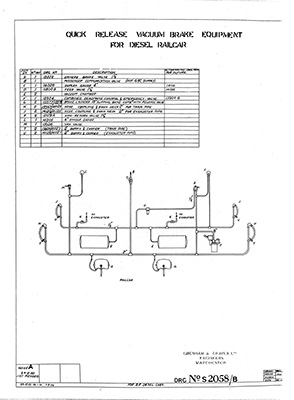

2058/B

Quick Release Vacuum Brake Equipment for Diesel Railcar

For a power car with brake van. Connection to an exhauster is shown.

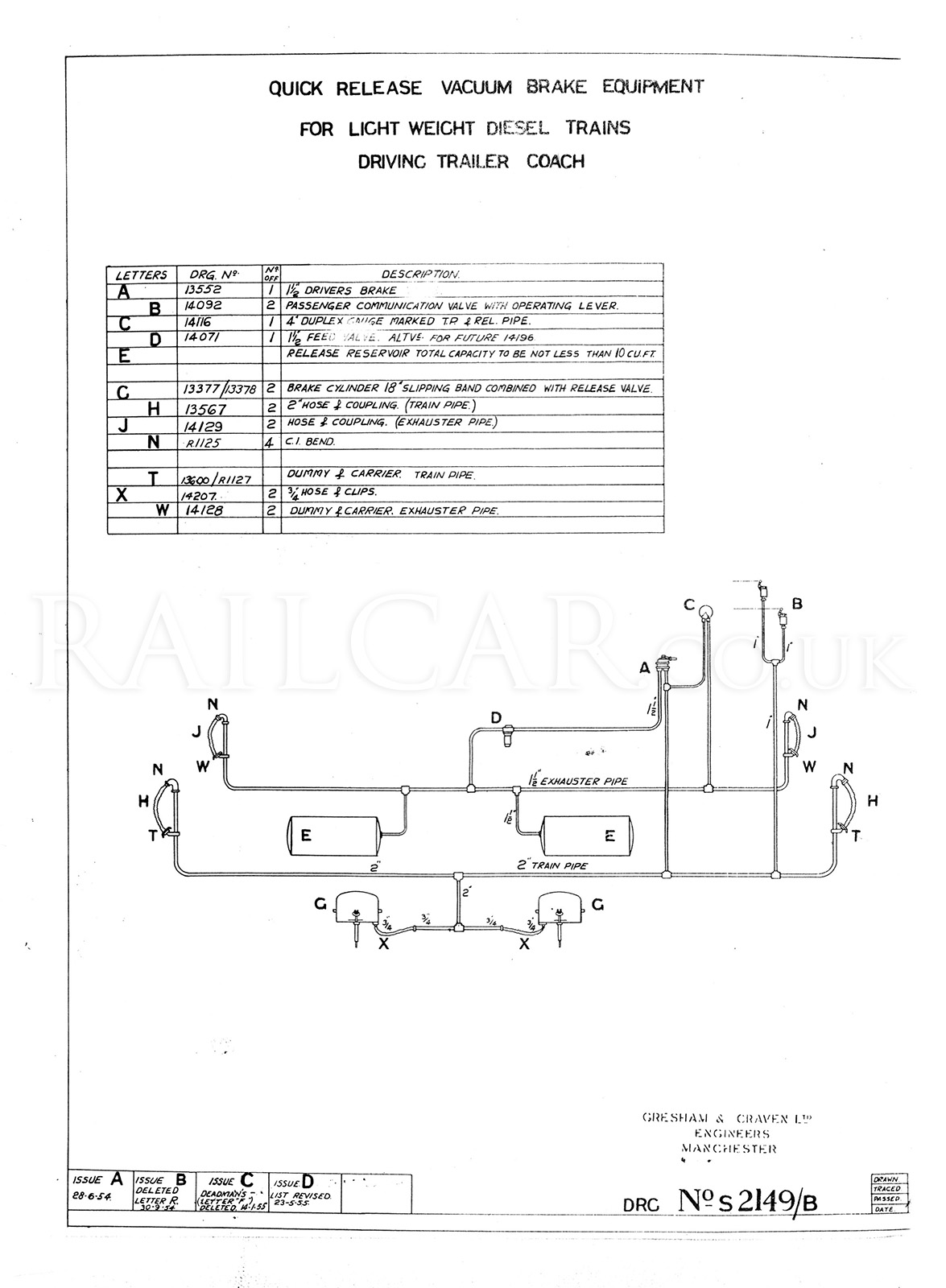

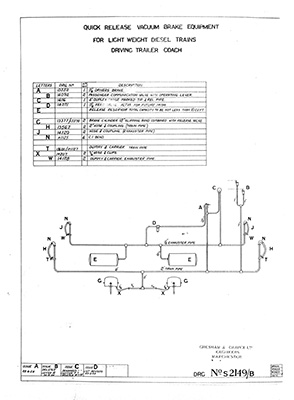

2149/B

Quick Release Vacuum Brake Equipment for Light Weight Diesel Trains
Driving Trailer Coach

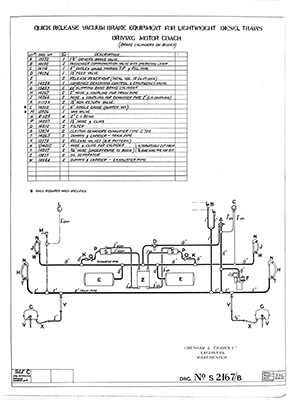

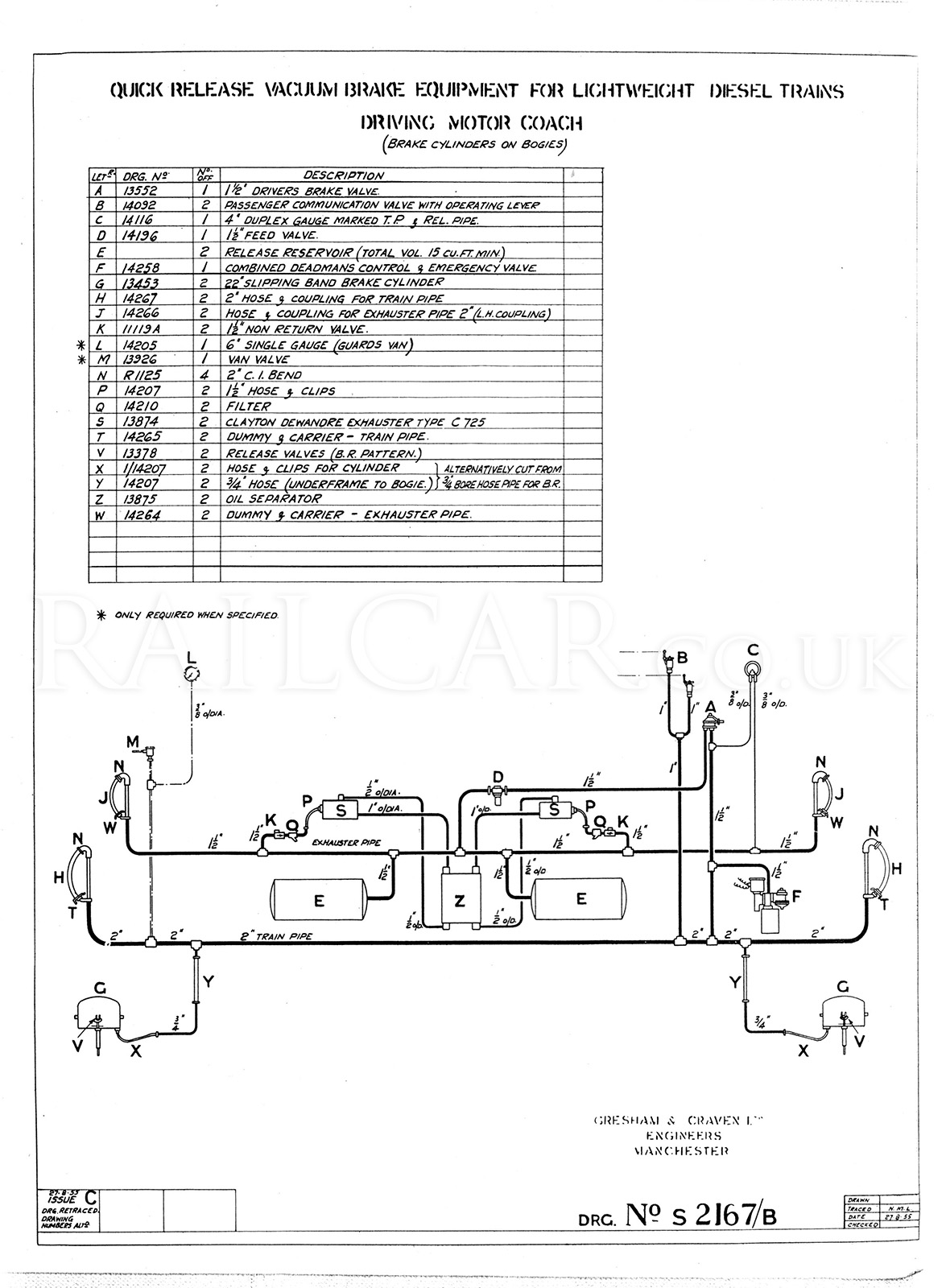

2167/B

Quick Release Vacuum Brake Equipment for Light Weight Diesel Trains
Driving Motor Coach

Brake cylinders are noted as being on boges. This drawing covered power cars with and without vans. The exhausters are included in the drawing.

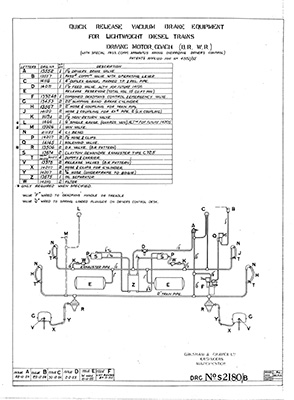

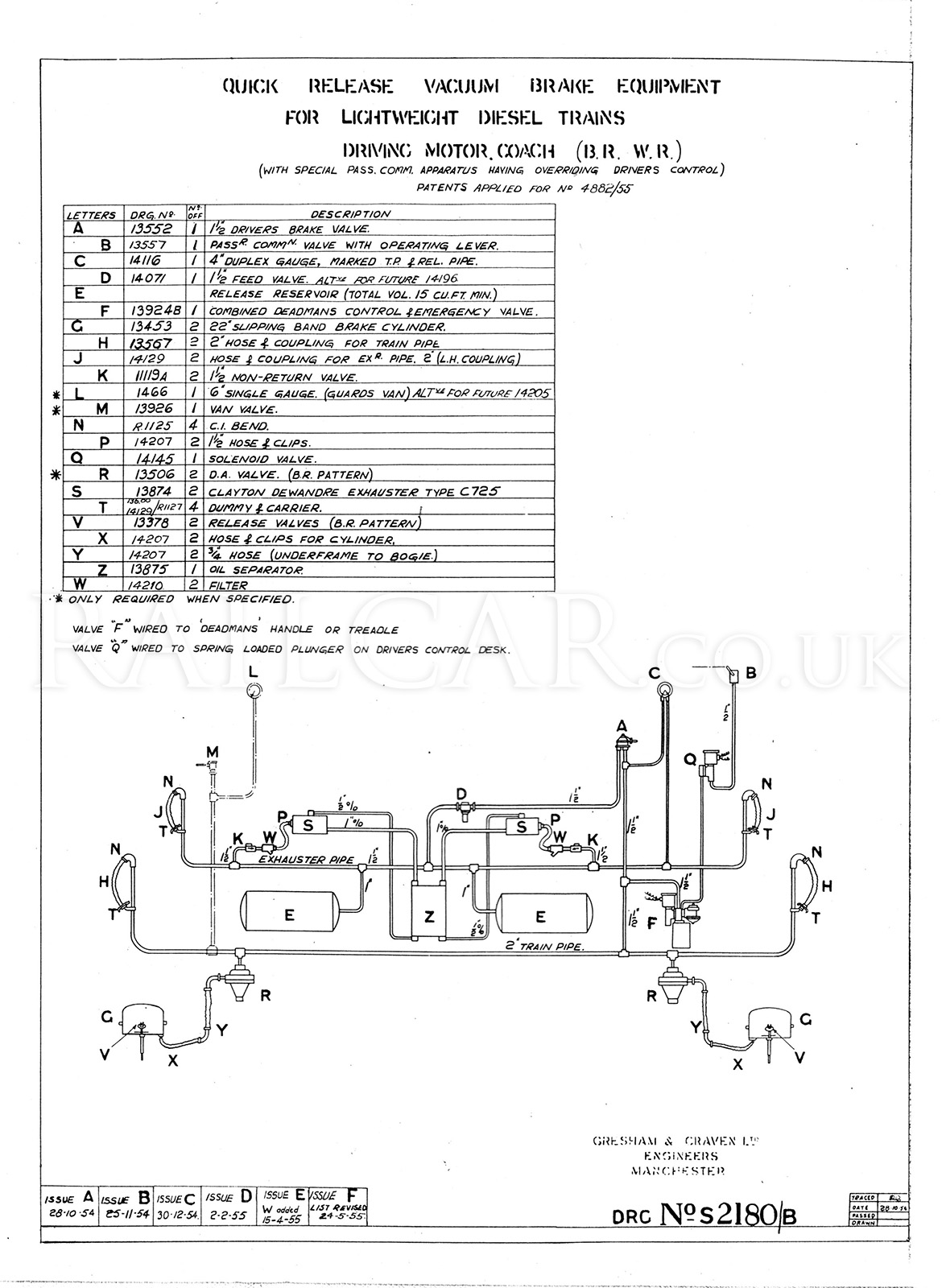

2180/B

Quick Release Vacuum Brake Equipment for Light Weight Diesel Trains
Driving Motor Coach (BR WR)

This one has DA (direct admission) valves adjacent to the vacuum cylinders.

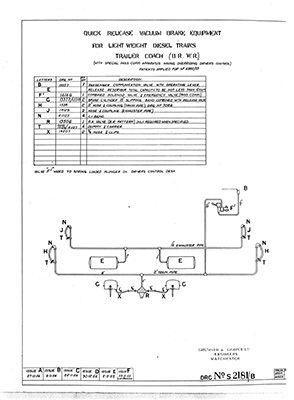

2181/B

Quick Release Vacuum Brake Equipment for Light Weight Diesel Trains
Trailer Coach (BR WR)

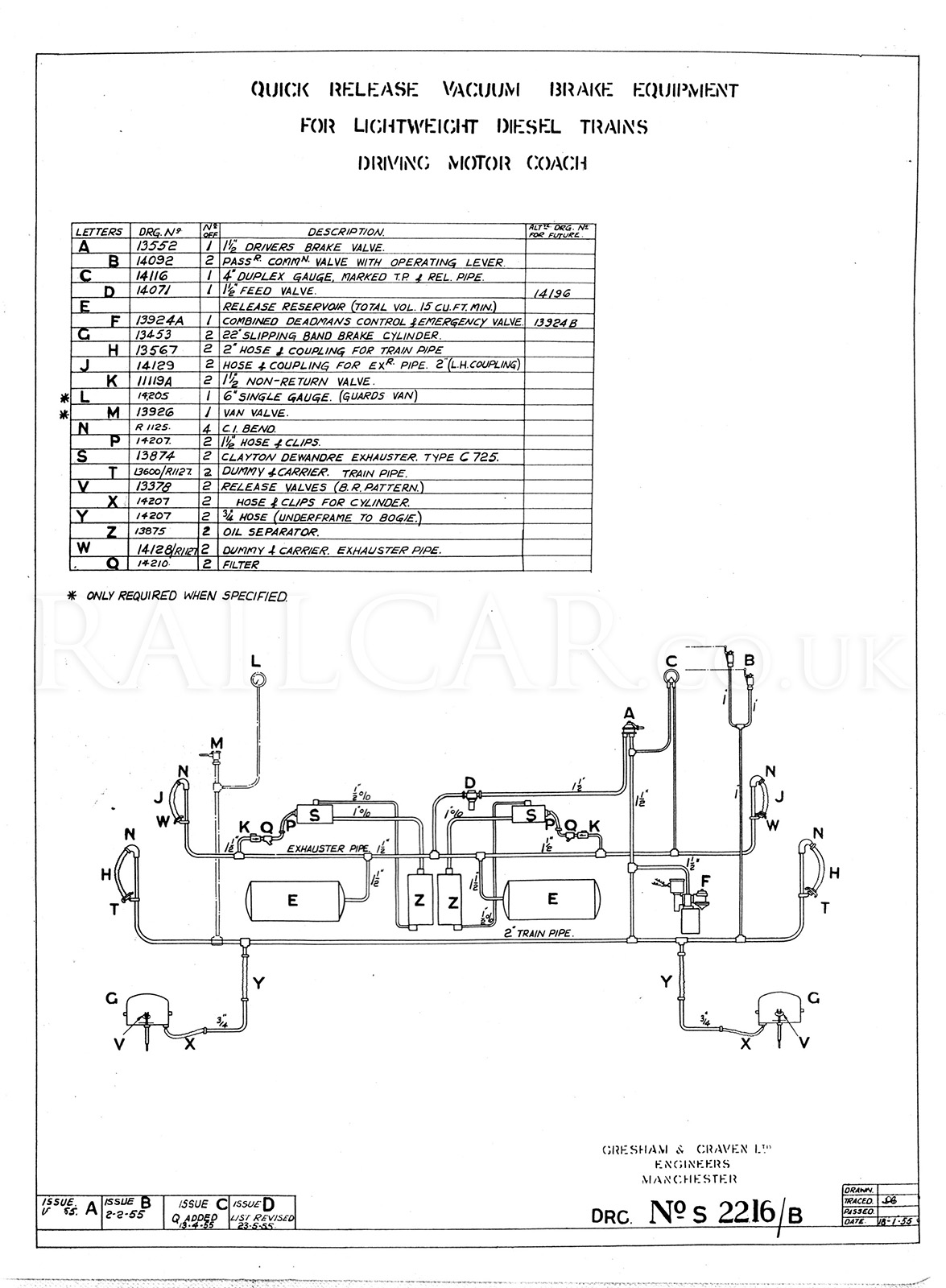

2216/B

Quick Release Vacuum Brake Equipment for Light Weight Diesel Trains
Driving Motor Coach

Passenger Communication valves at one end of the vehicle (chain operated).

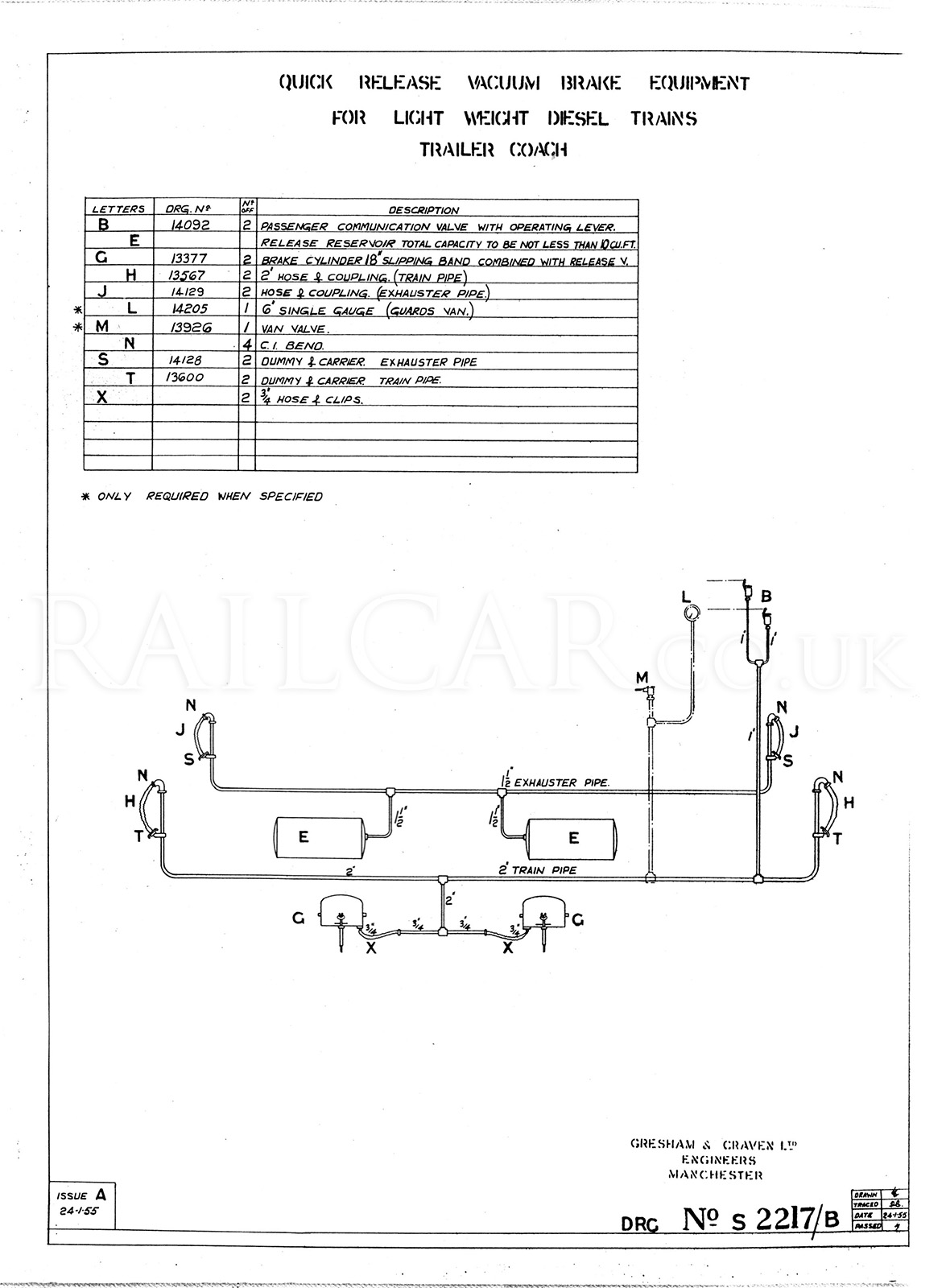

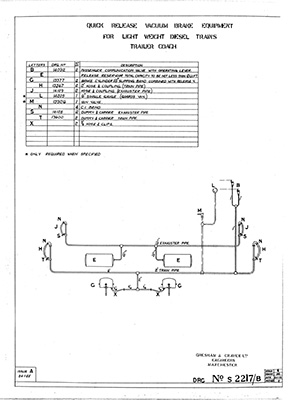

2217/B

Quick Release Vacuum Brake Equipment for Light Weight Diesel Trains
Trailer Coach

With optional van equipment.

Passenger Communication valves at one end of the vehicle (chain operated).

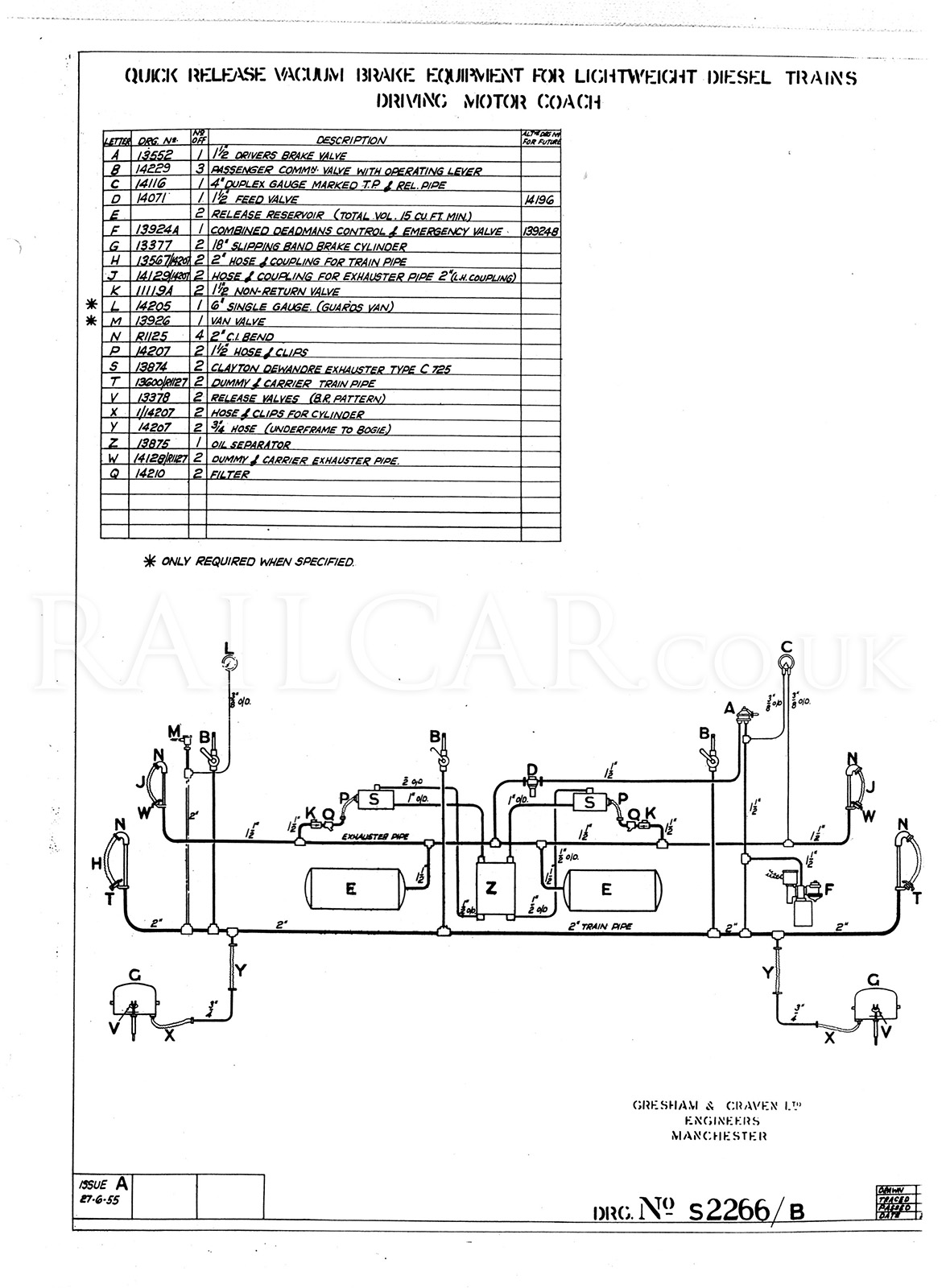

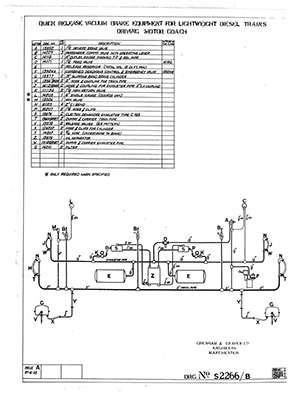

2266/B

Quick Release Vacuum Brake Equipment for Light Weight Diesel Trains
Driving Motor Coach

Passenger Communication valves inside the vehicle (handles on the vestibule partitions), otherwise identical to 2216/B.

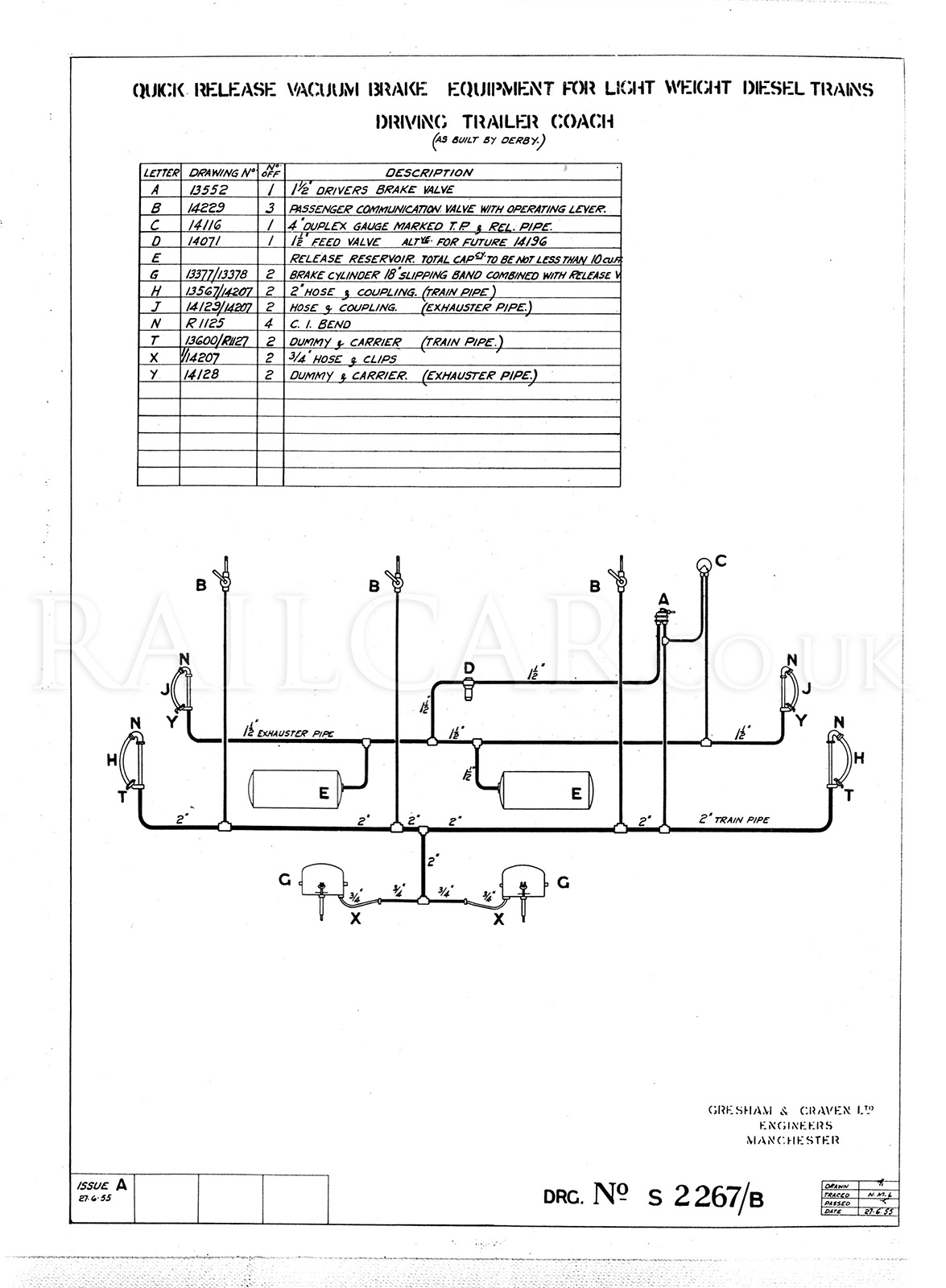

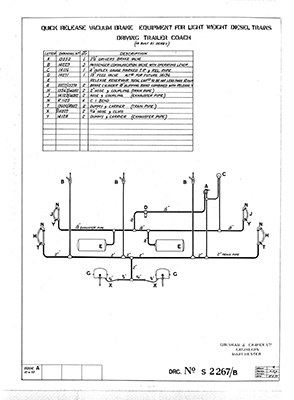

2267/B

Quick Release Vacuum Brake Equipment for Light Weight Diesel Trains
Driving Trailer Coach (as built by Derby)

Passenger Communication valves inside the vehicle (handles on the vestibule partitions).

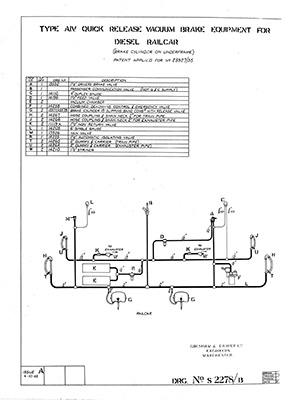

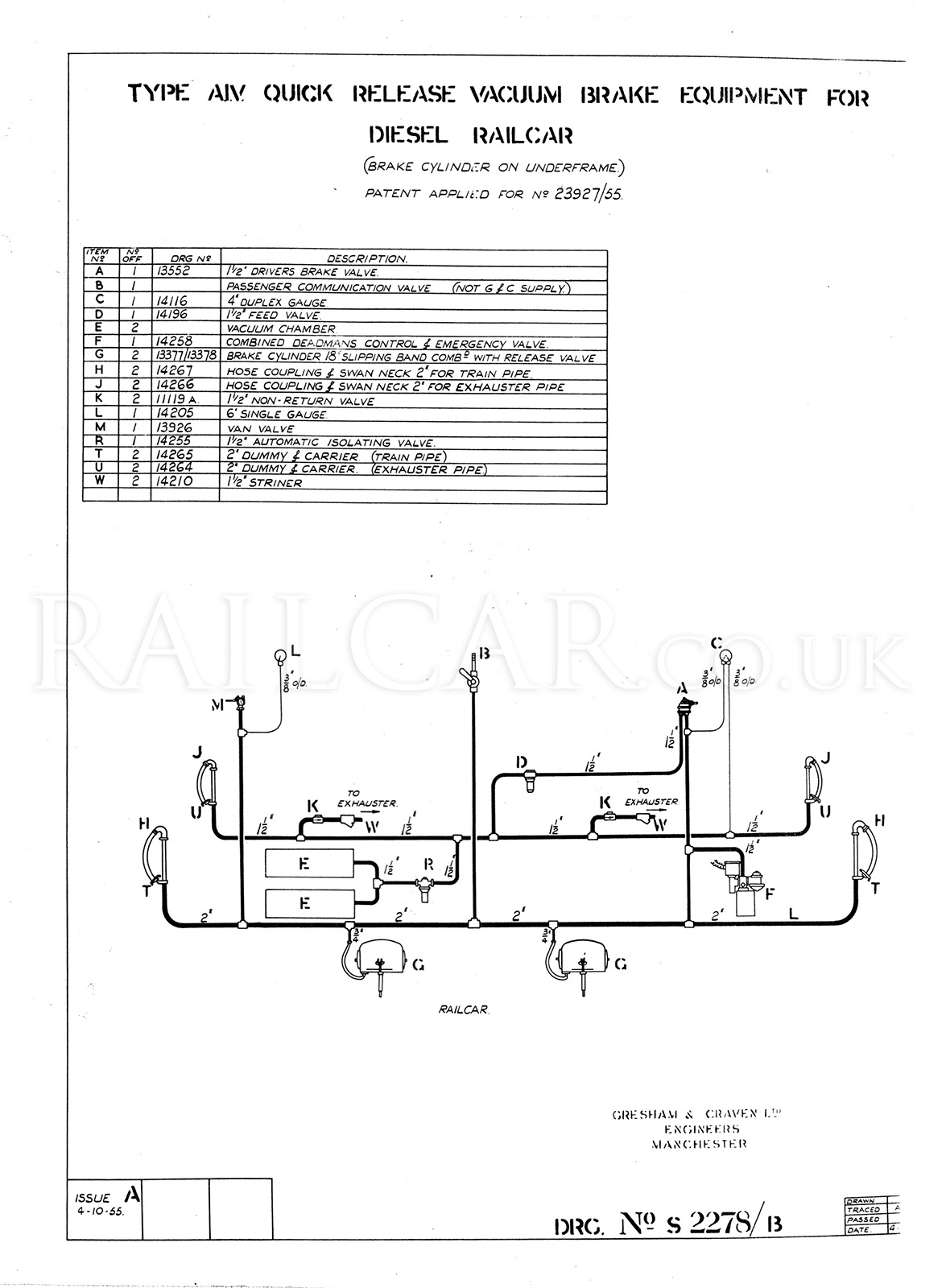

2278/B

Type AIV Quick Release Vacuum Brake Equipment for Diesel Railcar
(Brake Cylinder on Underframe)

Passenger Communication valve inside the vehicle made by a third party).

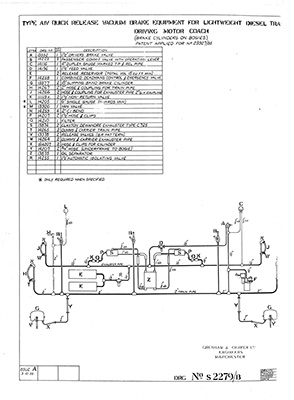

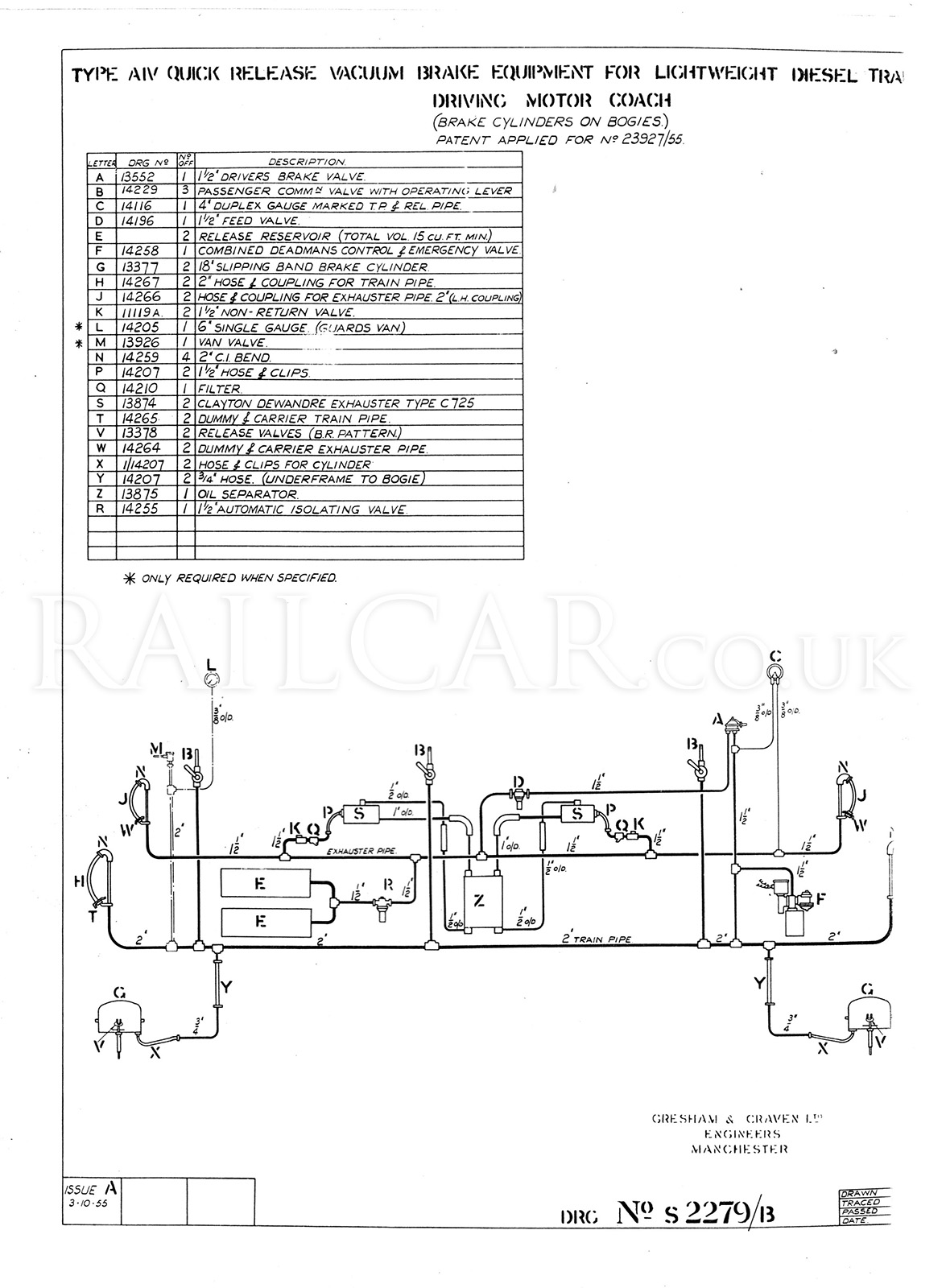

2279/B

Type AIV Quick Release Vacuum Brake Equipment for Lightweight Diesel Train
Driving Motor Coach
(Brake Cylinder on Bogies)

Passenger Communication valves inside the vehicle. Very similar to 2266/B, differing by the position of the Release Reservoirs (E) and including an automatic isolating valve (R) in the feed to these.

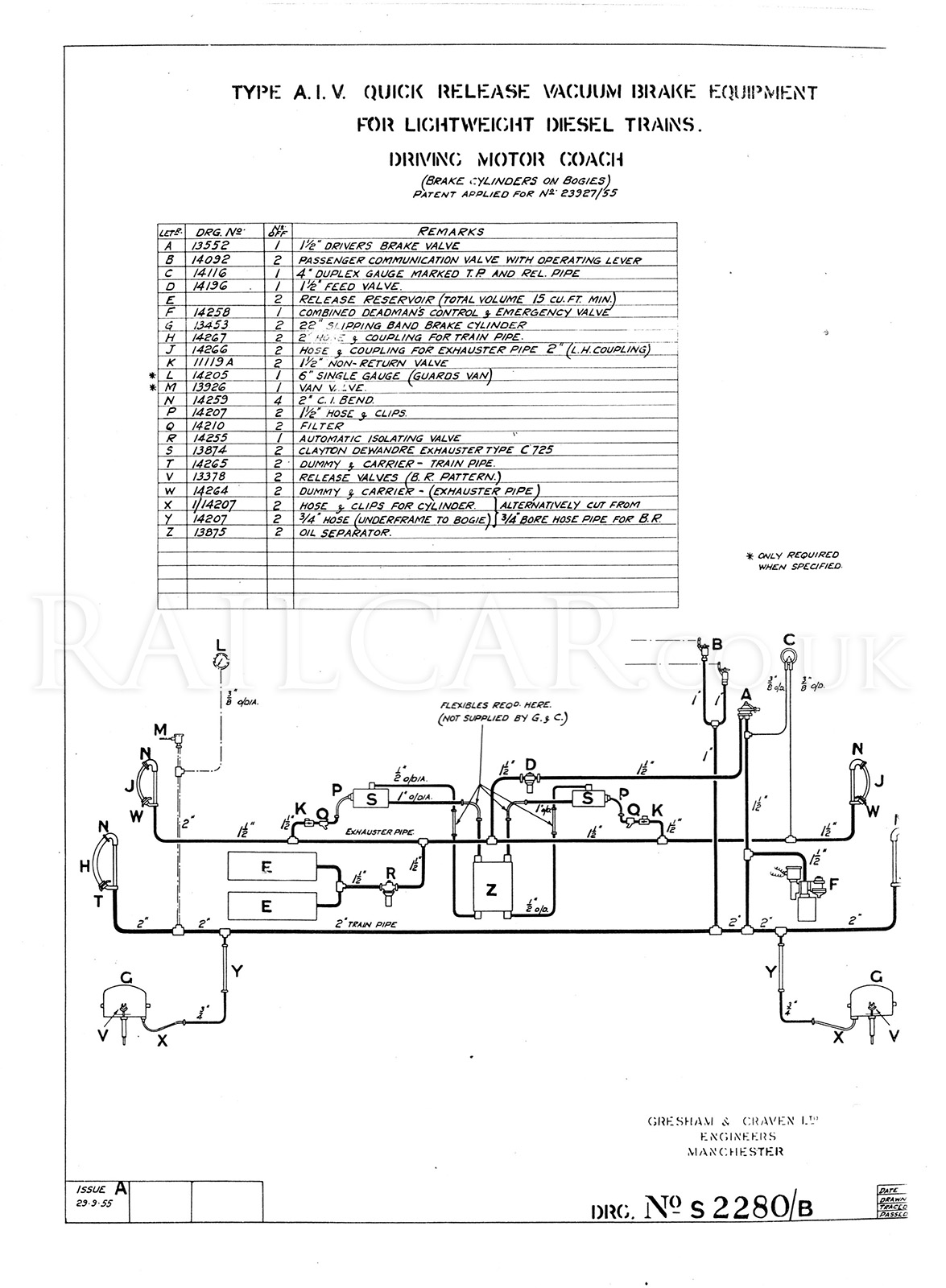

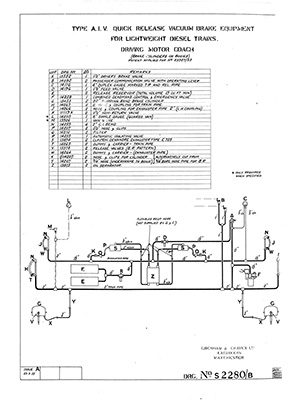

2280/B

Type AIV Quick Release Vacuum Brake Equipment for Lightweight Diesel Train
Driving Motor Coach
(Brake Cylinder on Bogies)

Identical to 2279/B except the passenger Communication valves at one end of the vehicle (chain operated).

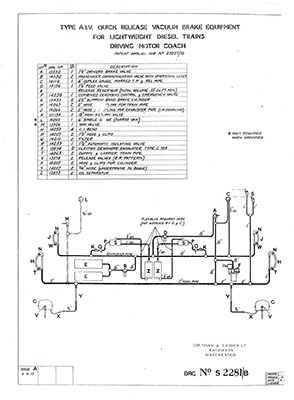

2281/B

Type AIV Quick Release Vacuum Brake Equipment for Lightweight Diesel Trains
Driving Motor Coach

Very similar to 2280/B except the position of the passenger communication valves have been moved to outside the cab.

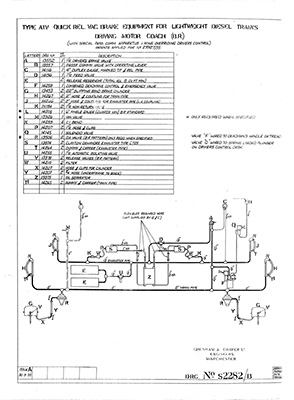

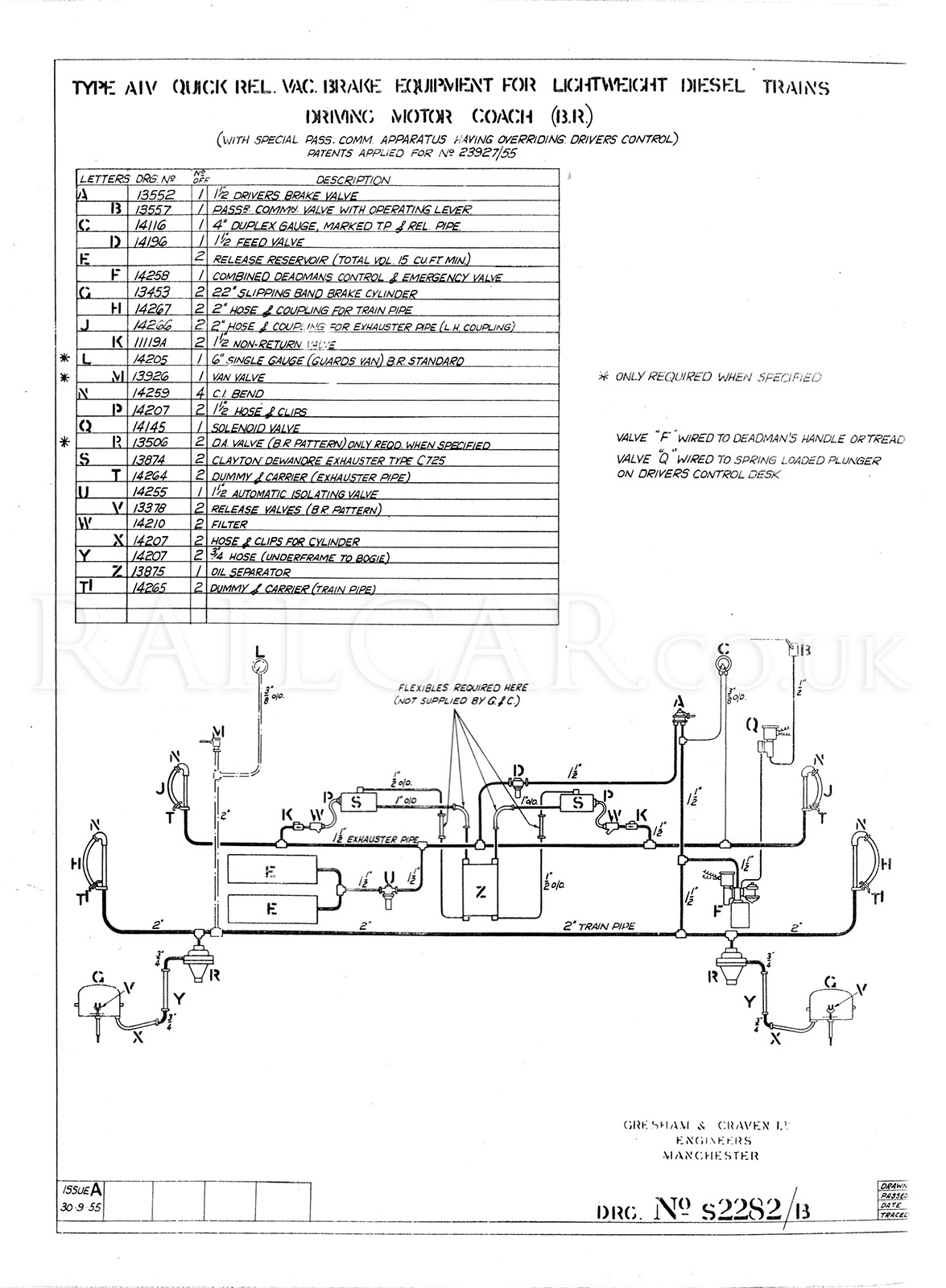

2282/B

Type AIV Quick Rel. Vac. Brake Equipment for Lightweight Diesel Trains
Driving Motor Coach (BR)

"With special pass.comm. apparatus having overridding drivers control"

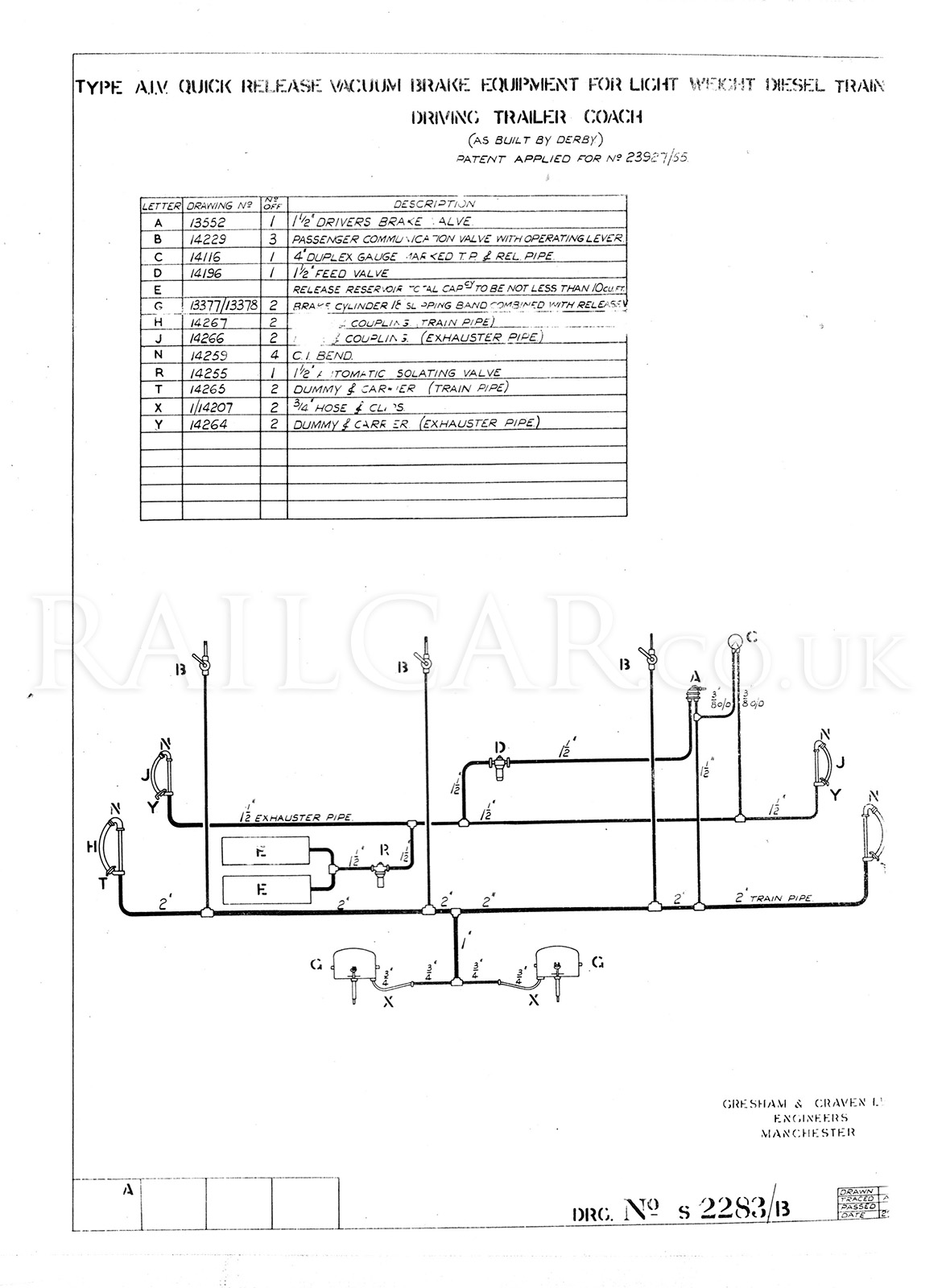

2283/B

Type AIV Quick Release Vacuum Brake Equipment for Light Weight Diesel Trains
Driving Trailer Coach

"As built by Derby"

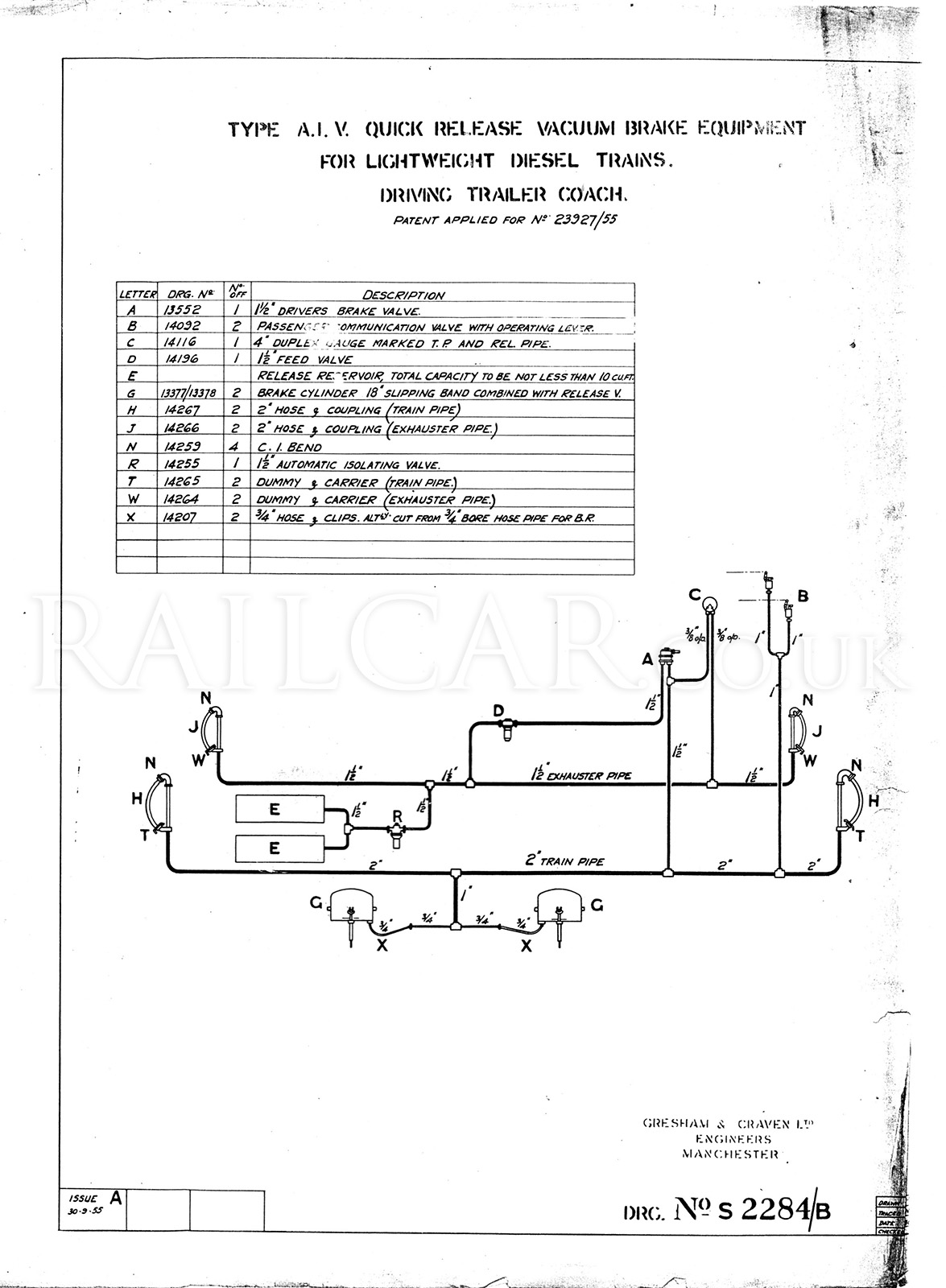

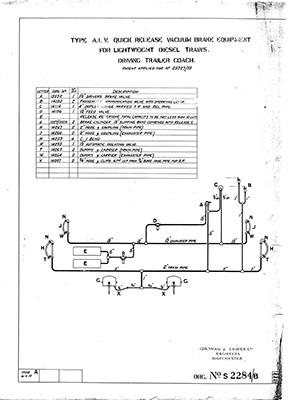

2284/B

Type AIV Quick Release Vacuum Brake Equipment for Lightweight Diesel Trains
Driving Trailer Coach

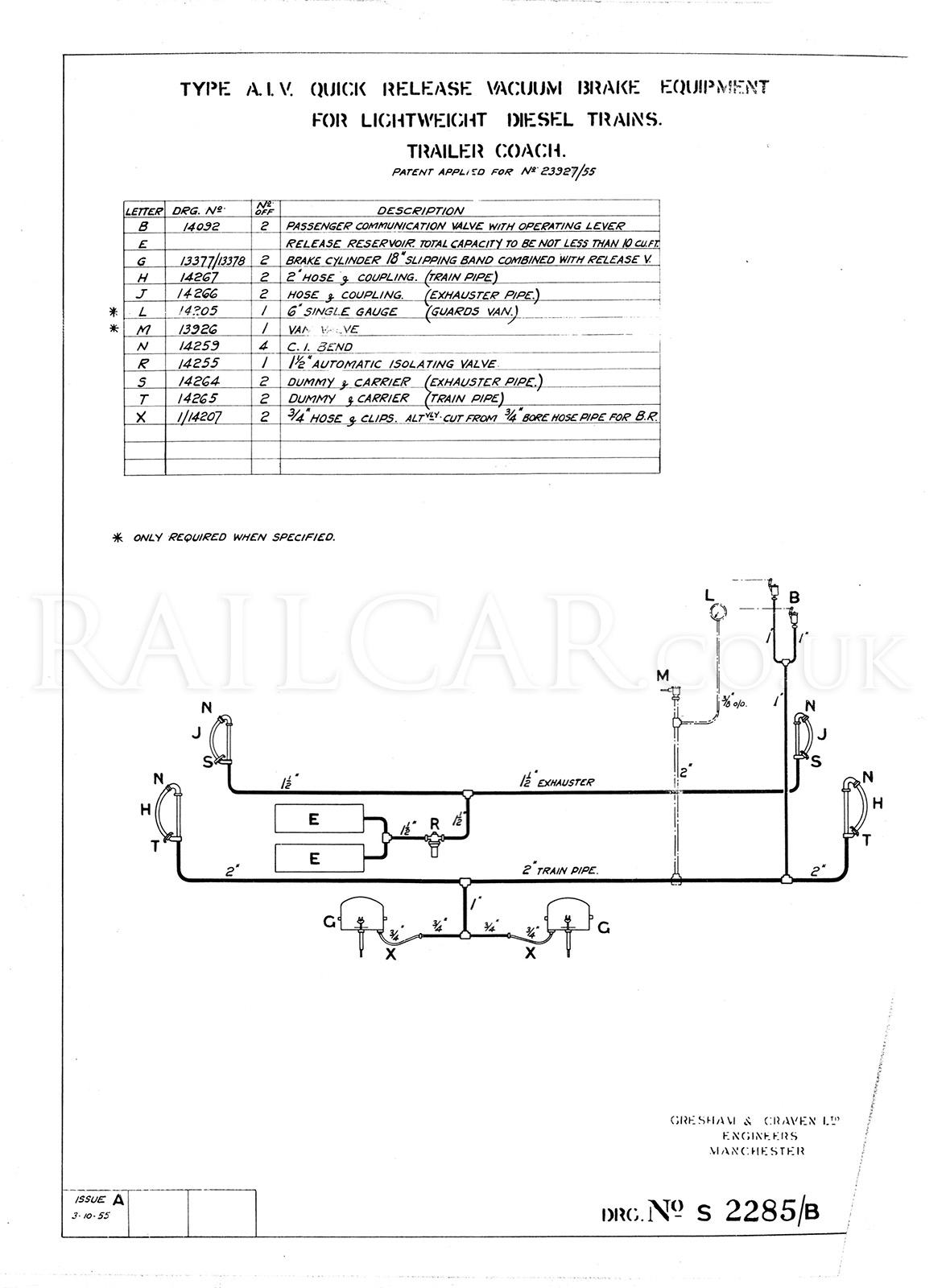

2285/B

Type AIV Quick Release Vacuum Brake Equipment for Lightweight Diesel Trains
Trailer Coach

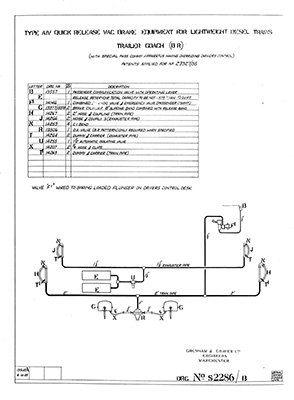

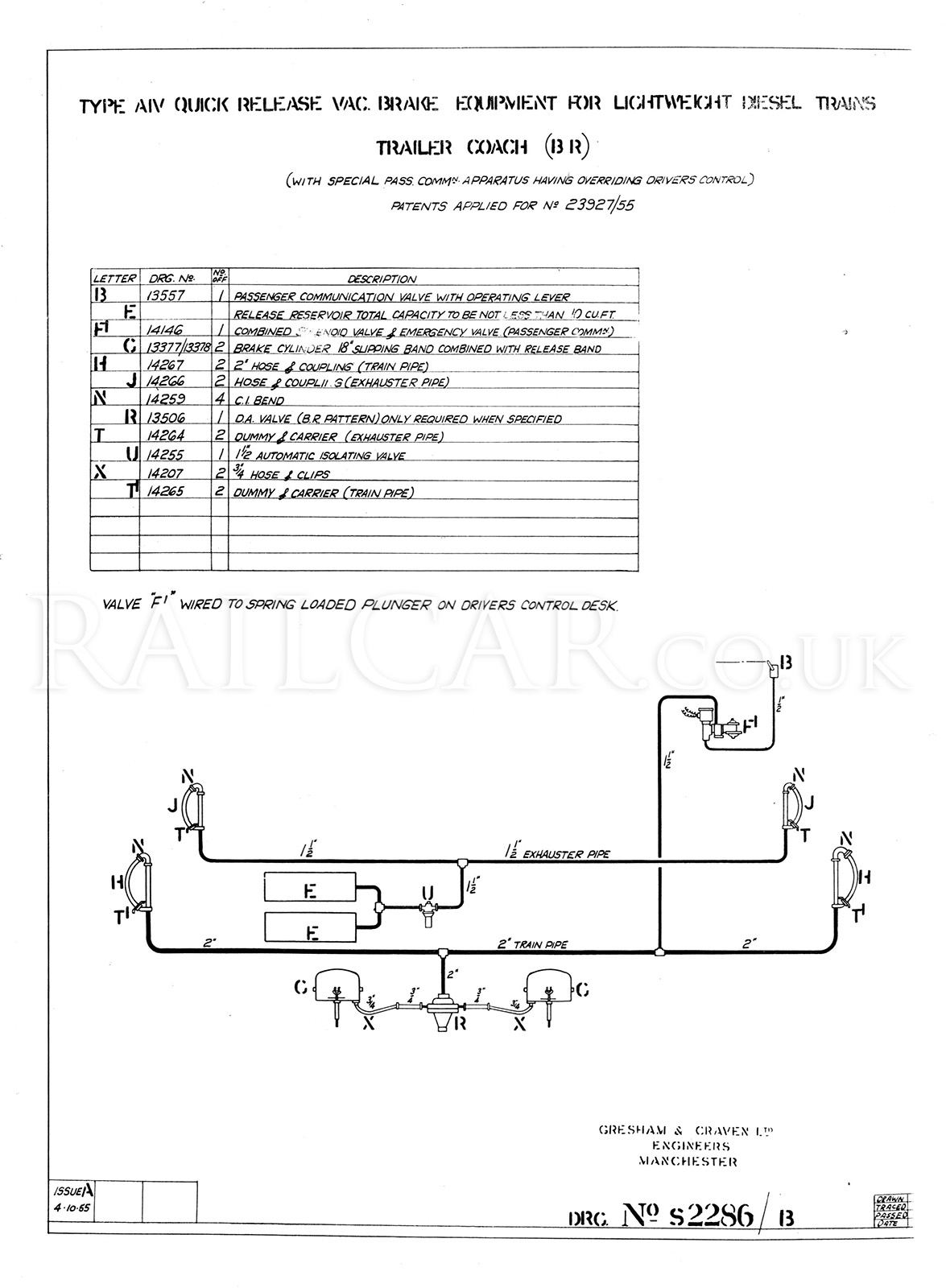

2286/B

Type AIV Quick Release Vac. Brake Equipment for Lightweight Diesel Trains
Trailer Coach (BR)

"With special pass.comm. apparatus having overridding drivers control"

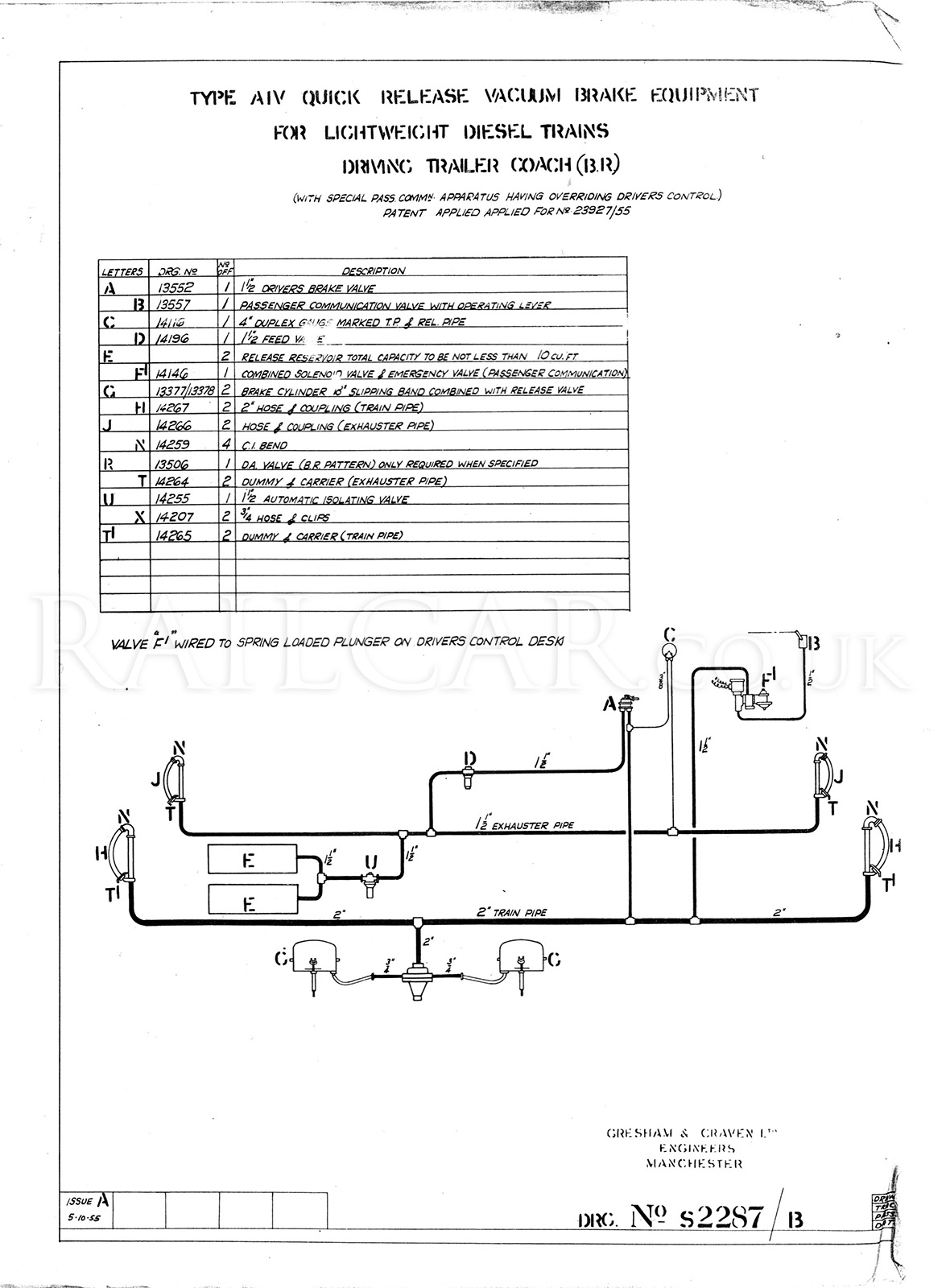

2287/B

Type AIV Quick Release Vacuum Brake Equipment for Lightweight Diesel Trains
Driving Trailer Coach (BR)

"With special pass.comm. apparatus having overridding drivers control"

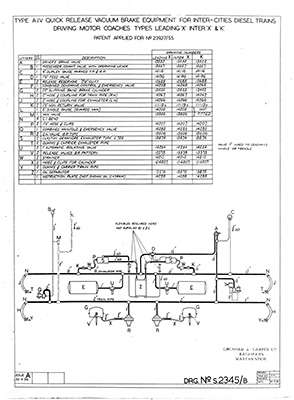

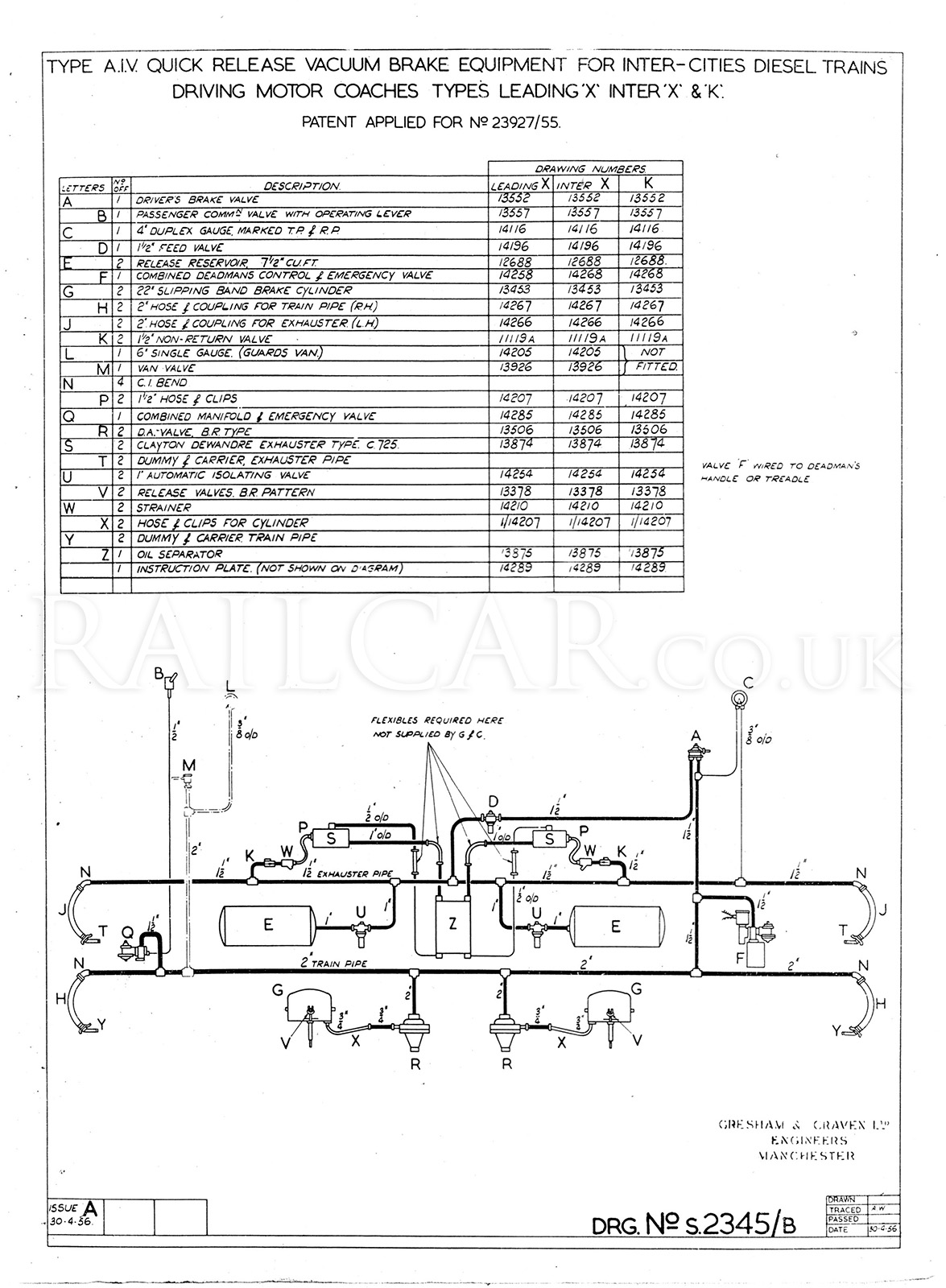

2345/B

Type AIV Quick Release Vacuum Brake Equipment for Inter-Cities Diesel Trains
Driving Motor Coaches Types Leading 'X' Inter 'X' & 'K'

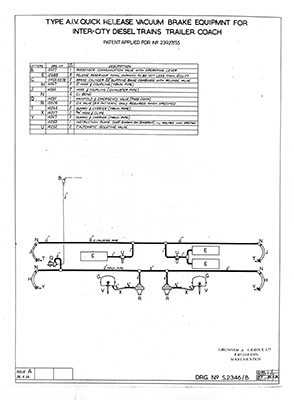

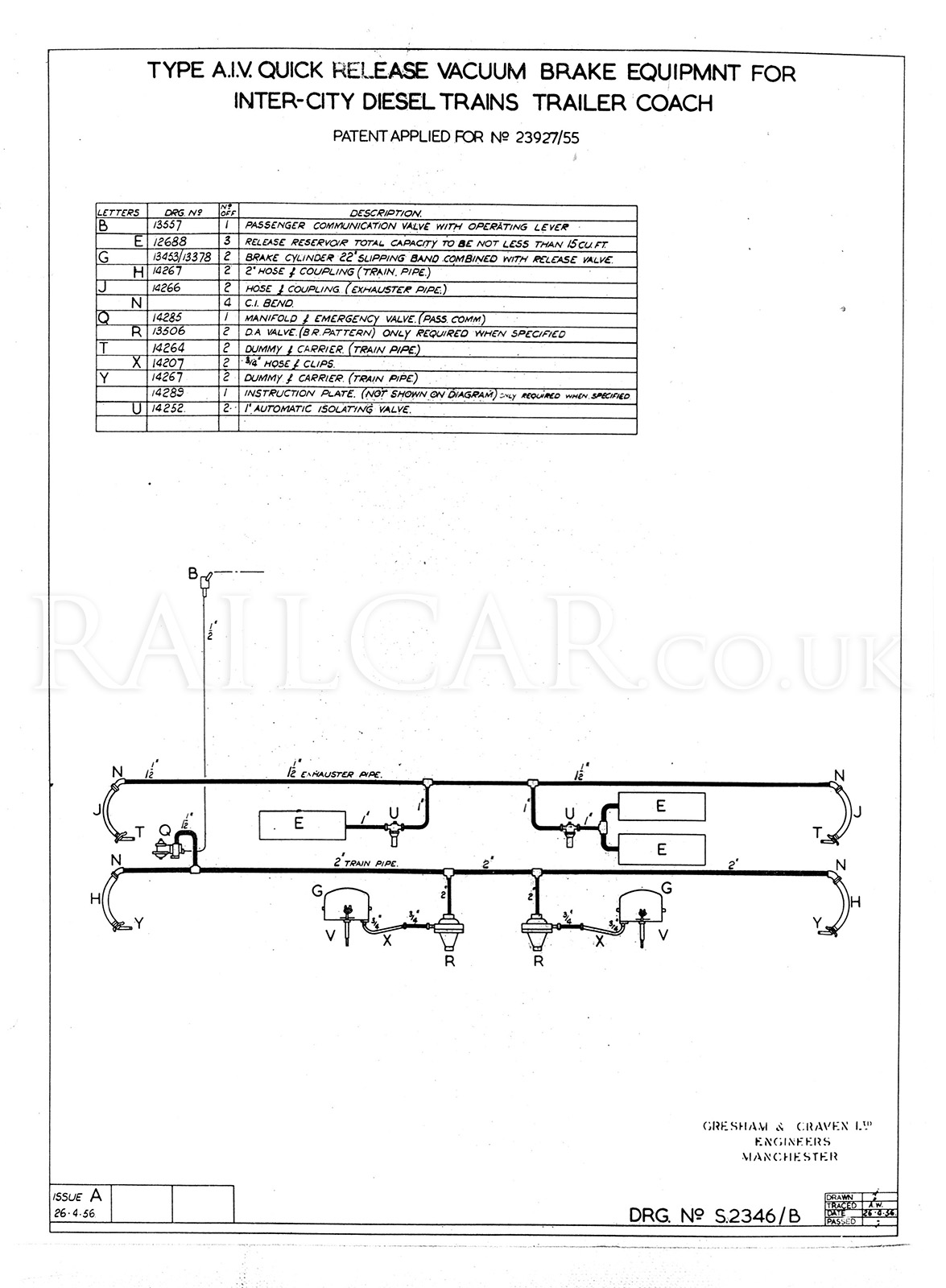

2346/B

Type AIV Quick Release Vacuum Brake Equipment for Inter-Cities Diesel Trains
Trailer Coach
