Gresham & Craven Limited


Other Documentation

Instruction Book for Gresham's Quick Release Vacuum Brake System on British Railway Railcars

This contained a variety of literature, different copies I've seen had differing material inside. It was formed of a thin card cover with metal clips to add/remove content.

I haven't repeated items found on other pages here, this would include component information sheets and application drawings.

This version courtesy of Robin Jones.

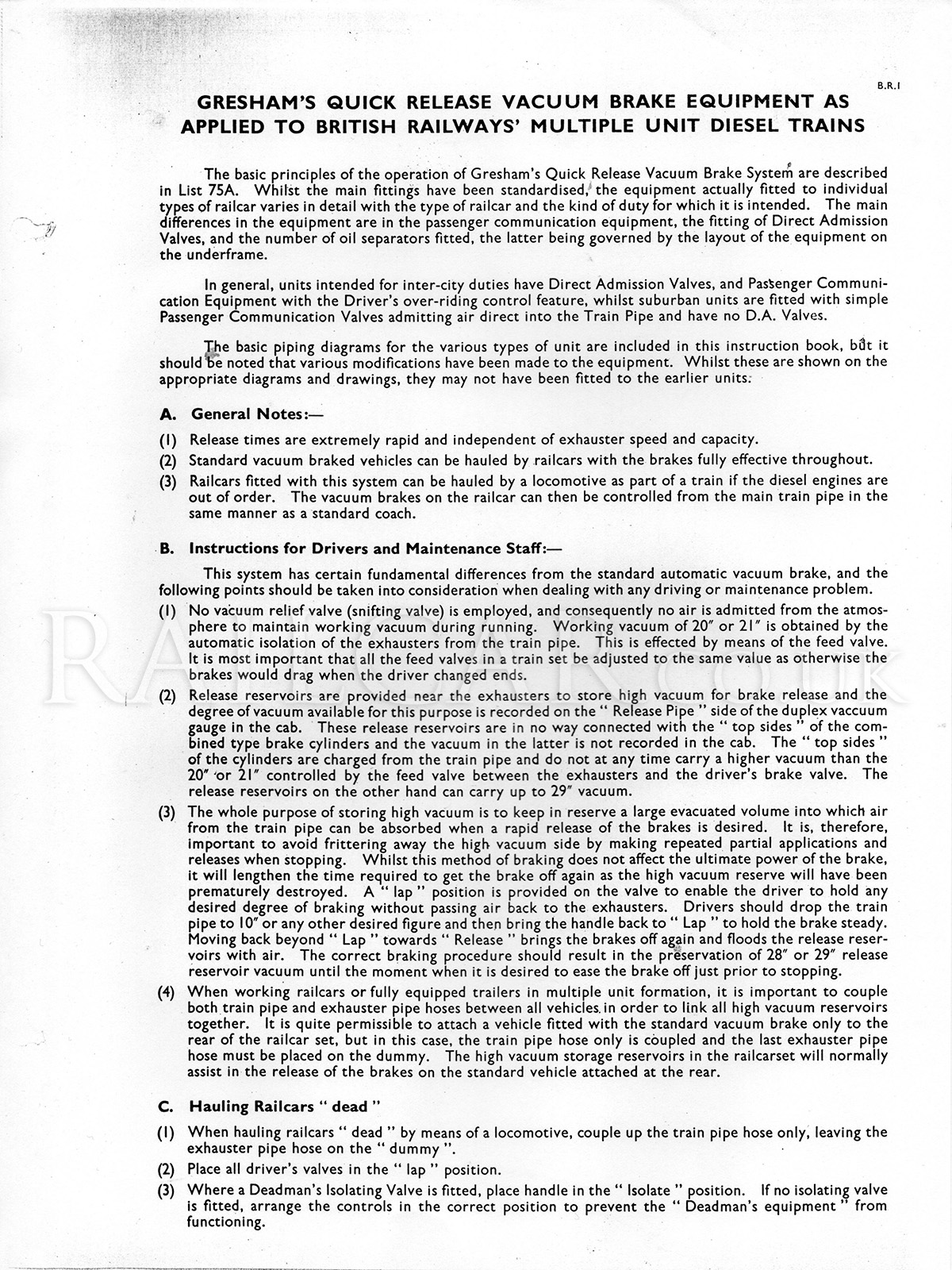

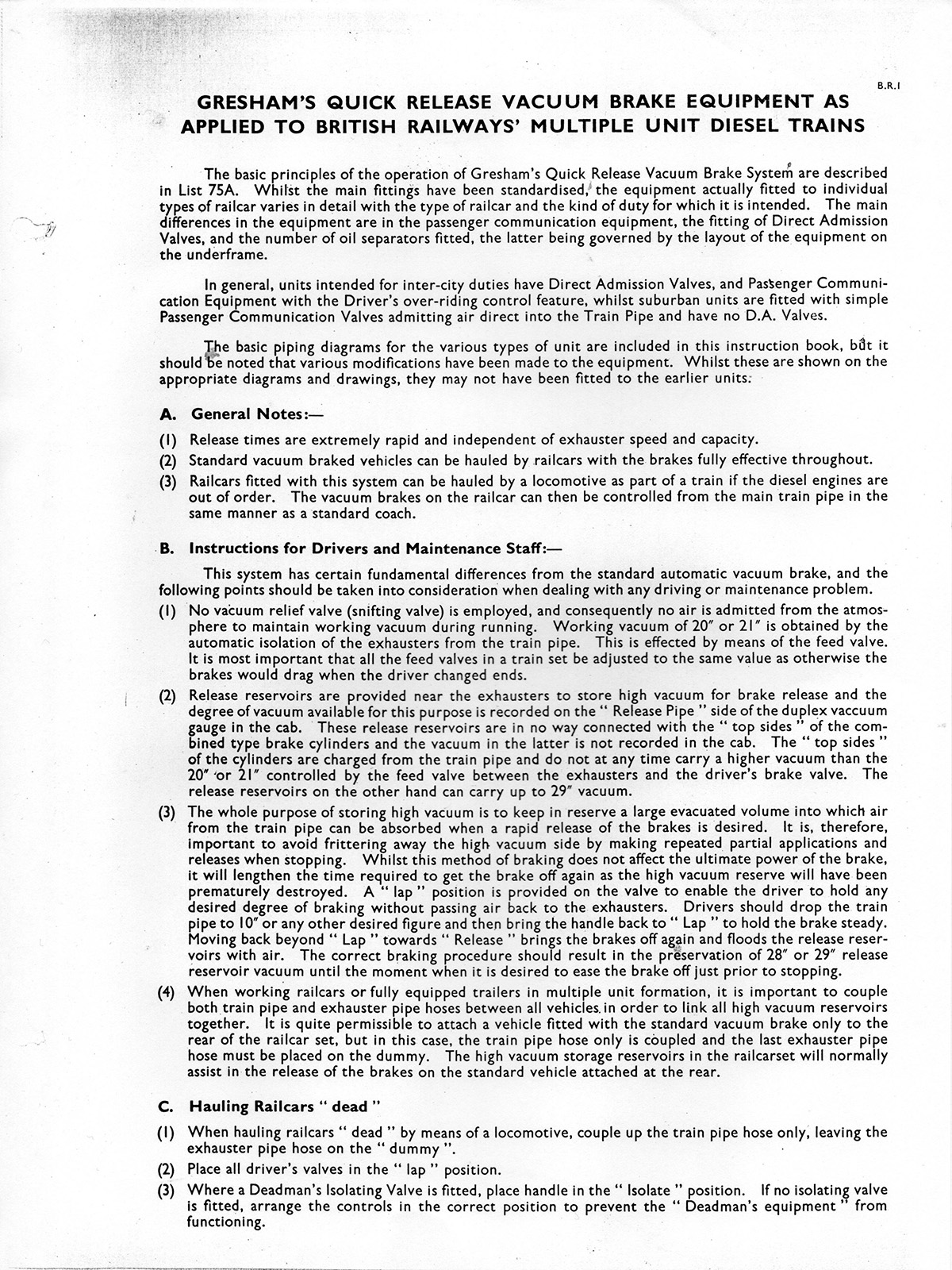

First shown in the cover and the intro (sheet B.R.1):

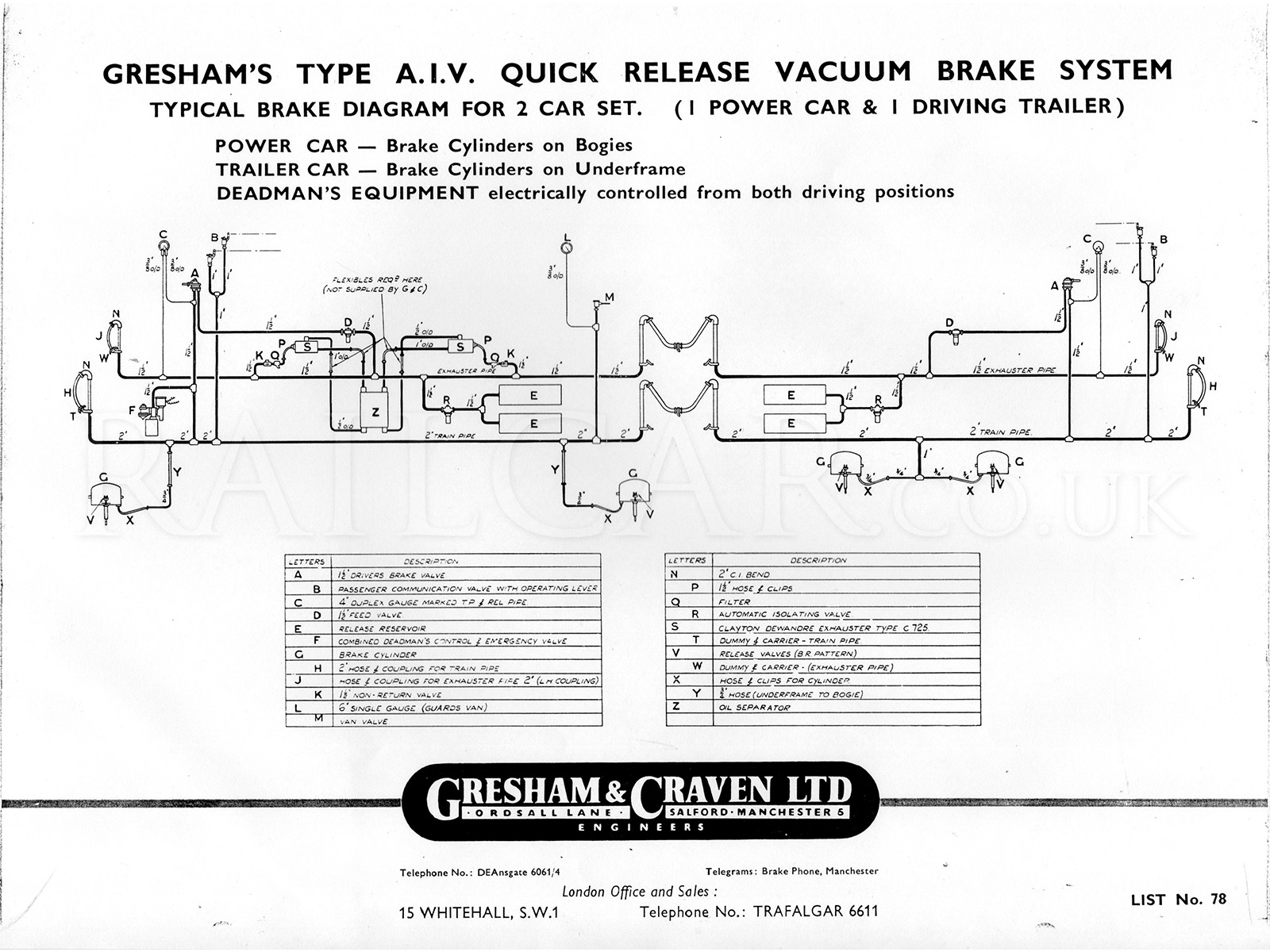

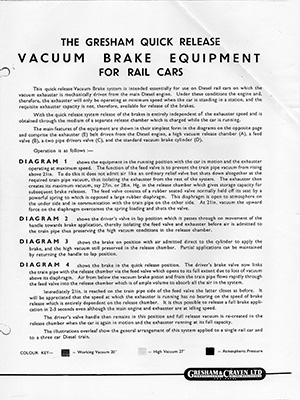

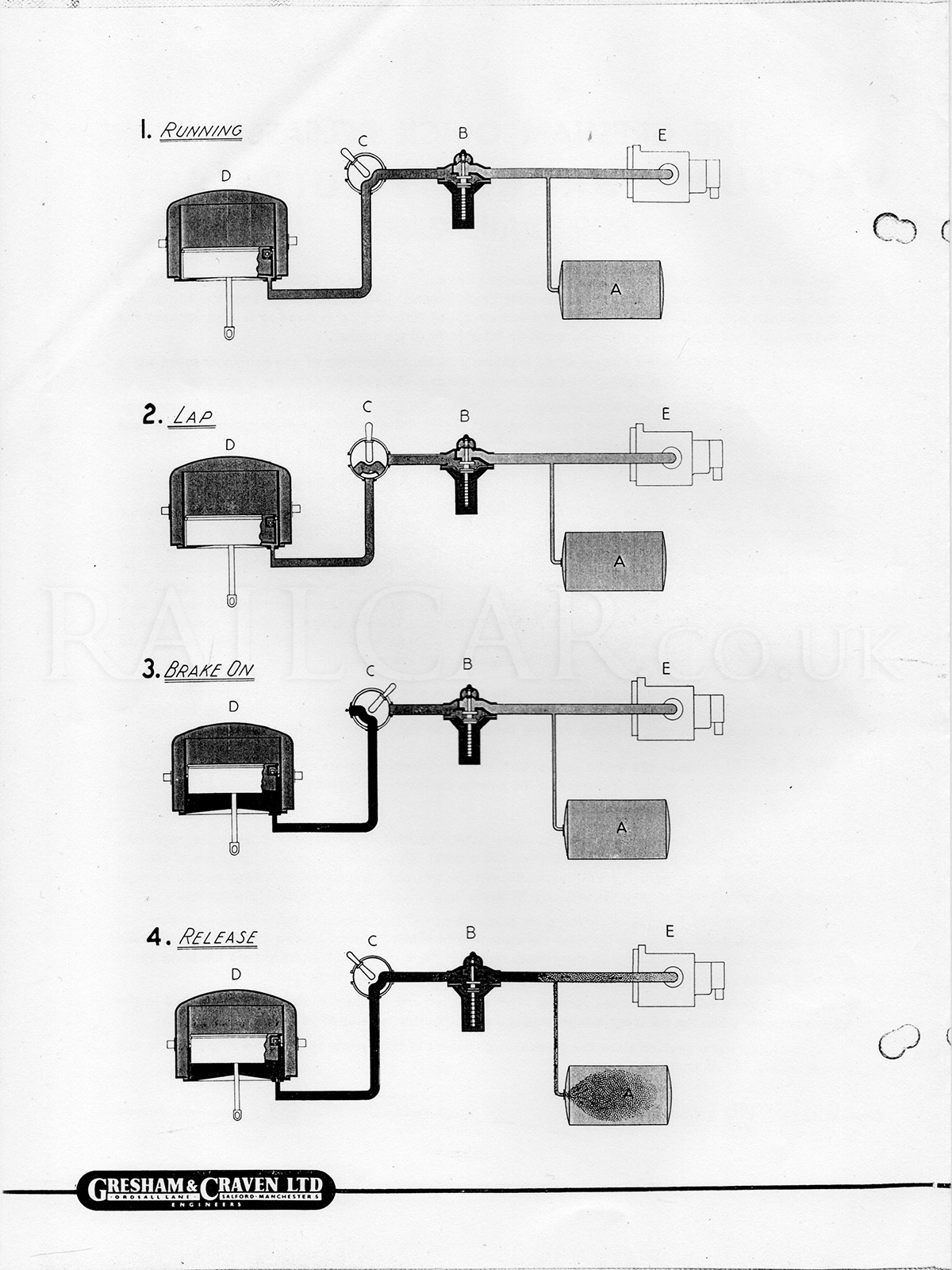

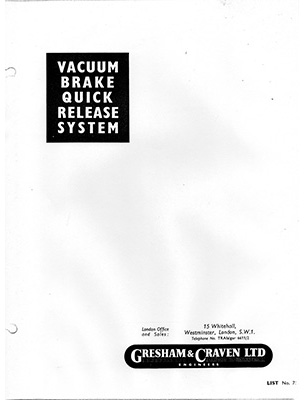

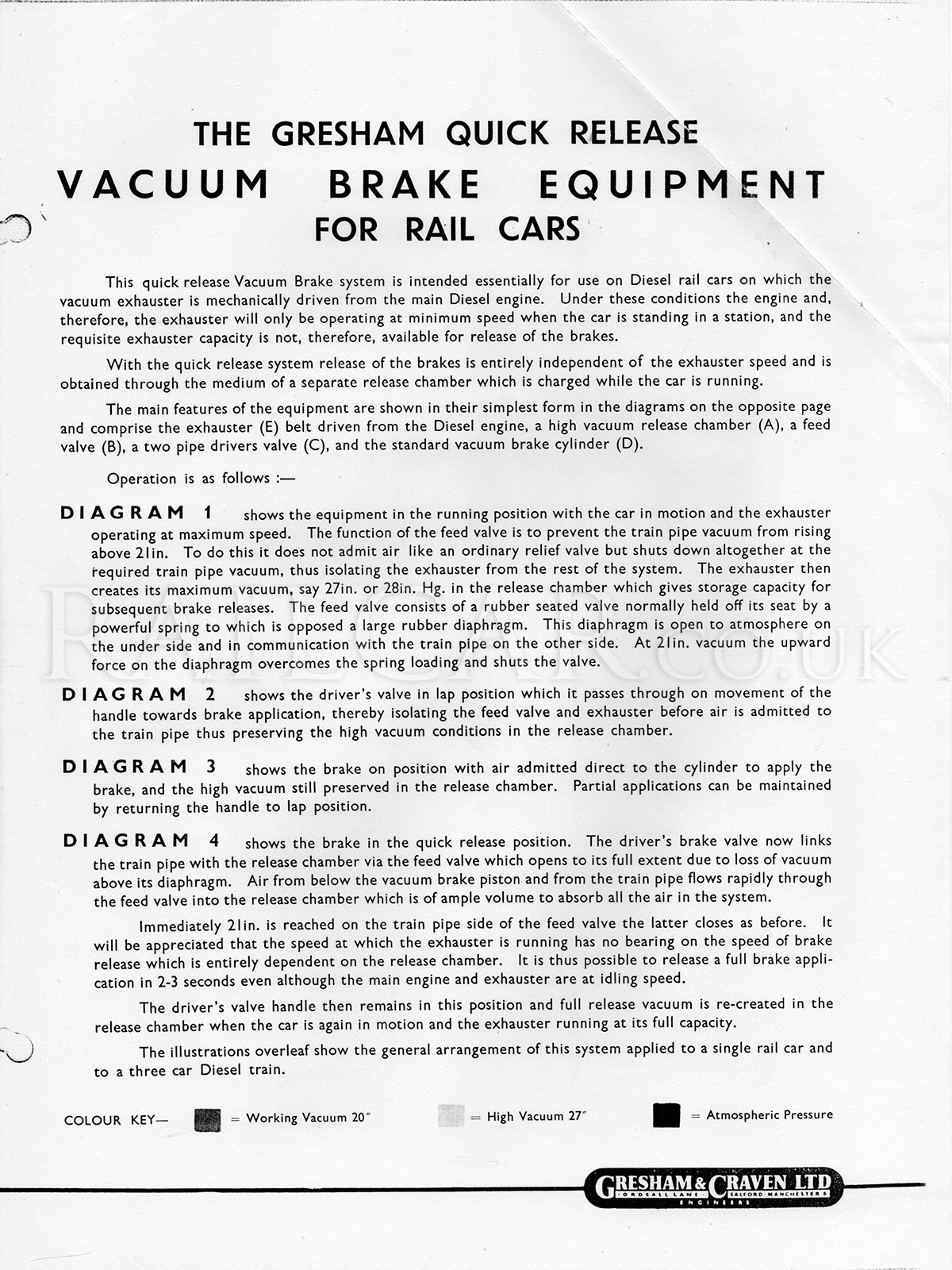

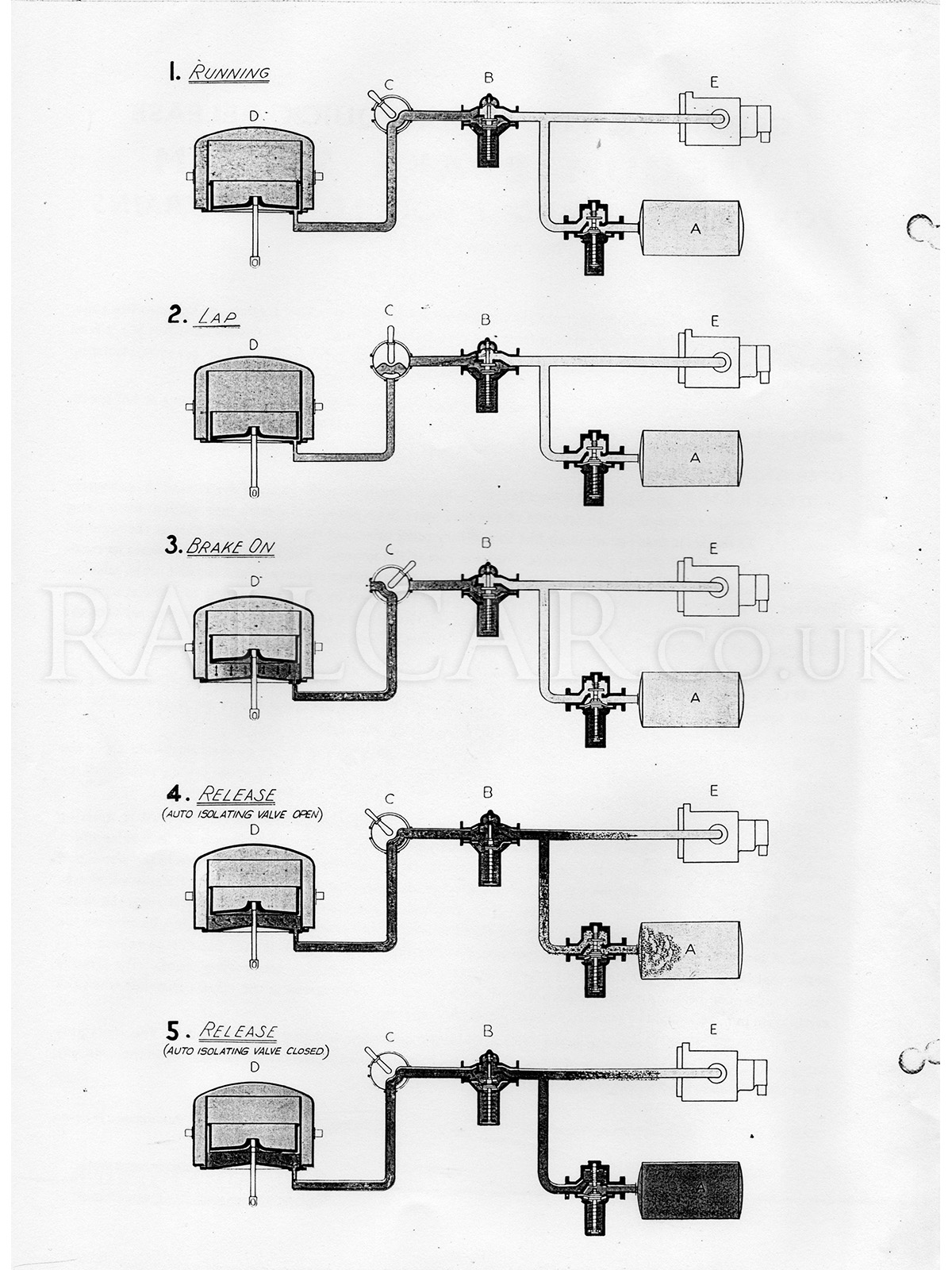

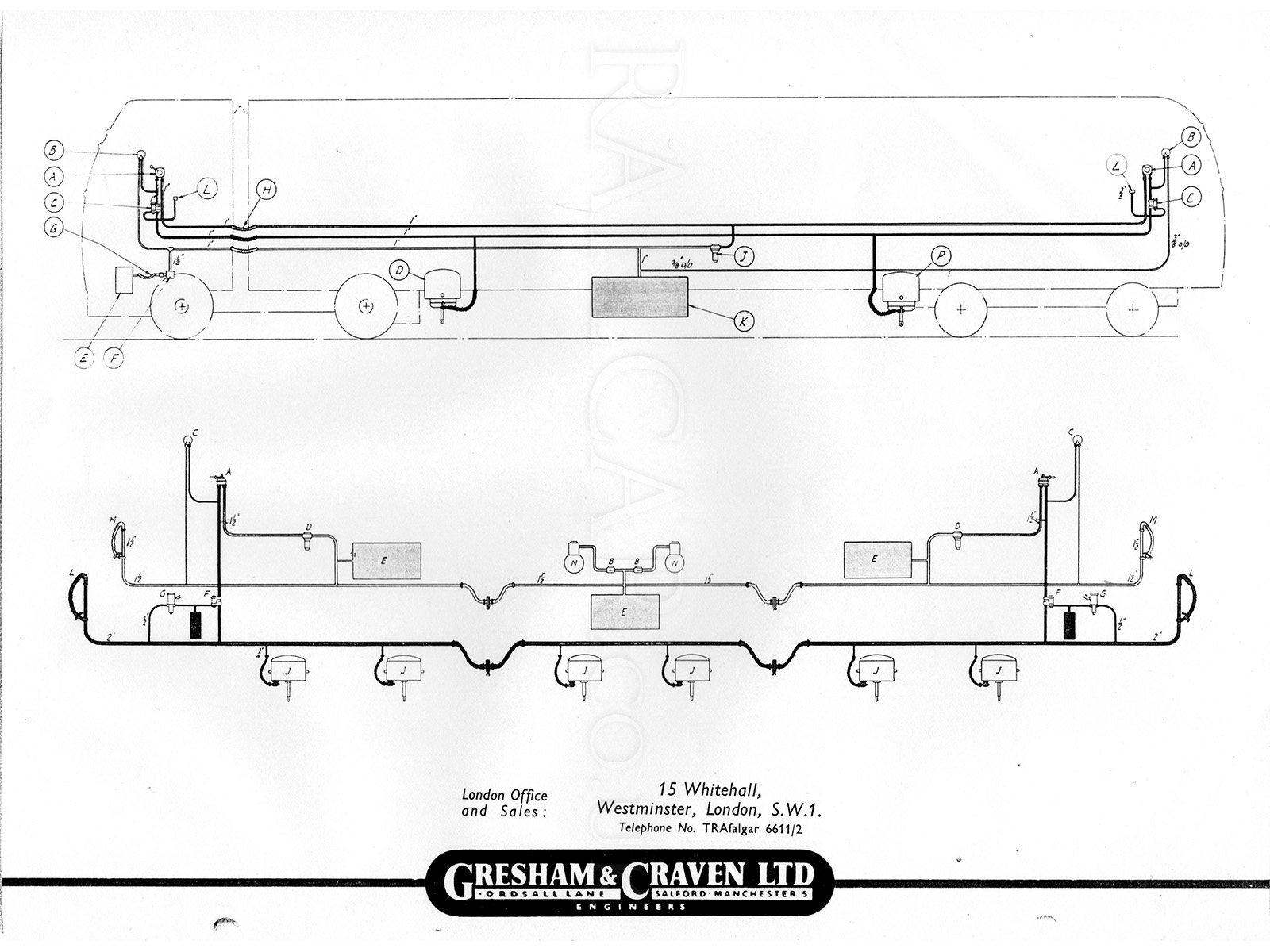

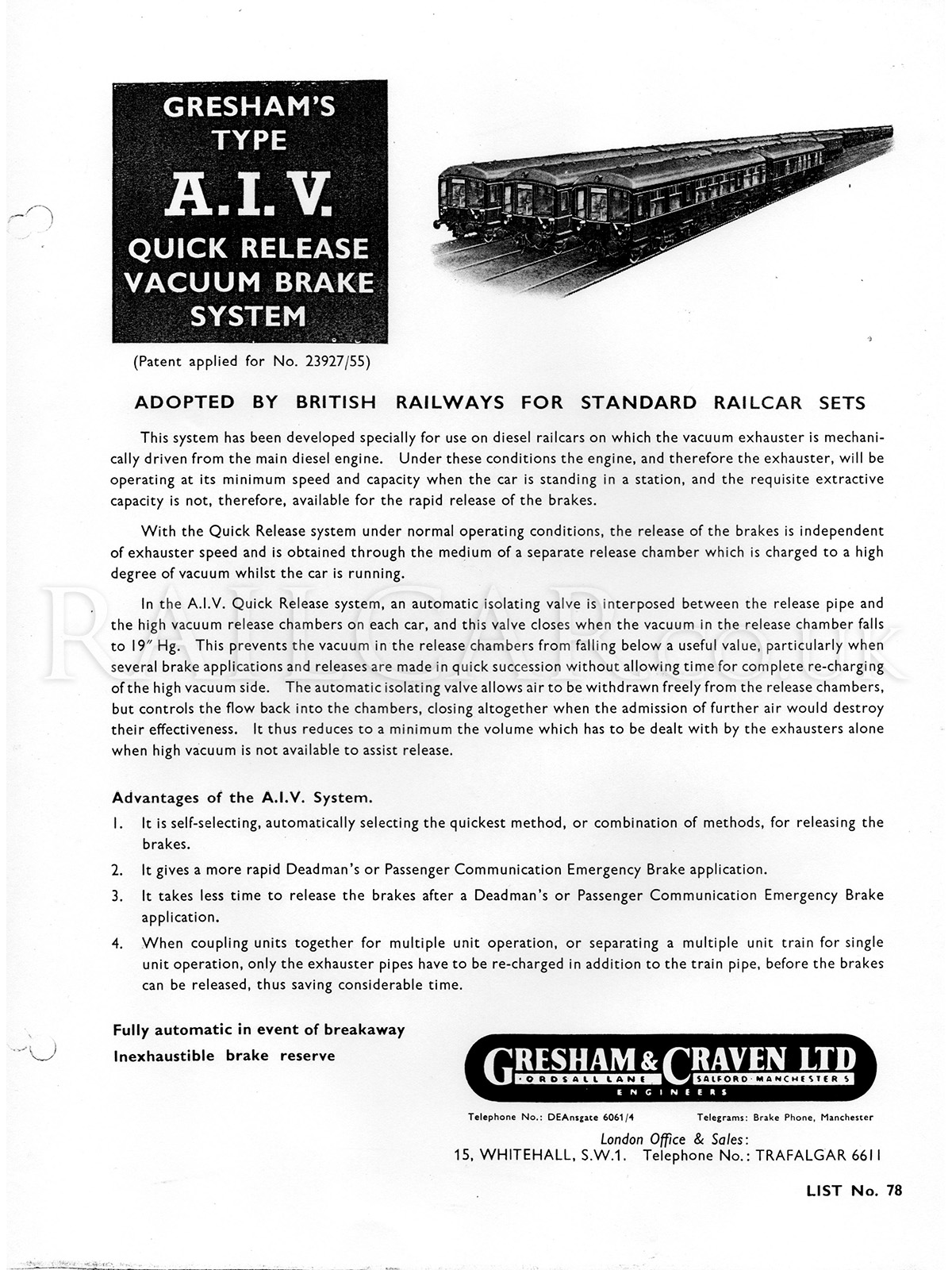

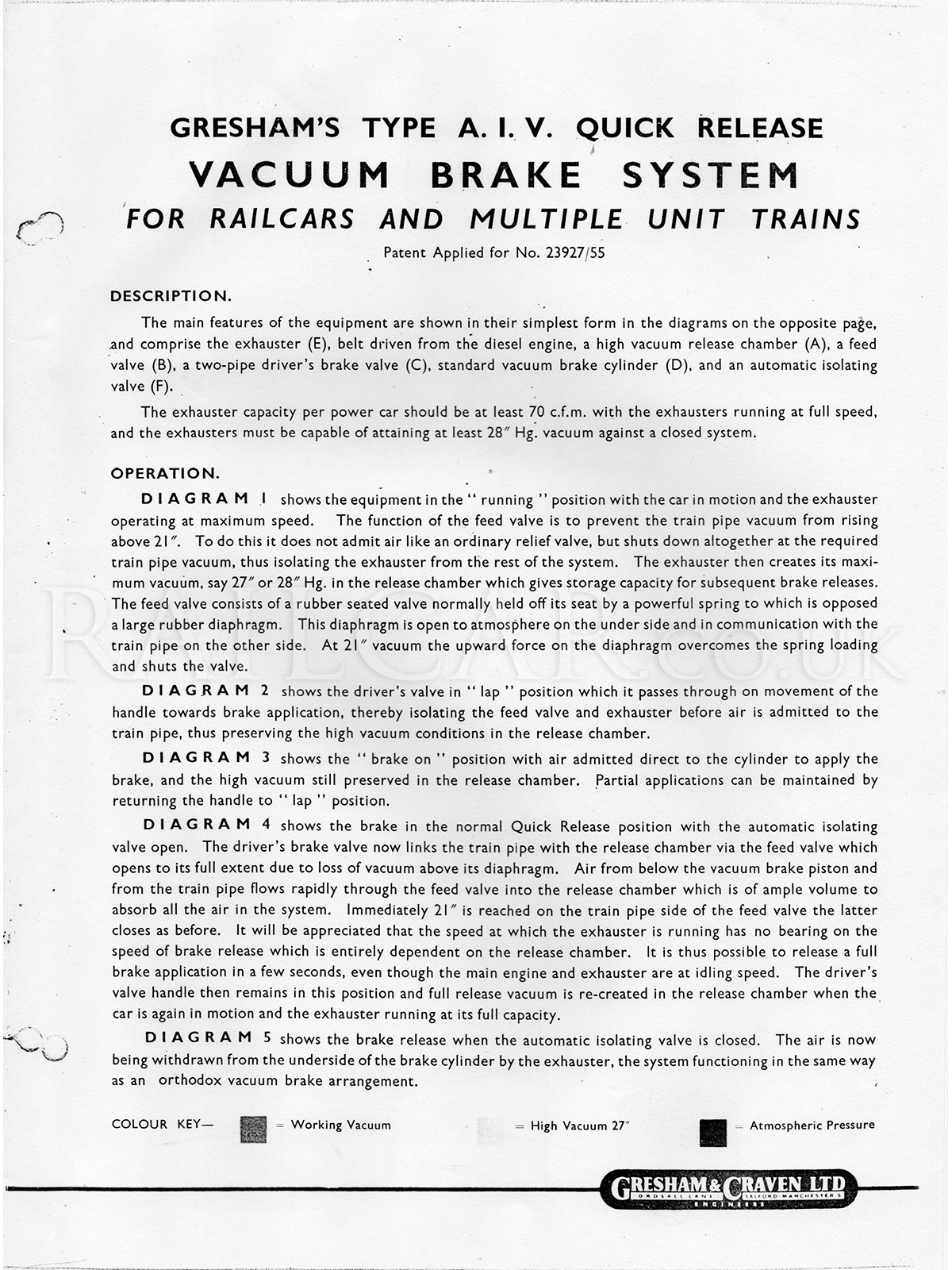

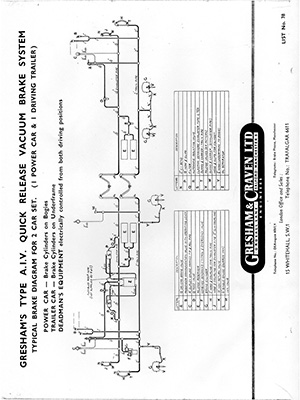

Next was a four sheet explanation on the system. This would be in colour but I only have B/W photocopies to scan:

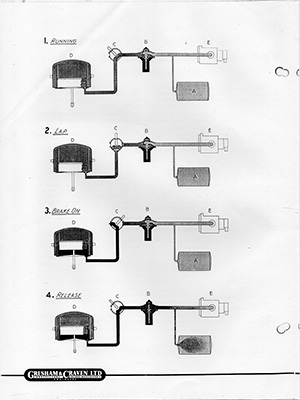

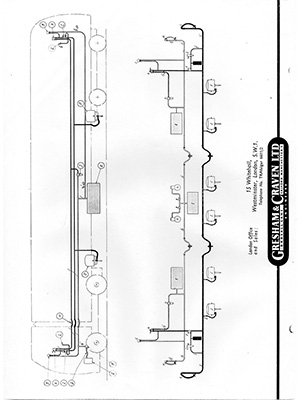

And an alternative version:

Examinations and faults:

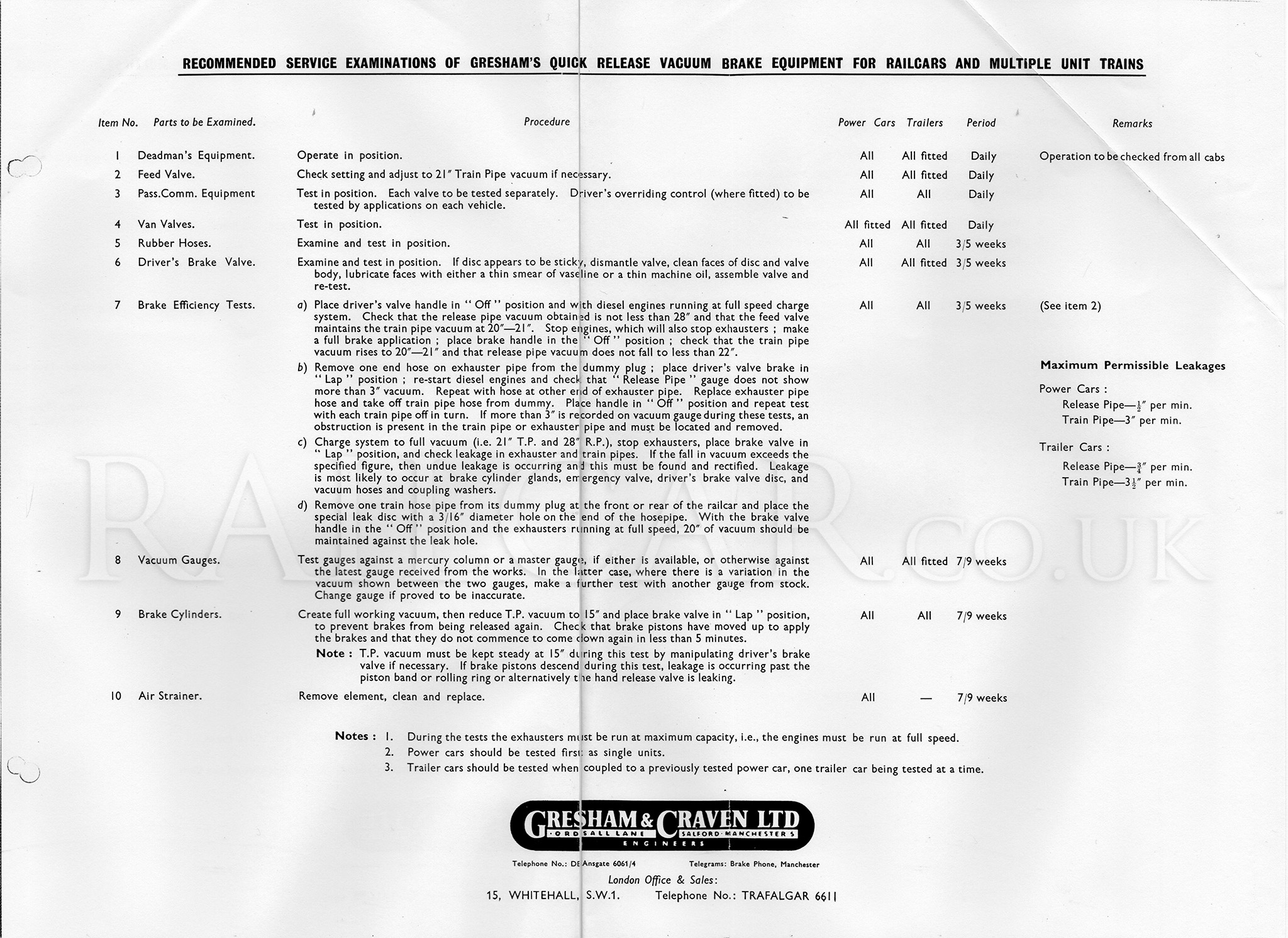

Examinations
Faults

Sub-Assemblies of Quick Release System for British Railway Railcars

This contained a variety of diffferent literature, the two versions I've seen had different material inside - it was formed of a thin card cover with metal clips to add content.

I haven't repeated items found on other pages here but several component brochures were also included and they finished with a single application drawing (S2058/b).

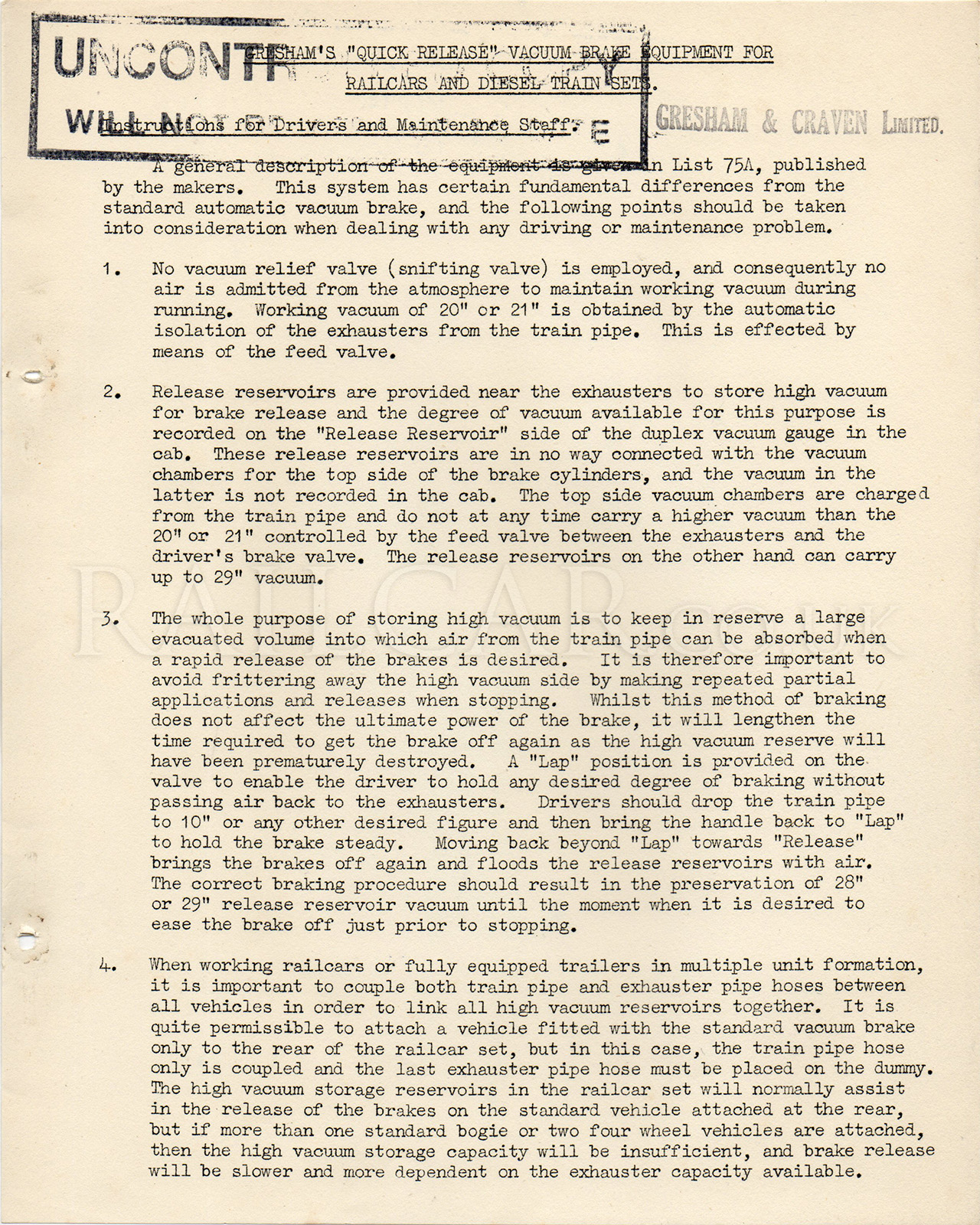

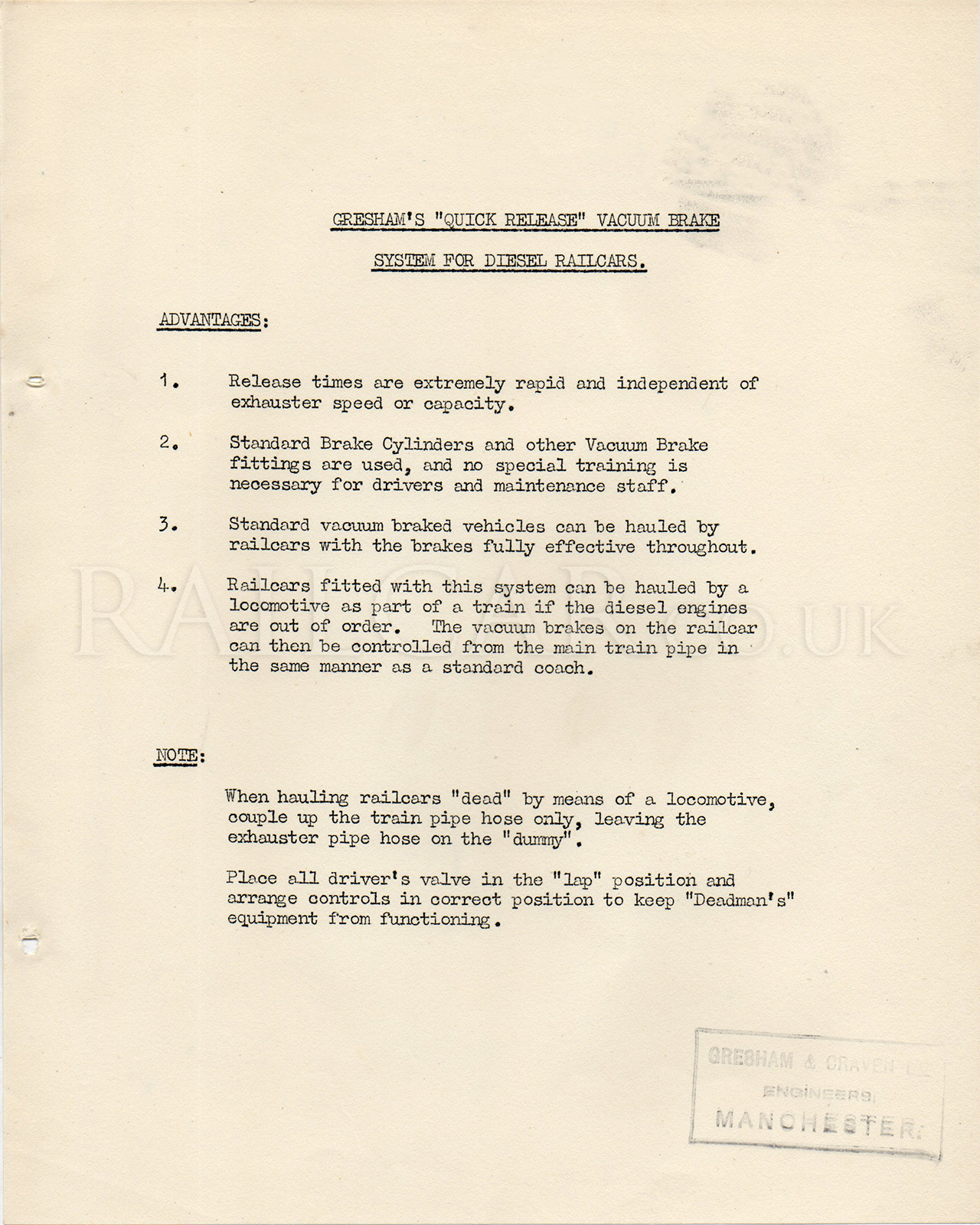

First shown in the cover and the intro pages:

Automatic Feed Valve:

Driver's Brake Valve, this drawing followed brochure I.S.5 from which page three was taken:

Combined Deadman's Control & Emergency Valve:

Combined Deadman's Control & Emergency Valve with Horizontal Timing Chamber:

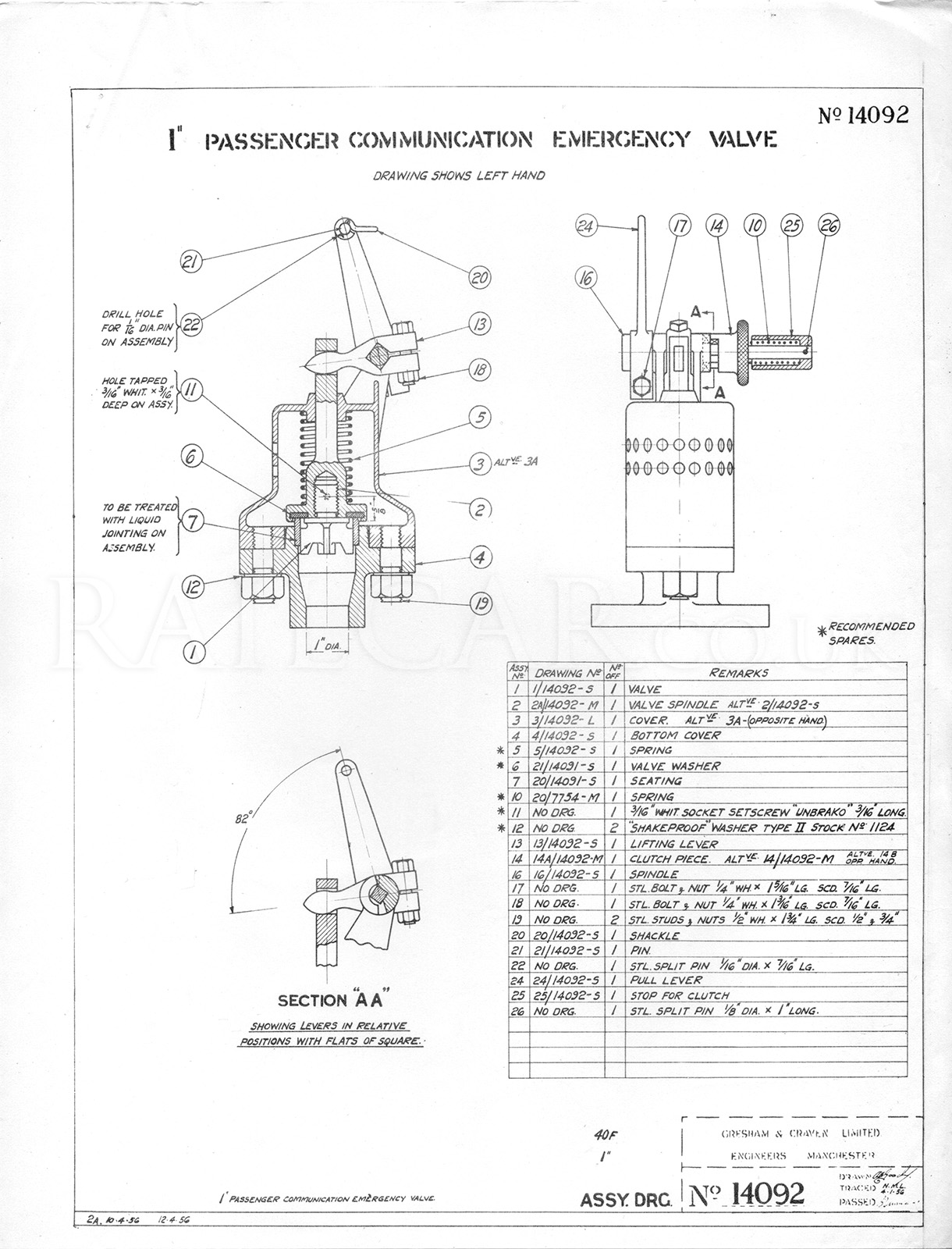

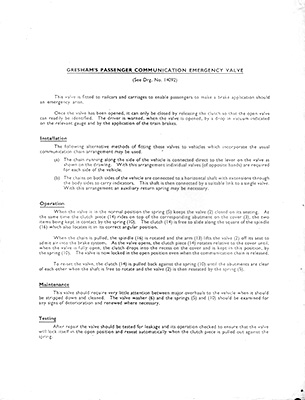

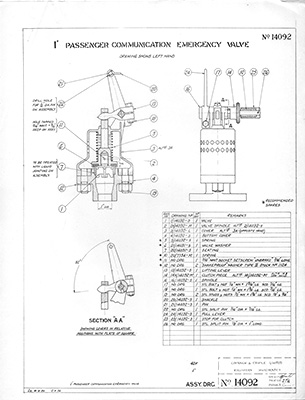

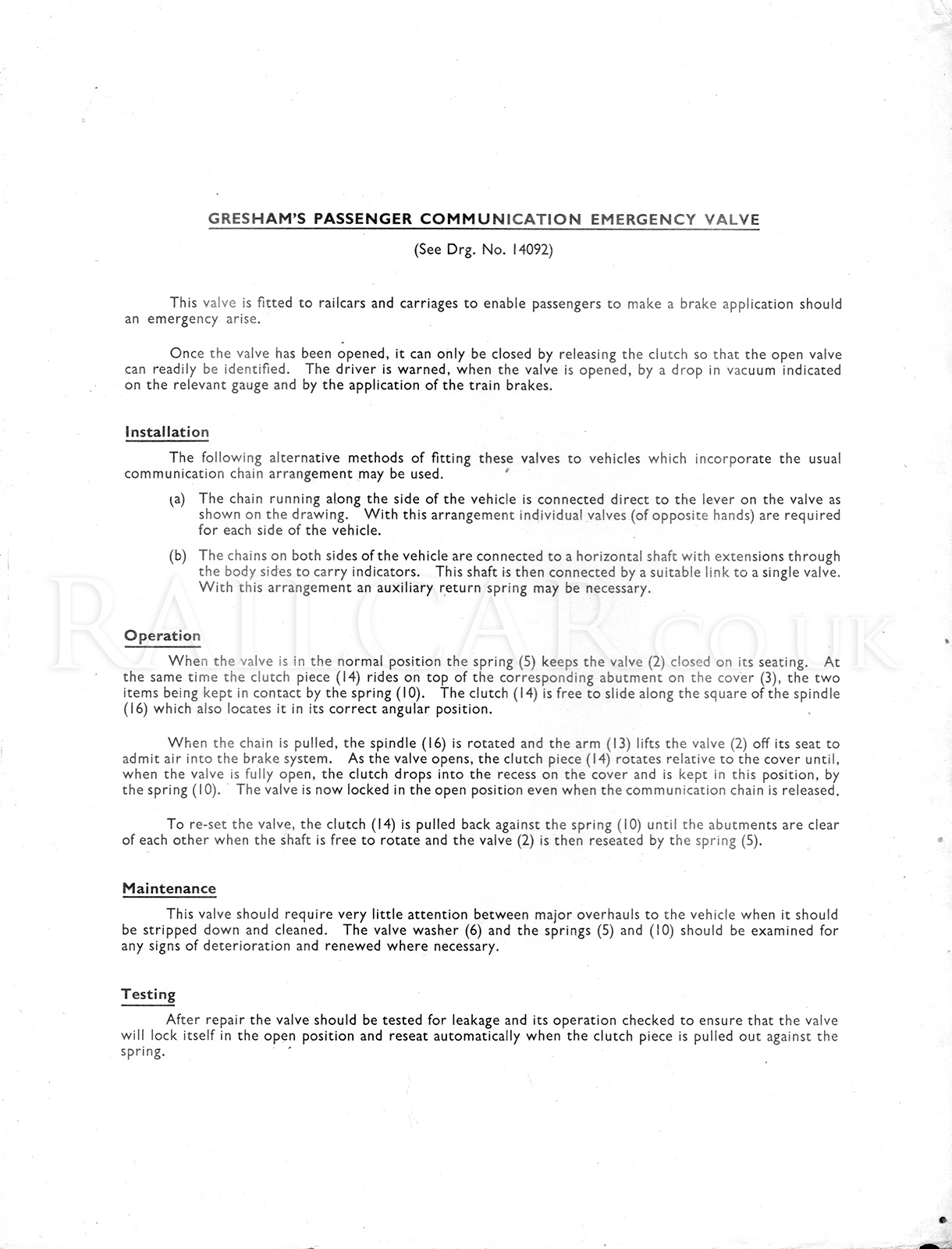

Passenger Communication Emergency Valve:

Drawings

One drawing shows the handle for the driver's brake valve, the other shows the top part of the valve itself.

These link to pdfs, drawings courtesy of Chris Bull and scanned by John Joyce.

Brake handle drawing
Valve top drawing
