Metropolitan Cammell


Order Numbers

Order number document

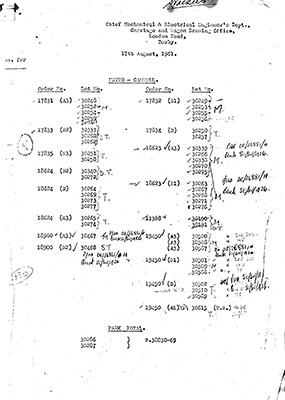

These are taken from an London Midland Region document dated 17th August 1961 (pictured).

The codes in the table are an early form of vehicle type designation:
A3 - DMBS, B1 - DMCL, B2 - DTCL, D - TSL or TCL, E3 - TBS

BR placed five orders for DMUs with Met-Camm, these are looked at in more detail on the Class 101 Orders page. Note the data in the table suggests that the fifth order (seven 3-car sets for the ScR) was considered by Met-Camm as an extension of the fourth order since the same internal order number was used.

Note that in the first part of the second order from British Railways (Met-Camm order numbers 17831-5) each of the five different vehicle types is given its own order number. In the second part just two order numbers are used for the five vehicle types, one for powered and one for non-powered vehicles. On the other orders one order number is used for all vehicle types.

The Blue Pullmans are not listed, the only Met-Camm order number I have came across for them is 18870.

Order no.   Lot No.
Order One (72 vehicles)
17388 30190
  30191

Order Two (339 vehicles)
17831 (A3) 30248   17832 (B1) 30249
  30252     30253
  30254     30255
  30259     30256
  30261

17833 (B2) 30337   17834 (D) 30250
  30260     30257
  30262

17835 (E3) 30251
  30258

18623 (A3) 30339   (B1) 30263
  30266     30267
  30338     30268
  30270     30271
  30275     30276

18624 (B2) 30340   (D) 30264
  30272     30269
        30273
(E3) 30265     30277
  30274

Order Three (160 vehicles)
18900 (A3) 30467   (B2) 30468

Order Four/Five (189 vehicles)
19450 (A3) 30500   (B1) 30501
  30508     30509
  30587     30588

(D) 30502   (D) 30615
30510
30589

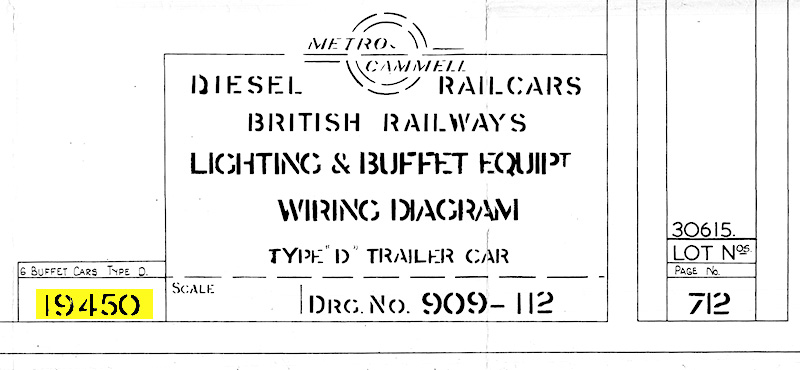

These order numbers were used on the works drawings as I've highlighted on the sample:

Works Order number on drawing
