Class 103 Park Royal 2-car DMUs


Numbering

  50395 - 50414    56150 - 56169
Type DMBS DTCL
Seating 52 2nd 16 1st & 48 2nd
Weight 33 tons 8 cwt 26 tons 7 cwt
Lot. Number 30286 30287
Diagram 635 645
Design Code DQ 204 DS 304

Park Royal Works order / numbers: B.38830-69

When TOPS classification was introduced in 1973 the DTCs became 145s, but the classes were later rationalised and they were reclassified also as 103s.

Worksplates

Worksplates were carried on the vehicle solebars to identify the builder and lot number. Many of the worksplate images on the website are from the collections of Simeon Gaskell, John Horne and Tony Spencer.

Lot 30286 worksplate Lot 30287 worksplate

Driving Instructions

BR. 33003/38

This was a booklet from the 33003 series, specific to these vehicles.

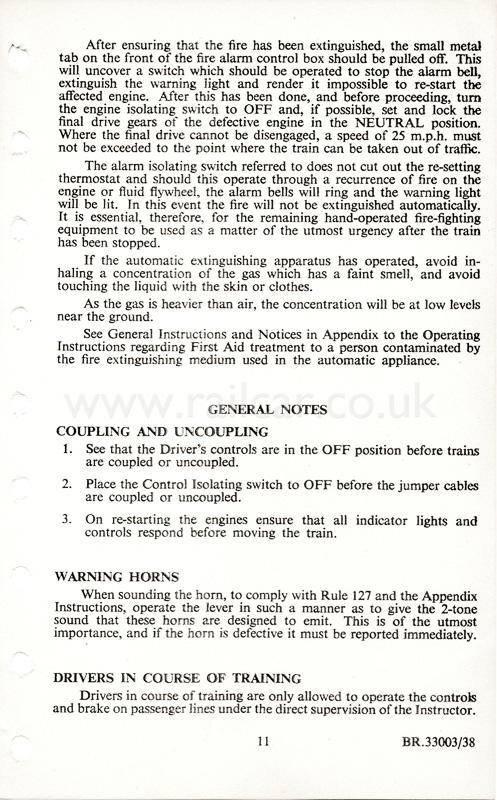

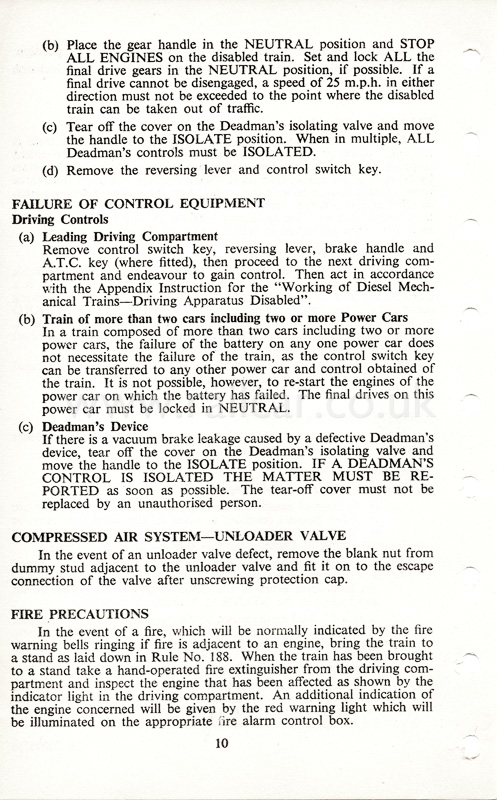

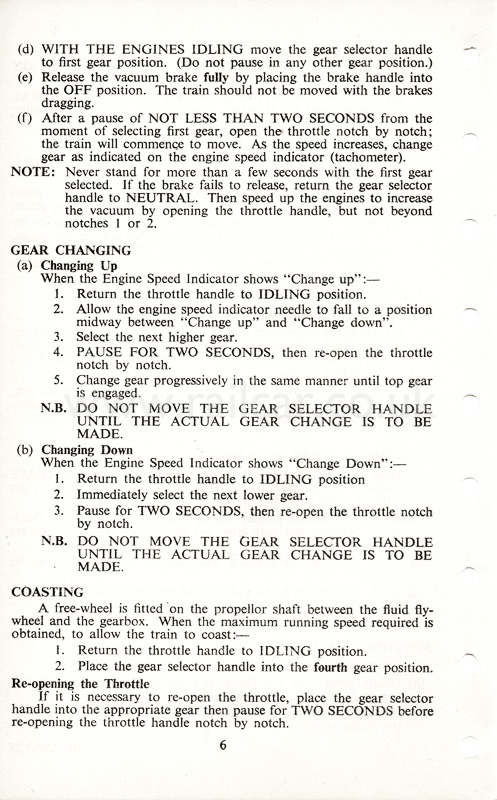

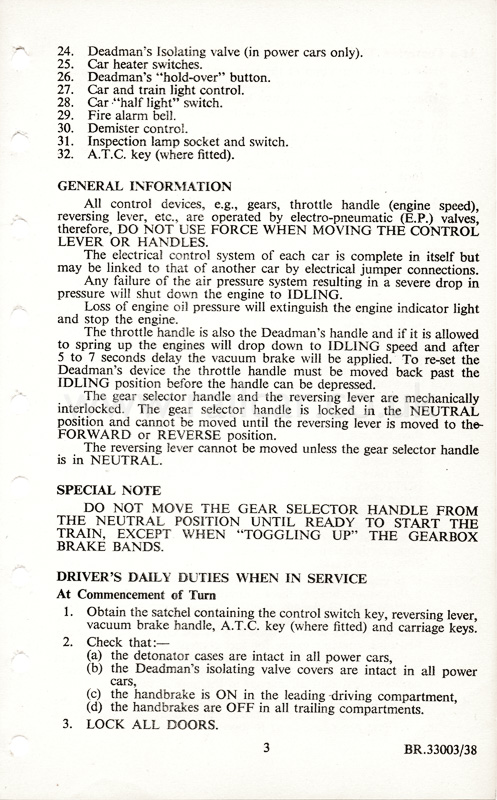

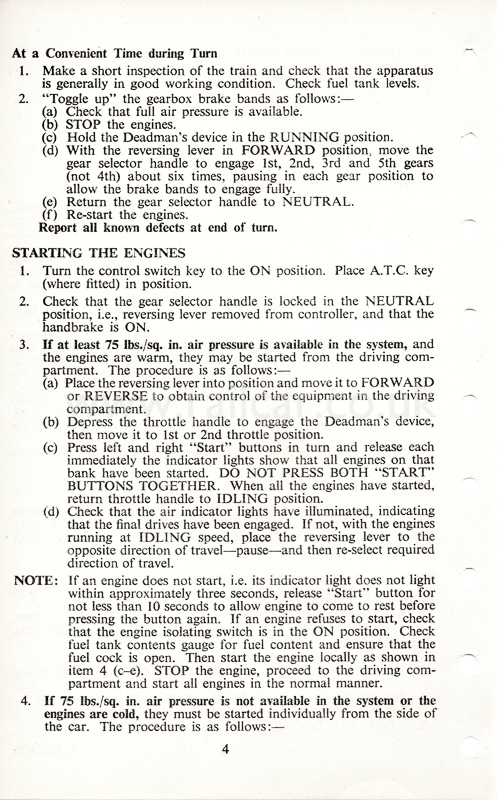

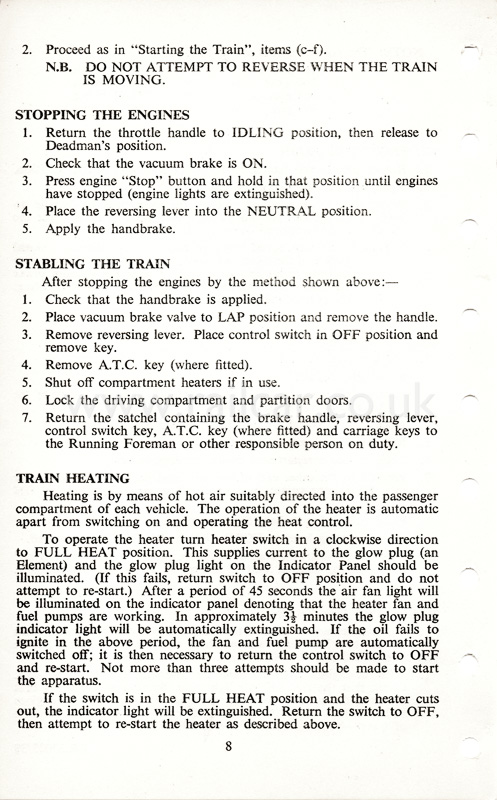

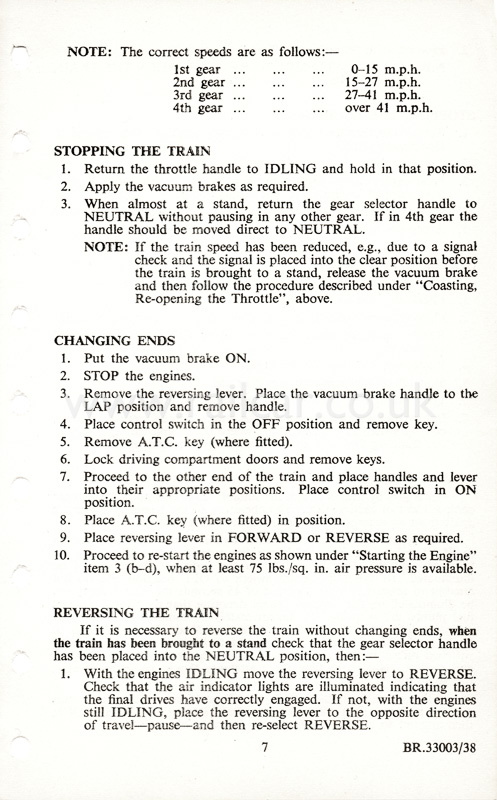

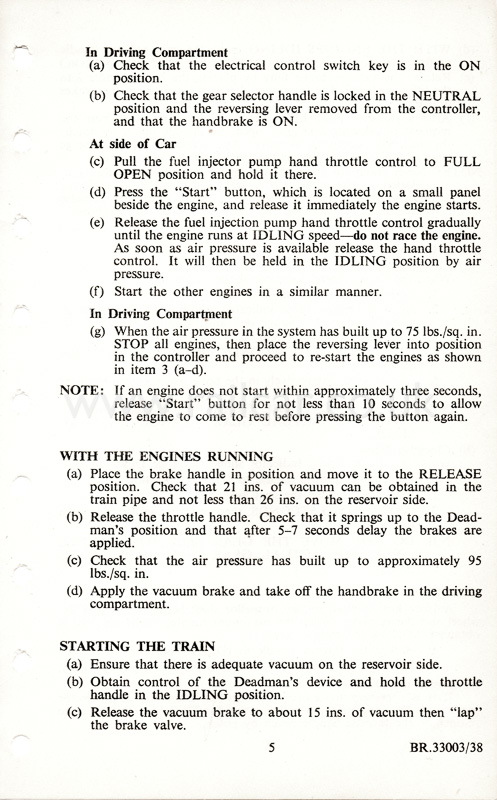

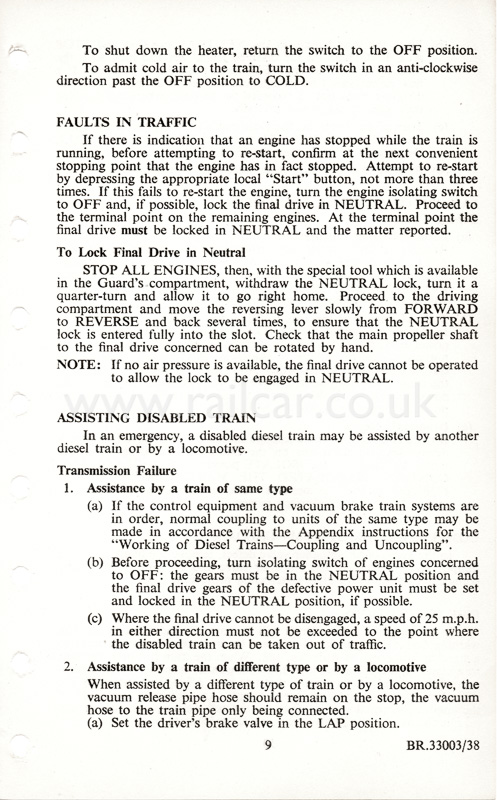

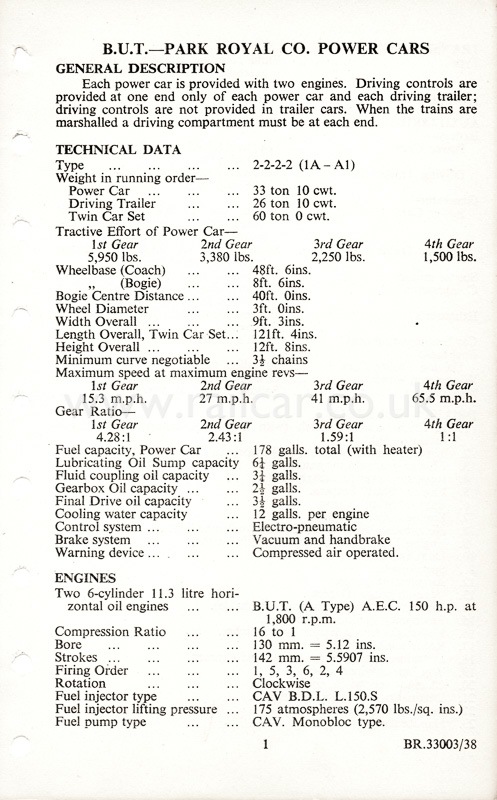

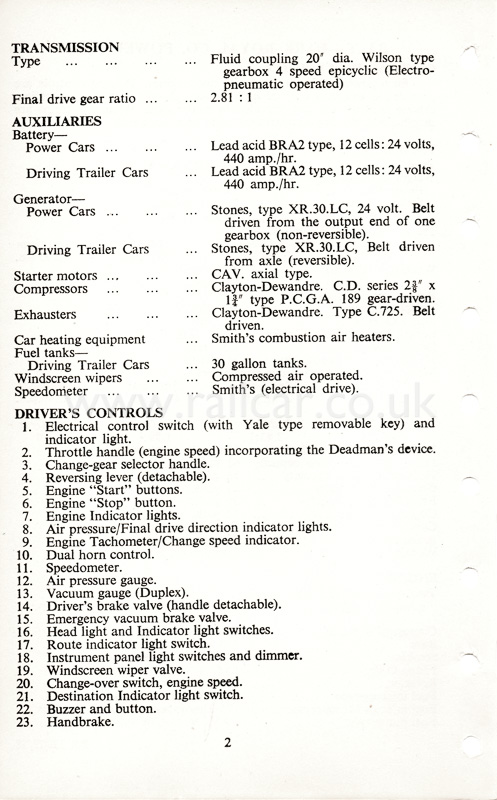

BR. 33003/38 cover BR. 33003/38 page 1 BR. 33003/38 page 2 BR. 33003/38 page 3 BR. 33003/38 page 4 BR. 33003/38 page 5 BR. 33003/38 page 6 BR. 33003/38 page 7 BR. 33003/38 page 8 BR. 33003/38 page 9 BR. 33003/38 page 10 BR. 33003/38 page 11

PDF (1.2mb)

Replacements

In 1961 a new version was issued covering all Blue Square vehicles - BR 33003-92. A companion to this was a "Preparation and Disposal" booklet BR 33003/211.

In 1968 the booklets were replaced by a three part set for Blue Square vehicles Mechanical Transmission):
BR 33003/247 1 - General Data And Equipment
BR 33003/248 2 - Driving Instructions Including Standard Preparation and Disposal Duties
BR 33003/249 3 - Fault Finding Data and Charts

In the early seventies the 33003 series was replaced by the more generic 33056 series of drivers manuals, no longer specific to any coupling code.

Details about preserved Class 103s can be found here.
