Design Codes - DP Series

Driving motor vehicles without brake van (DMS and DMC)

2xx series is for second class vehicles and 3xx for composite vehicles.

201-208 seem to be vehicles that were always second class. 209 upwards are vehicles that were originally composite, now downgraded to second class only. The exception to this rule is 220/1, these are gangwayed versions of ungangwayed 201/2.

Class 116
DMS
Diagram BR 554

Class 117
DMS
Diagram BR 535

Class 119
DMS
Diagram BR 541

Class 120
DMS
Diagram BR 586

Class 120
DMS
Diagram BR 637

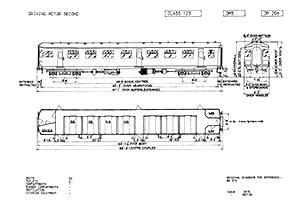

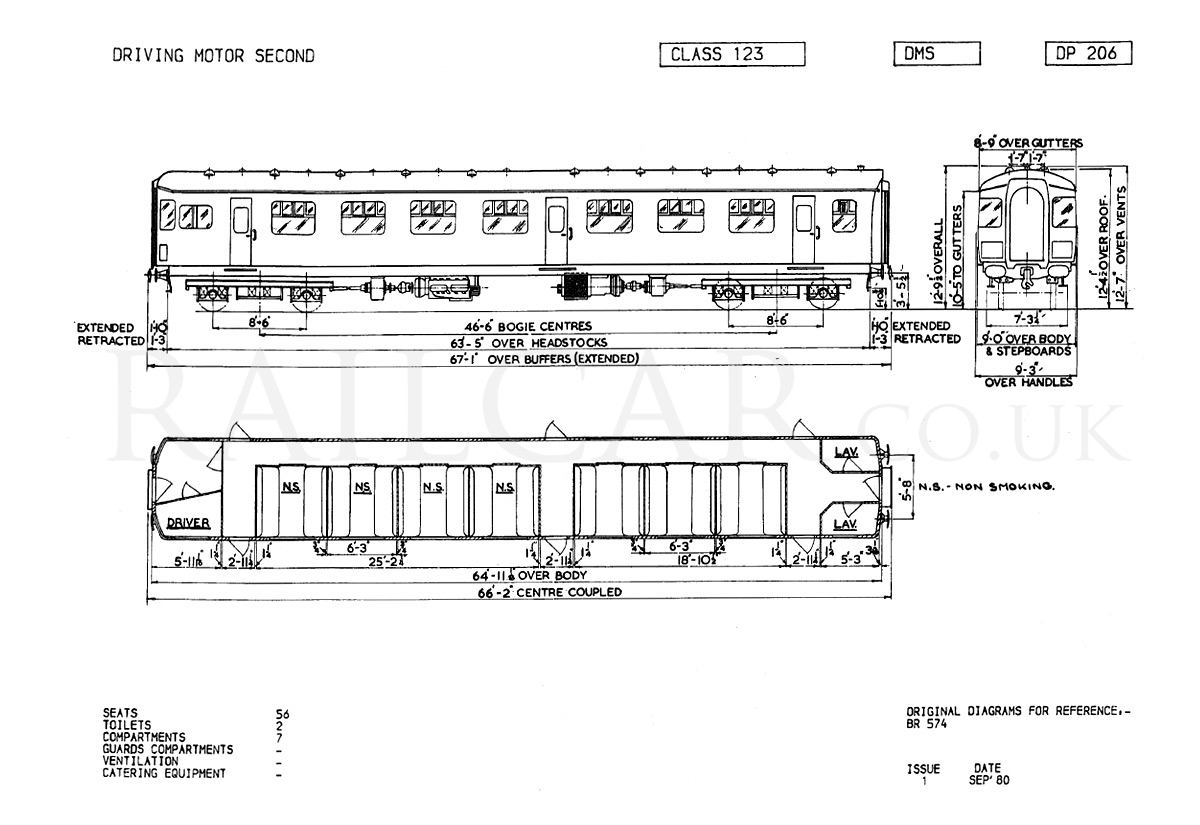

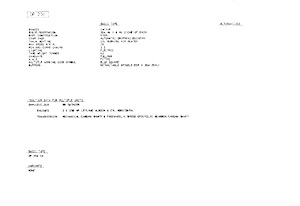

Class 123
DMS
Diagram BR 574

Class 126
DMS
Diagram BR 551

Class 104
DMS
Diagram BR 558

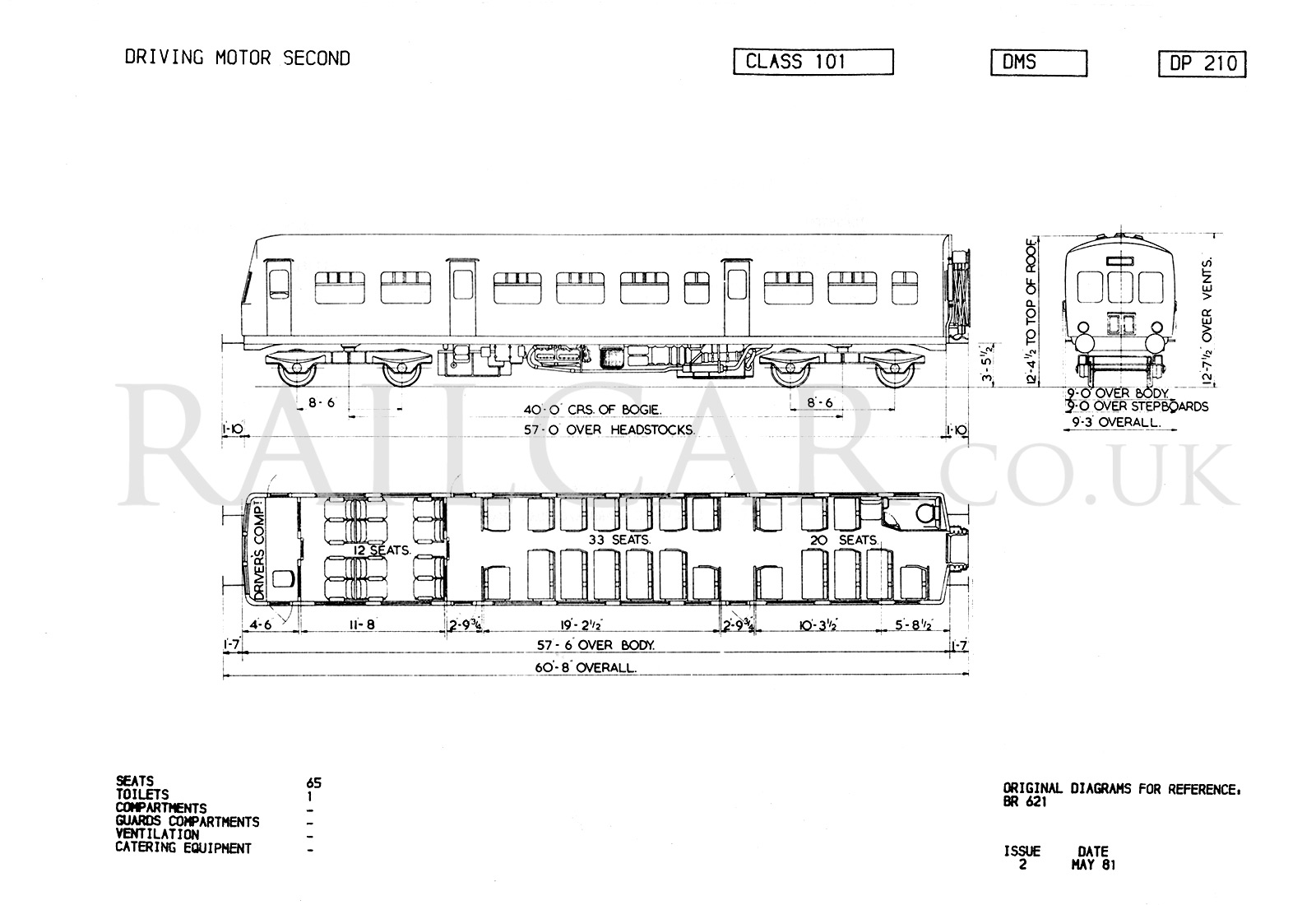

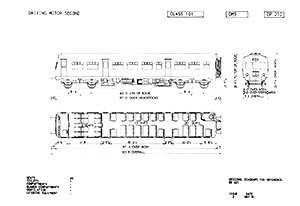

Class 101
DMS
Diagram BR 621

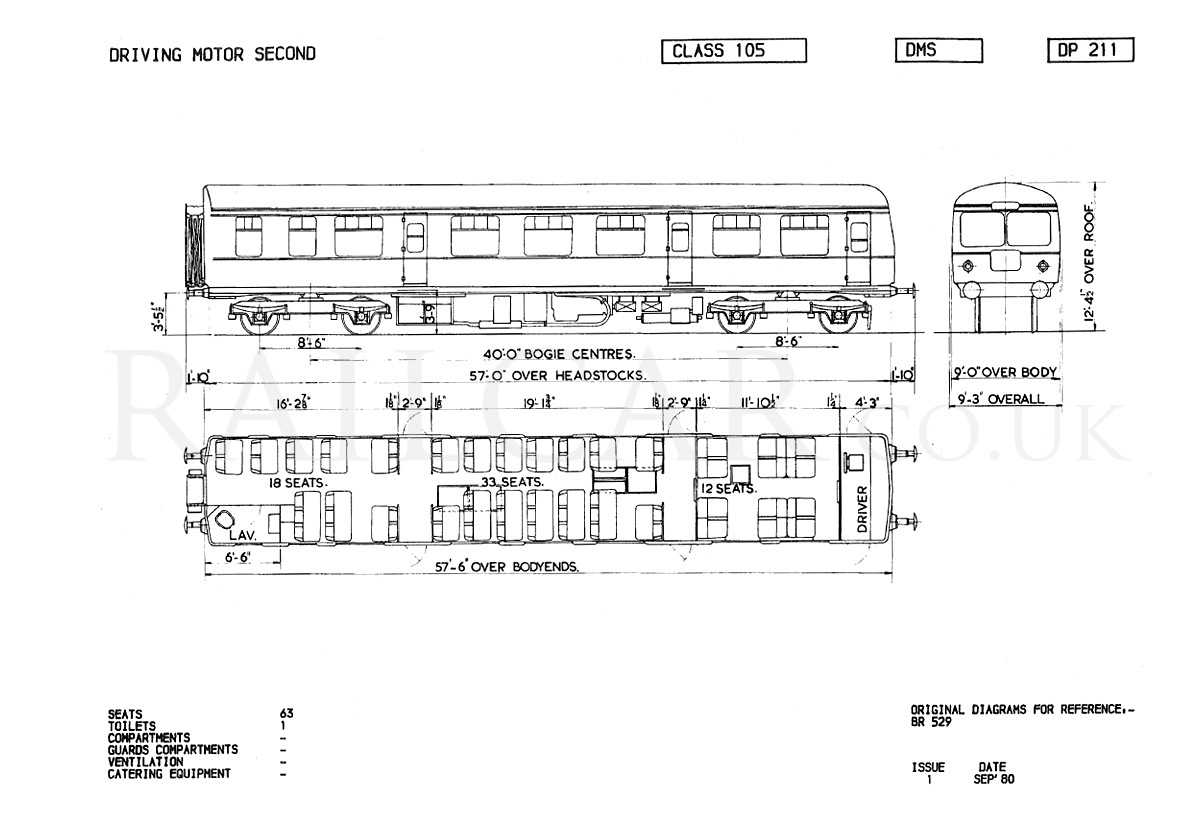

Class 105
DMS
Diagram BR 529

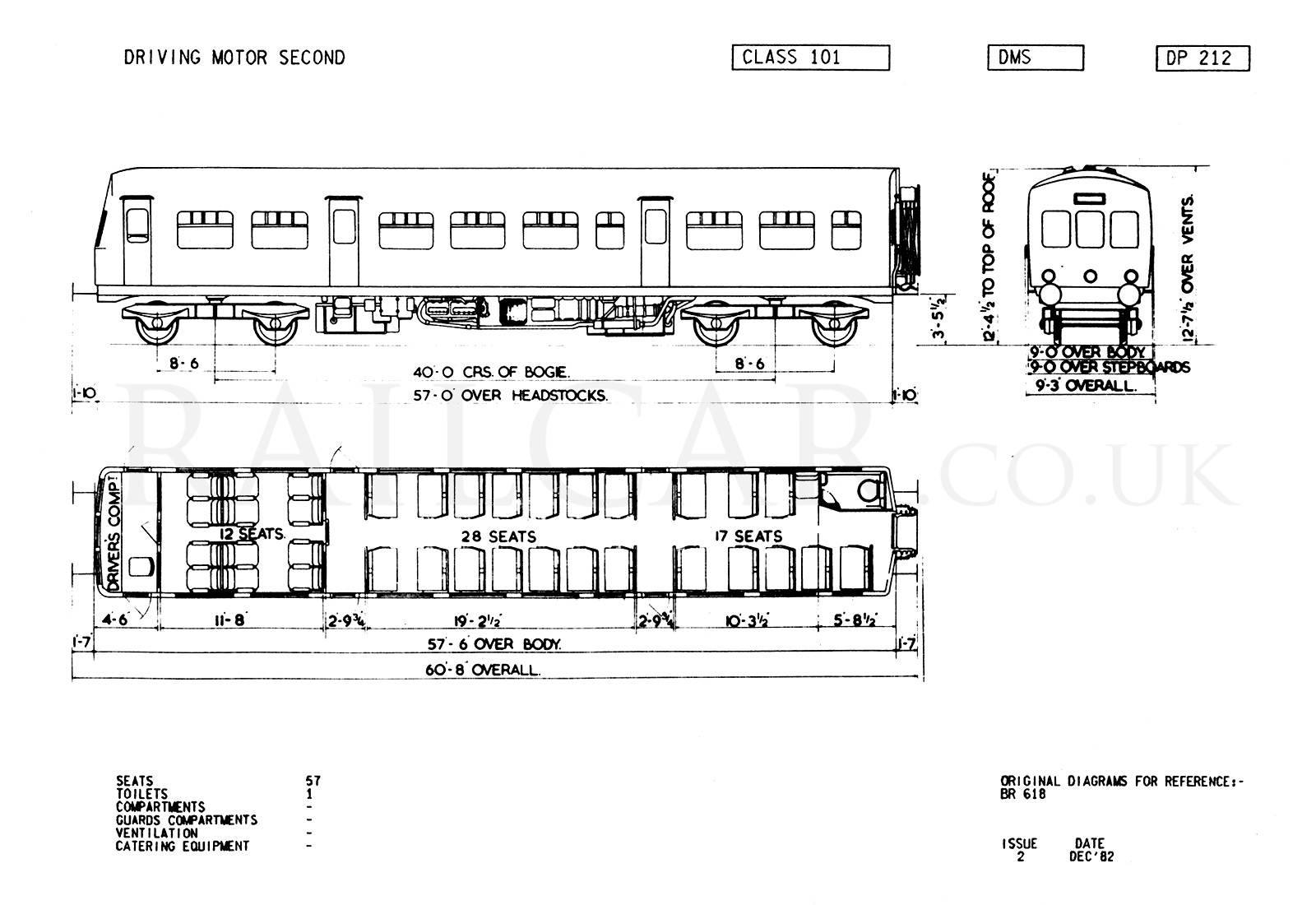

Class 101
DMS
Diagram BR 618

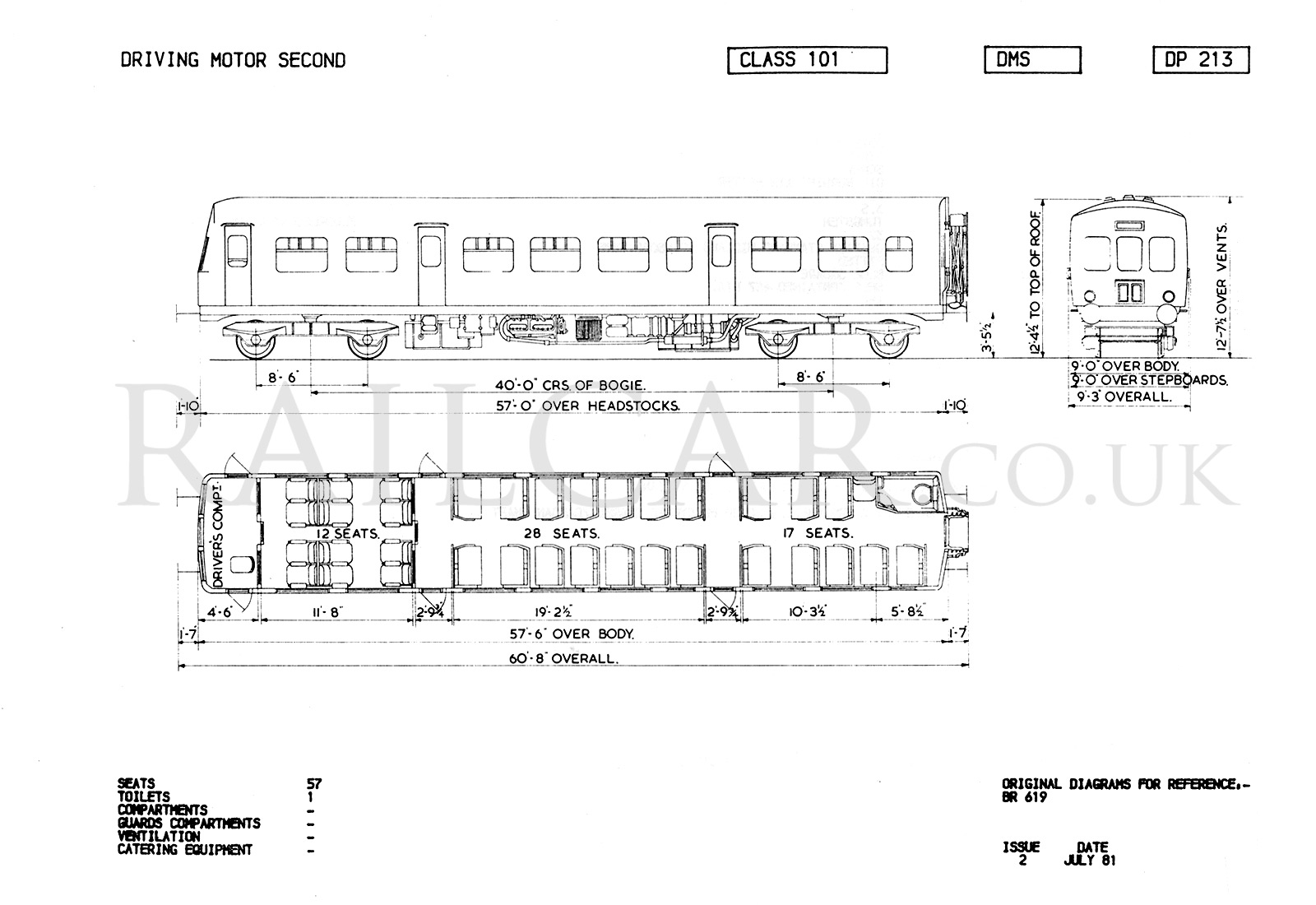

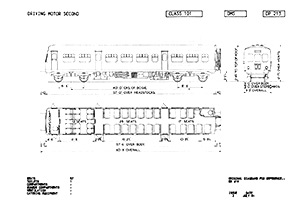

Class 101
DMS
Diagram BR 619

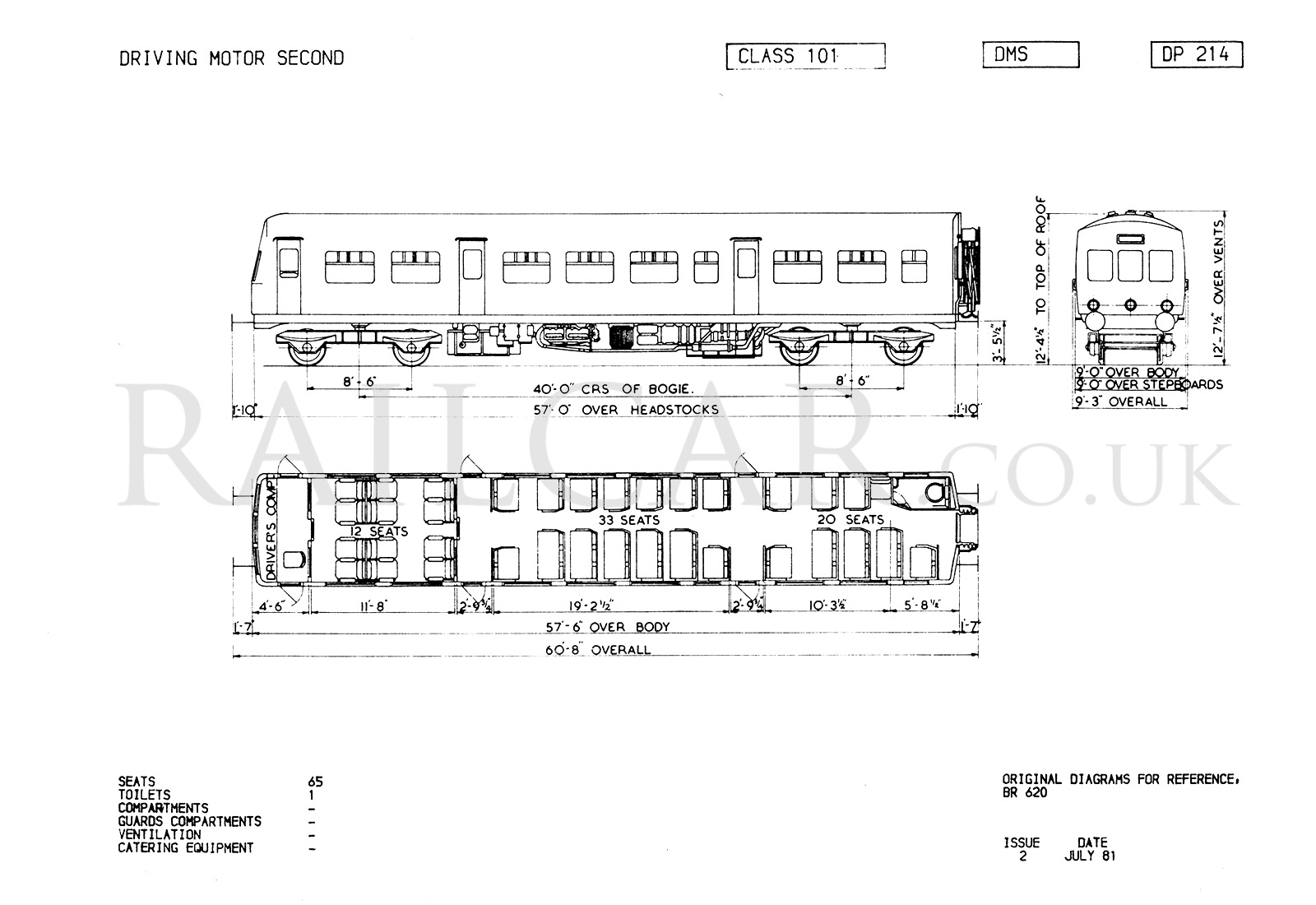

Class 101
DMS
Diagram BR 620

Class 107
DMS
Diagram BR 649

Class 101
DMS
Diagram BR 690

Class 104
DMS
Diagram BR 580

Class 104
DMS
Diagram BR 559

Class 108
DMS
Diagram BR 544

Class 116
DMS
Diagram BR 854c

Class 117/118
DMS
Diagram BR 852

Class 108
DMS
Diagram BR 609

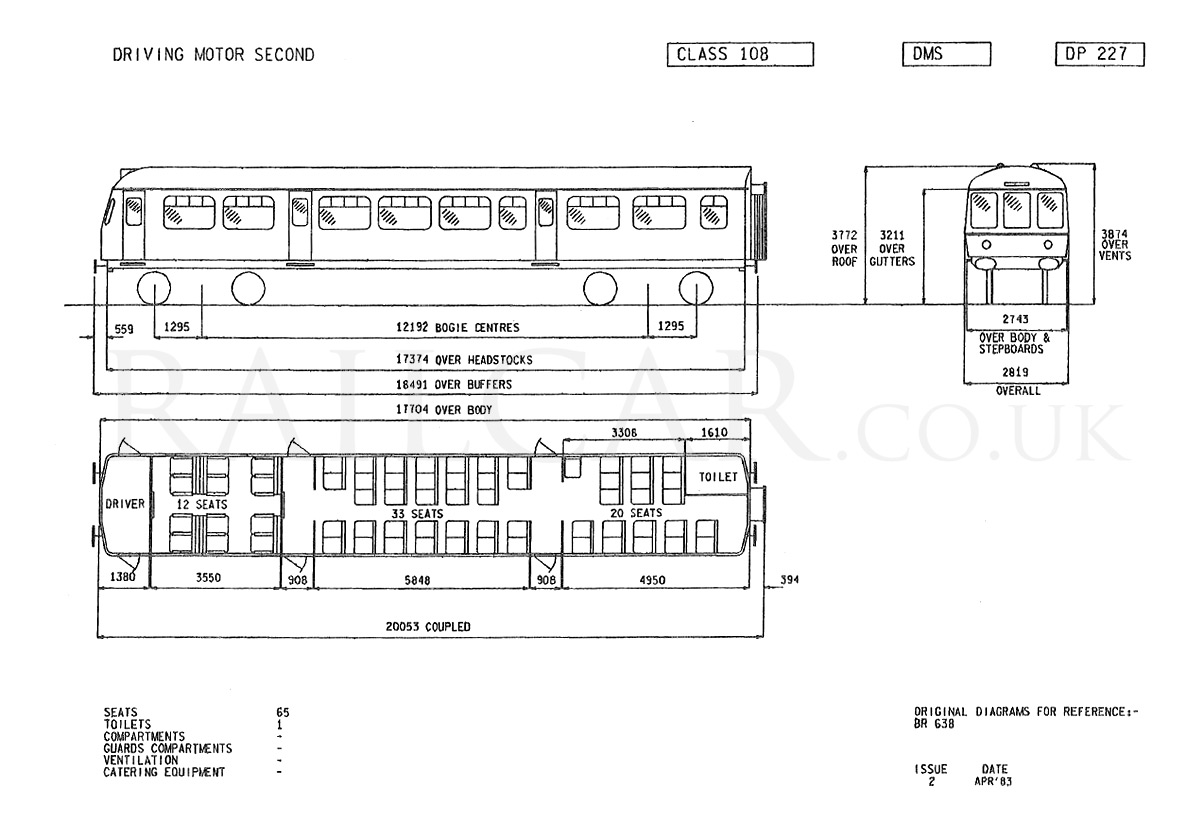

Class 108
DMS
Diagram BR 638

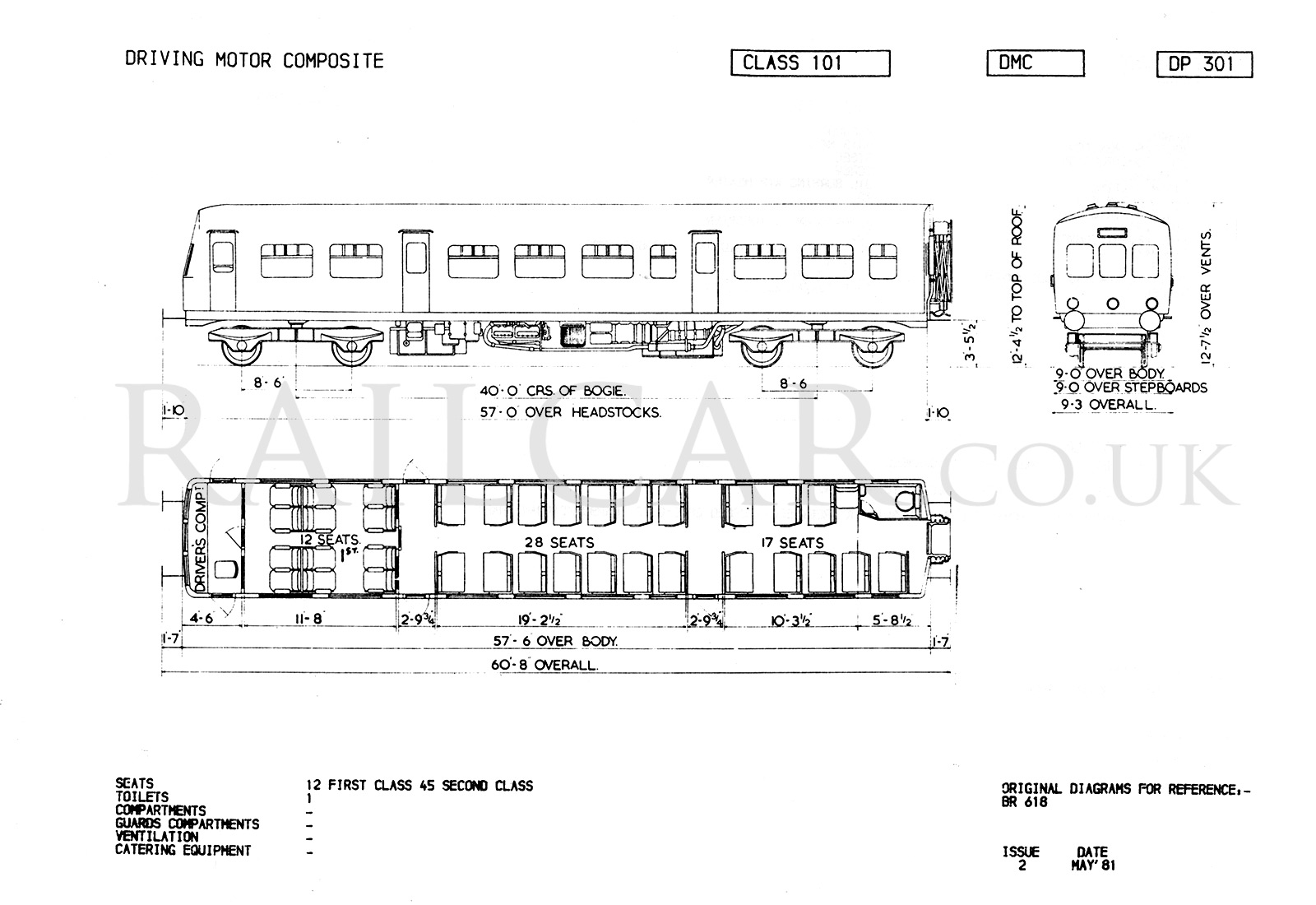

Class 101
DMC
Diagram BR 618

Class 101
DMC
Diagram BR 619

Class 101
DMC
Diagram BR 620

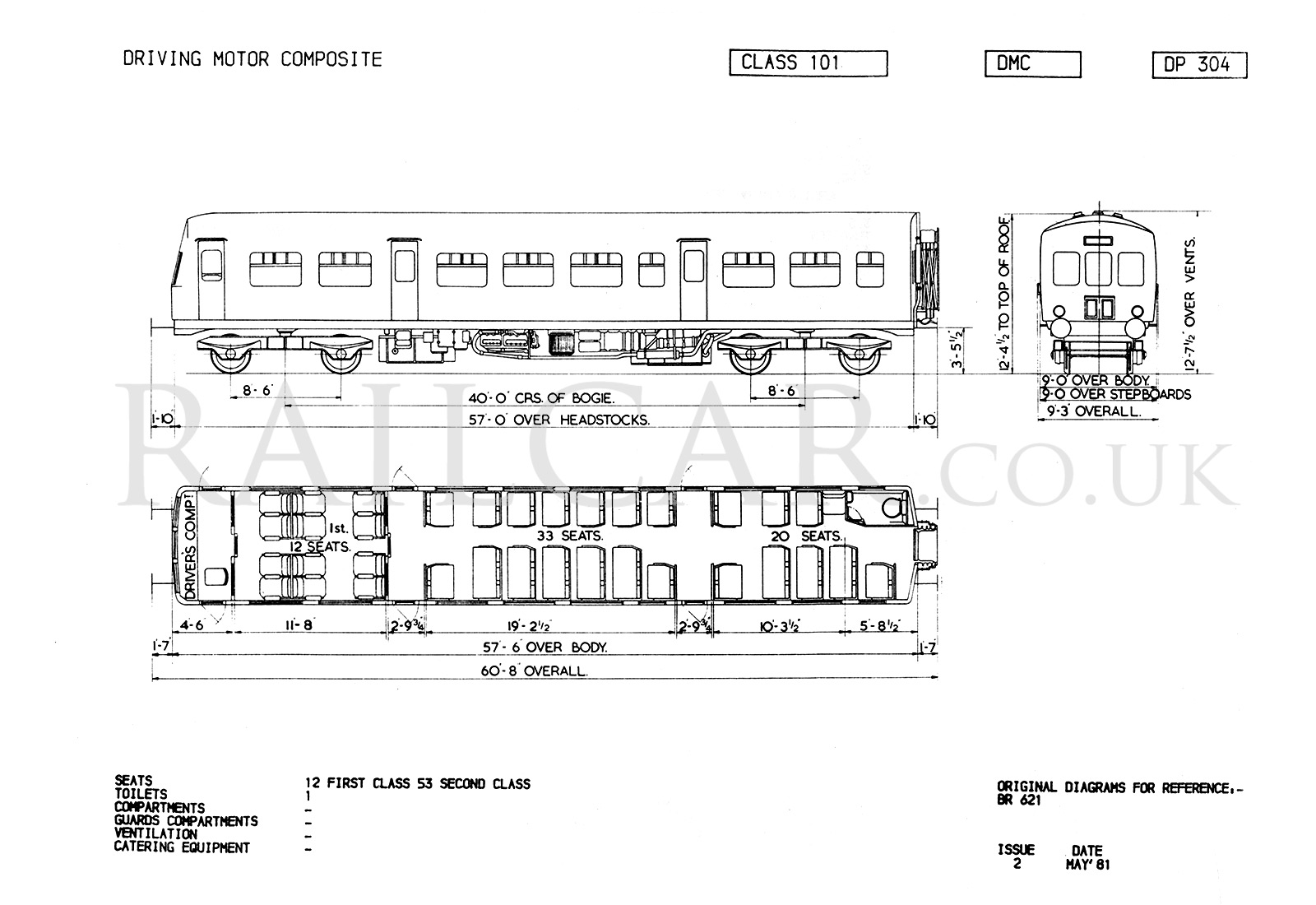

Class 101
DMC
Diagram BR 621

Class 104
DMC
Diagram BR 558

Class 104
DMC
Diagram BR 559

Class 104
DMC
Diagram BR 580

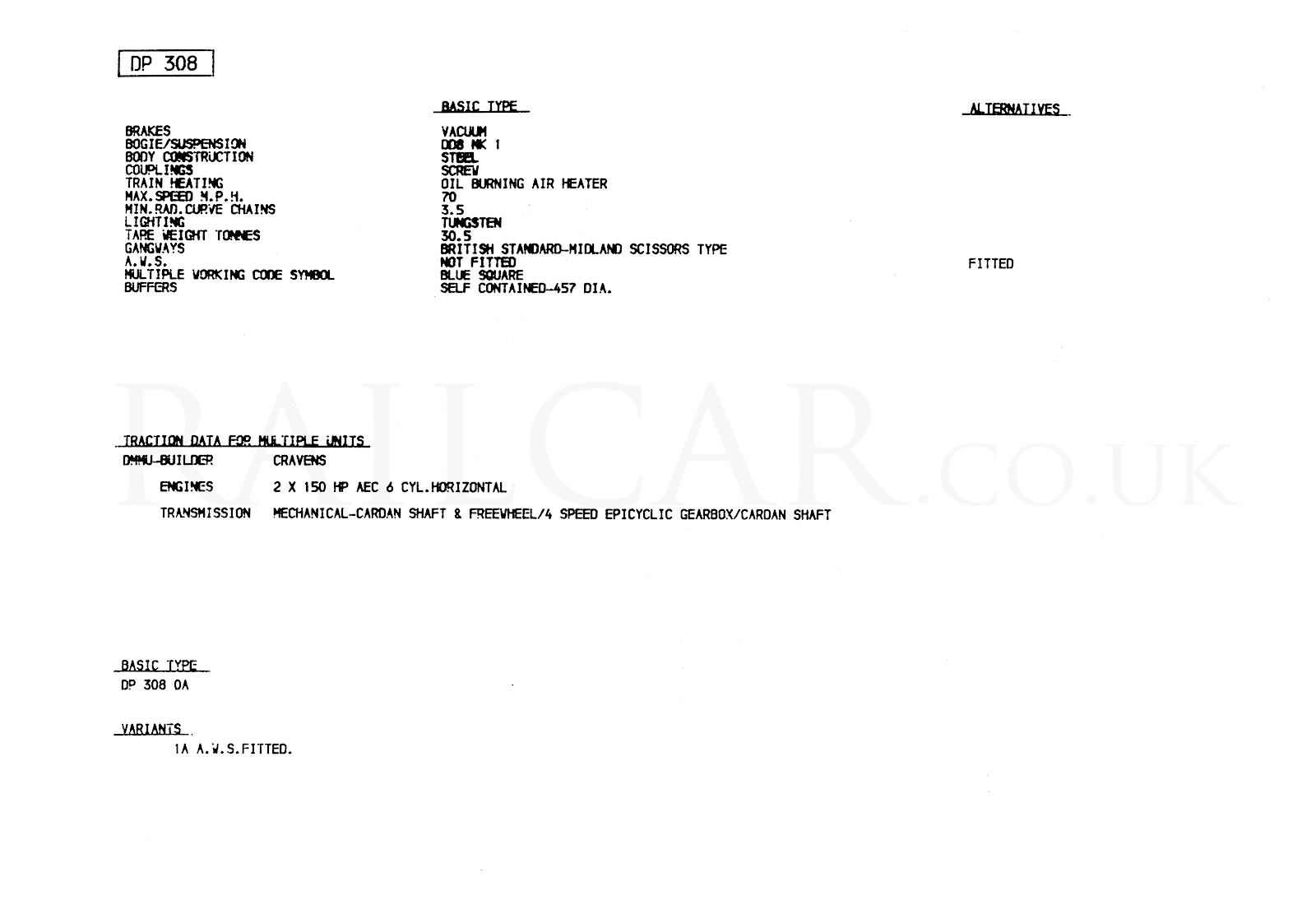

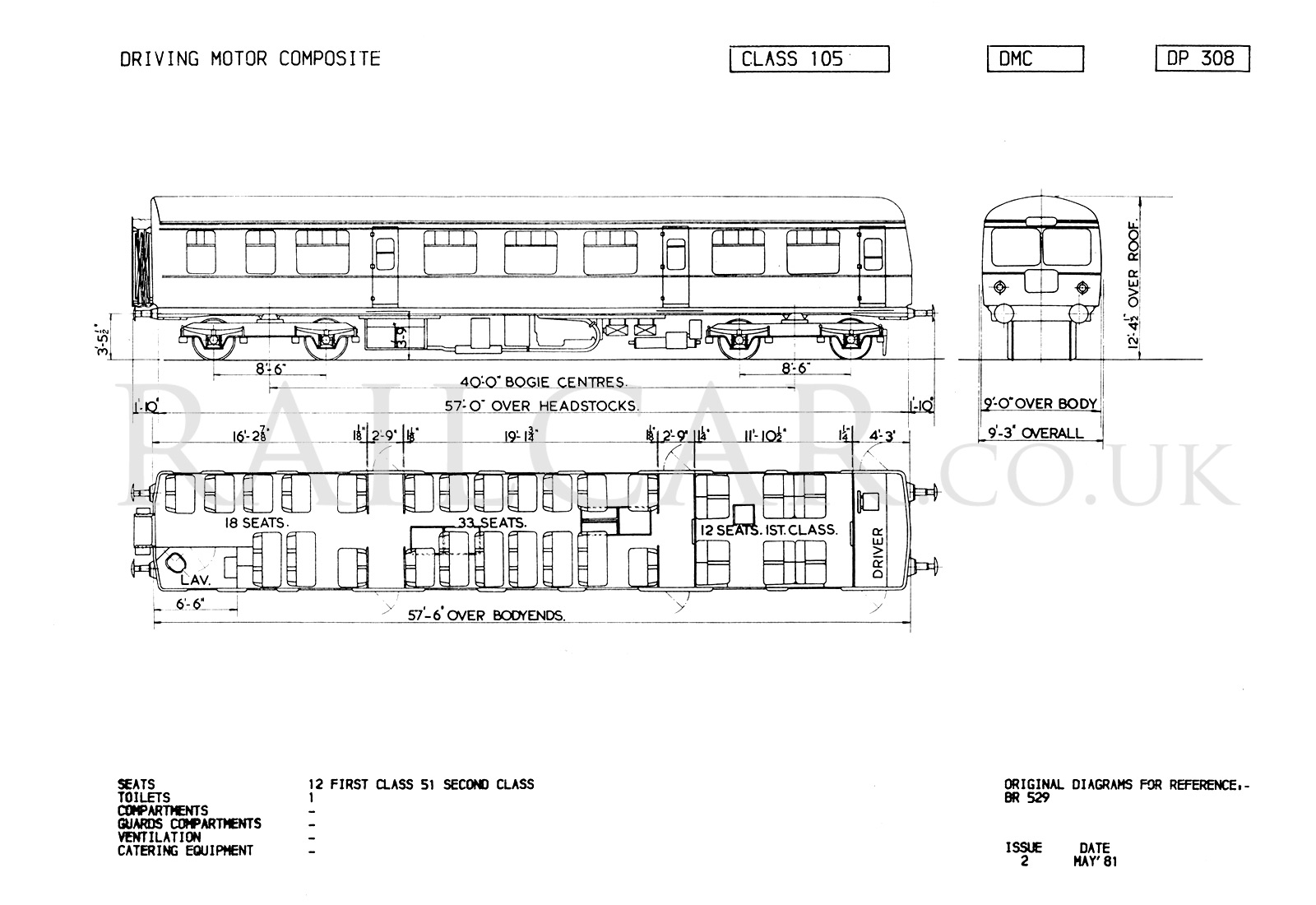

Class 105
DMC
Diagram BR 529

Class 108
DMC
Diagram BR 544

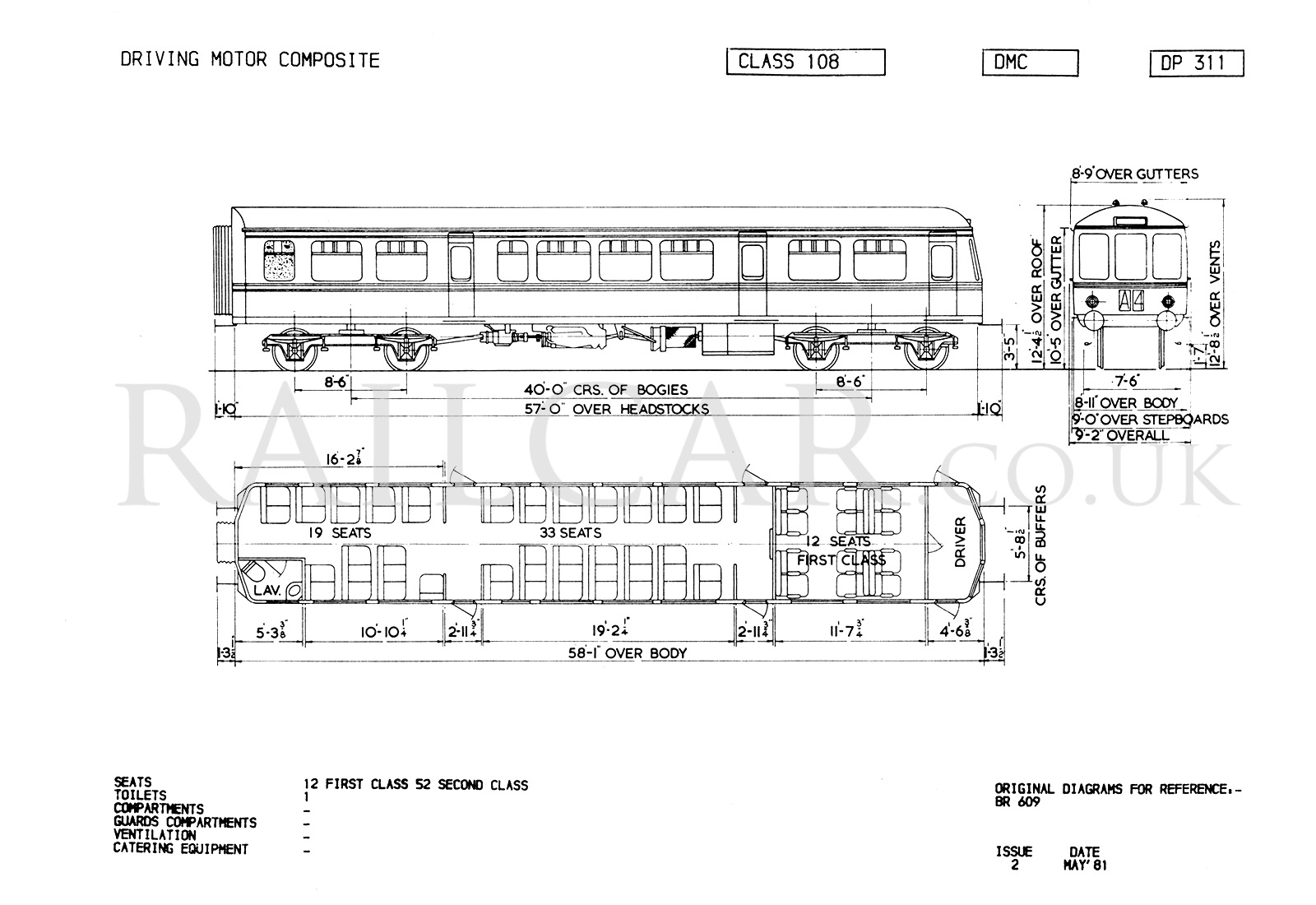

Class 108
DMC
Diagram BR 609

Class 108
DMC
Diagram BR 638

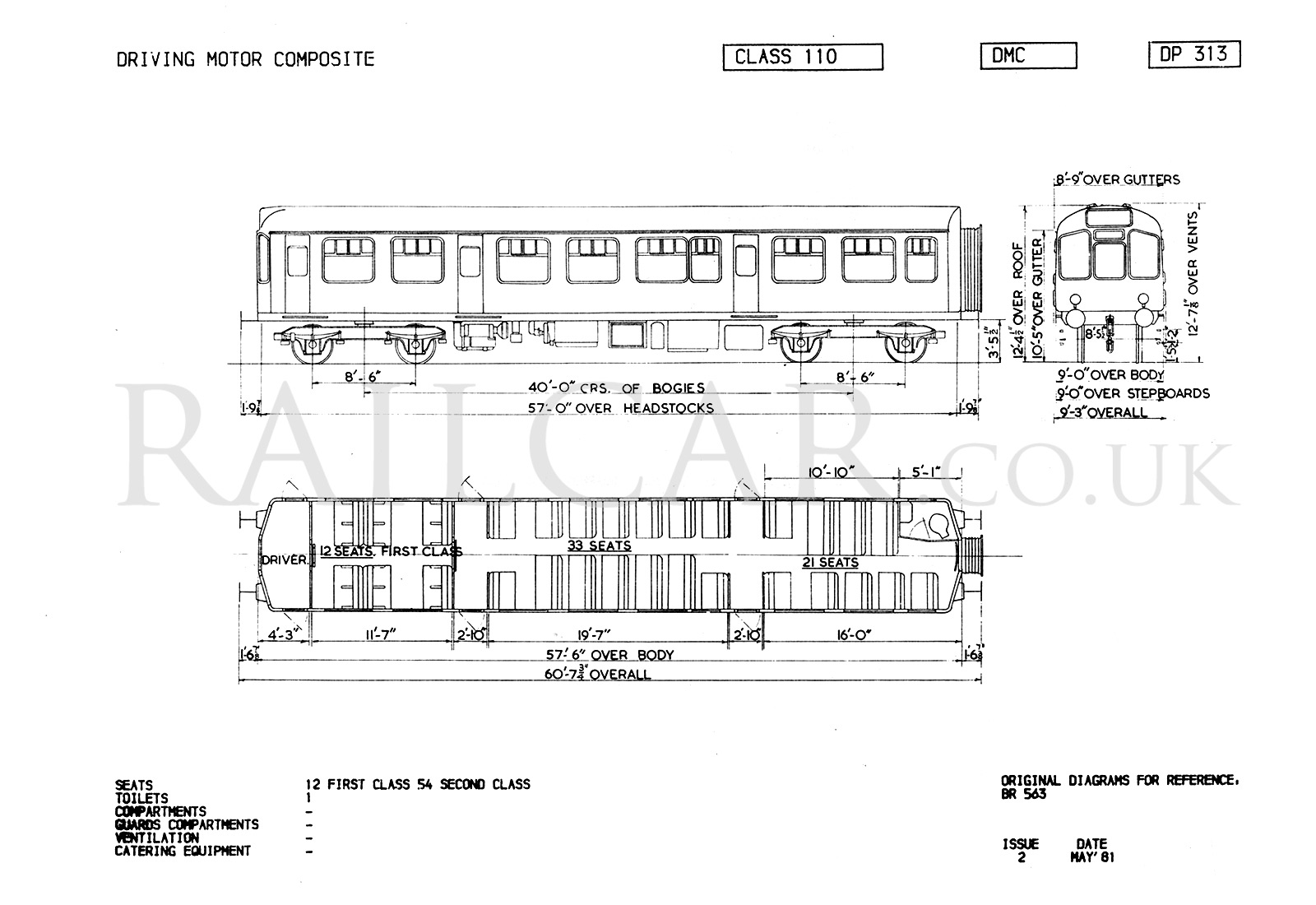

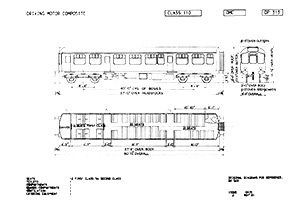

Class 110
DMC
Diagram BR 563

Class 111
DMC
Diagram BR 616

Class 111
DMC
Diagram BR 617

Class 120
DMC
Diagram BR 577

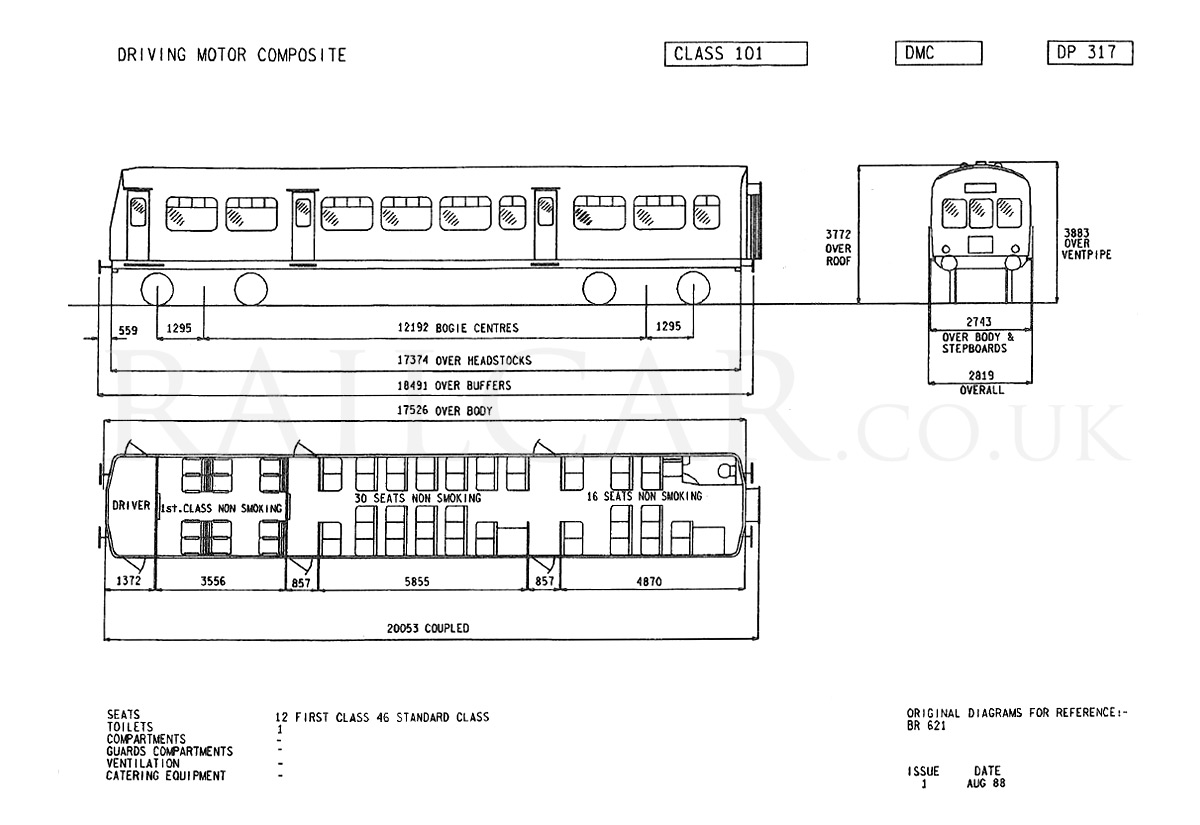

Class 101
DMC
Diagram BR 621
