Diagram Index-Sheets

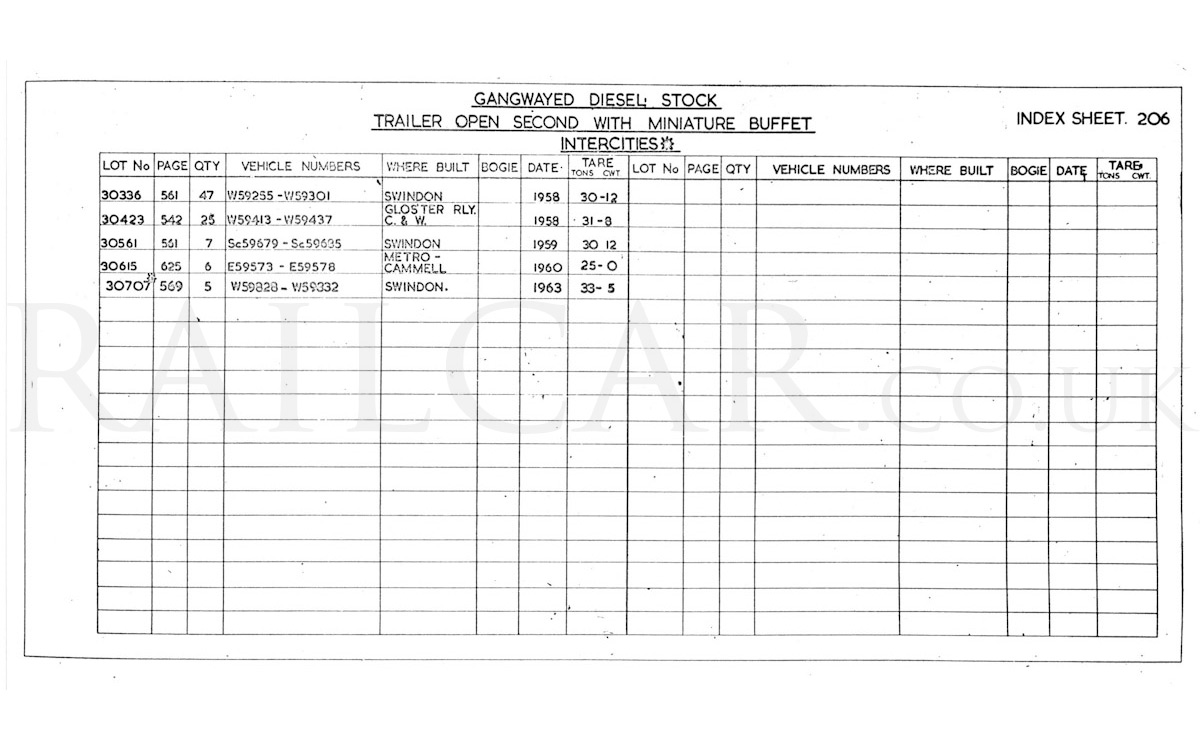

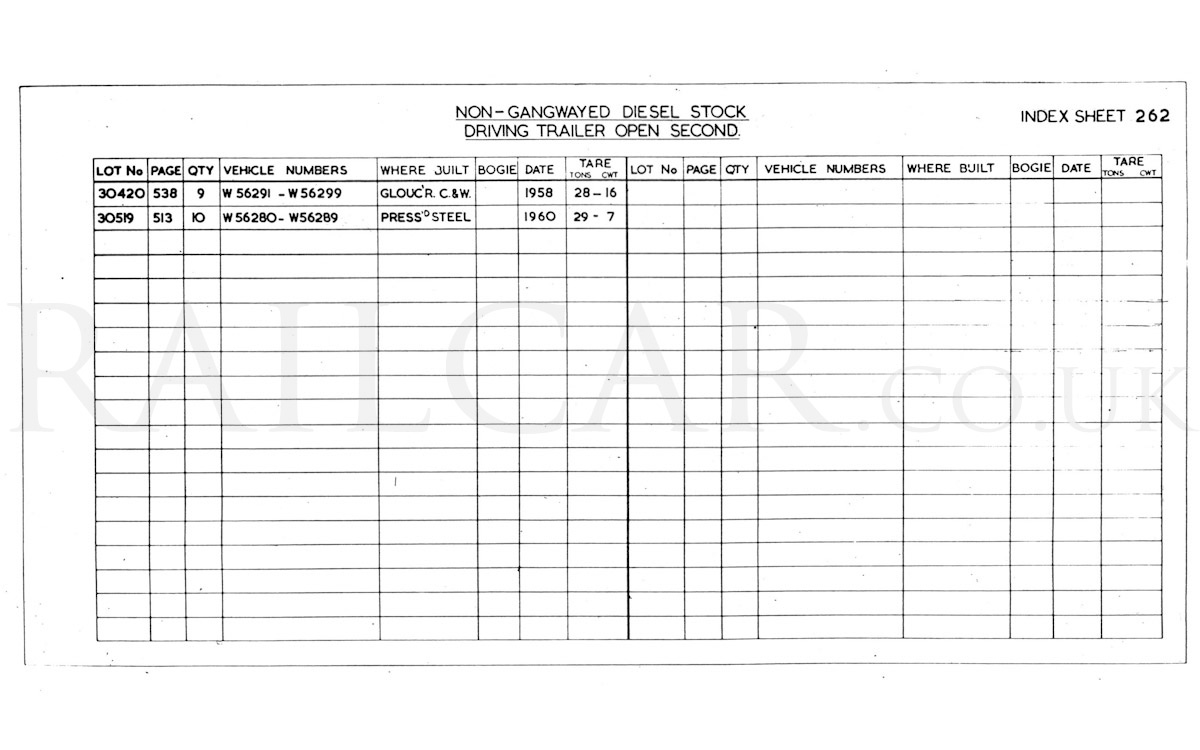

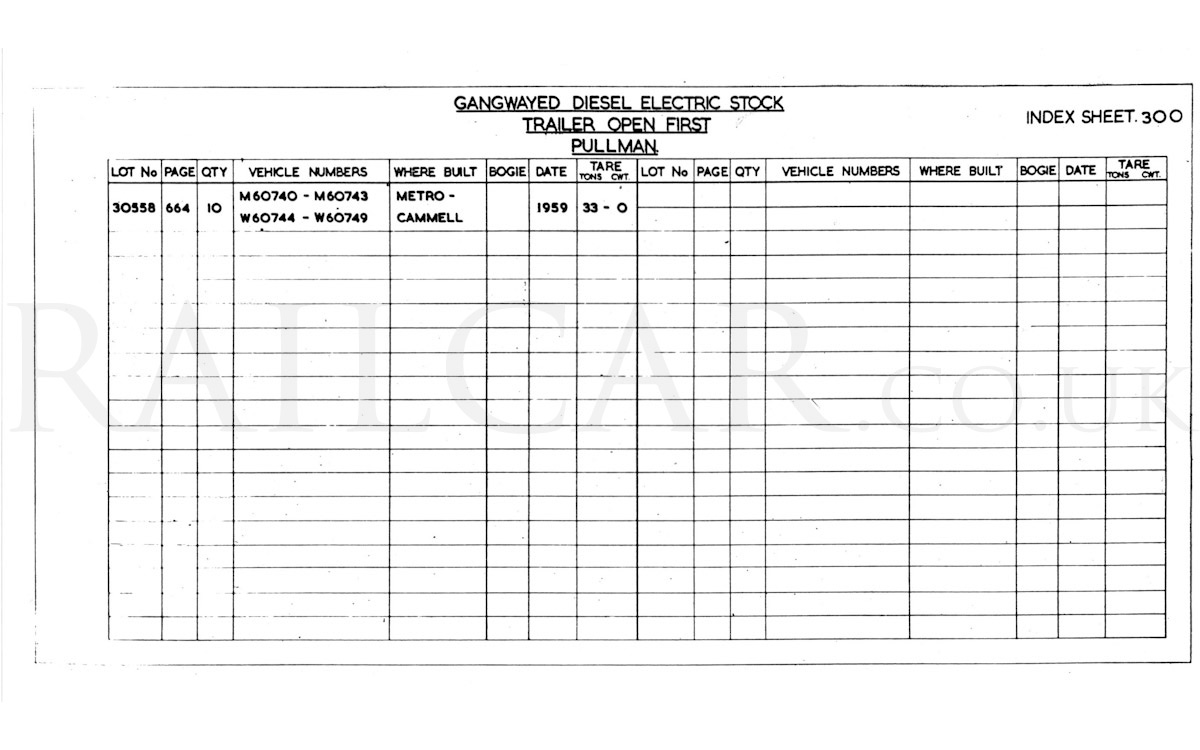

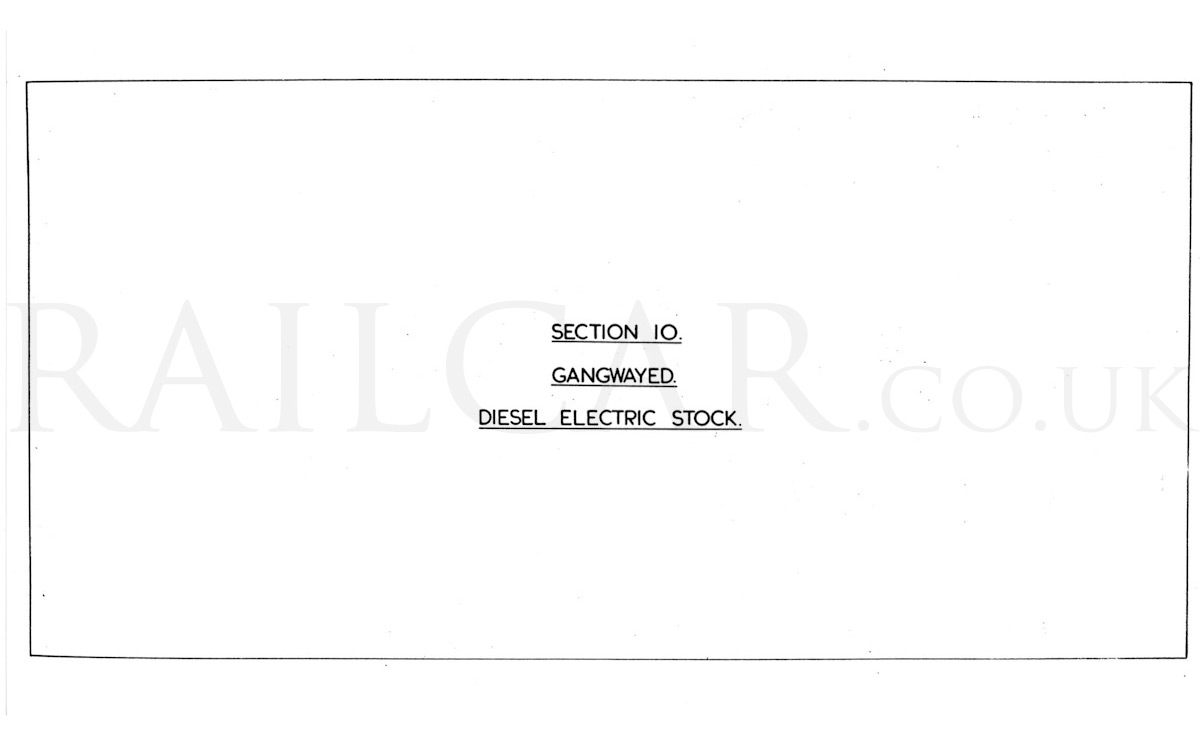

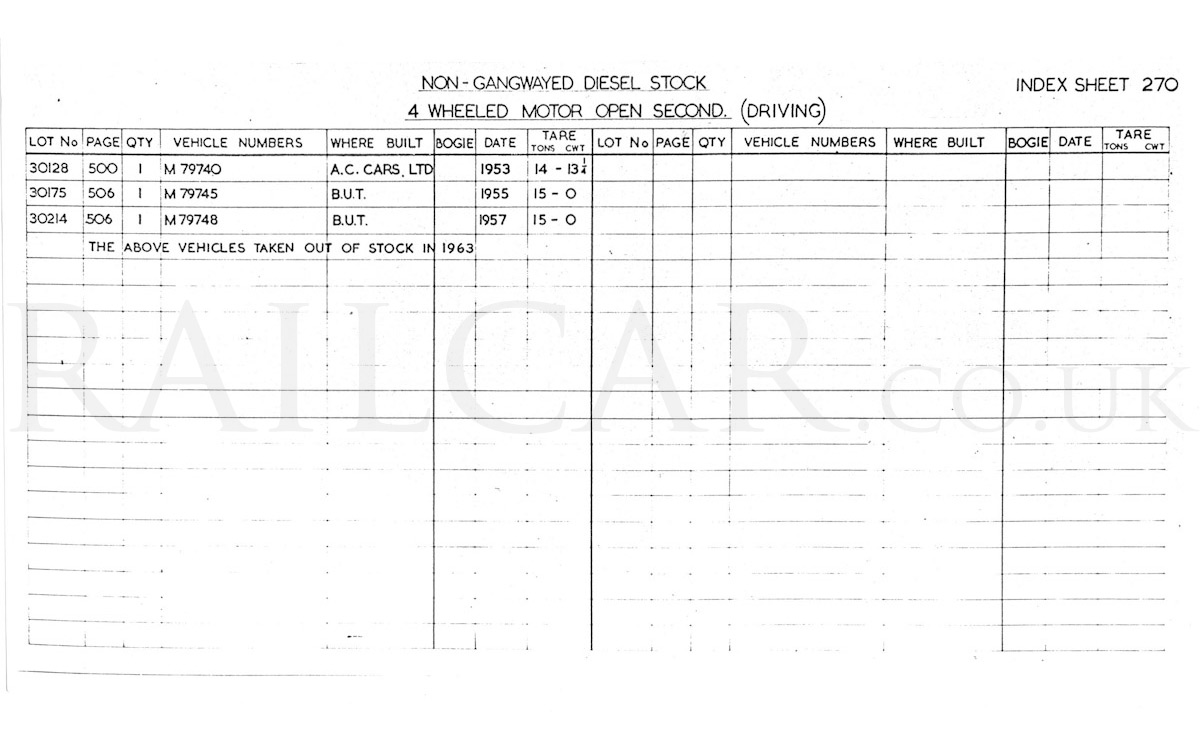

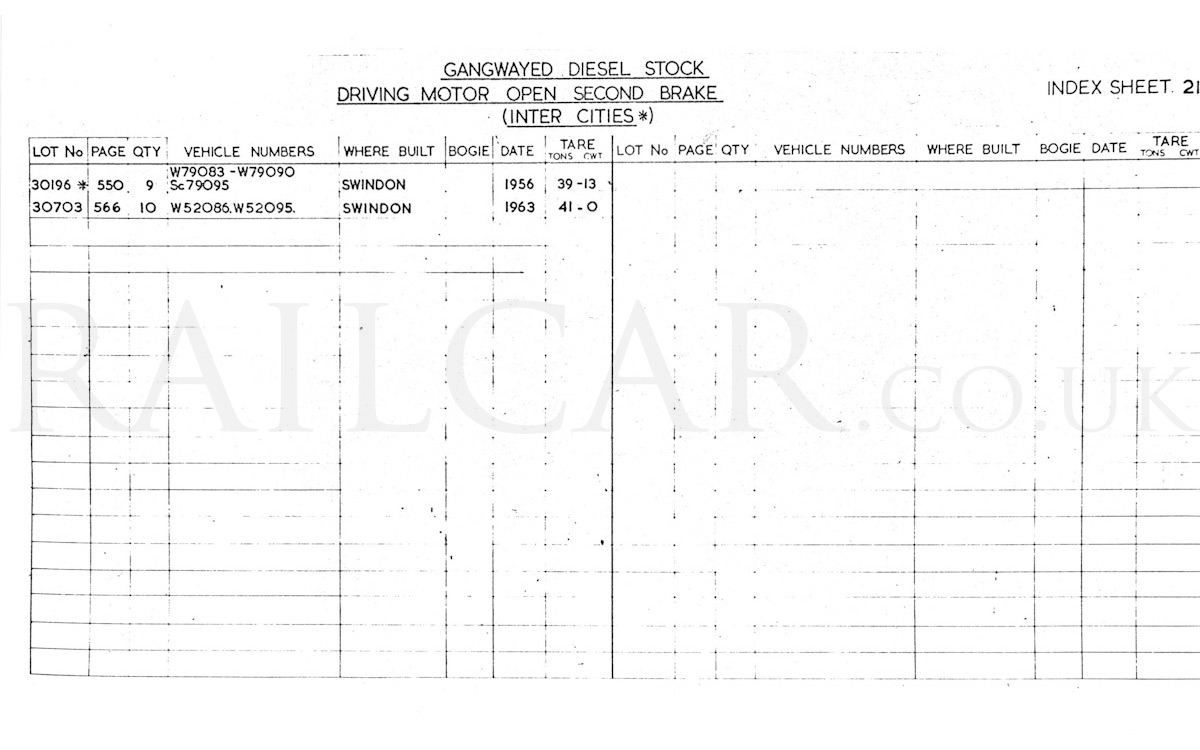

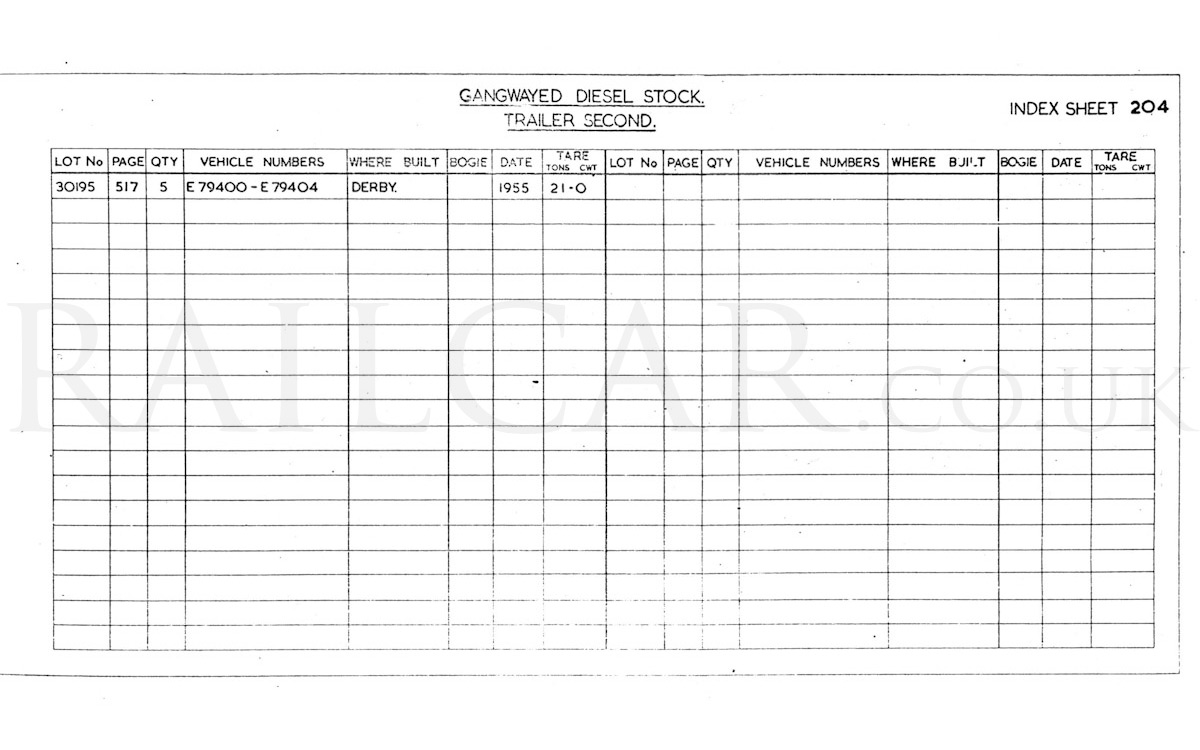

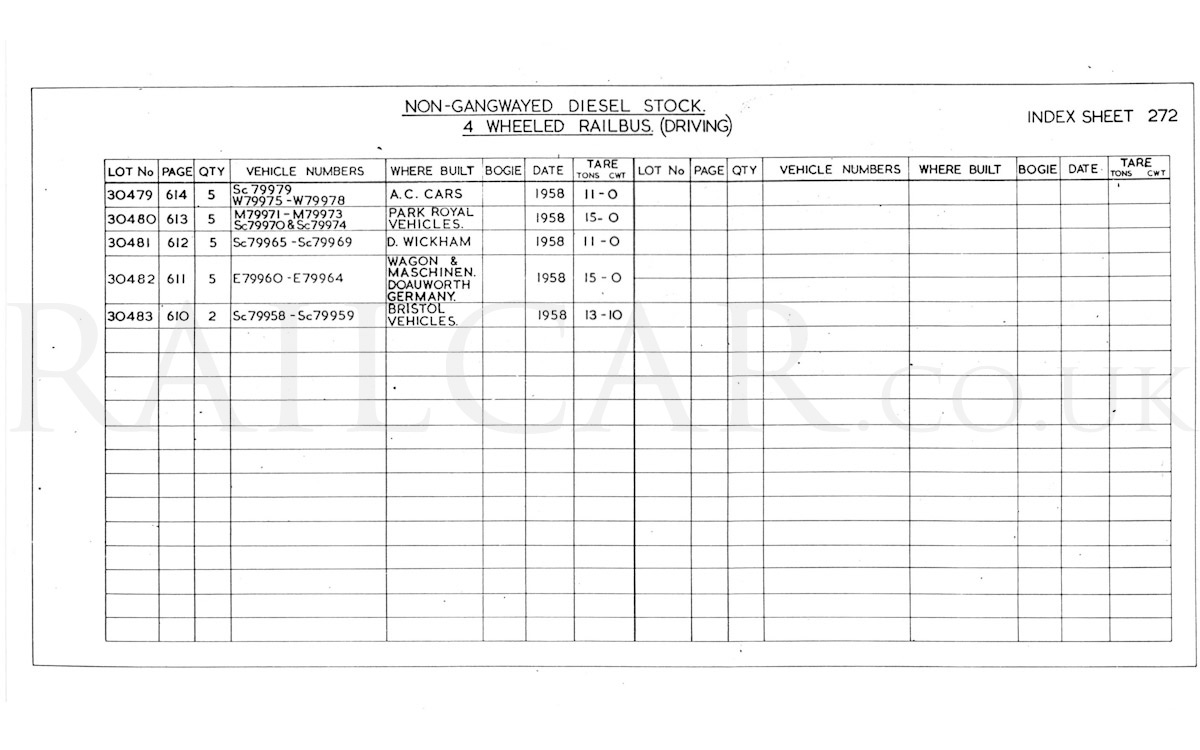

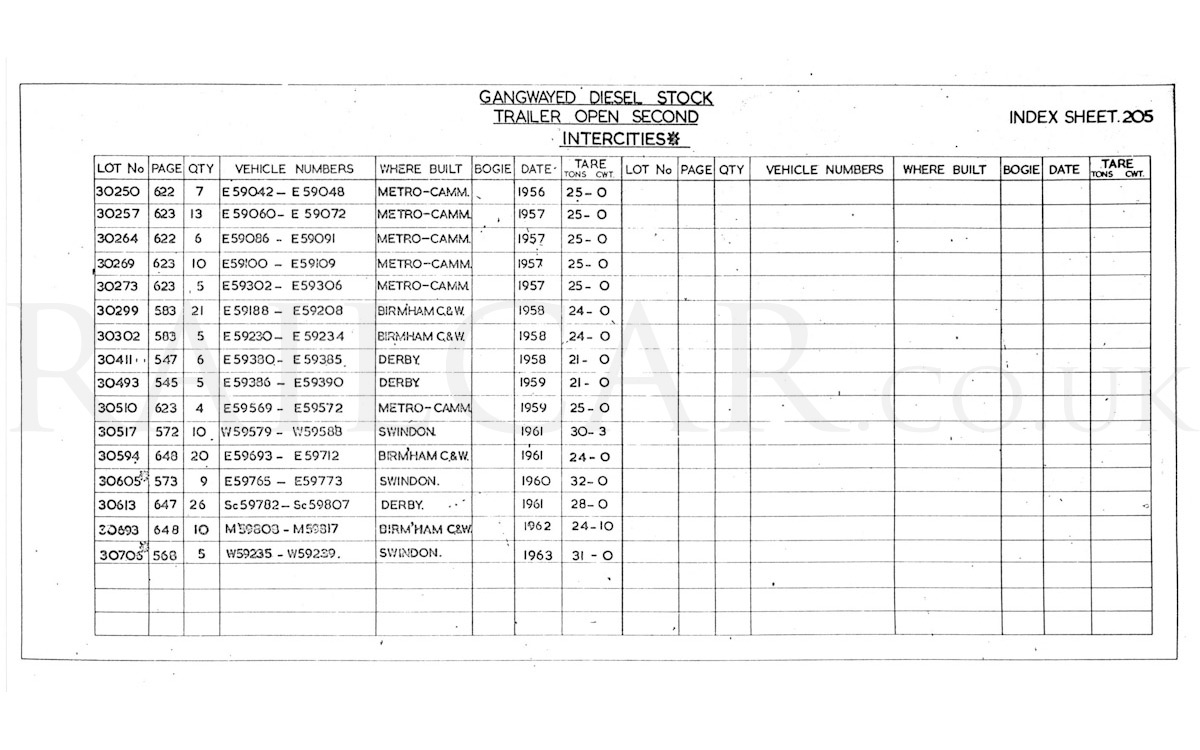

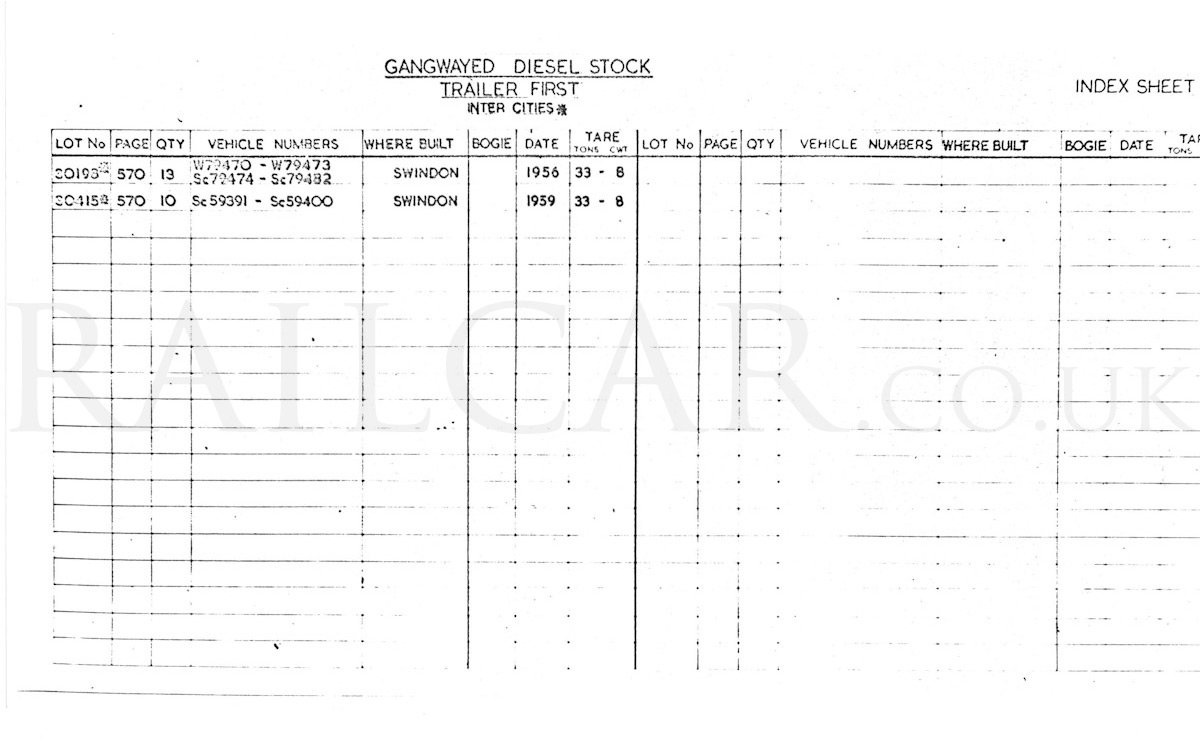

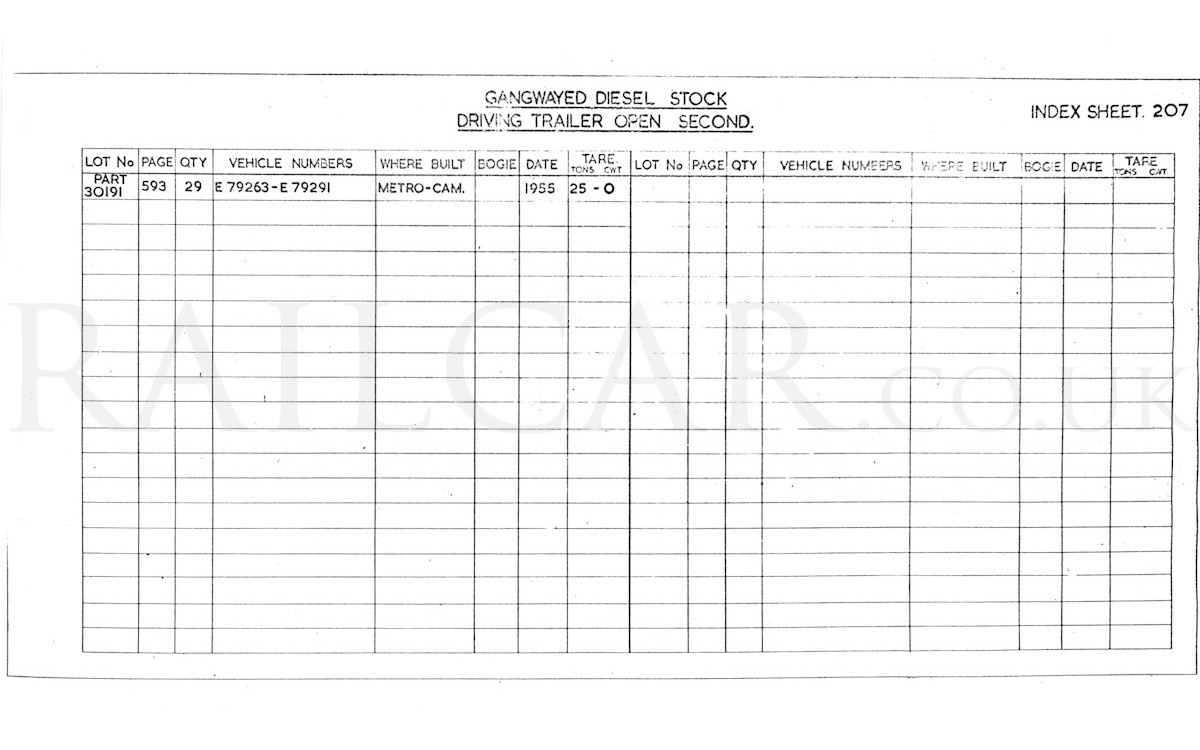

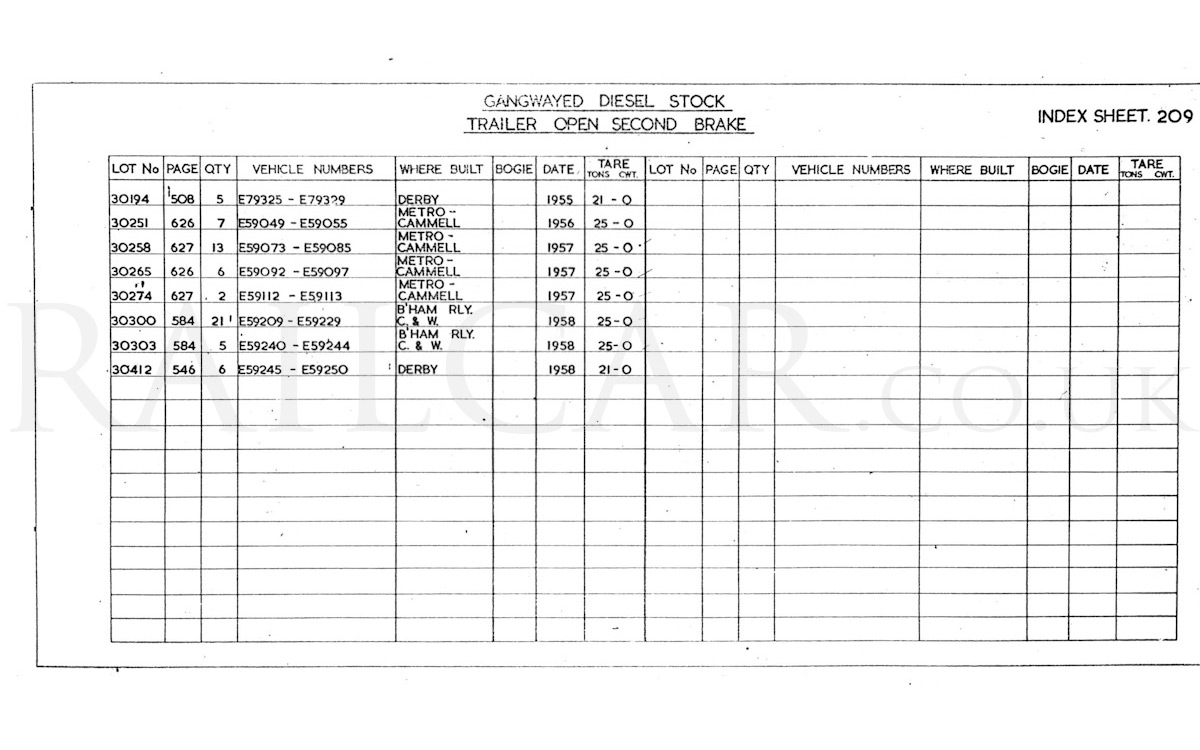

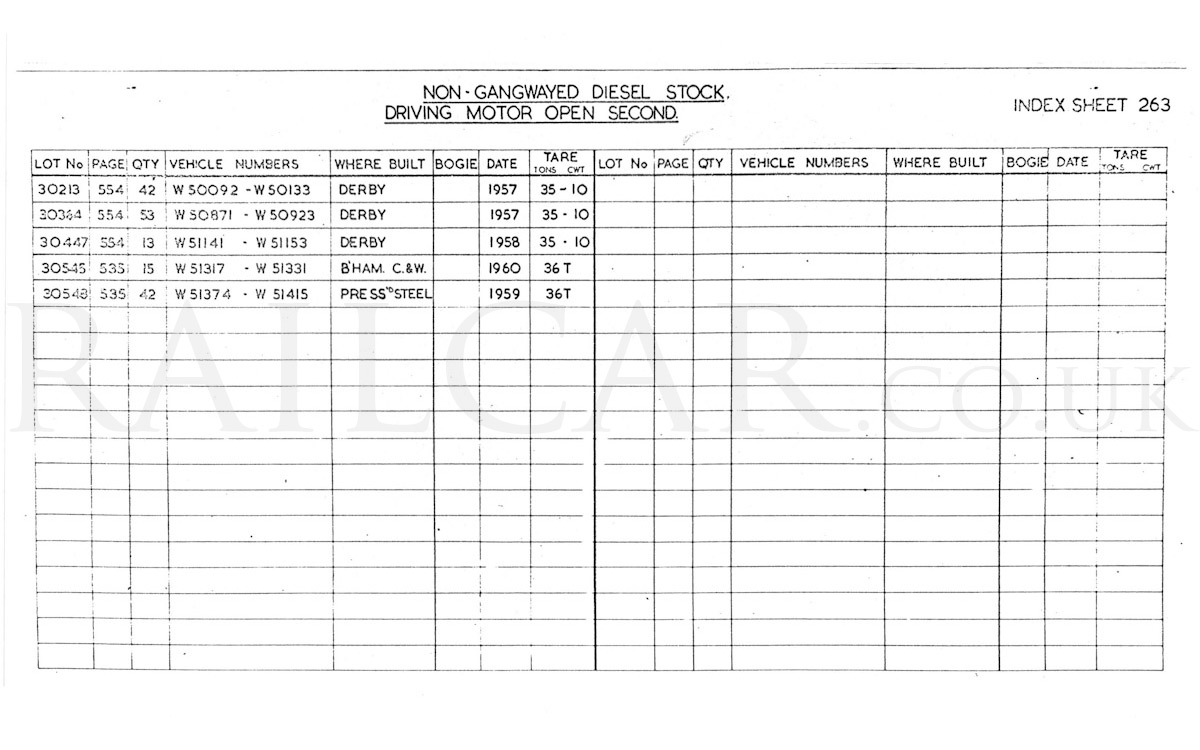

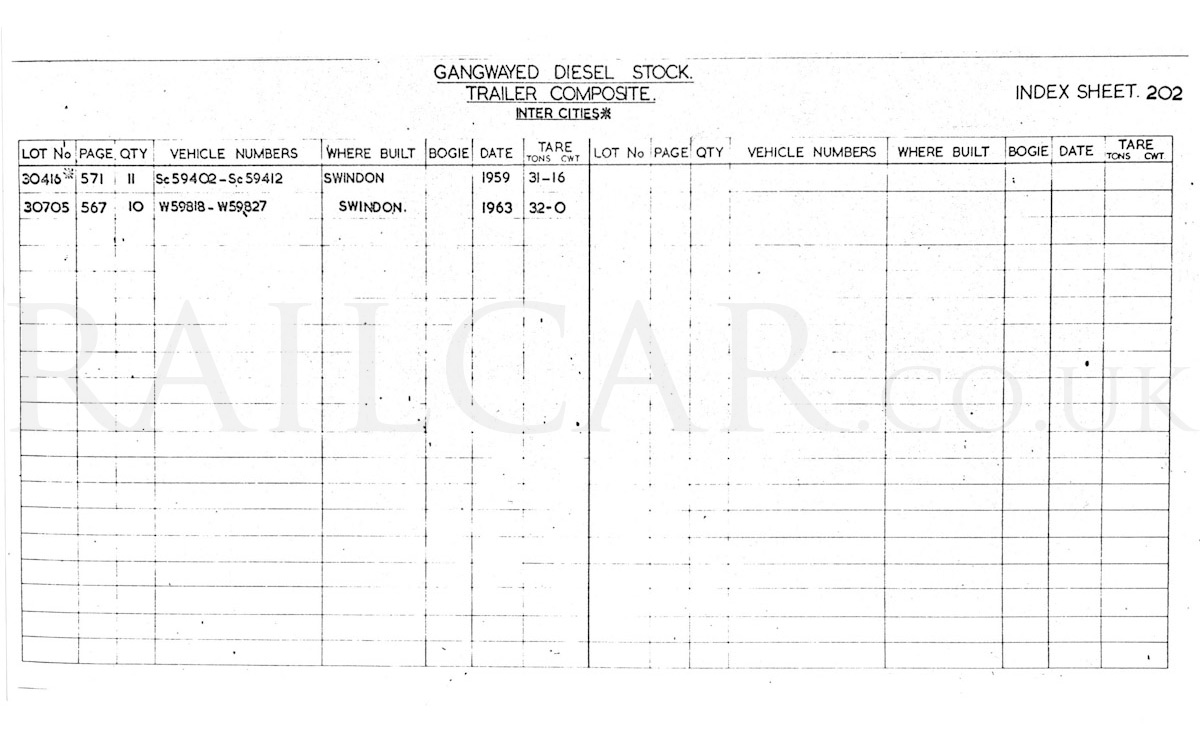

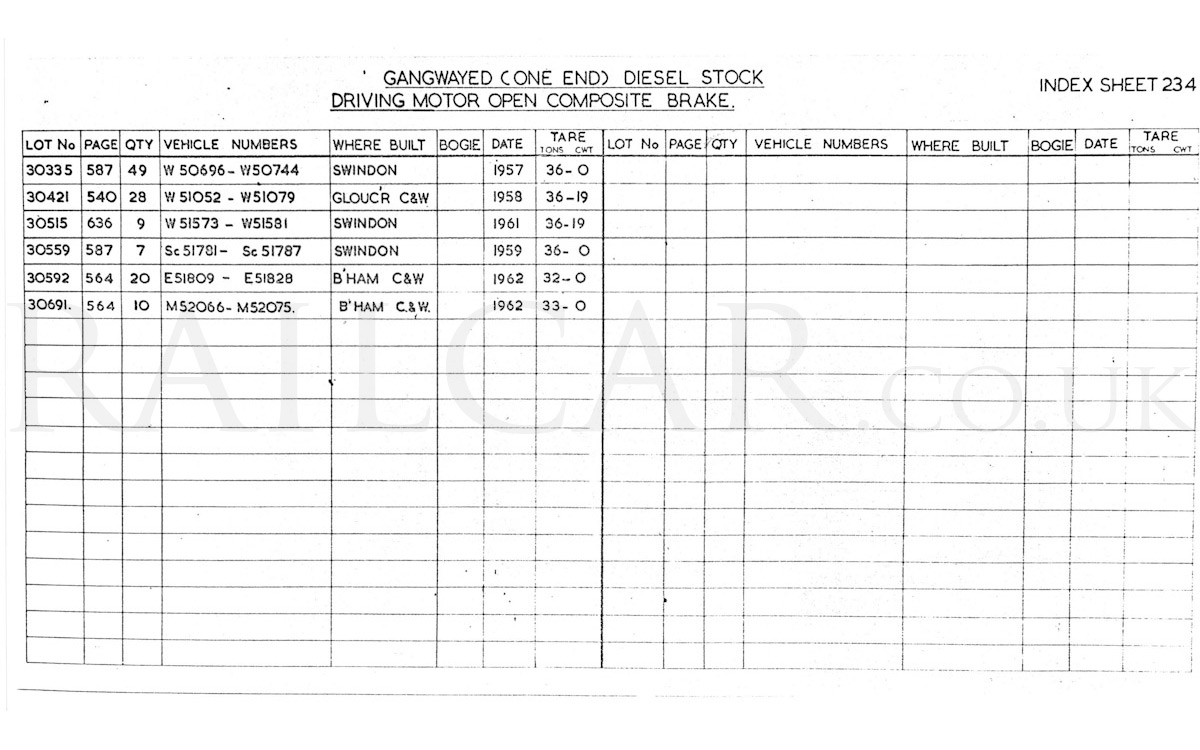

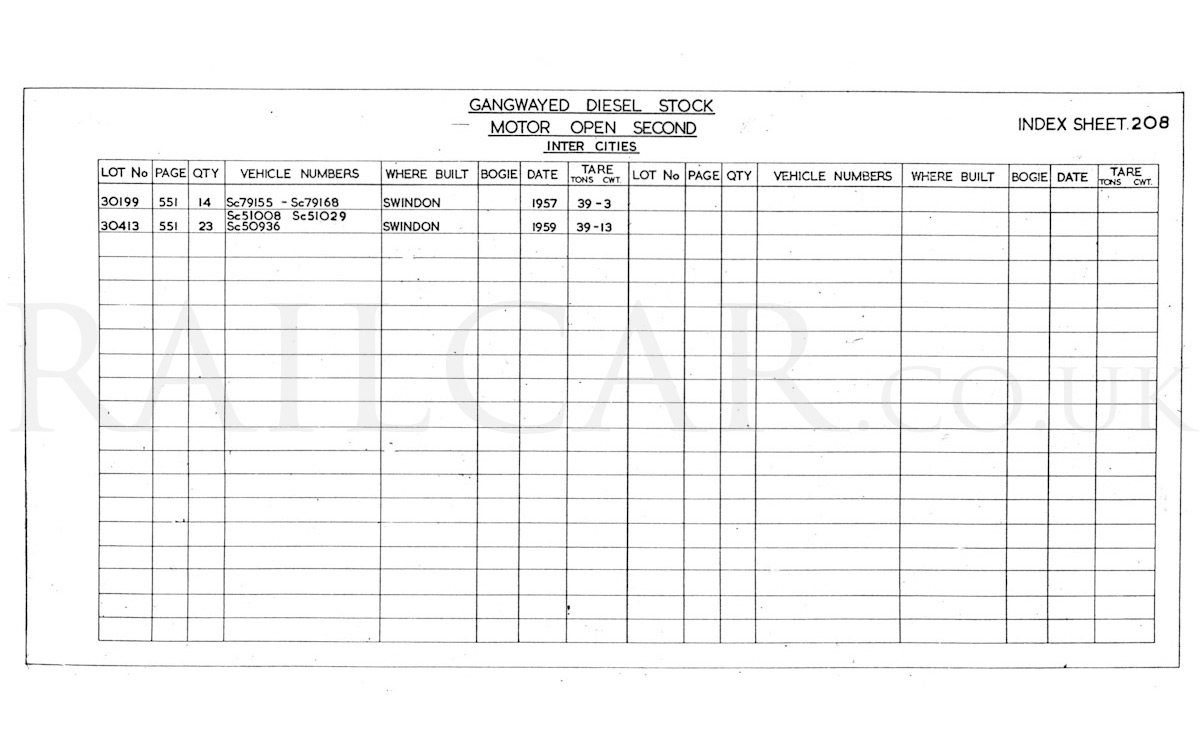

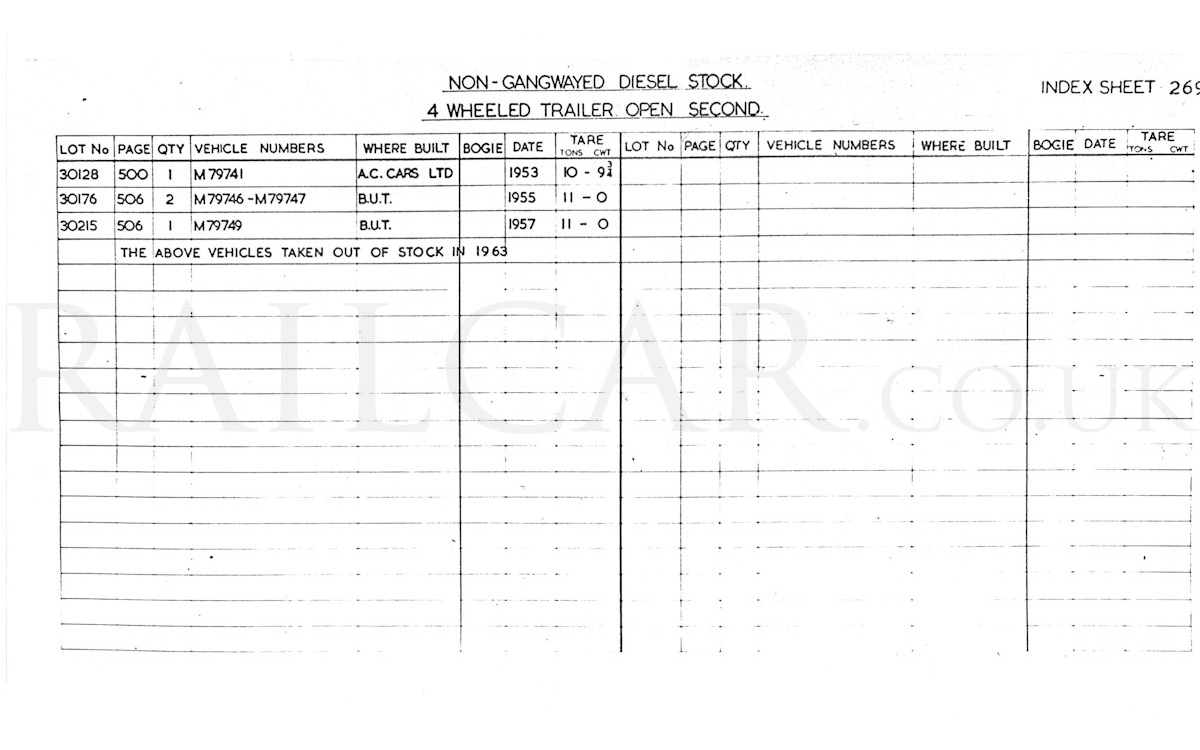

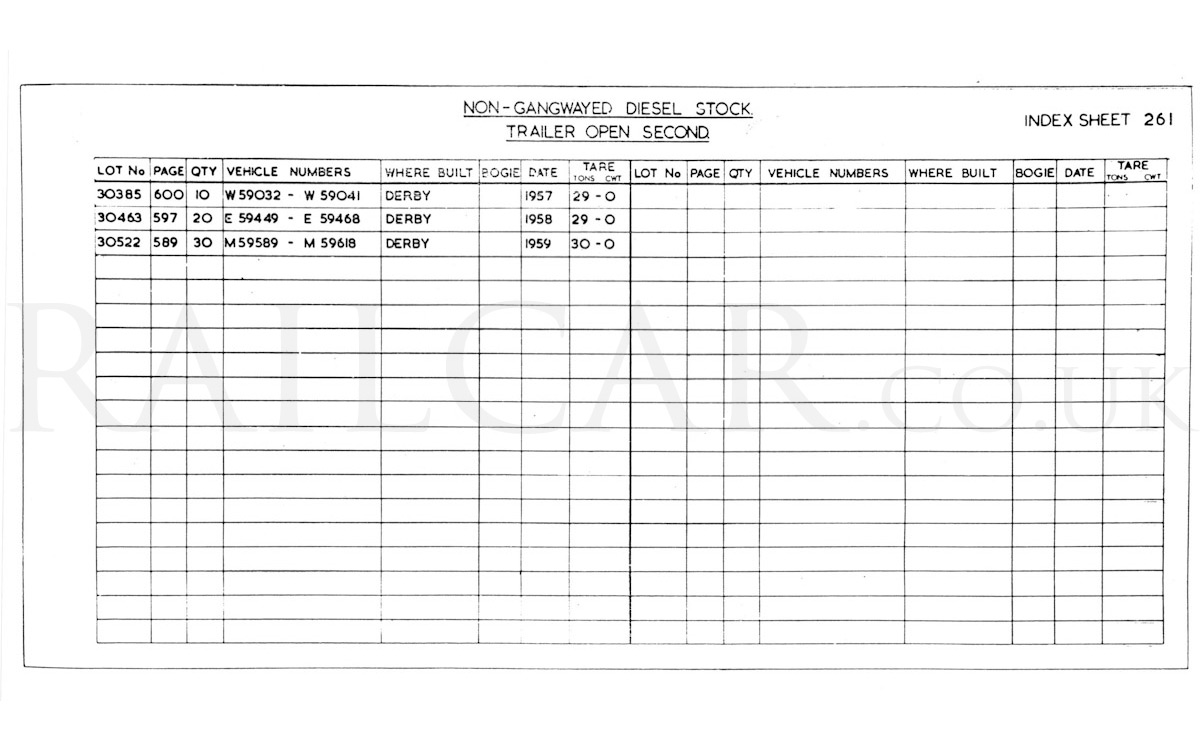

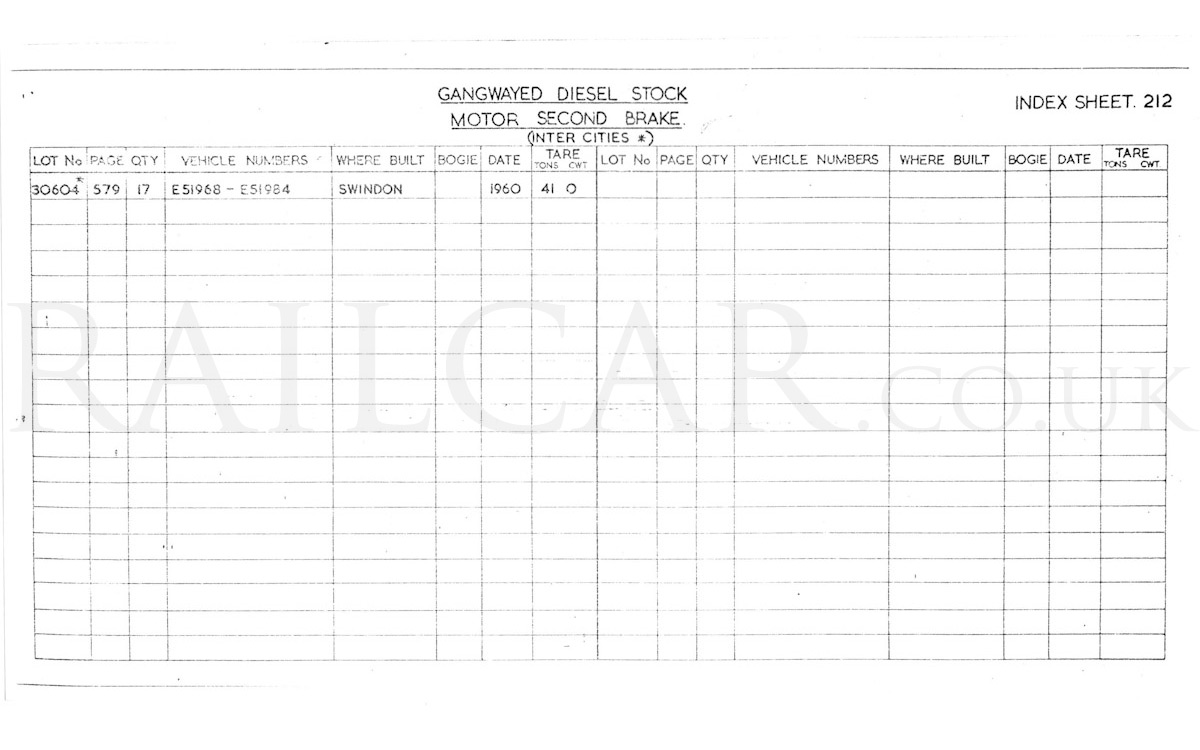

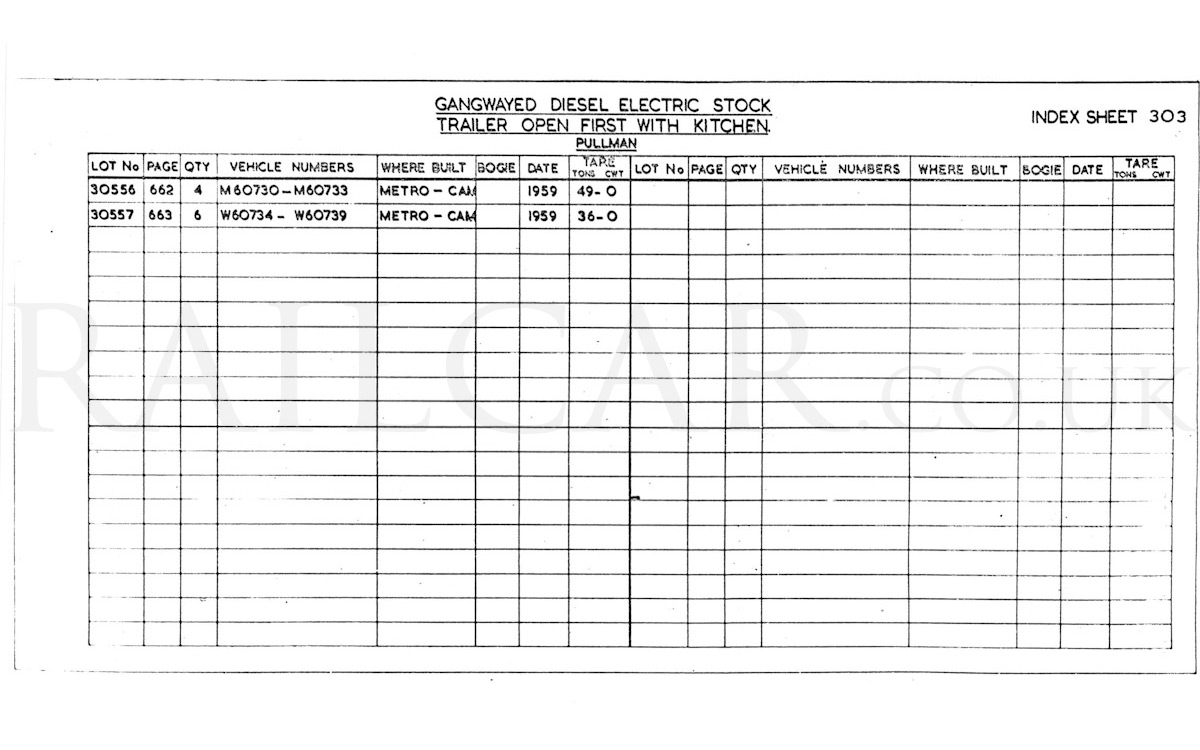

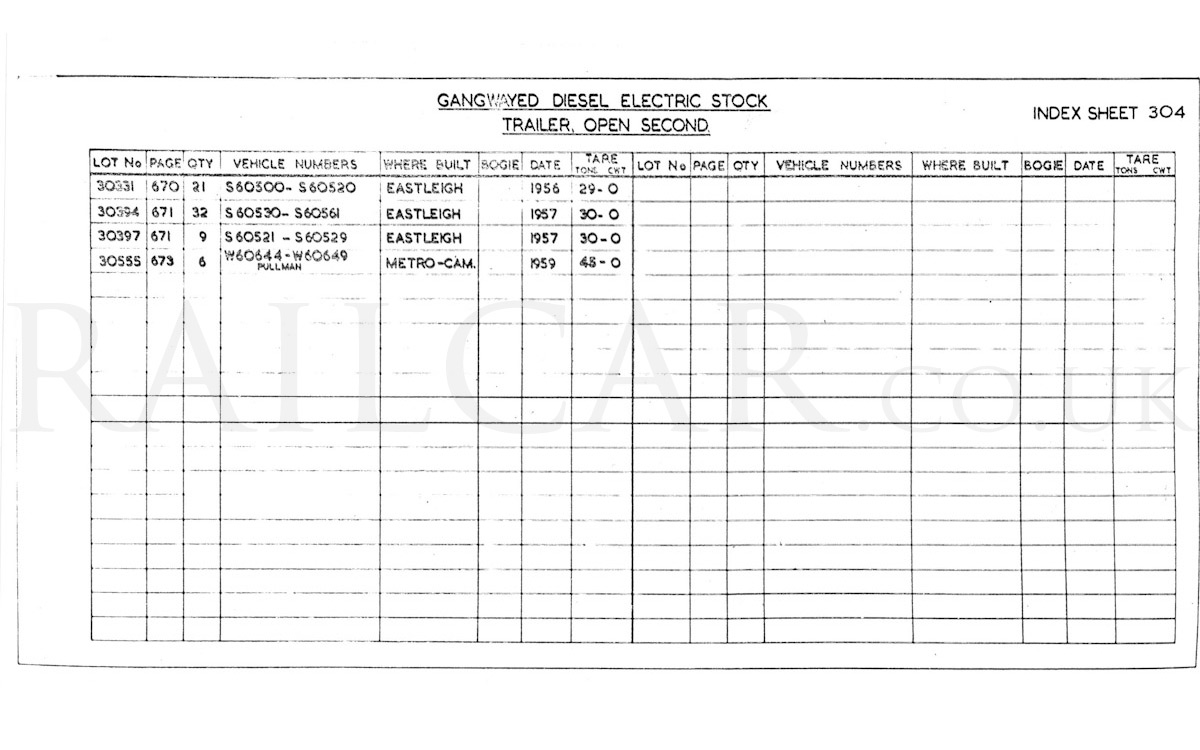

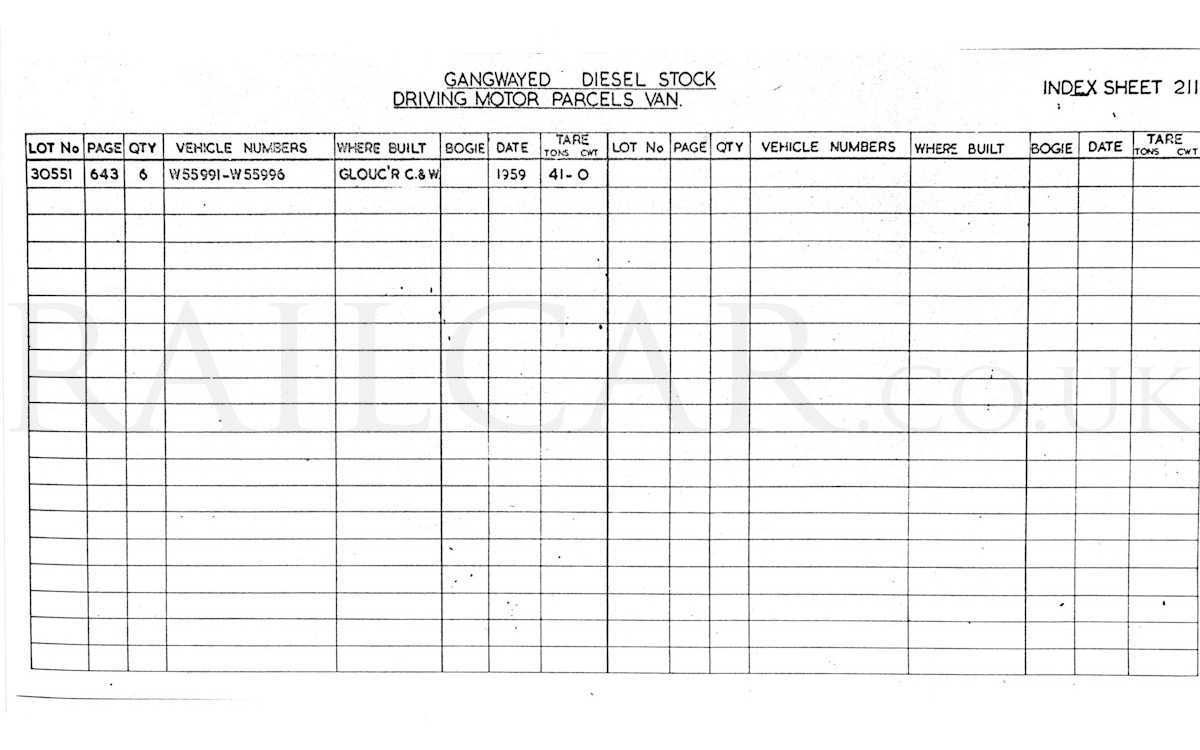

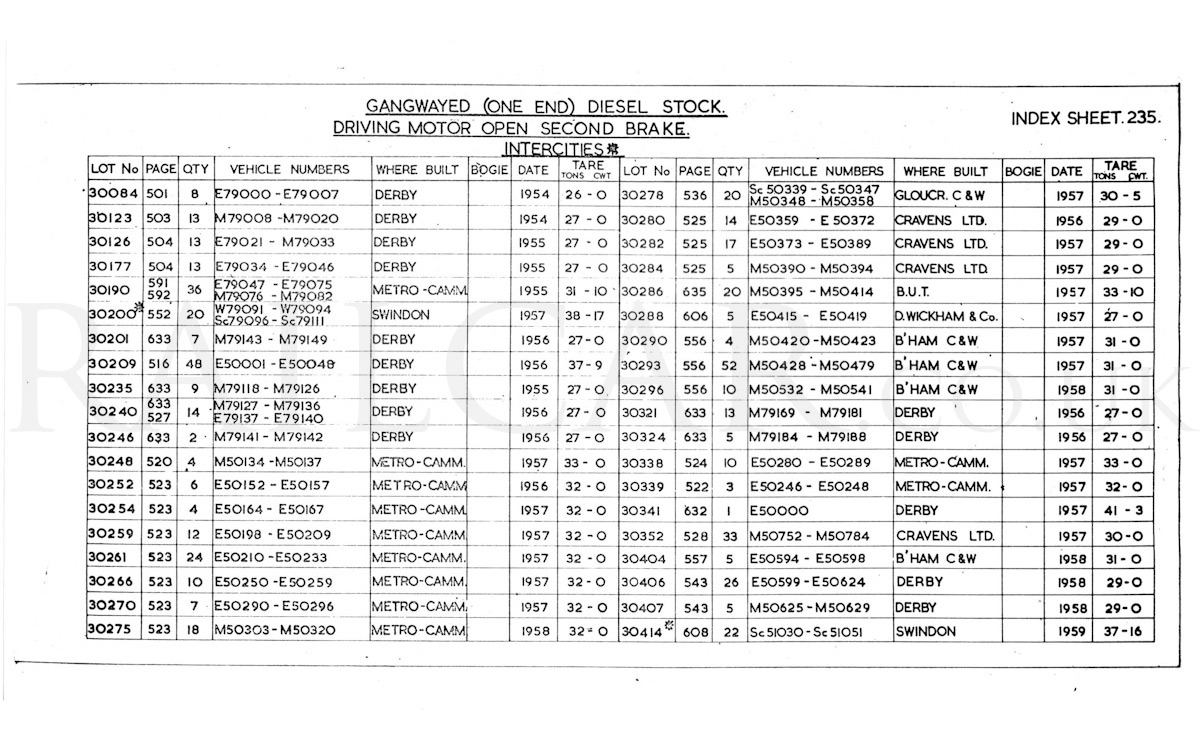

As the diagram book lacked any sensible order to it, index sheets produced to assist in finding the relavant information. This was long before class numbers were thought of, so the vehicles were identified first by gangway (both ends, one end or none), then split into vehicle types. The sheet for each type (such as driving motor open second) would then be listed by lot number and reference the page / diagram number for each. The sheets from the index book for DMUs are reproduced below, the full set of coaching stock index sheets (hauled stock, DMU, DEMU and EMUs) can be found on the BMRG website.

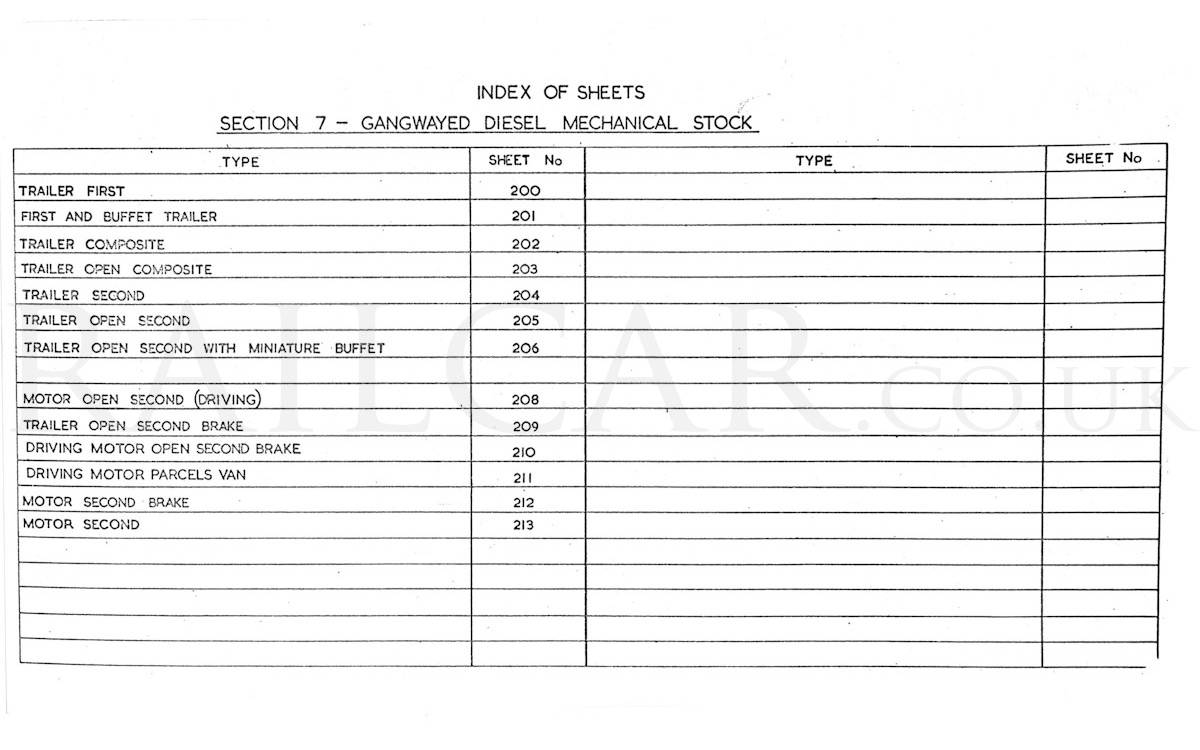

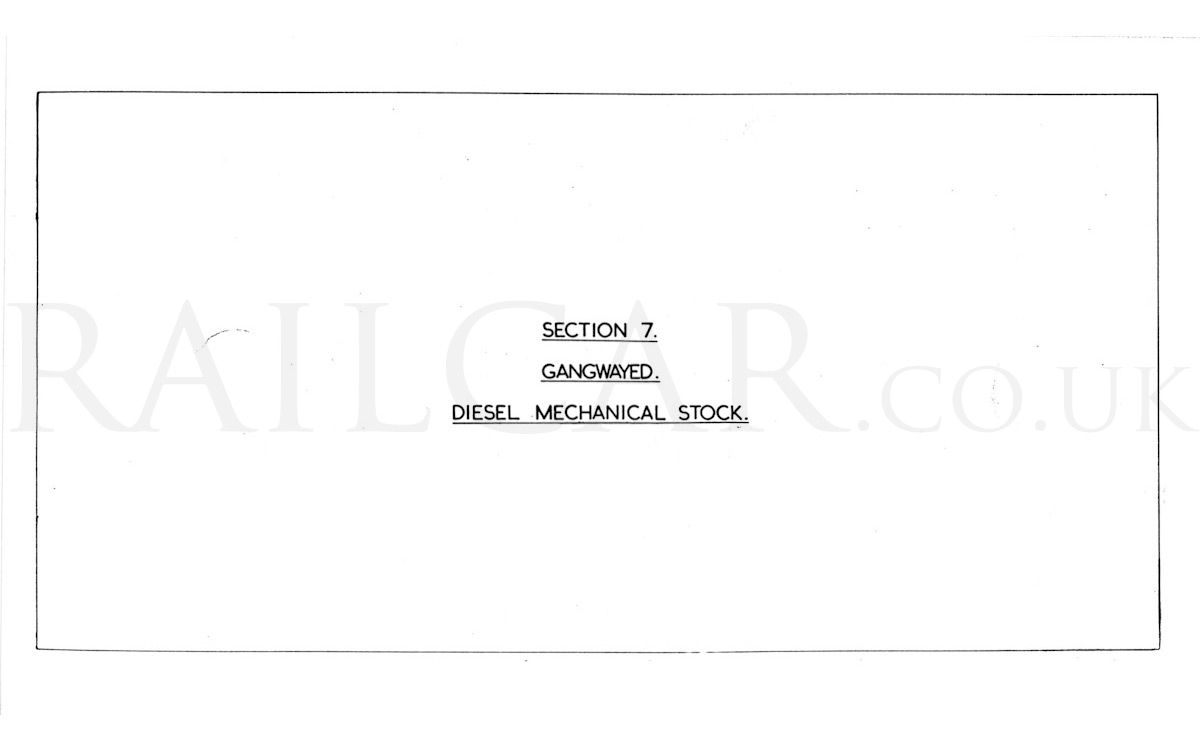

Section 7 Gangwayed Cover Index of Sheets Sheet 200

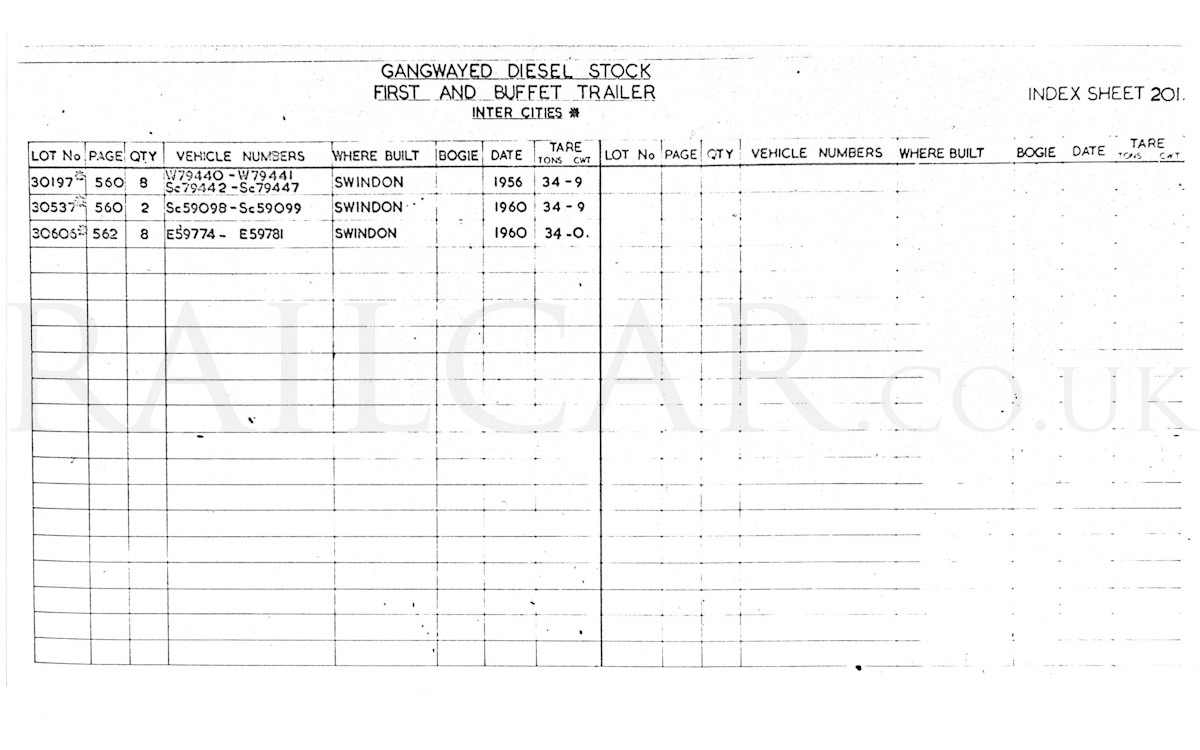

  Diesel Mechanical Stock     Sheet 201
        Sheet 202

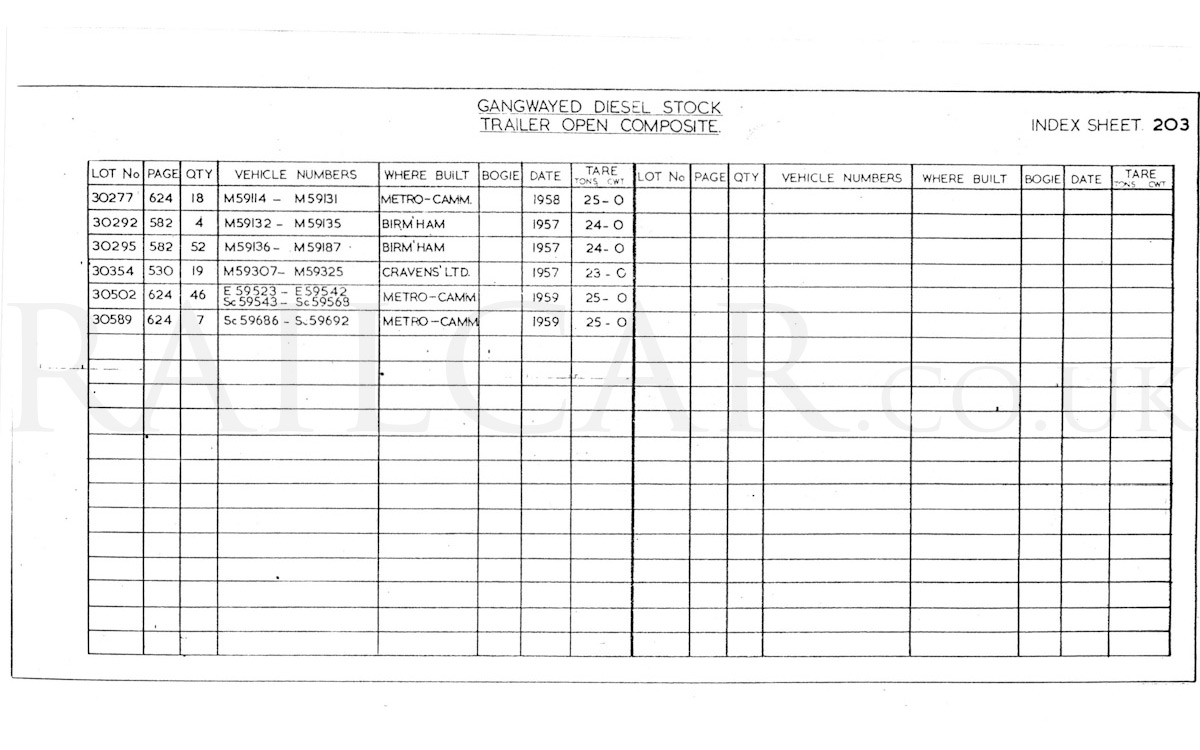

        Sheet 203
        Sheet 204
        Sheet 205
        Sheet 206
        Sheet 207
        Sheet 208
        Sheet 209
        Sheet 210
        Sheet 211

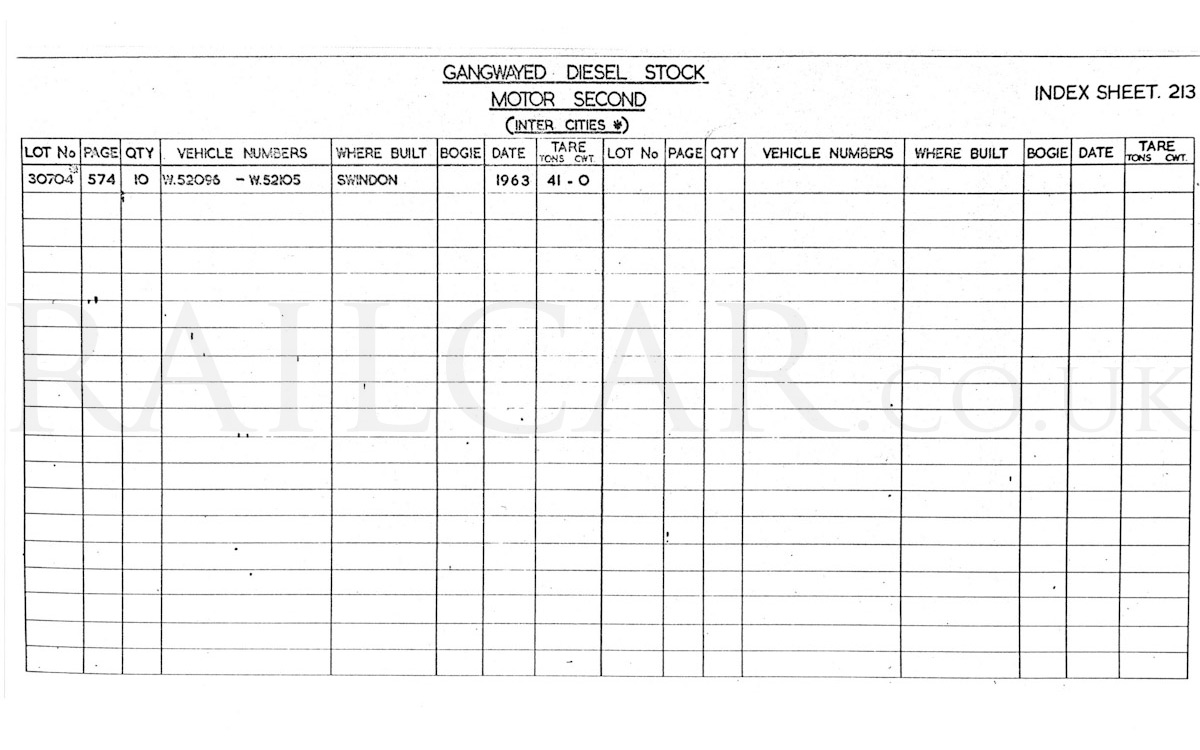

        Sheet 212
        Sheet 213

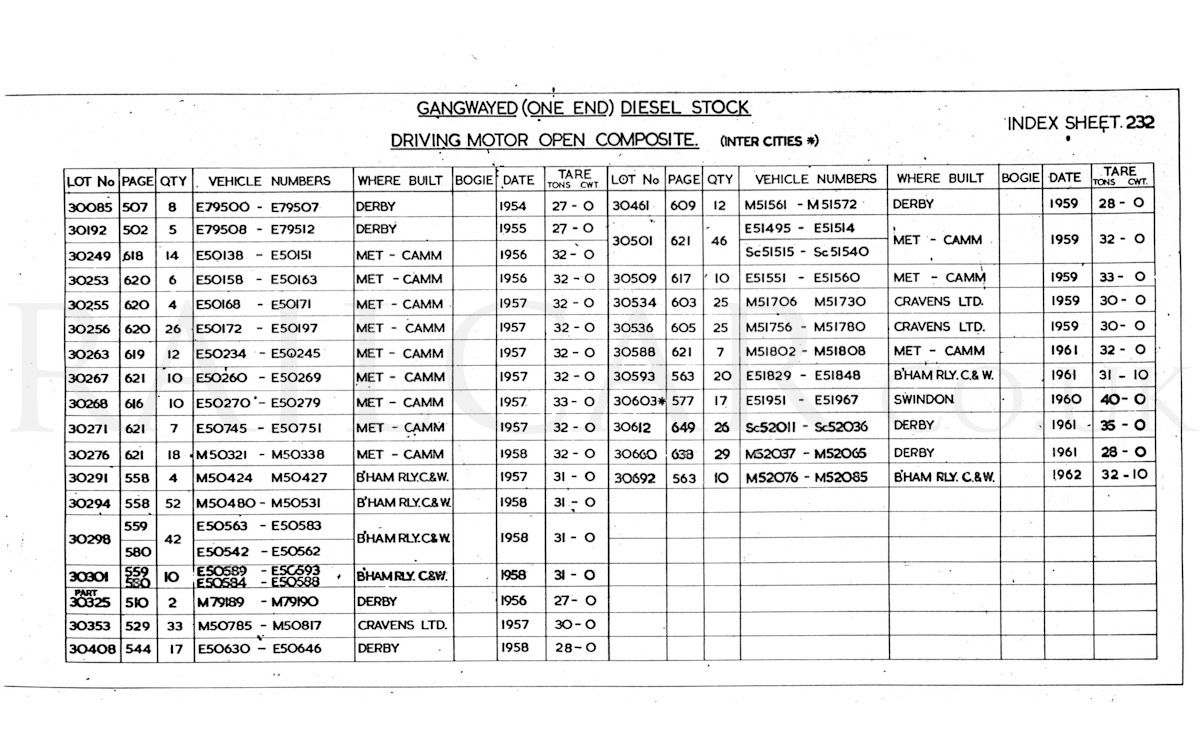

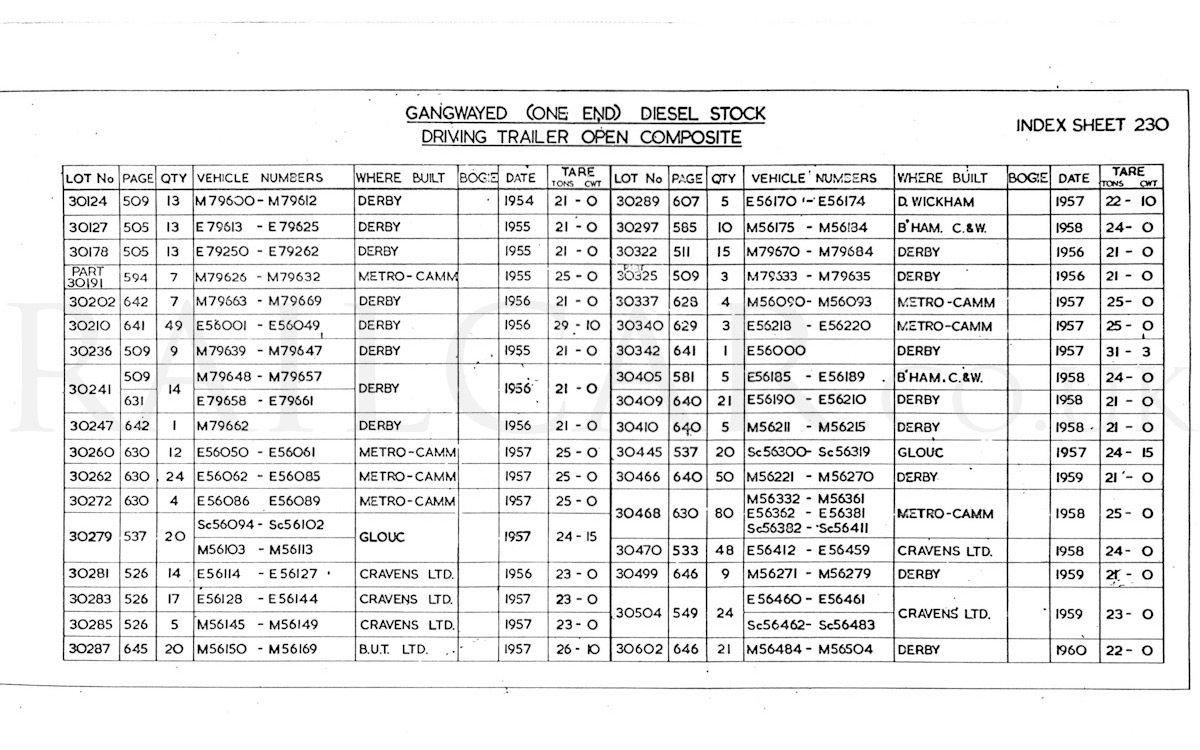

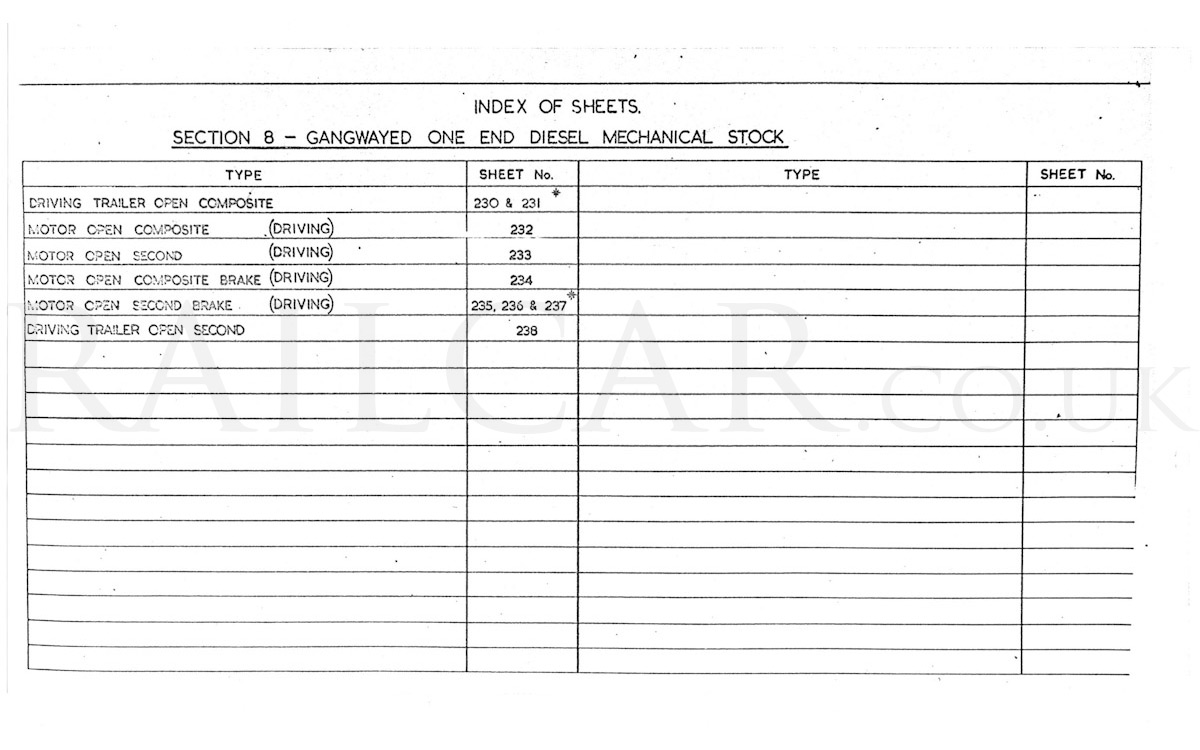

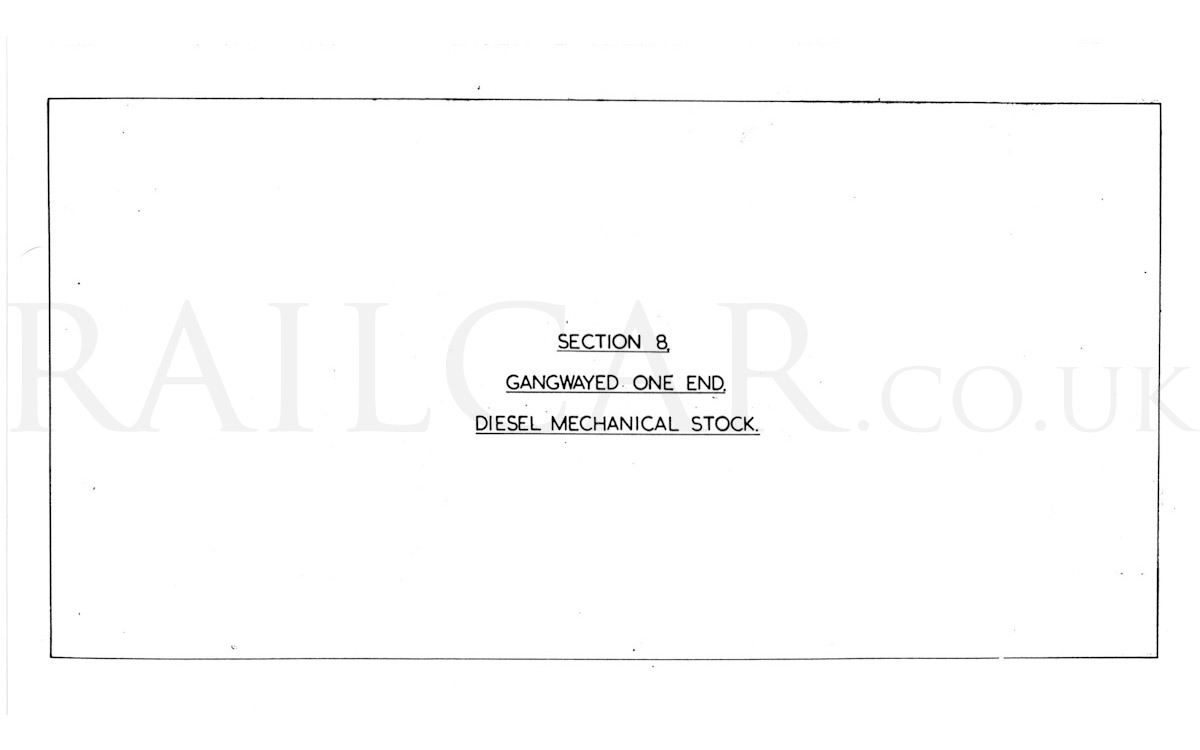

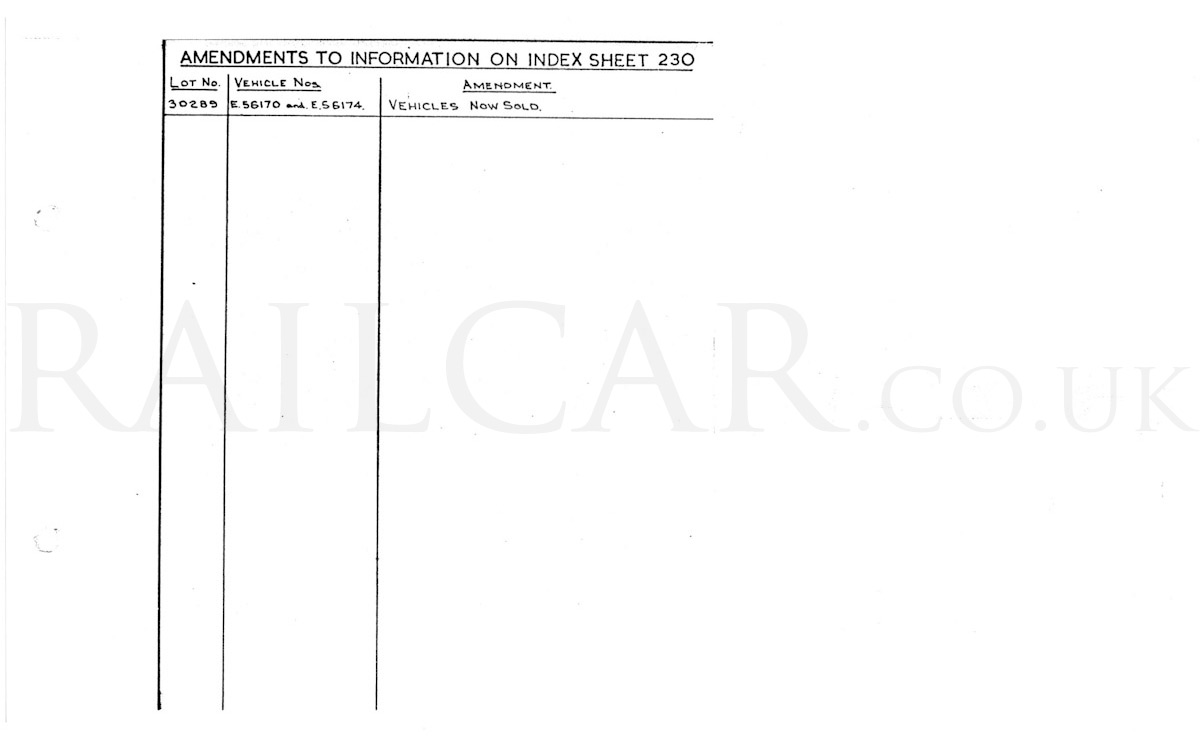

Section 8 Gangwayed One End Cover Index of Sheets Sheet 230 Ammendment

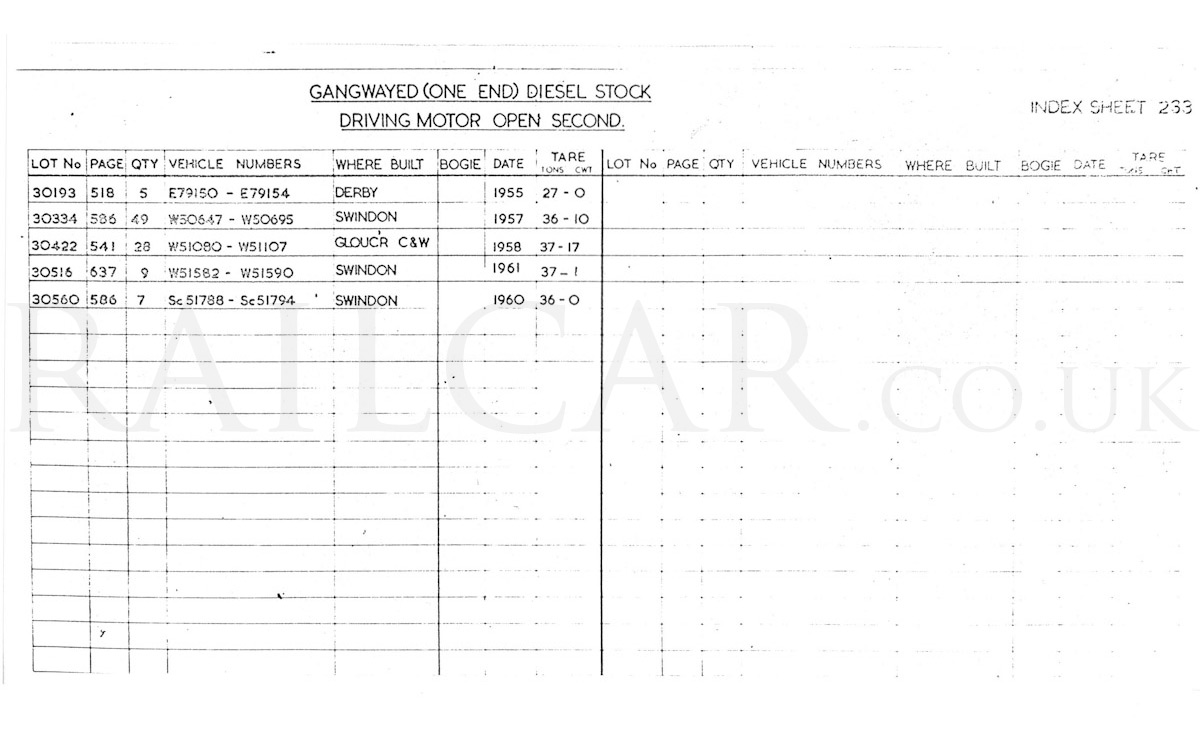

  Diesel Mechanical Stock     Sheet 232 Ammendment
        Sheet 233
        Sheet 234

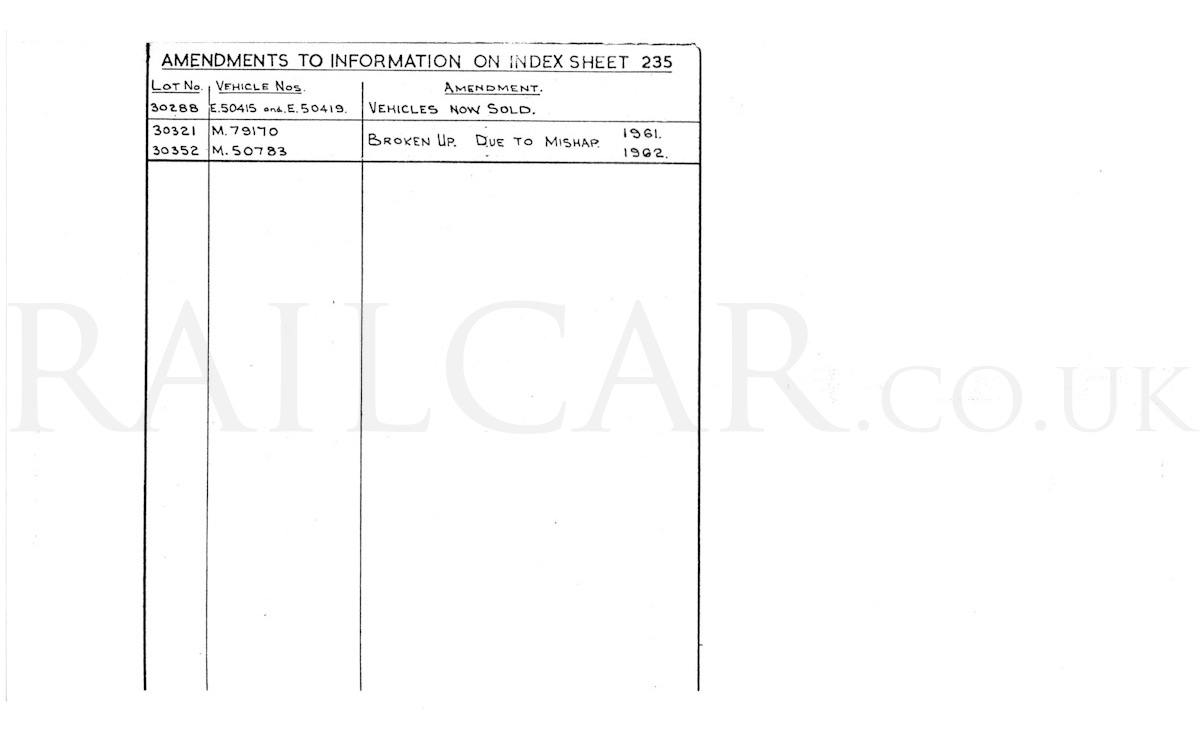

        Sheet 235 Ammendment
        Sheet 236

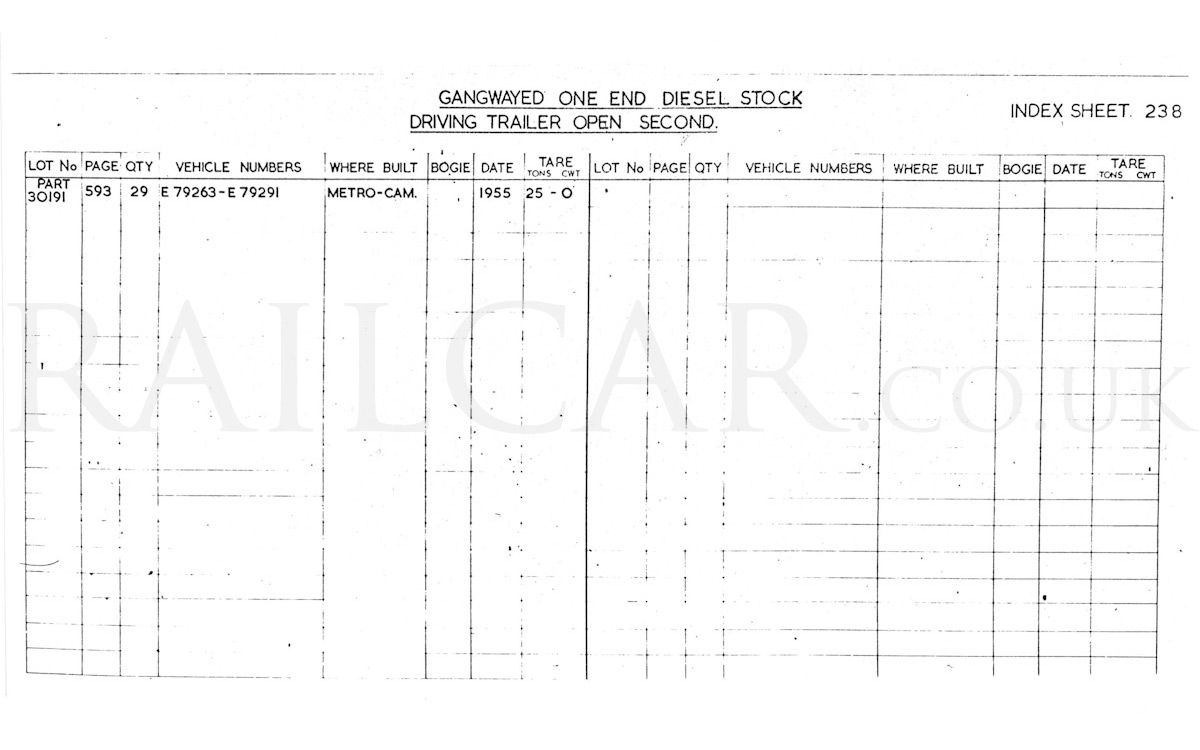

        Sheet 238

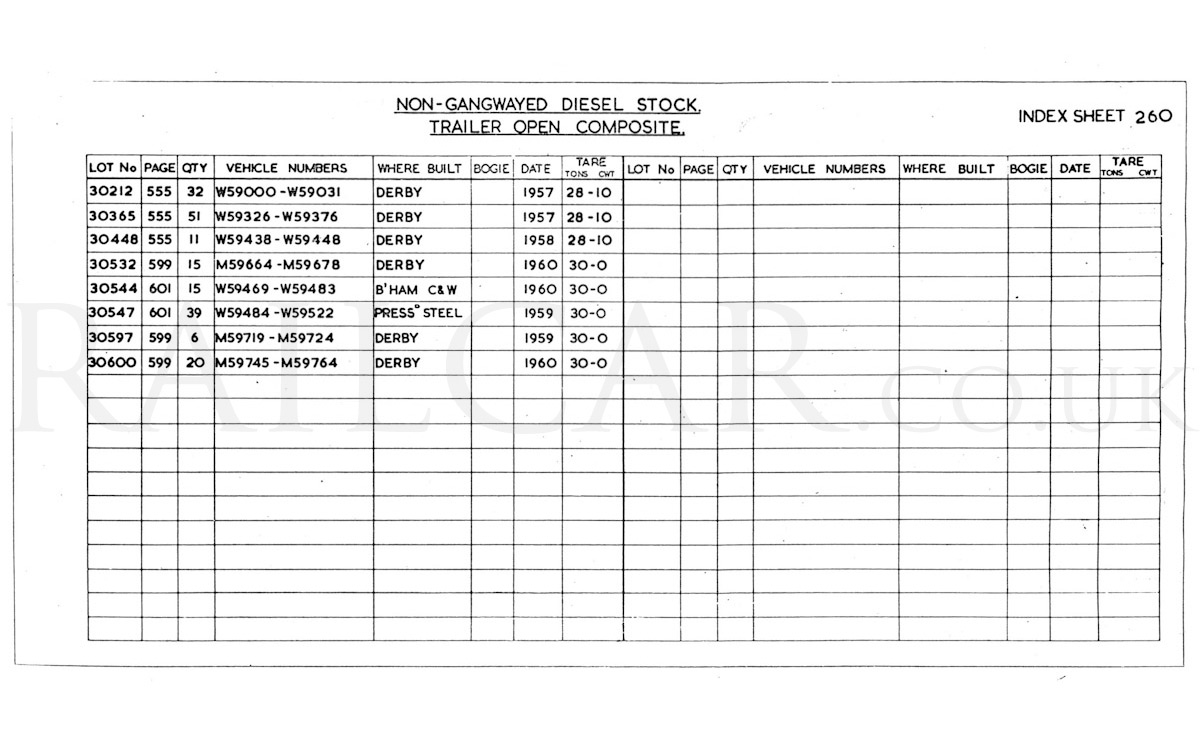

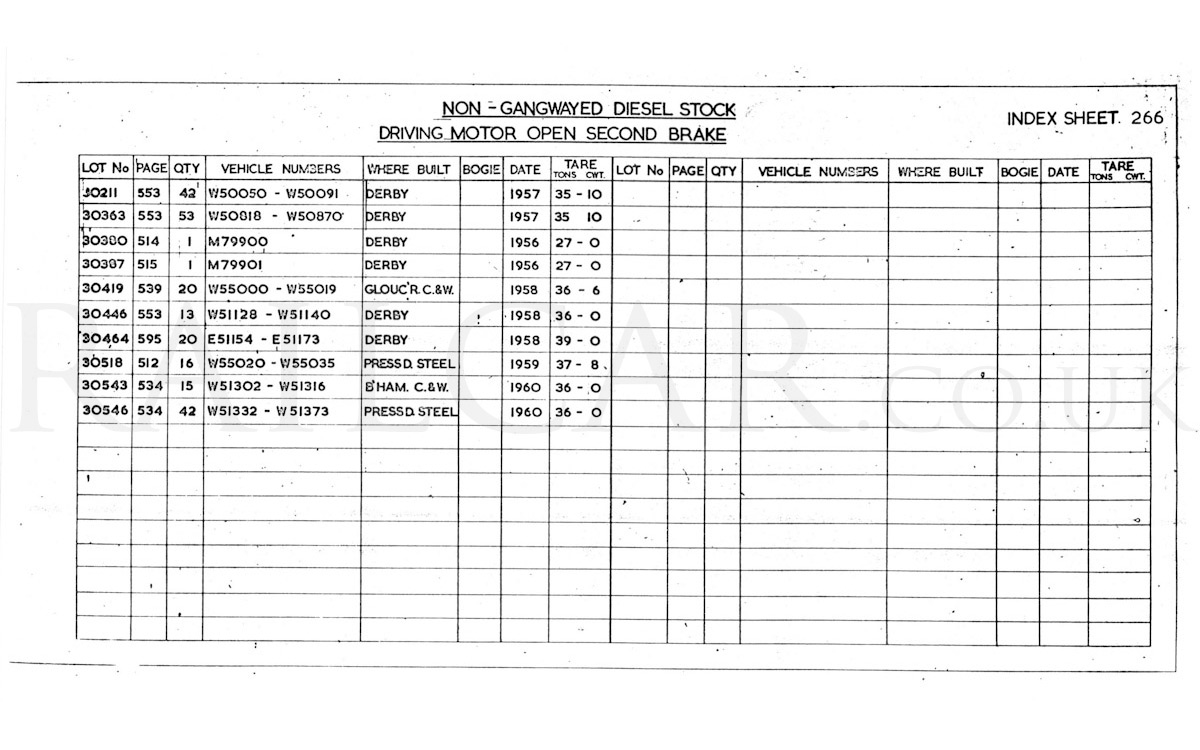

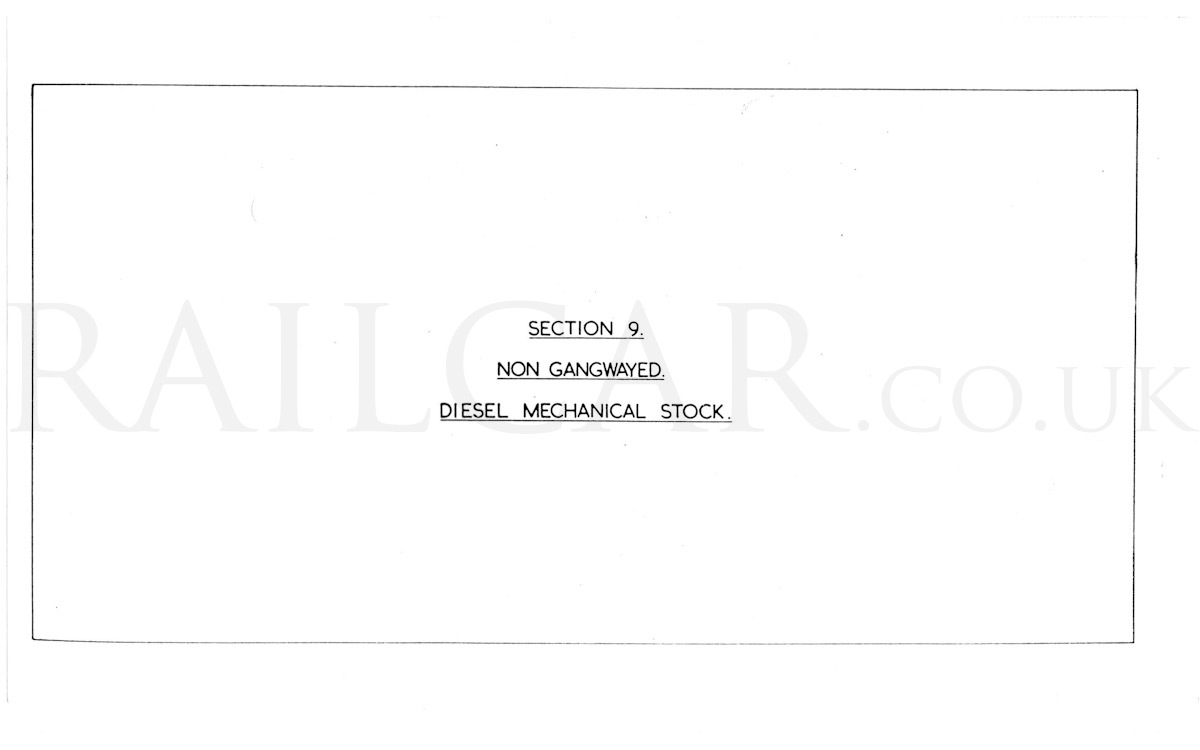

Section 9 Non-Gangwayed Cover Index of Sheets Sheet 260

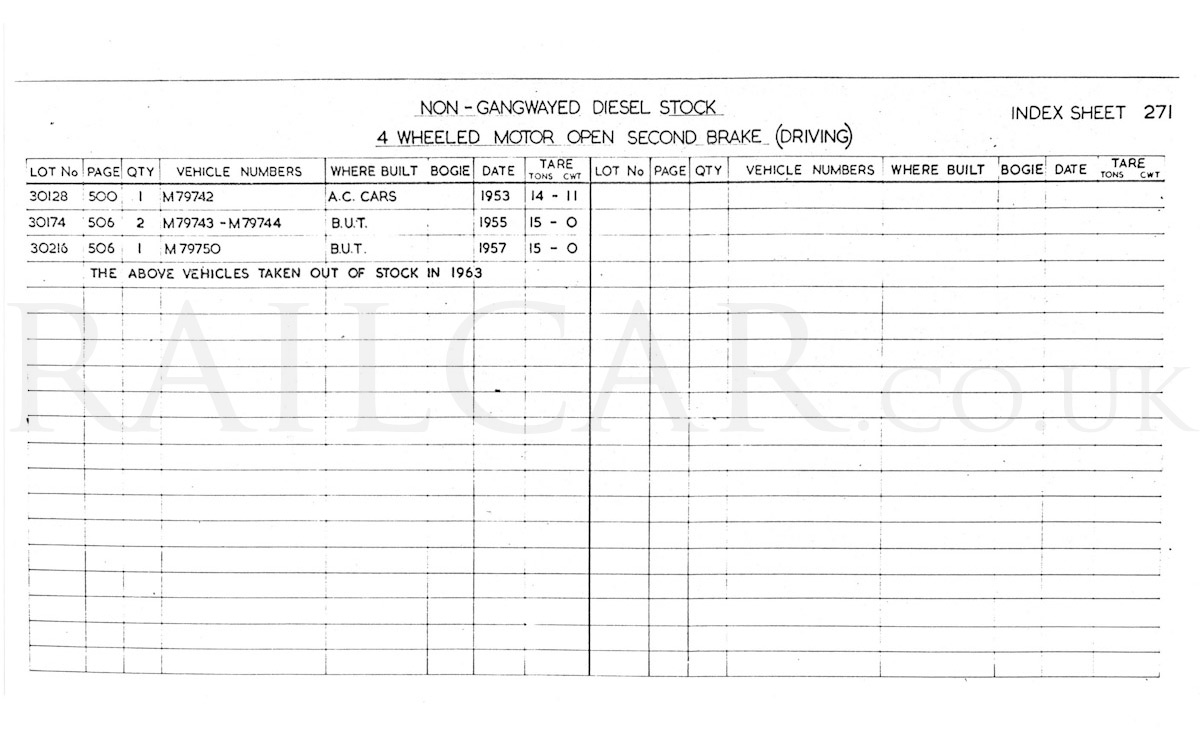

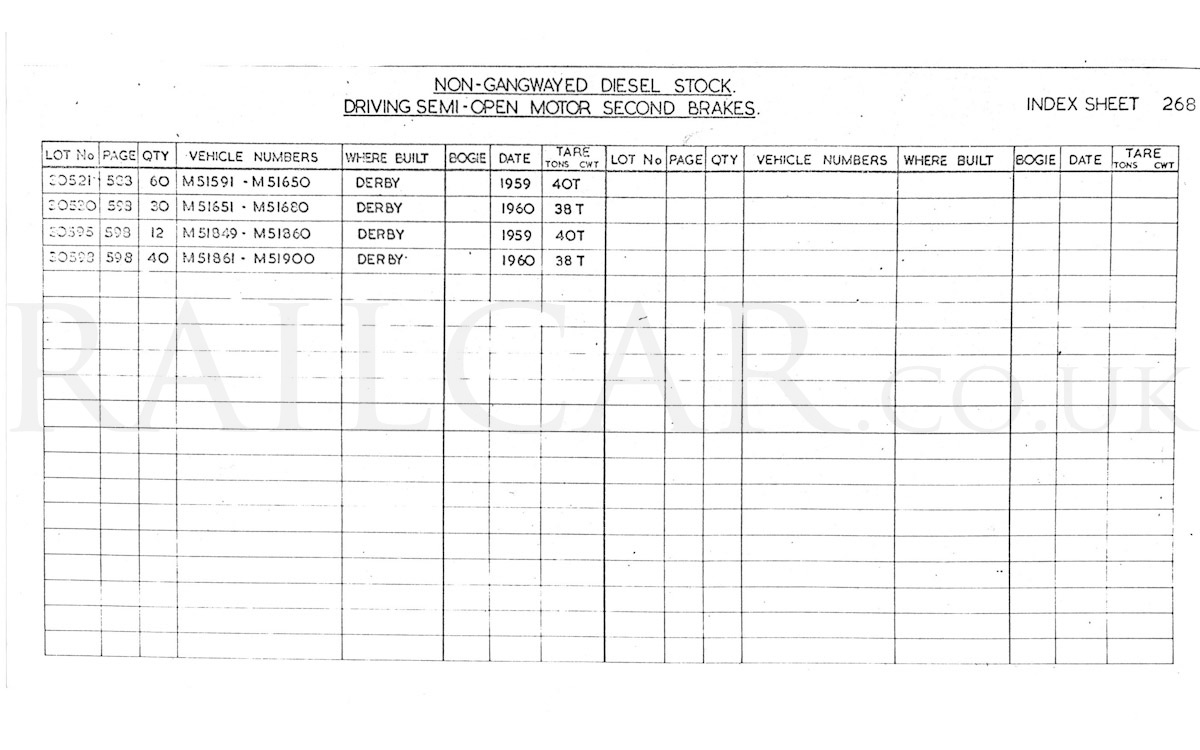

  Diesel Mechanical Stock     Sheet 261
        Sheet 262
        Sheet 263

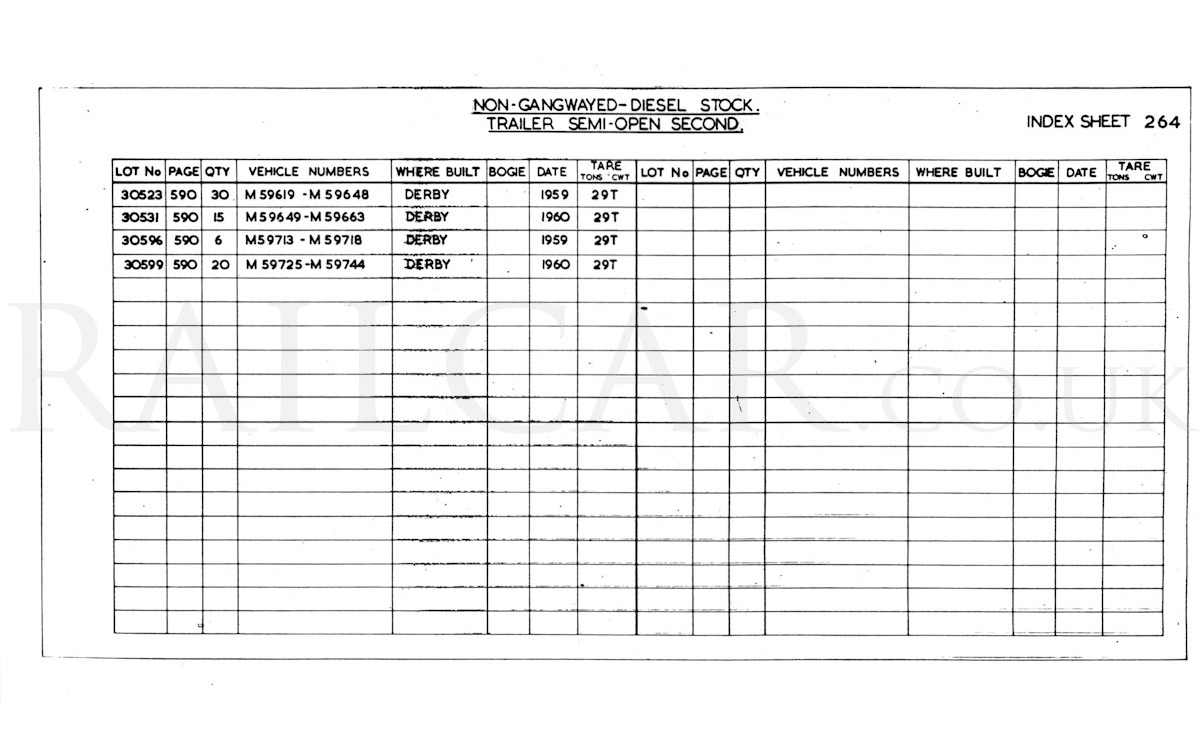

        Sheet 264

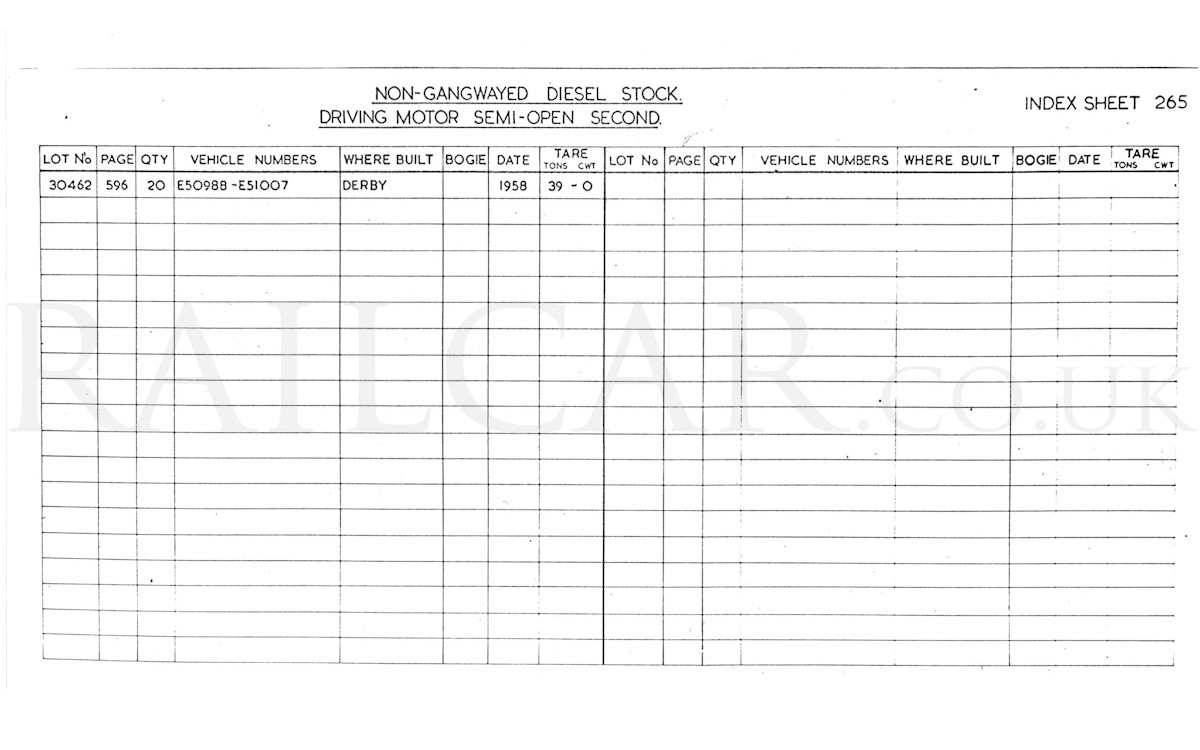

        Sheet 265
        Sheet 266
        Sheet 268
        Sheet 269
        Sheet 270
        Sheet 271
        Sheet 272

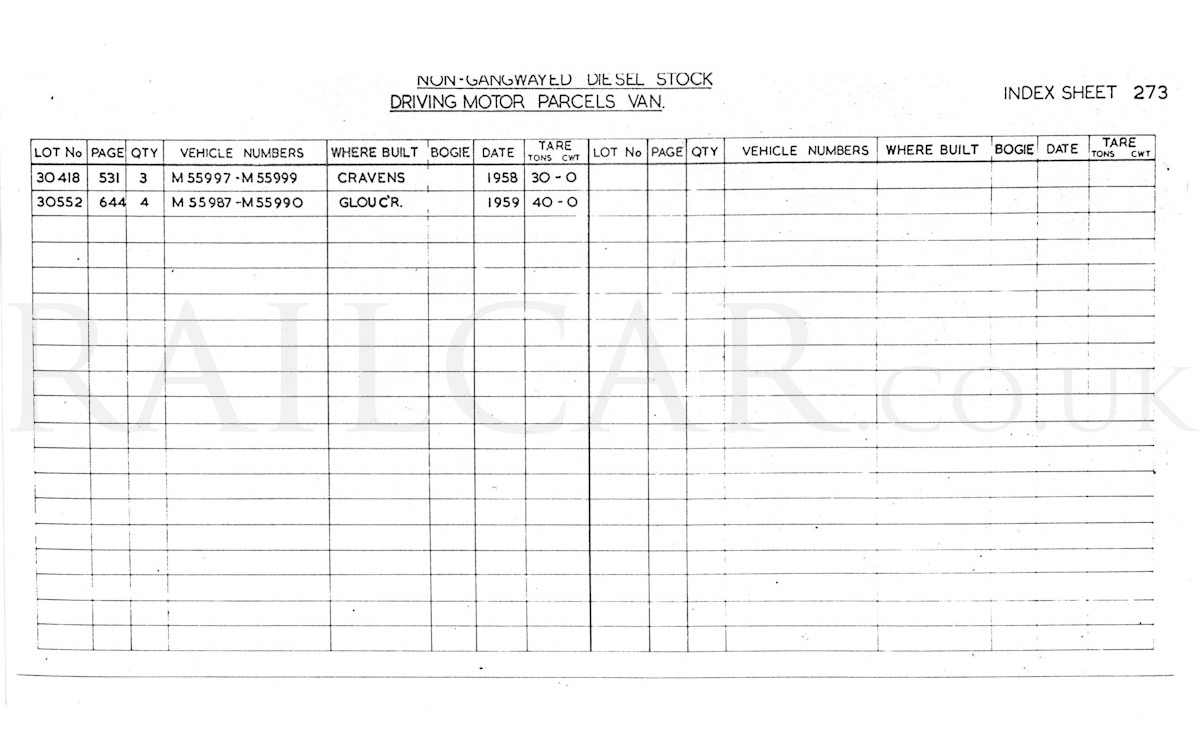

        Sheet 273

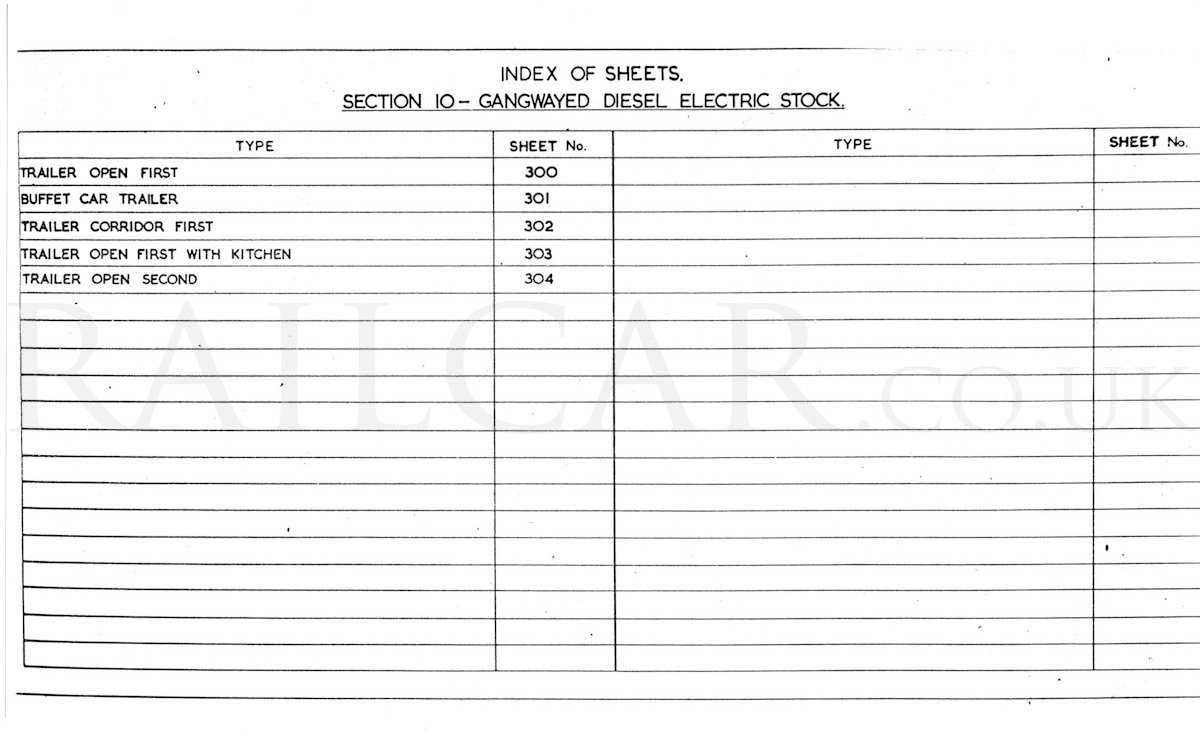

Section 10 Gangwayed Cover Index of Sheets Sheet 300
  Diesel Electric Stock     Sheet 303
        Sheet 304

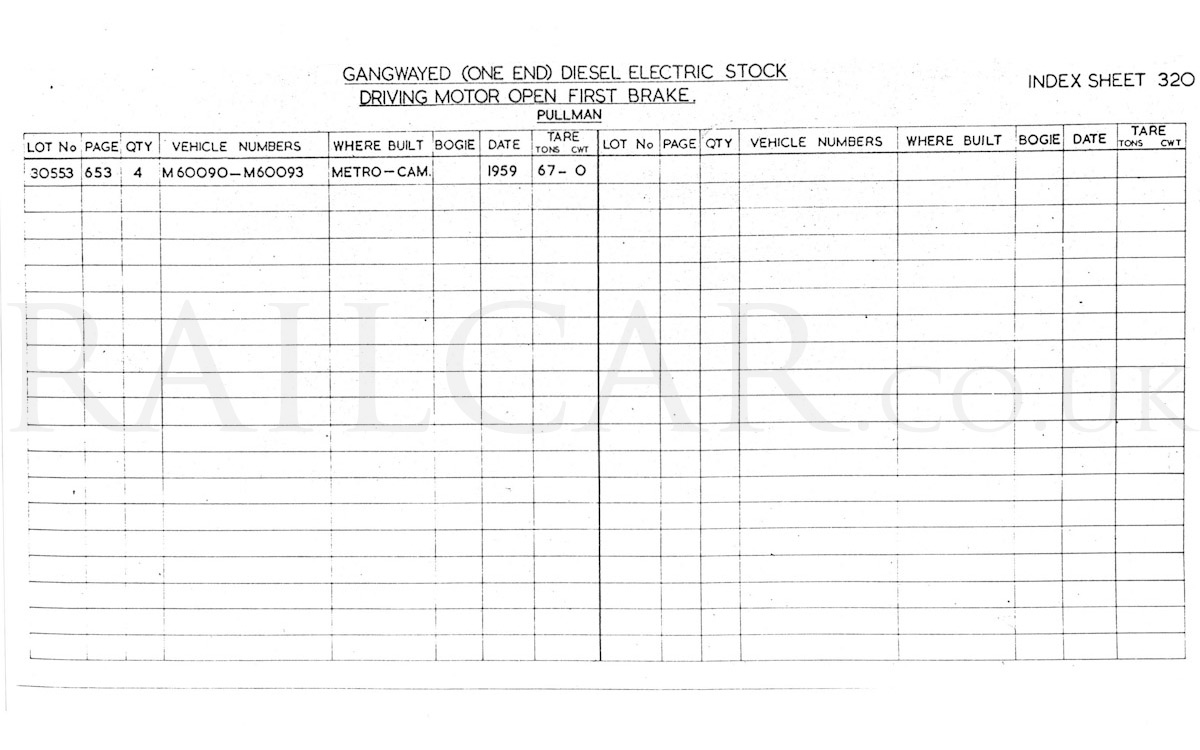

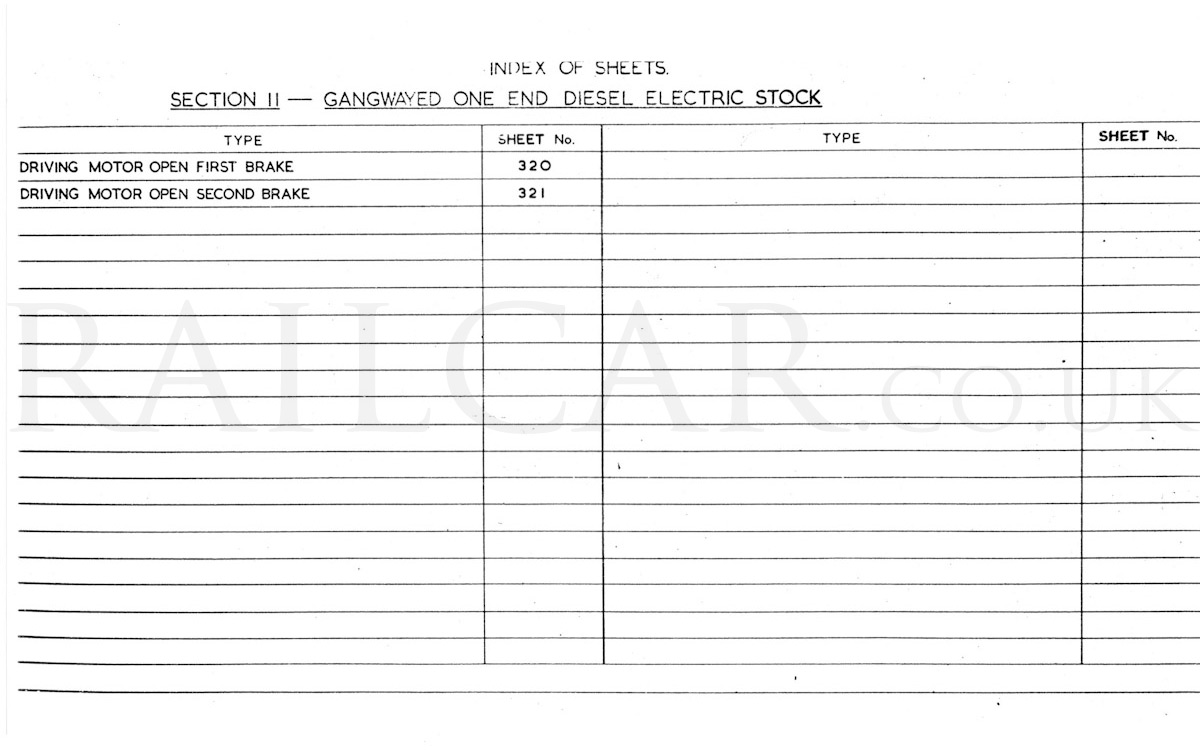

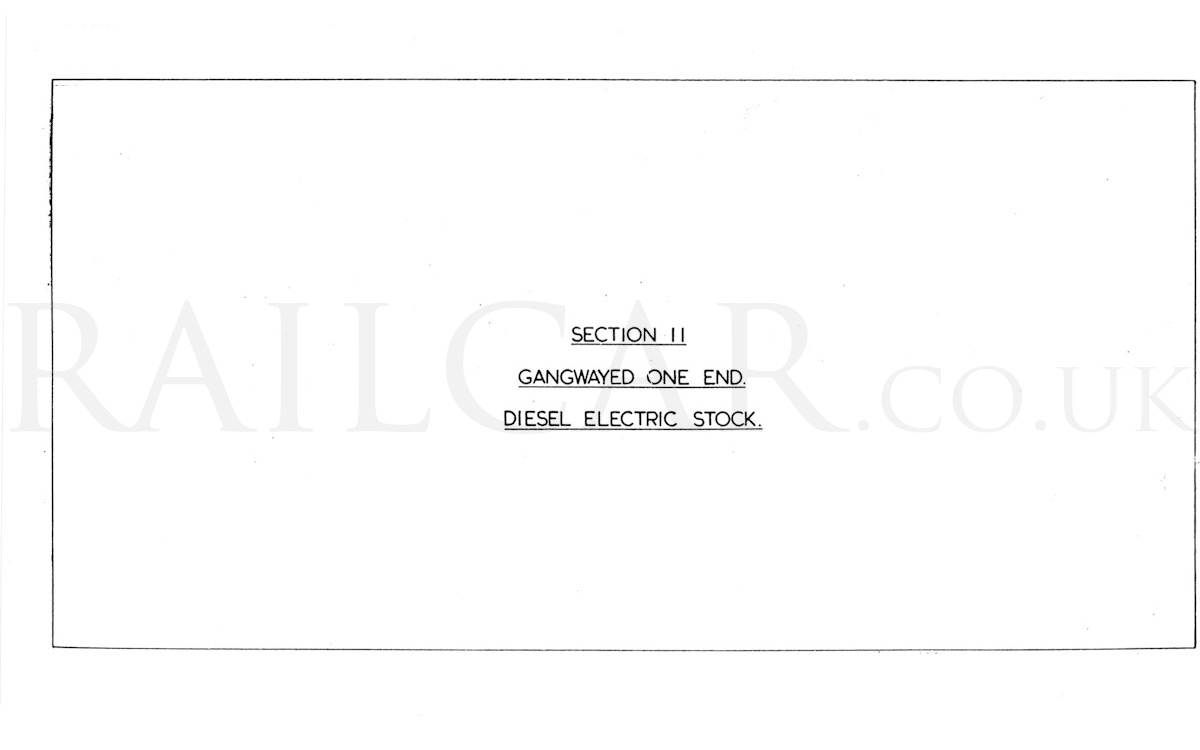

Section 11 Gangwayed One End Cover Index of Sheets Sheet 320
  Diesel Electric Stock     Sheet 321

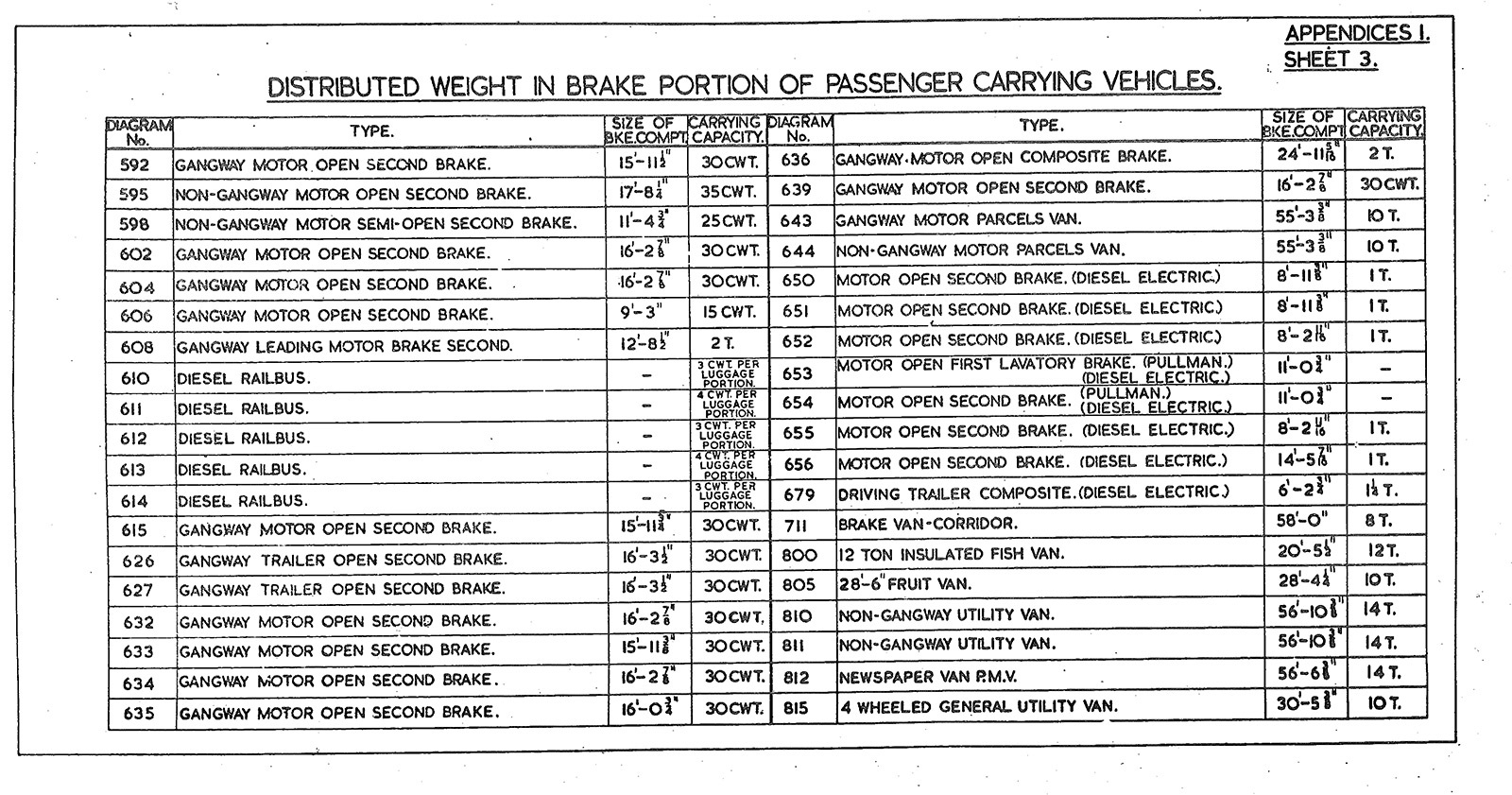

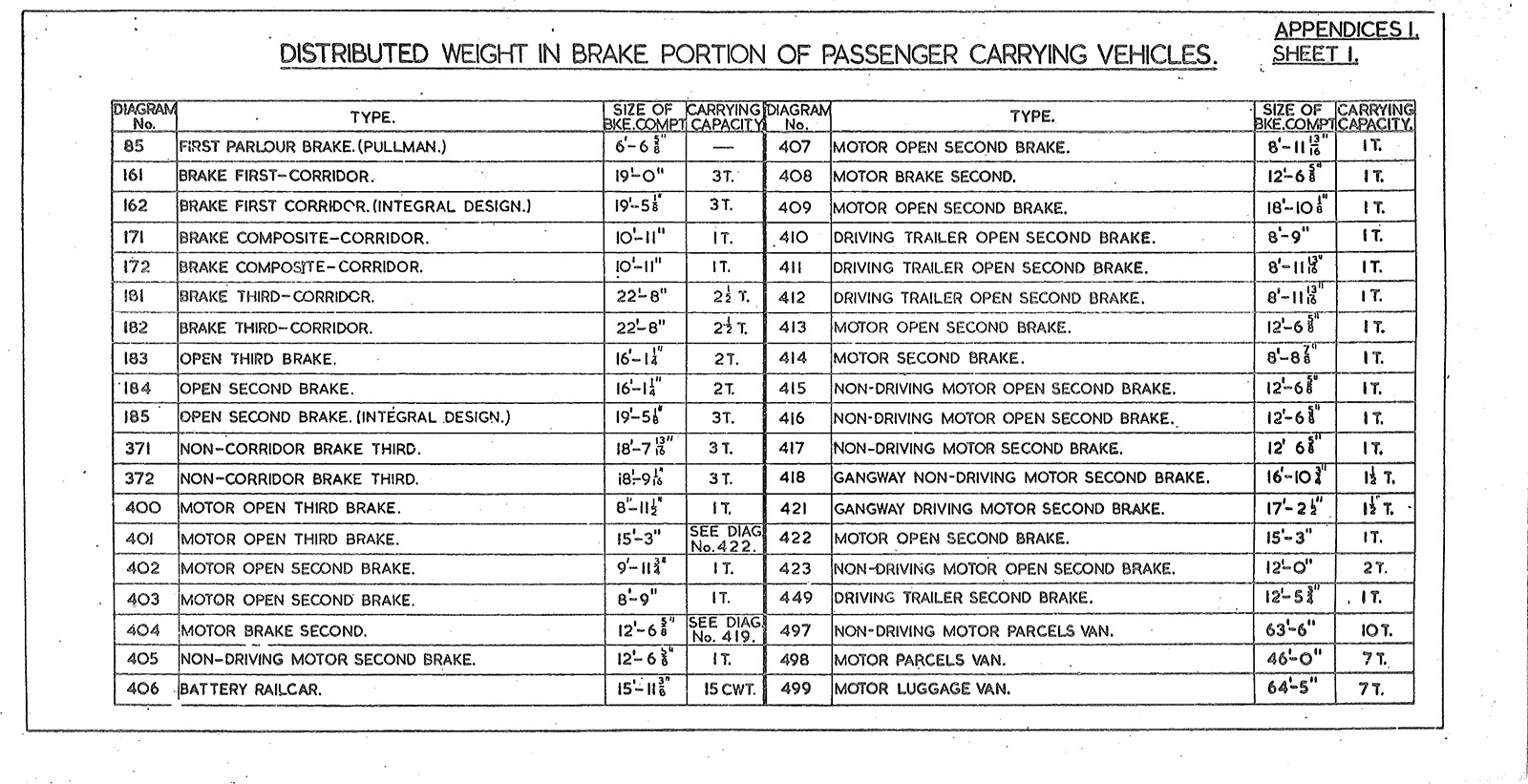

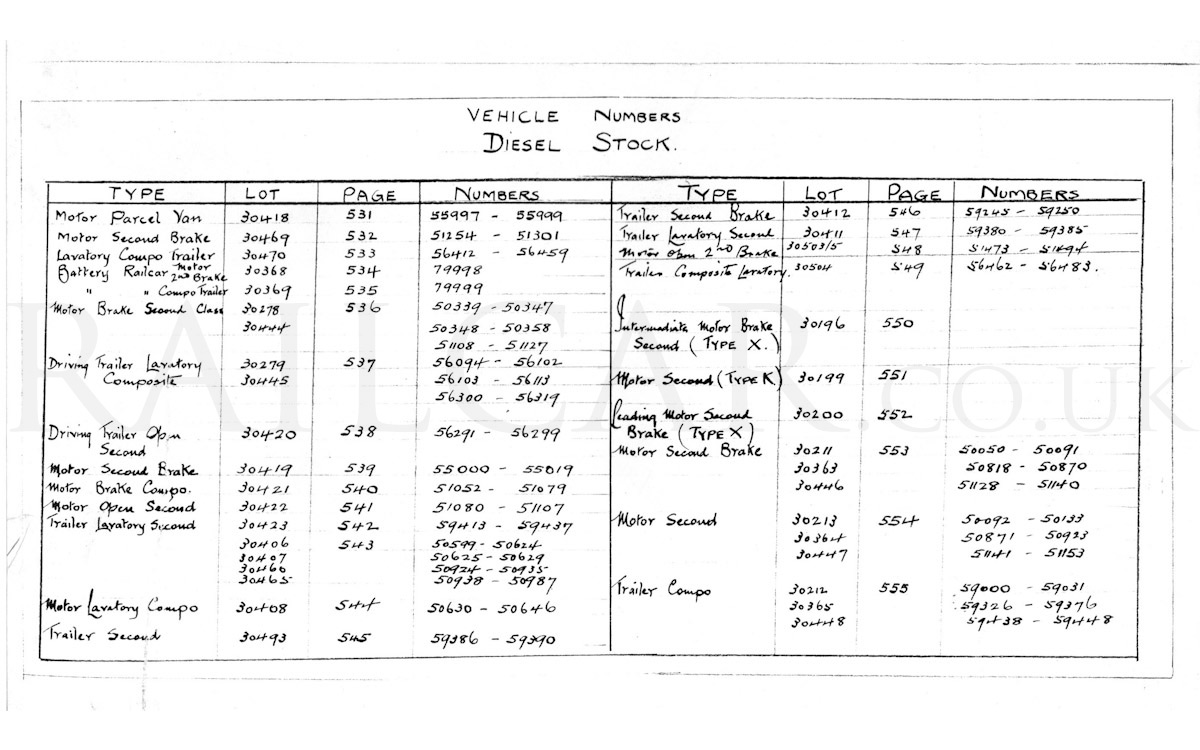

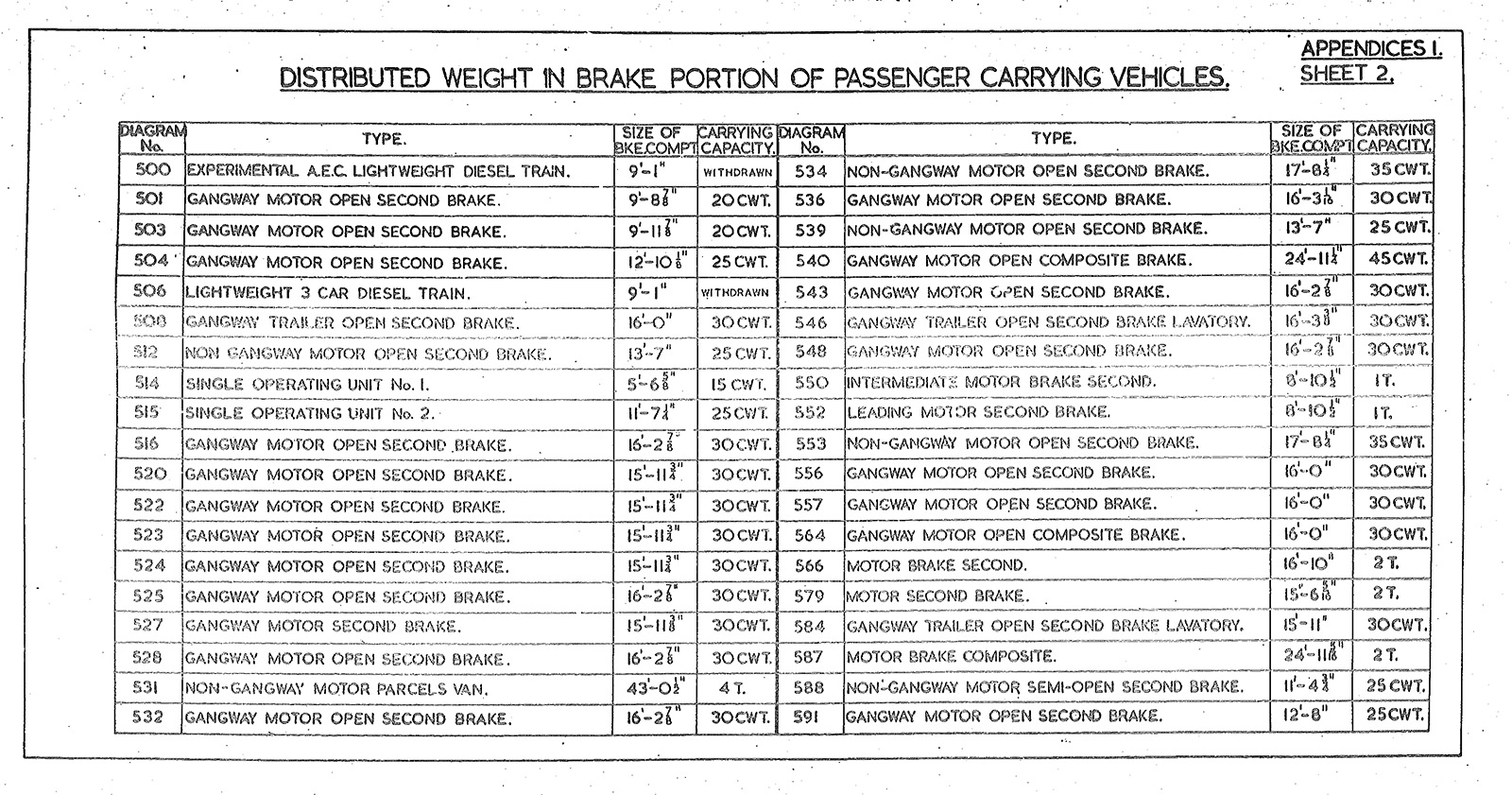

Also part of the diagram book / index was tables showing the 'distributed' weights that could be carried in the brake vans. These sheets are courtesy of David Faulkner - Sheet 1 - Sheet 2 - Sheet 3. I've also found this partial diagram index made by a member of staff.
