Class 107 Derby 3-car DMUs


Diagrams

BR 639 (DMBS), BR 647 (TSL) and BR 649 (DMCL)

BR Diagram 639 BR Diagram 647 BR Diagram 649

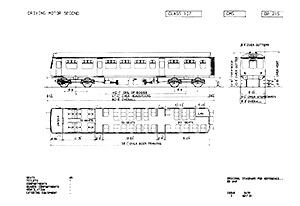

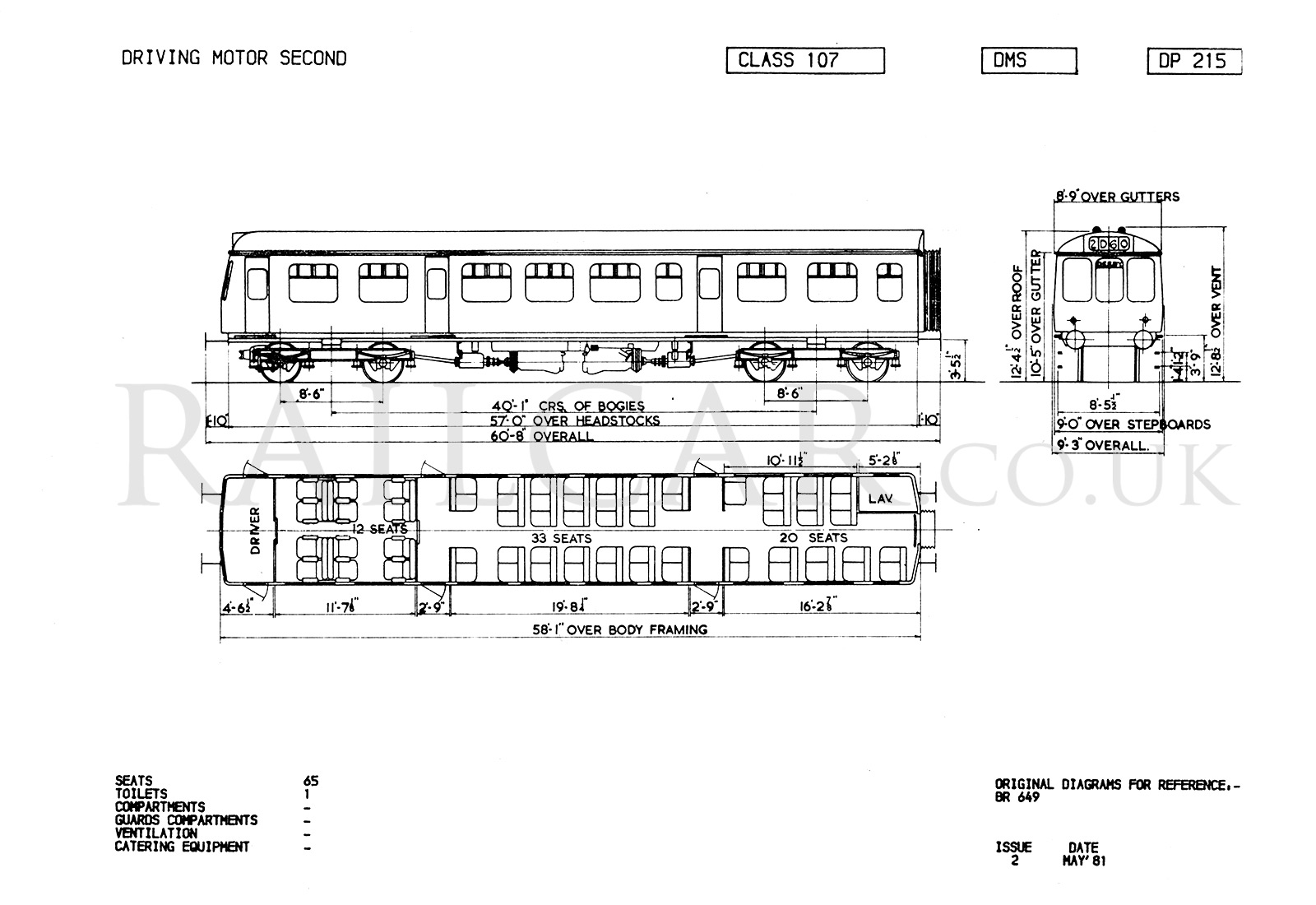

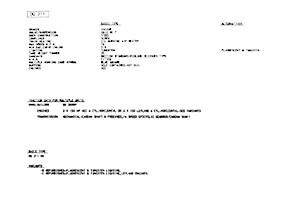

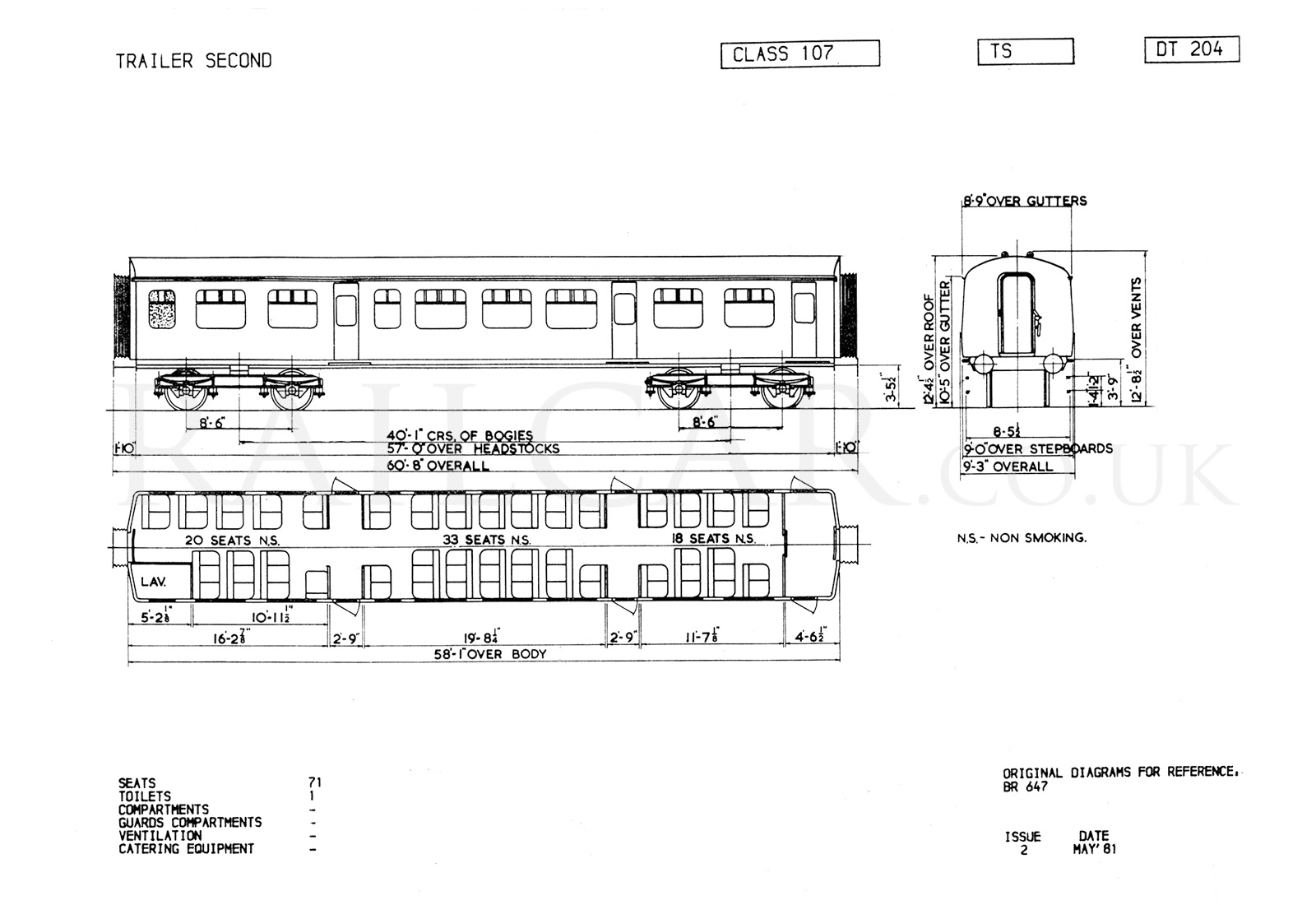

Design Codes

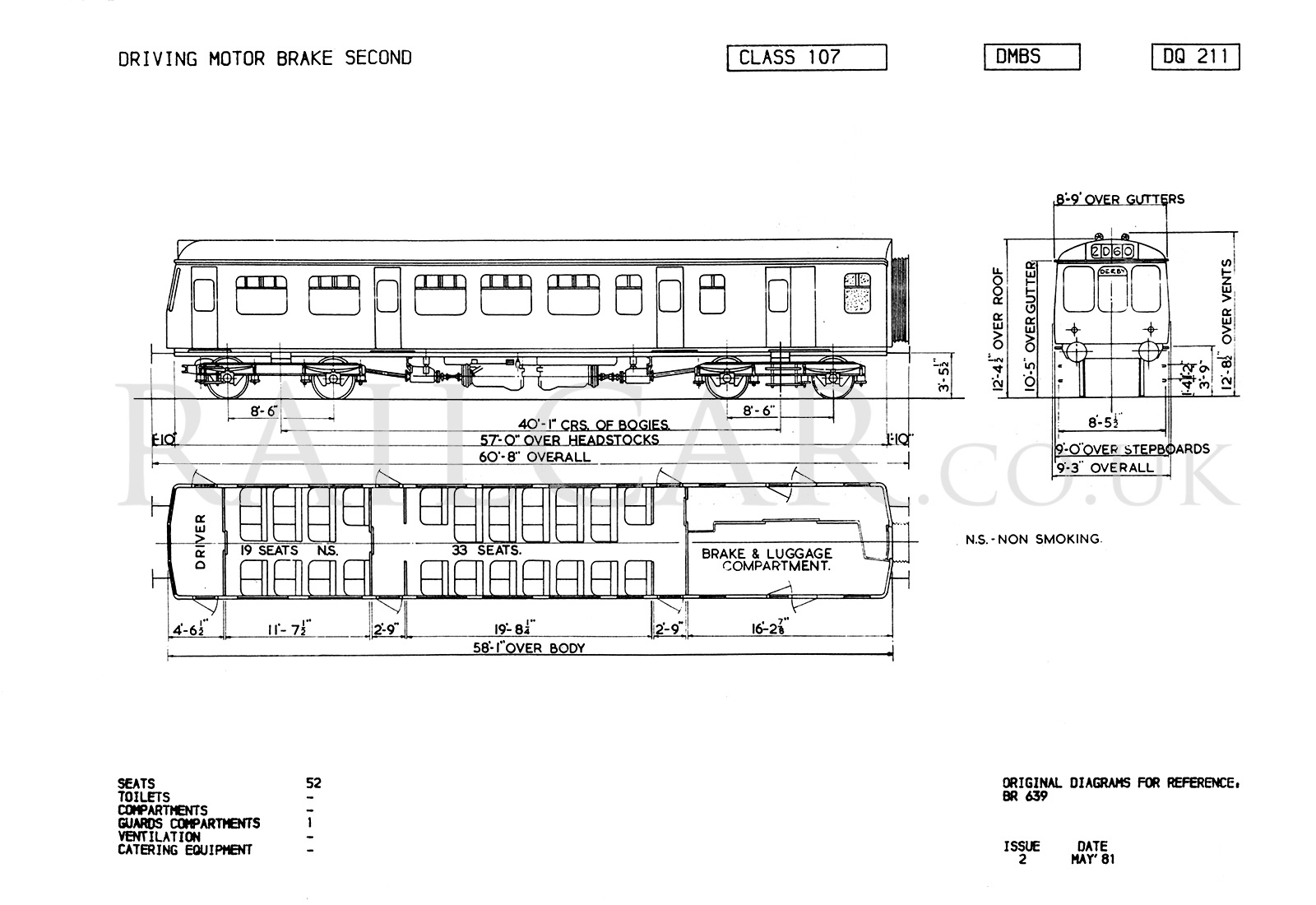

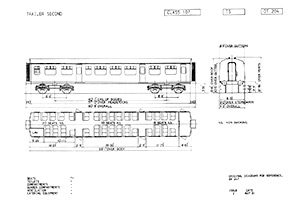

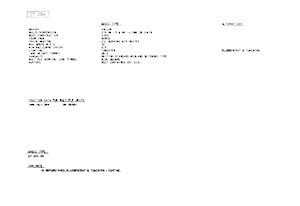

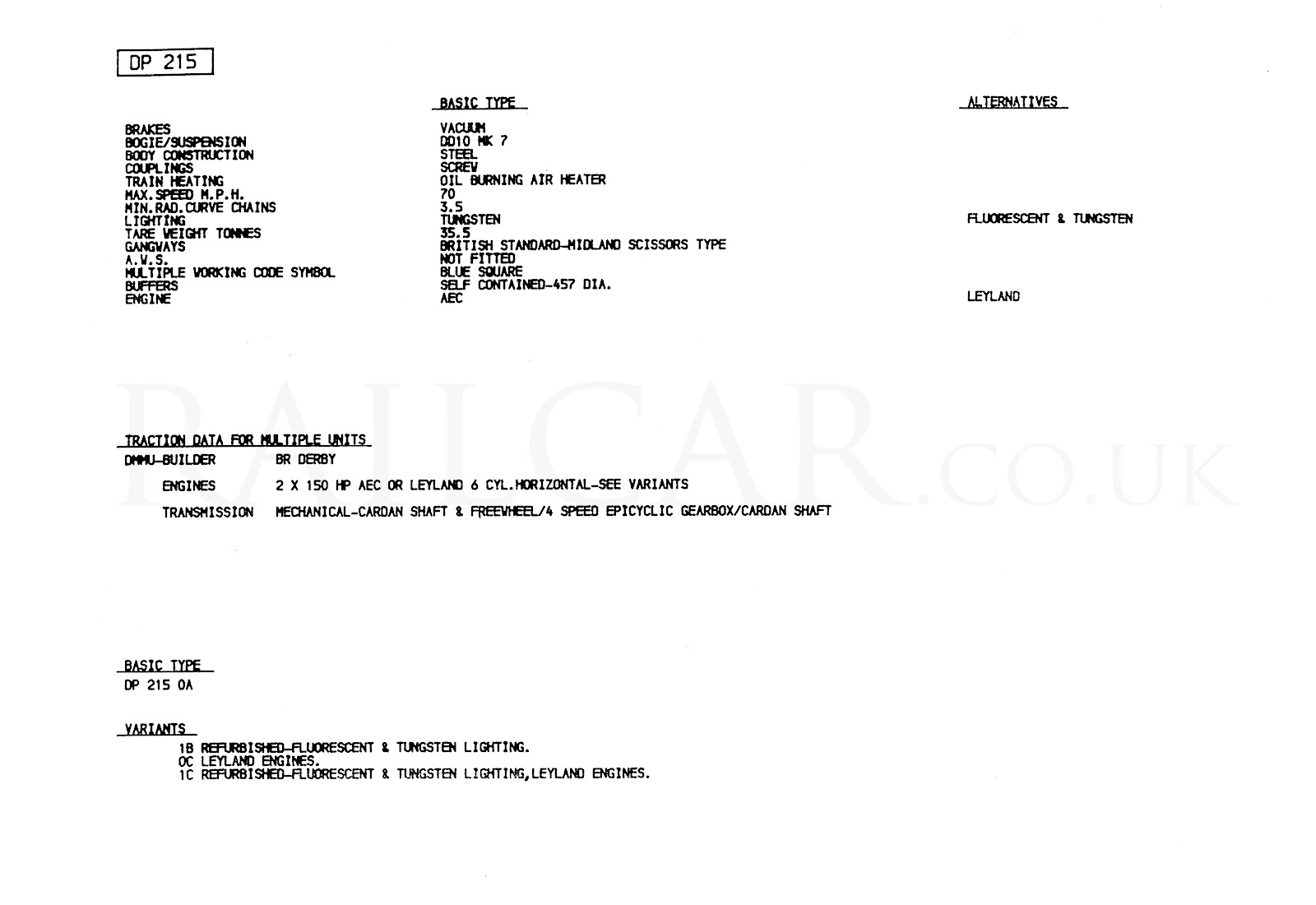

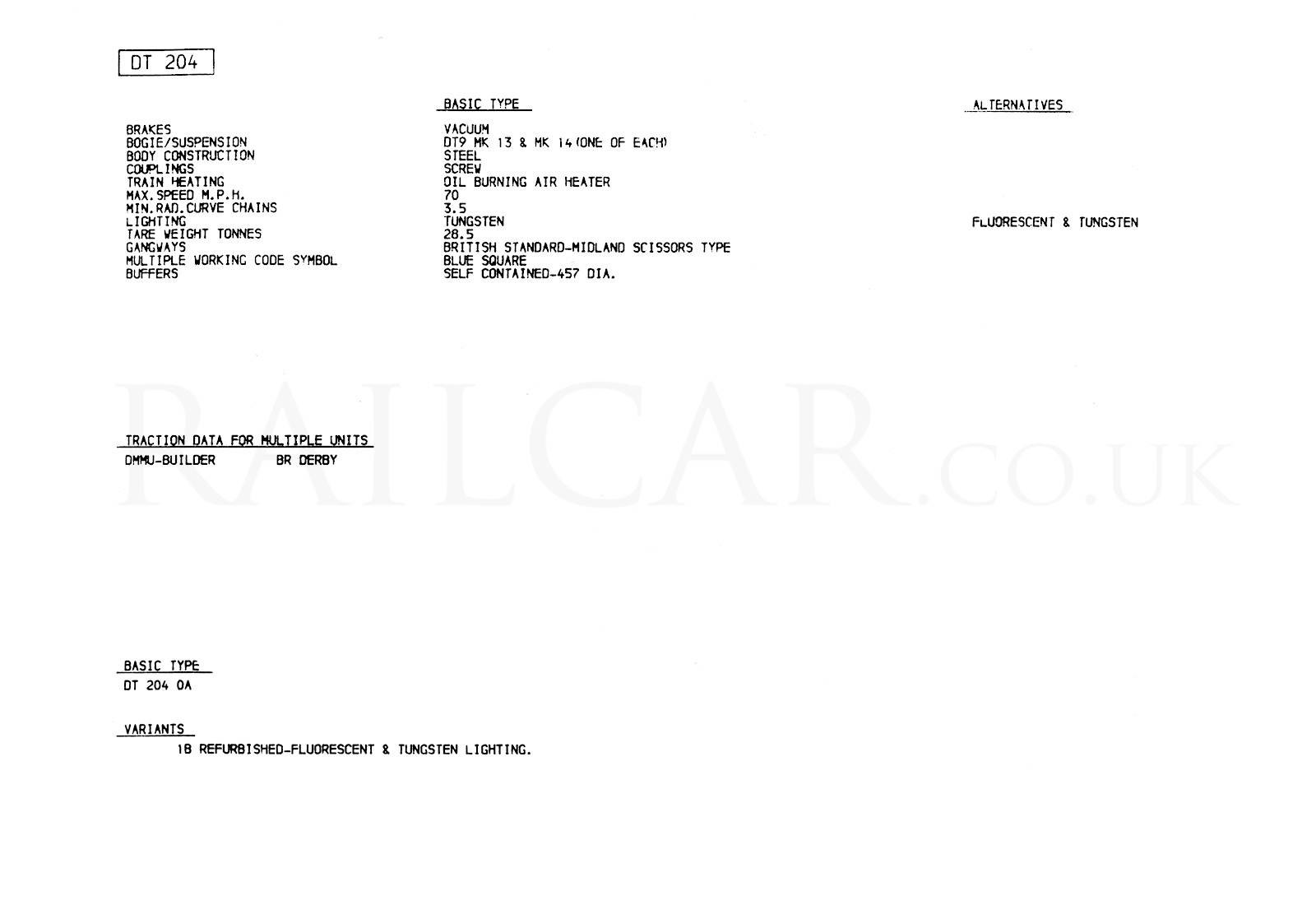

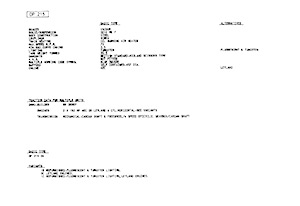

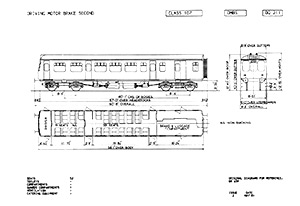

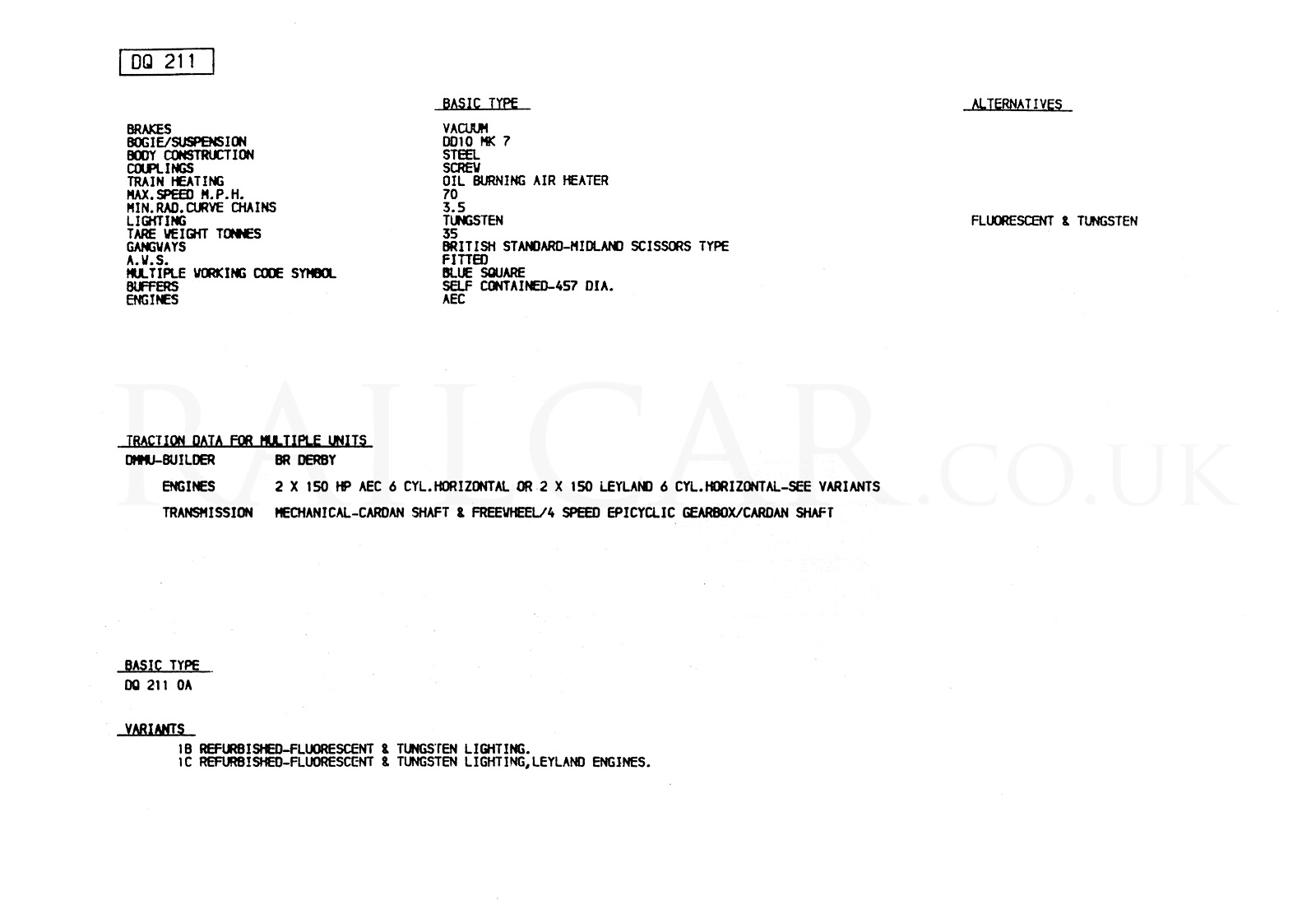

These replaced diagrams in 1980. DQ 211 (DMBS), DT 204 (TSL) and DP 215 (DMCL)


Drivers Instructions

Many earlier DMU types had a booklet from the 33003 series issued specifically for them, none have been found for these vehicles.

This March 1961 editon covered all Blue Square vehicles - BR 33003-92. A companion to this was a "Preparation and Disposal" booklet BR 33003/211.

In 1968 the booklets were replaced by a three part set for Blue Square vehicles Mechanical Transmission):
BR 33003/247 1 - General Data And Equipment
BR 33003/248 2 - Driving Instructions Including Standard Preparation and Disposal Duties
BR 33003/249 3 - Fault Finding Data and Charts

In the early seventies the 33003 series was replaced by the more generic 33056 series of drivers manuals, no longer specific to any coupling code.

Works Pictures

Photographed as part of the Derby Works collection circa December 1960.

These were taken in three or possibly more sessions. The majority of the interior shots - 60/818 to 60/835 - seem to have been taken on the same occasion and with what can be seen through the windows suggests at Derby Works. The cab images in this session are the only vehicles that can be identified for sure (51985 + 52011), and are from the first set completed so it is assumed the centre car images are of 59782.

The final interior image - 60/836 - is taken at a different location - there is a snow covered platform on the right, so was probably a different set. The exterior image is of the fourth set, they possibly had to wait until the snow had cleared up for the exterior view?

The first two images are anomolies in that the negative numbers are about 250 images earlier, but can't be any earlier than the first set! Their placement in the album that held them were on either side of the last interior image 60/836.

AWS Equipment on Class 107 cab bulkhead

Negative N 60/548
The AWS equipment (and the container for the flag and detonators) on a cab bulkhead.

Seats inside Class 107 DMU

Negative A/N 60/549
The interior of a DMBS (possibly 51985) looking from the cab towards the van.

Interior of Class 107 looking to cab

Negative 60/818
The middle saloon of a DMBS, presumably Sc51985.

Interior of Class 107 looking to toilet

Negative 60/819
An end saloon (toilet end) of a TSL, presumably Sc59782.

Inside of Class 107 brake van looking forward

Negative 60/820
The guards area of a DMBS, presumably Sc51985.

Inside of Class 107 brake van looking rearwards

Negative 60/821
The guards area of a DMBS, presumably Sc51985.

Passage past Class 107 brake van

Negative 60/822
The passageway past the van cage on a DMBS (possibly 51985).

Inside a Class 107 power car looking rearwards

Negative 60/823
The centre saloon of a DMBS (possibly 51985).

Front saloon of a Class 107 looking forwards

Negative 60/824
The front saloon of a DMBS (possibly 51985) looking towards the cab.

Control box at the end of a Class 107

Negative 60/825
The (non-toilet) inner-end of a TSL (presumably 59782). The wooden box houses the two controls for the heaters. Through the window in the sliding door can be seen the vinyl sheets that protects people passing though the gangway.

Interior of the end on a Class 107 centre car

Negative 60/826
An end saloon (non-toilet end) of a TSL (presumably 59782) looking through to the DMBC.

Interior of a Class 107 power car looking at the back of seats

Negative 60/827
The middle saloon of a DMCL (presumably 52011) looking towards the cab.

Interior of a Class 107 centre car looking at the back of seats

Negative 60/828
The centre saloon of a centre car (presumably 59782) looking towards the toilet end. The cage in the guards van of the adjacent DMBS can be seen.

Vestibule area in a Class 107 centre car

Negative 60/829
The interior of a centre car (thought to be 59782), taken from the toilet end of the vehicle.

Toilet area of a Class 107 centre car

Negative 60/830
The end saloon (toilet end) of a centre car (thought to be 59782).

First class saloon of a Class 107 DMU power car

Negative 60/831
The first class saloon of a DMCL (thought to be 52011).

Inside a Class 107 cab looking at the drivers side

Negative 60/832
The drivers compartment of DMBS 51985.

Inside a Class 107 cab looking at the non-drivers side

Negative 60/833
The drivers compartment of DMCL 52011.

Interior of a Class 107 DMCL

Negative 60/834
The second class saloons of a DMCL (thought to be 52011), looking towards the toilet end of the vehicle.

Inside a Class 107 cab looking upwards towards the ceiling

Negative 60/835
The drivers compartment of DMCL 52011.

Front saloon of a Class 107 DMBS looking towards the cab

Negative 60/836
The front saloon of a DMBS.

Exterior view of new Class 107 DMU

Negative 60/837
Sc52014 + Sc59785 + Sc51988 posed on the Wirksworth branch
