Number | Type | Lot No. | Seats (New/Gangwayed) |
Diagram | Design | Weight | TOPS |
---|---|---|---|---|---|---|---|

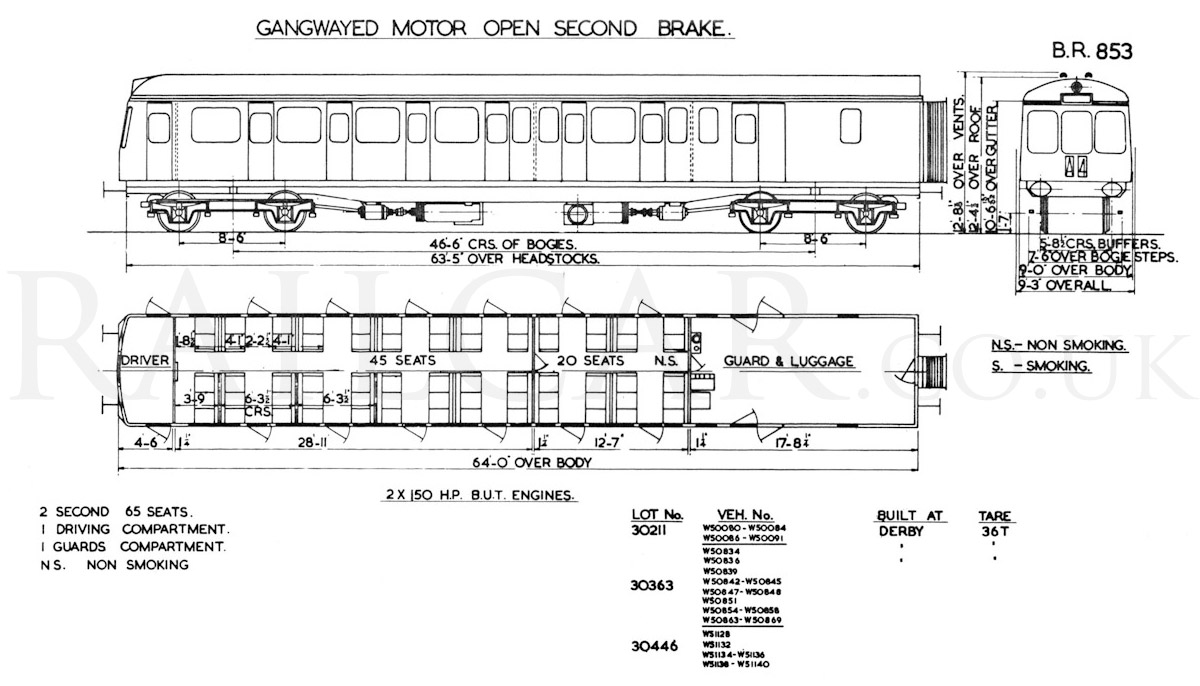

W50050 - 50091 | DMBS | 30211 | 65 2nd | 553 / 853 | DQ219 / DQ230 | 36 tons | 116/2 |

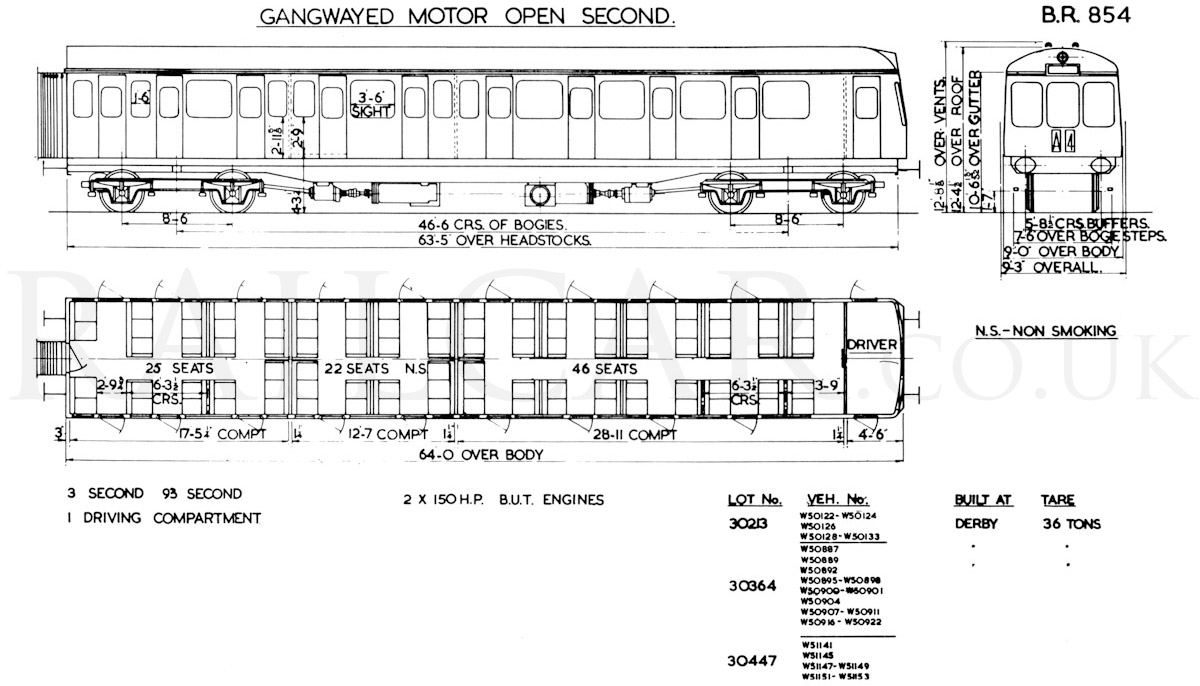

W50092 - 50133 | DMS | 30213 | 95/89 2nd | 554 / 854 | DP201 / DP220 | 36 tons | 116/1 |
W50818 - 50870 | DMBS | 30363 | 65 2nd | 553 / 853 | DQ219 / DQ230 | 36 tons | 116/2 |
W50871 - 50923 | DMS | 30364 | 95/89 2nd | 554 / 854 | DP201 / DP220 | 36 tons | 116/1 |
W51128 - 51140 | DMBS | 30446 | 65 2nd | 553 / 853 | DQ219 / DQ230 | 36 tons | 116/2 |
W51141 - 51153 | DMS | 30447 | 95/89 2nd | 554 / 854 | DP201 / DP220 | 36 tons | 116/1 |
W59000 - 59031 | TC | 30212 | 28/20 1st / 74/68 2nd | 555 / 855 | DT215 / DT219 | 28t 10c | 175 |

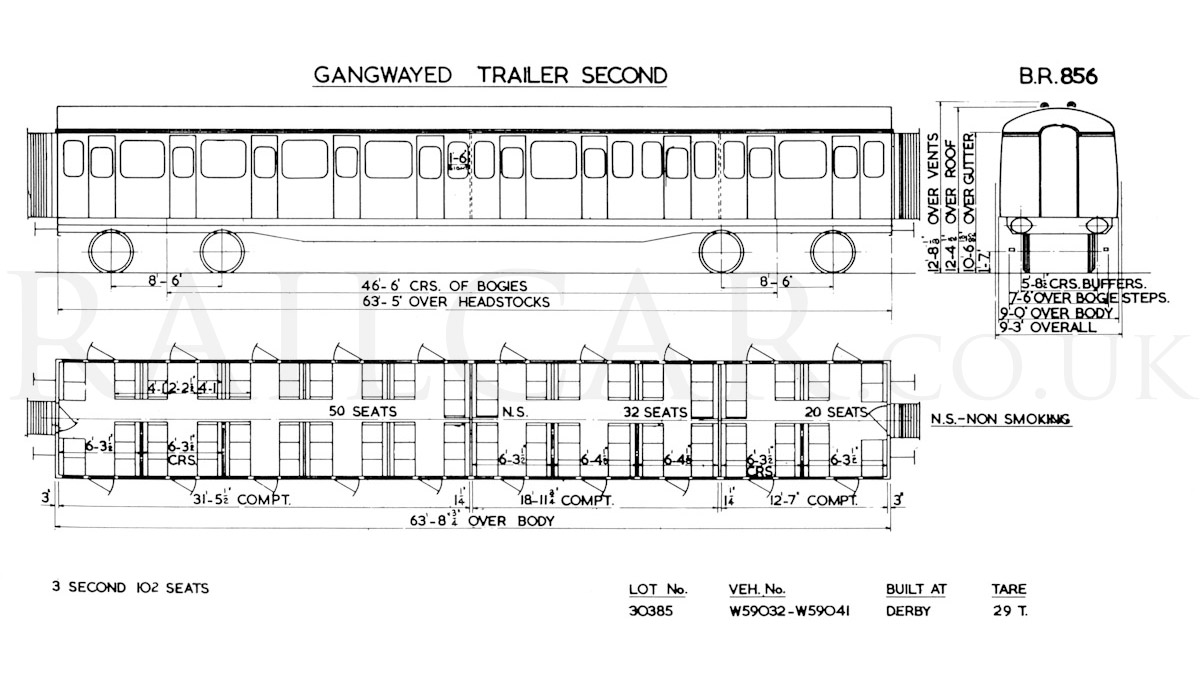

W59032 - 59041 | TS | 30385 | 106 2nd | 600 / 856 | - / DT209 | 29 tons | 172 |
W59326 - 59376 | TC | 30365 | 28/20 1st / 74/68 2nd | 555 / 855 | DT215 / DT219 | 28t 10c | 175 |
W59438 - 59448 | TC | 30448 | 28/20 1st / 74/68 2nd | 555 / 855 | DT215 / DT219 | 28t 10c | 175 |
In common with other DMU types, the TOPS numbers were rationalised leaving them all as just Class 116s by 1980, and in 1983 the surviving cars in the 50xxx were numbered in the 53xxx range to avoid clashing with Class 50 locomotives.
Original Formations | DMBS | Trailers | DMS | ||||||
---|---|---|---|---|---|---|---|---|---|
Batch One (1957) | 50050 - 50091 | (42) | TC | 59000 - 59031 | (32) | 50092 - 50133 | (42) | ||
TS | 59032 - 59041 | (10) | |||||||
Batch Two (1957/8) | 50818 - 50870 | (53) | TC | 59326 - 59376 | (51) | 50871 - 50923 | (53) | ||
Batch Three (1958) | 51128 - 51140 | (13) | TC | 59438 - 59448 | (11) | 51141 - 51153 | (13) |
You will see that there are differing number of power cars and trailers in the second/third batches. They were delivered as 3-cars until the last two pairs in both cases.
Worksplates were carried on the vehicle solebars to identify the builder and lot number. Many of the worksplate images on the website are from the collections of Simeon Gaskell, John Horne and Tony Spencer.
Summary
Description
Modifications
Works Photographs
Diagrams
Numbering
Drivers Instructions
Liveries
Operations
- South Wales
- Scotland
Accidents
Railair Express Parcels set
Parcel Use
Refurbishment
Hybrids
Decline
Departmental Use
Images
Details about preserved Class 116s can be found here.
Thanks to Mac Winfield, Ian Fleming and John Thomlinson for much of the information on this Class.
