Vehicles | Type | TOPS | Weight | Lot No. | Diagram | Design Code | Seats (2nd Class) |
---|---|---|---|---|---|---|---|
55000 - 55019 | DMBS | 122 | 36 tons | 30419 | 539 | DQ222 | 65 (2+3) |
56291 - 56299 | DTS | 150 | 29 tons | 30420 | 538 | DS202 | 95 (2+3) - later reduced to 91 |

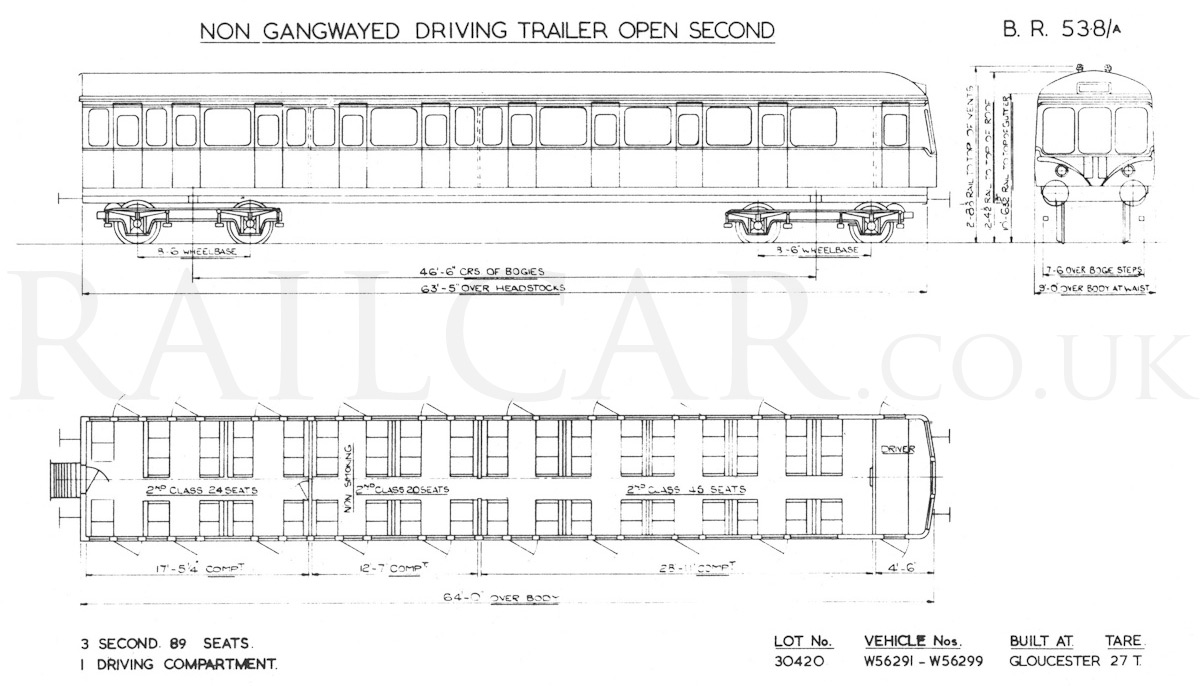

538A | - | 89 when gangwayed |
The DTS seats were first reduced from 95 to 91 when through access was provided inside the vehicle.
It is unclear as to whether gangways were fitted to any of the DTS vehicles.
The DTS vehicles were first designated as Class 150s when the class numbering system was introduced, but later just became Class 122s. The parcels conversions were initially identified as Class 131s.
Worksplates were carried on the vehicle solebars to identify the builder and lot number. Many of the worksplate images on the website are from the collections of Simeon Gaskell, John Horne and Tony Spencer.
Many earlier DMU types had a booklet from the 33003 series issued specifically for them, none have been found for these vehicles.
This March 1961 editon covered all Blue Square vehicles - BR 33003-92. A companion to this was a "Preparation and Disposal" booklet BR 33003/211.
In 1968 the booklets were replaced by a three part set for Blue Square vehicles Mechanical Transmission):
BR 33003/247 1 - General Data And Equipment
BR 33003/248 2 - Driving Instructions Including Standard Preparation and Disposal Duties
BR 33003/249 3 - Fault Finding Data and Charts
In the early seventies the 33003 series was replaced by the more generic 33056 series of drivers manuals, no longer specific to any coupling code.
