Class 104 BRC&W 2, 3 & 4-car DMUs


2-car sets

Diagrams

LMR - The DMBS was to diagram 556 (same as the 3-car sets) and the DTCL to diagram 585:

BR Diagram 556 BR Diagram 585

ER - These had the DMBS to diagram 557 and the DTCL to diagram 581:

BR Diagram 557 BR Diagram 581

The DMBSs differed in that the LMR vehicles had a sliding into the front (non-smoking) saloon, the ER sets didn't. The DTCs differed as the ER vehicles had a luggage rack opposite the toilet.

Design Codes

These replaced Diagrams in 1980.

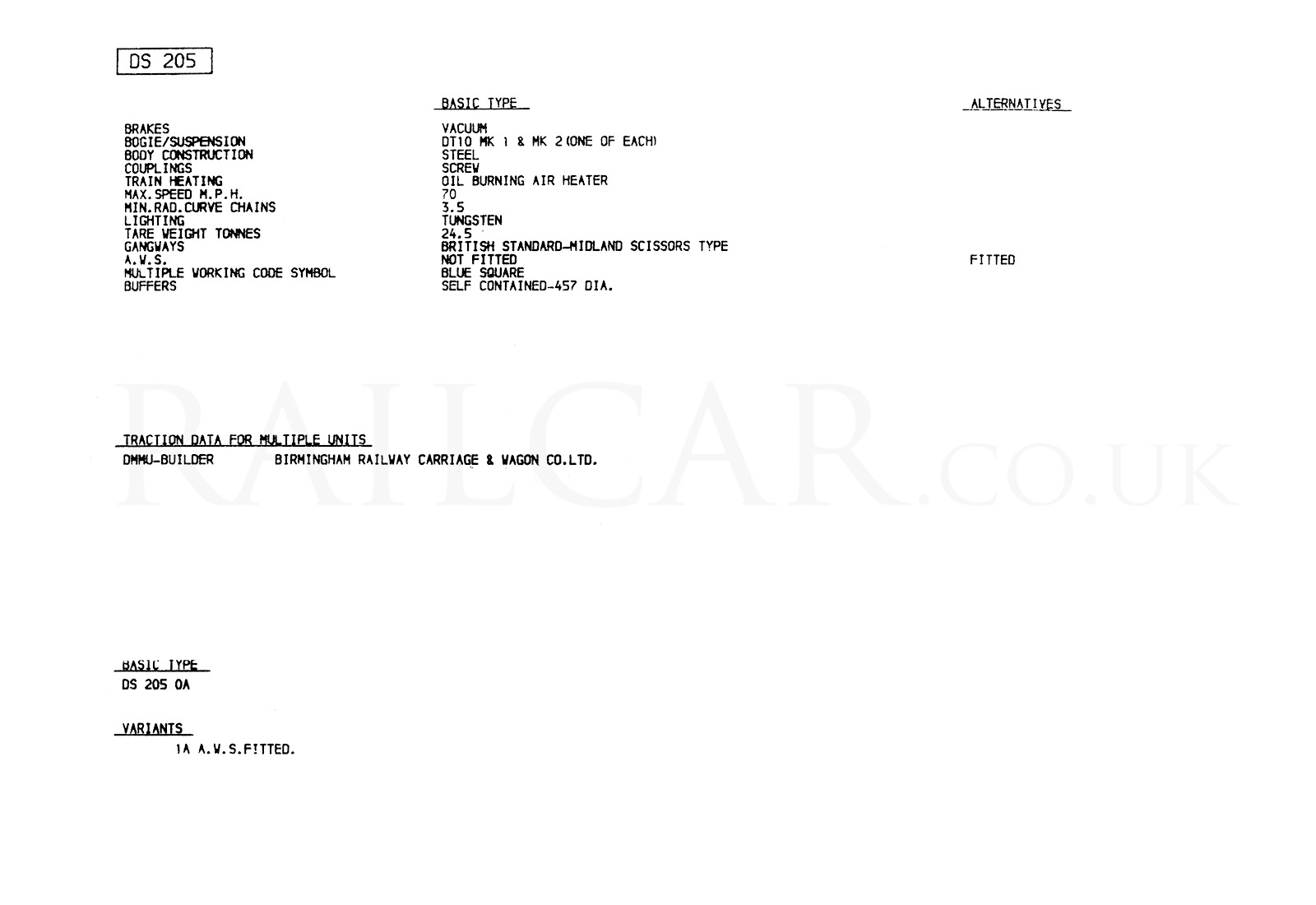

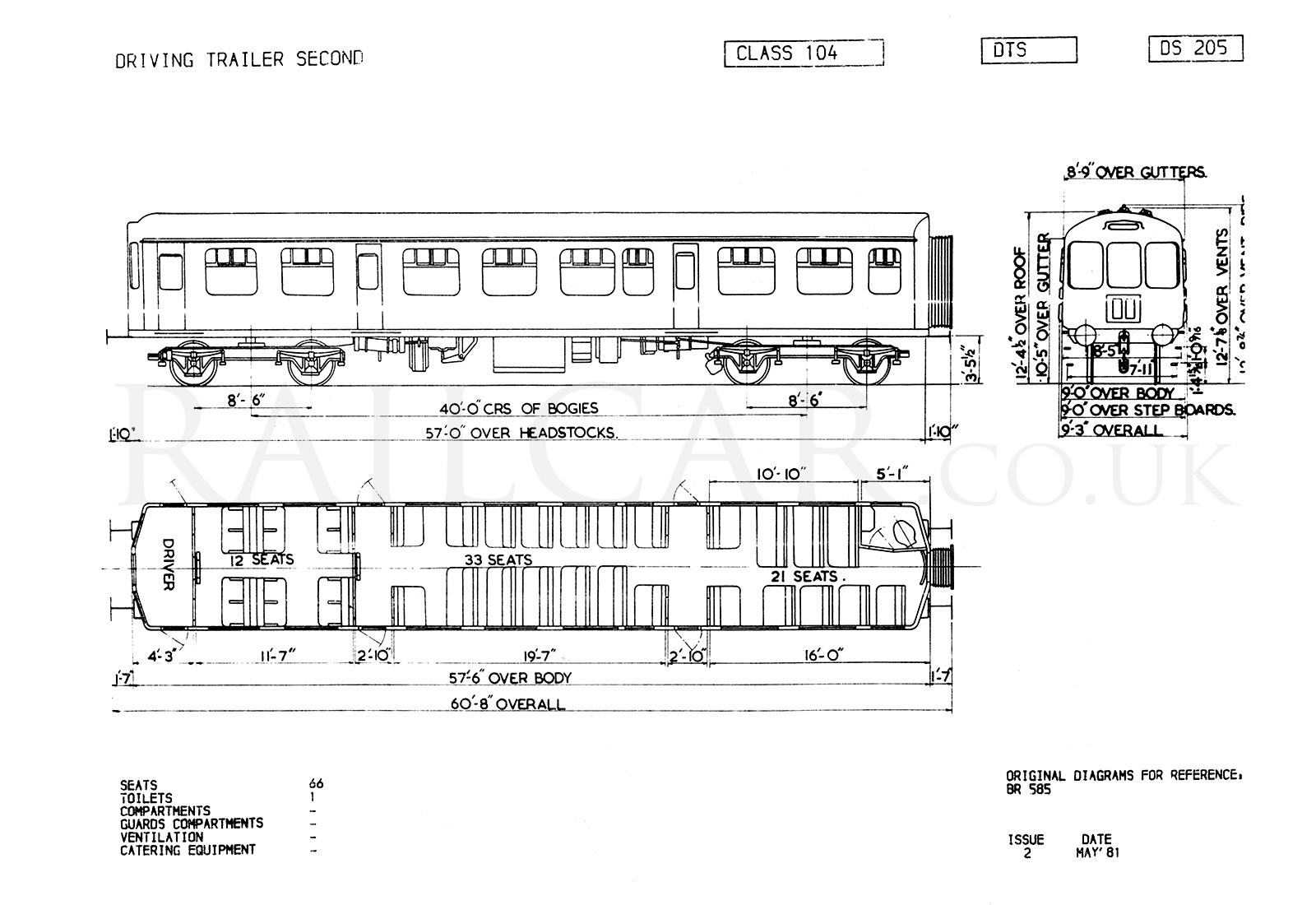

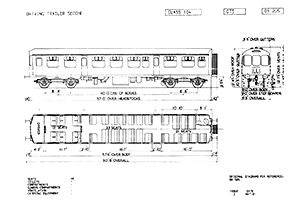

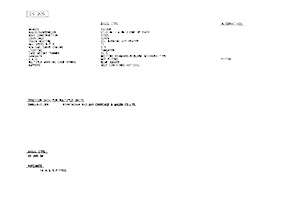

LMR DMBS - DQ 205 (same as the 3-car sets), DTCL - DS 305 (DS 205 when downgraded to DTSL):

(I don't have a copy of DS 305)

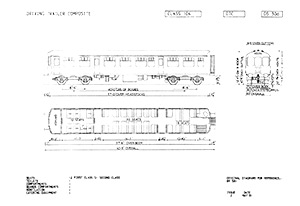

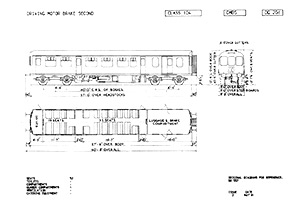

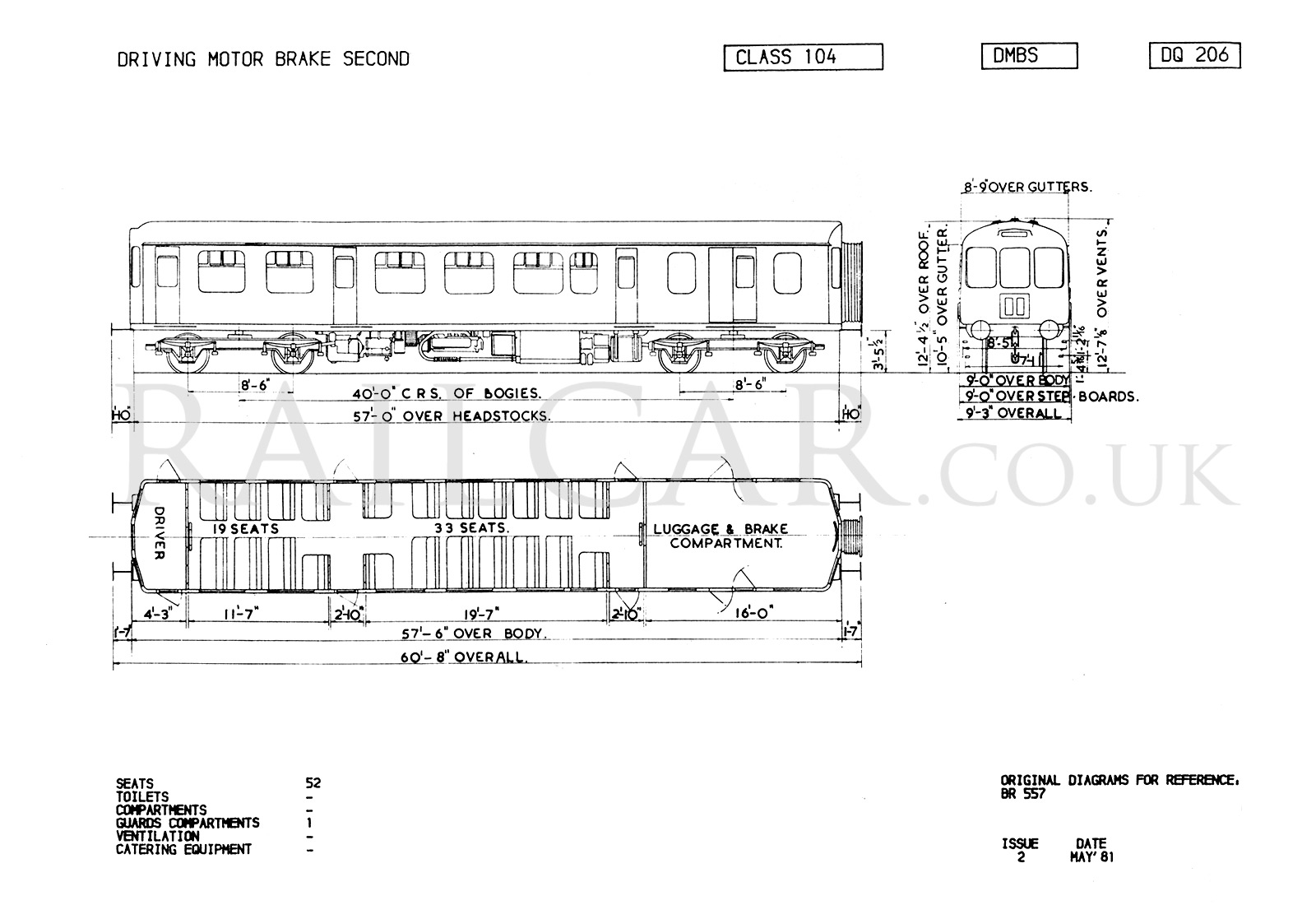

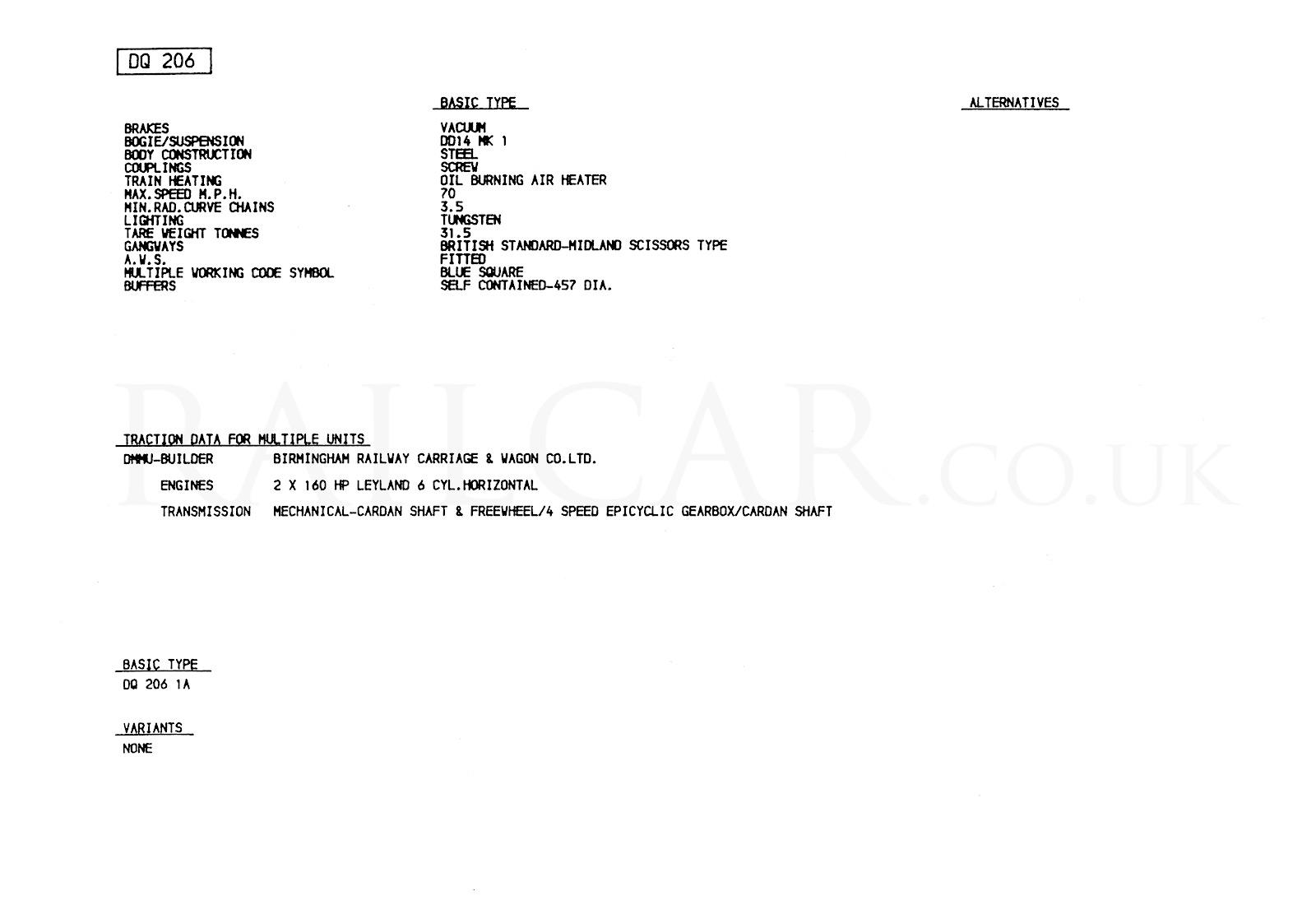

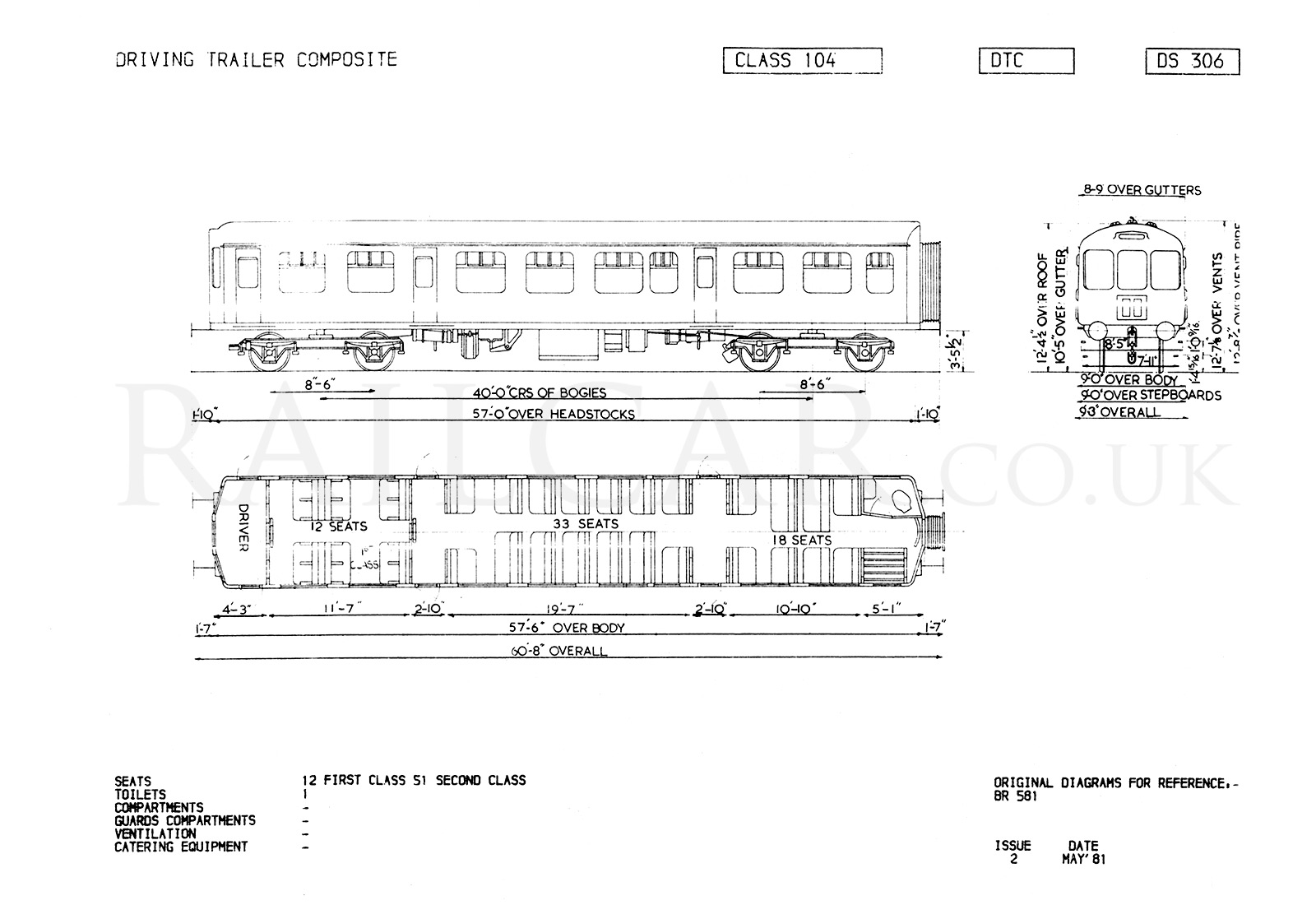

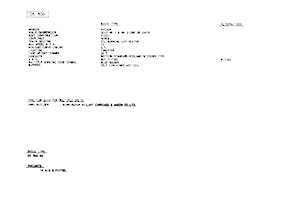

ER DMBS - DQ 206, DTCL - DS 306:


Works Photographs

BRC&W

These were taken at Cleobury Mortimer on the Tenbury Wells branch judging by what can be seen outside, a common location for BRC&W offical images. There are many images missing from this set, please get in touch if you can help with any of the missing ones.

The first two are of a London Midland Region set, circa March 1958:

The first class saloon of a Class 104 DMU DTCL

Negative B15/36
The first class saloon of a DTCL

The second class saloon of a Class 104 DMU DTCL

Negative B15/37
The second class saloon of a DTCL

The remaining images are of an Eastern Region set, circa May 1958:

Class 104 DMU DMBS brake van, looking to the rear

Negative B15/38
The DMBS brake van, looking to the rear

Class 104 DMU DMBS brake van, looking to the front

Negative B15/39
The DMBS brake van, looking to the front

Exterior view of new Class 104 DMU

Negative B15/40
Exterior view, thought to be taken at Cleobury Mortimer, the destination blind reads Filey Holiday Camp

The first class saloon of a Class 104 DTCL

Negative B15/42
The first class saloon of a DTCL

The luggage rack opposite the toilet on a Class 104 DMU DTCL

Negative B15/44
The luggage rack opposite the toilet on a DTCL

Details about preserved Class 104s can be found here.

Many thanks to Kevin Dowd for his assistance in the preparation of these pages, and to Eddie Knorn for further data.
