Class 104 BRC&W 2, 3 & 4-car DMUs


4-car sets

Diagrams

These ER sets would have one DMCL from diagram 559 and one from diagram 580 (the difference being one had a smoking first class section, the other was non-smoking), a TSL from diagram 583 and TBSL from diagram 584:

BR Diagram 559 BR Diagram 580 BR Diagram 583 BR Diagram 584

Design Codes

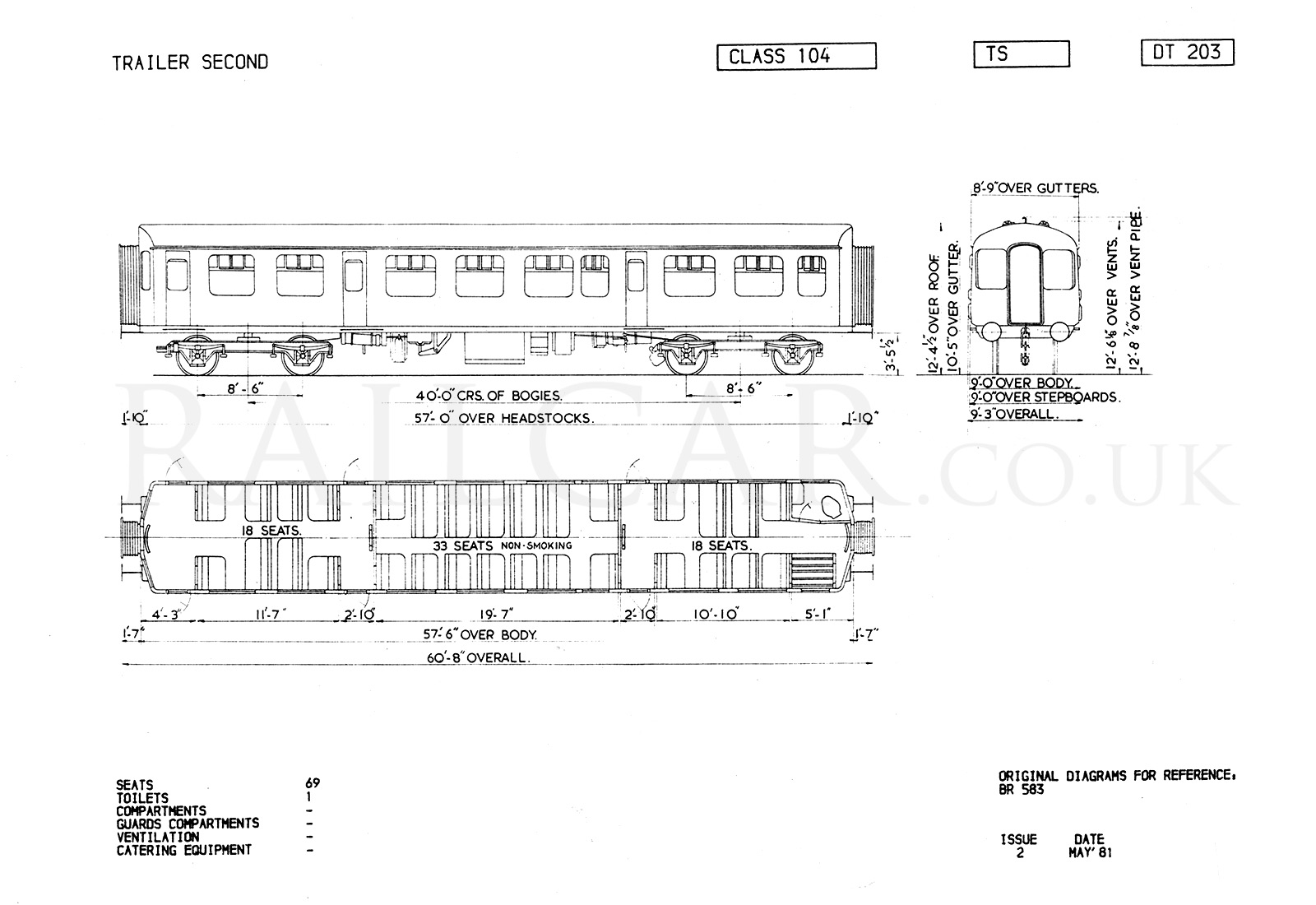

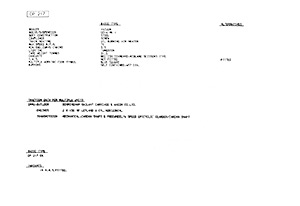

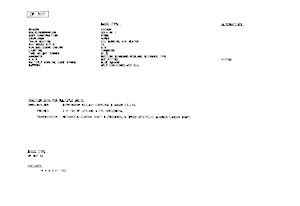

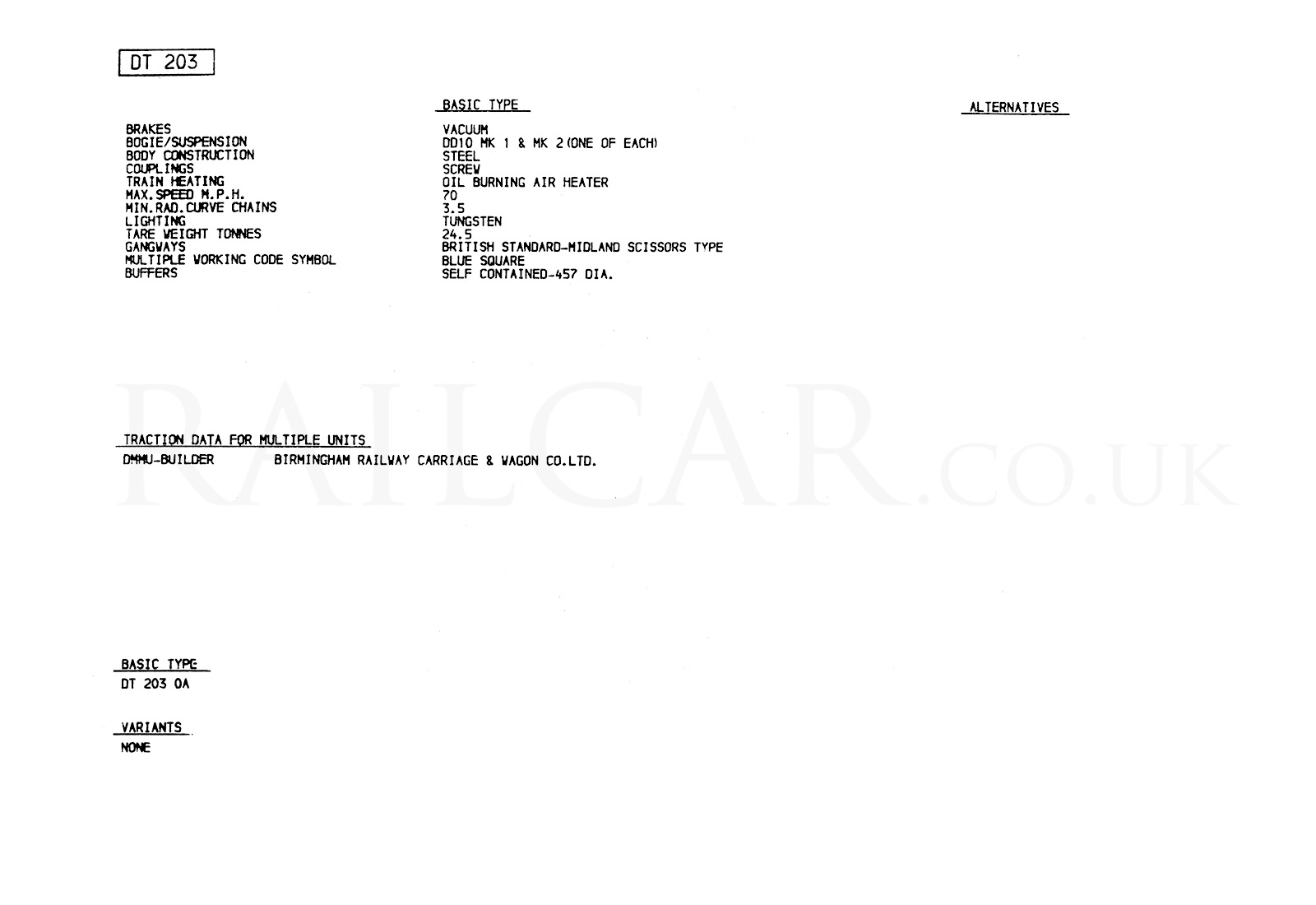

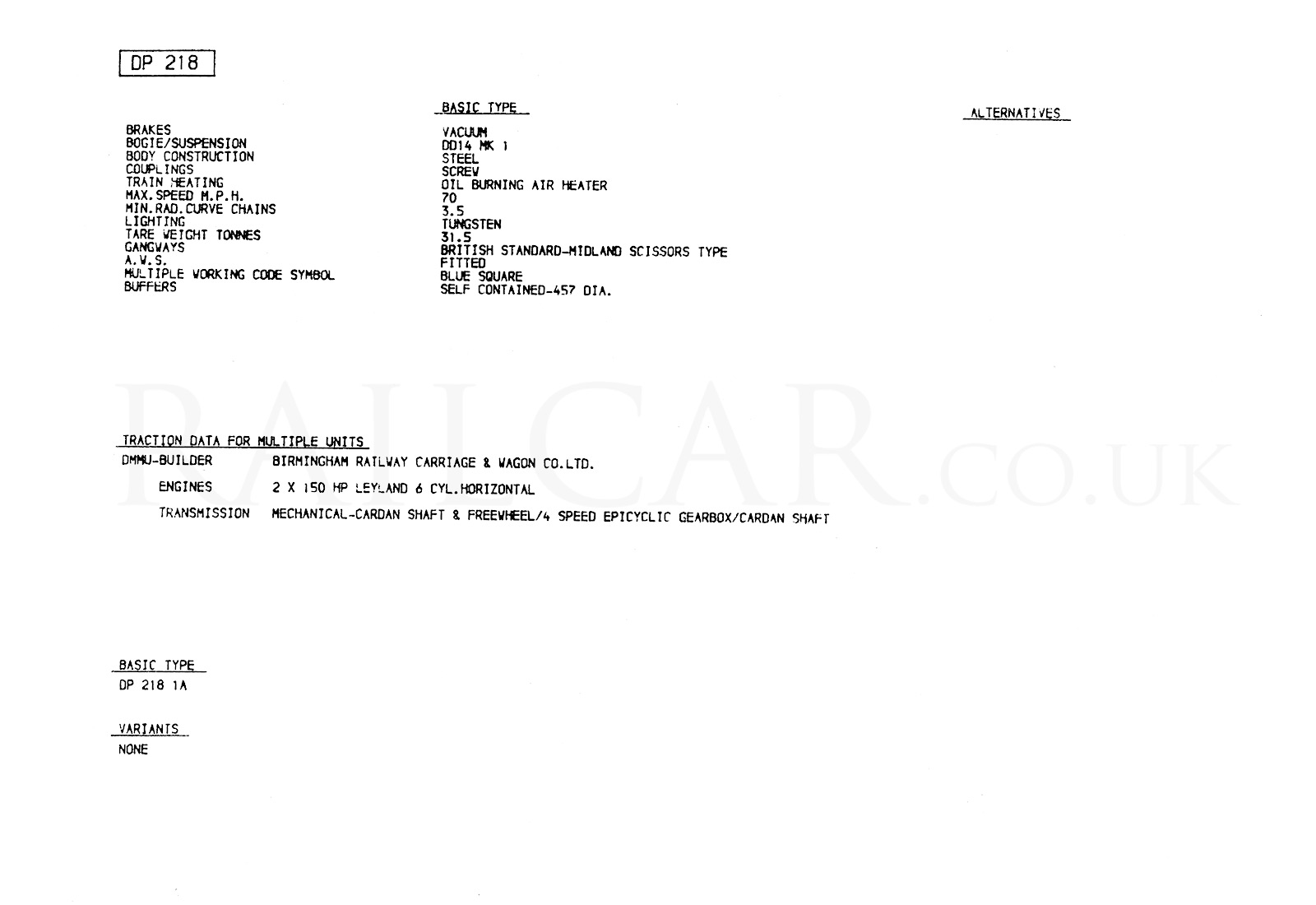

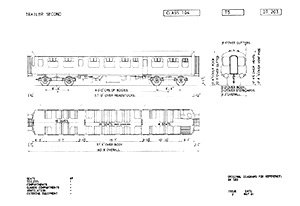

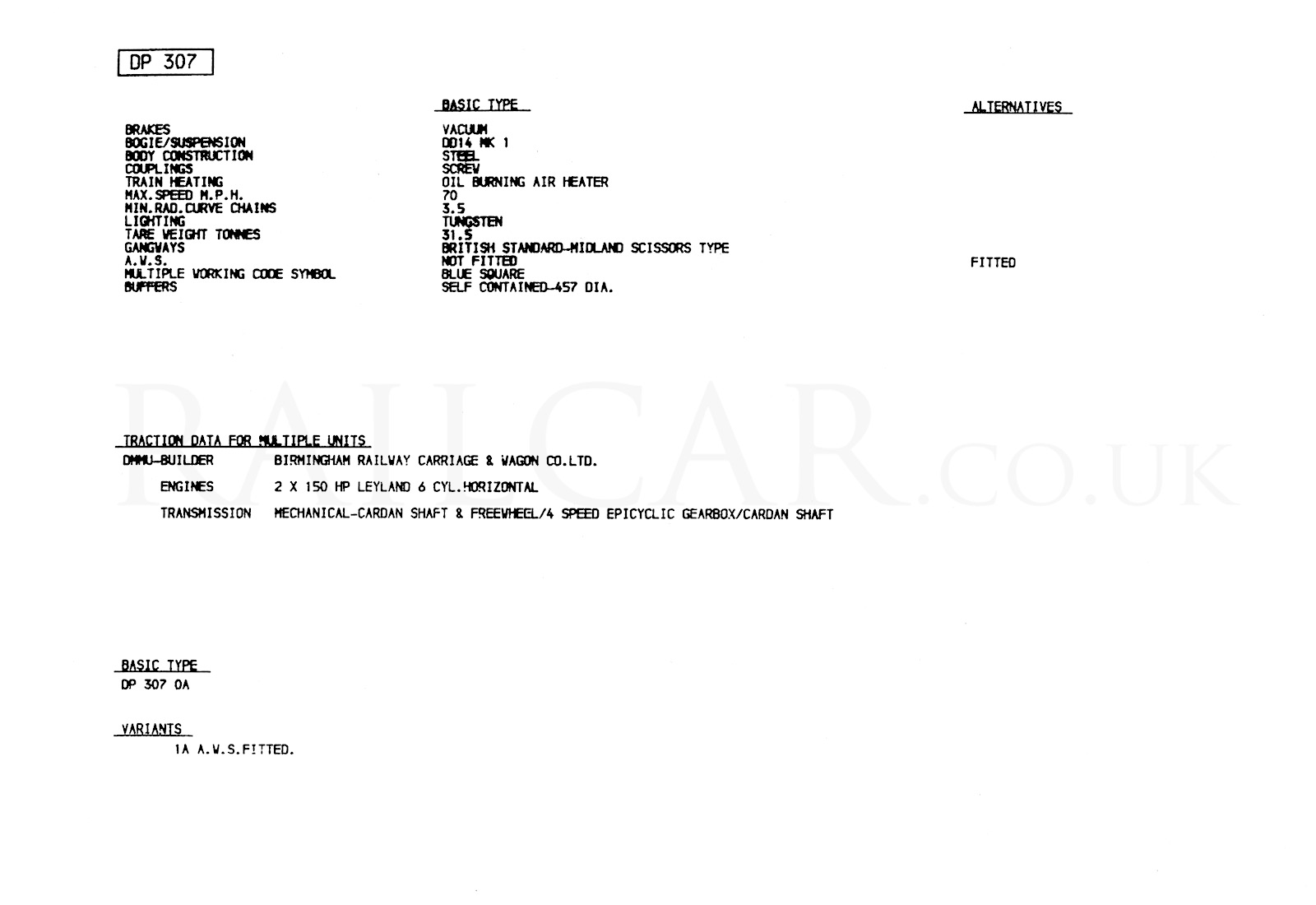

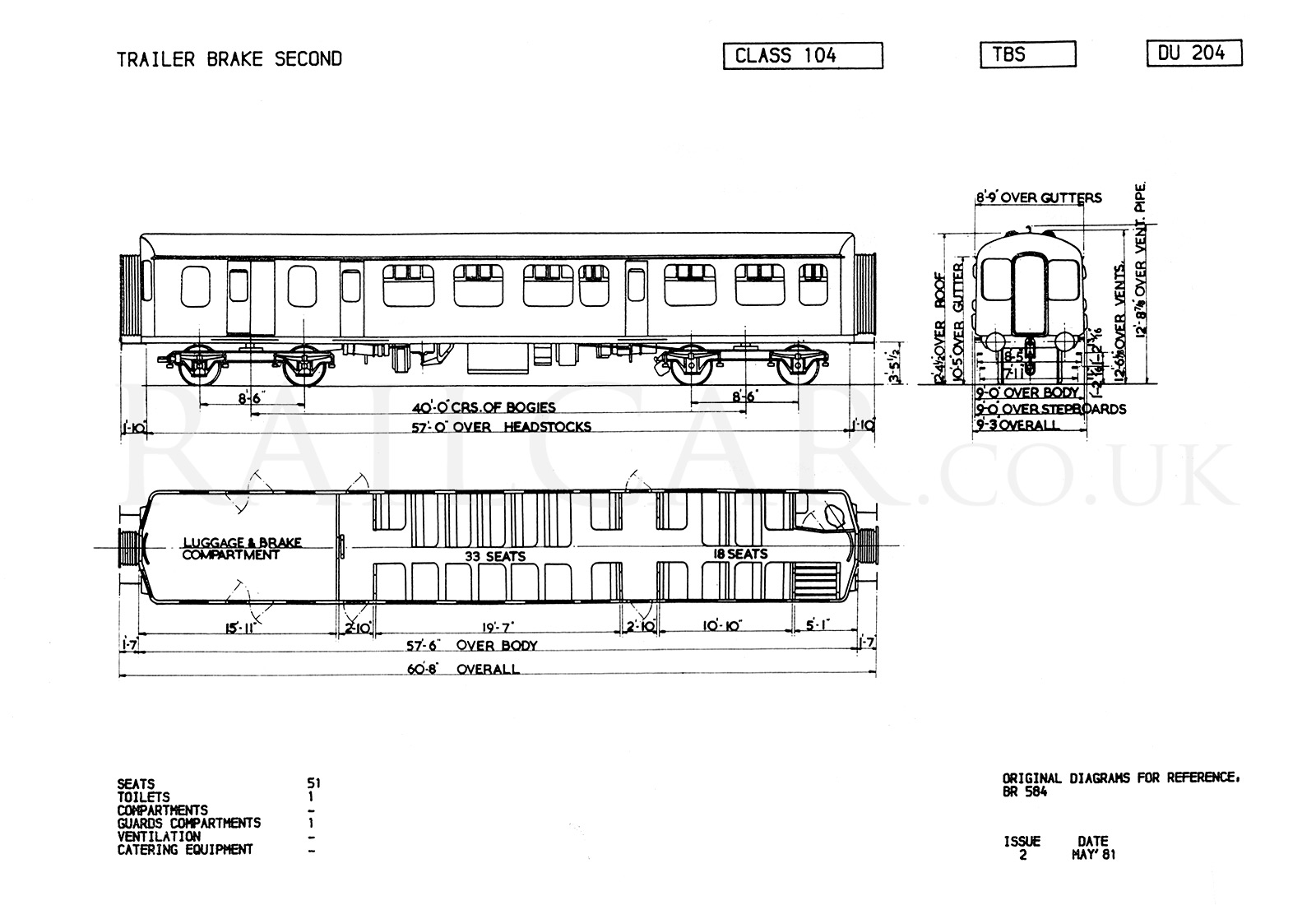

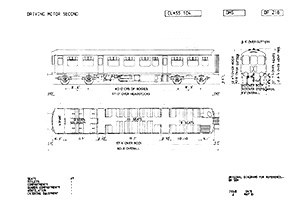

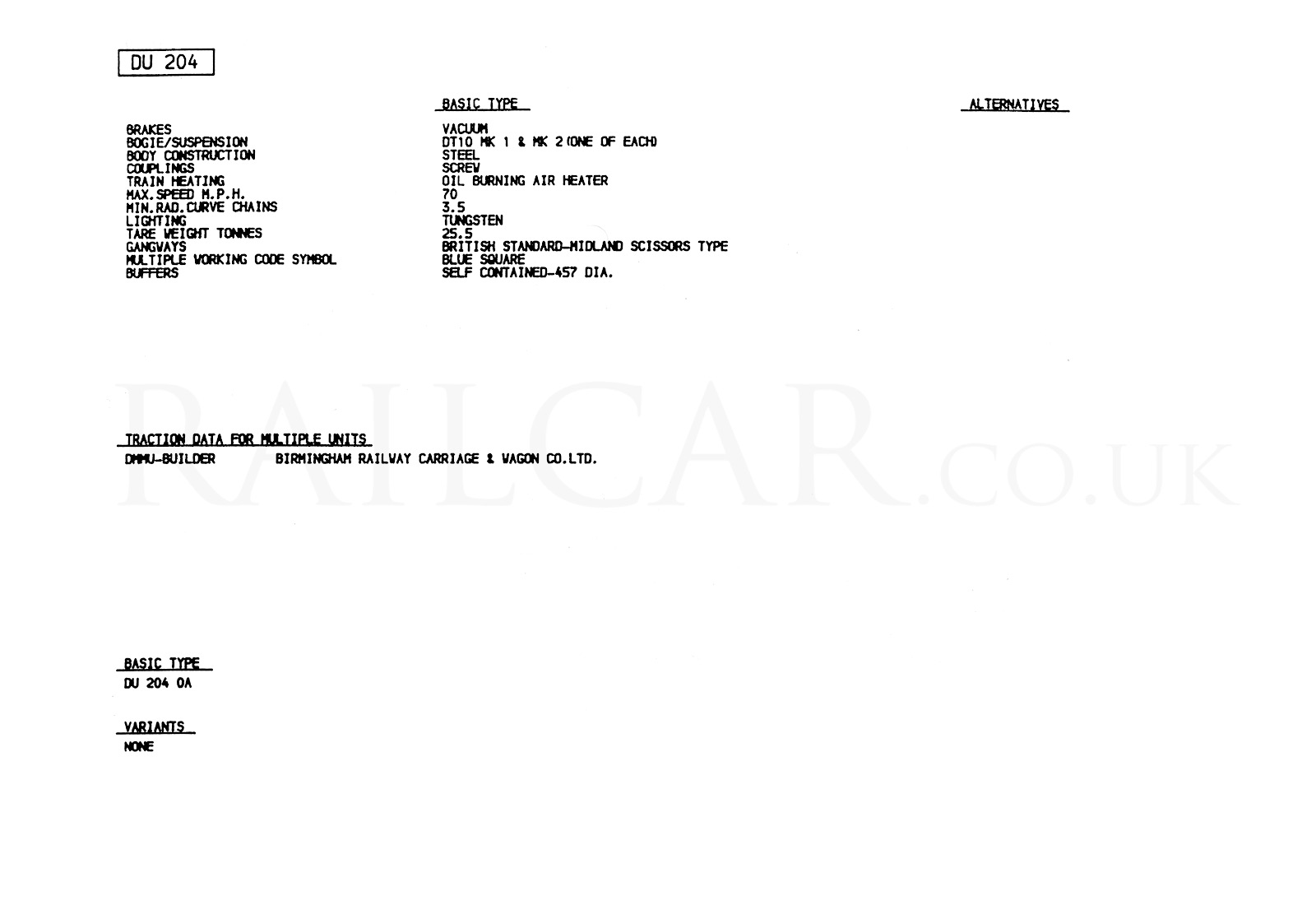

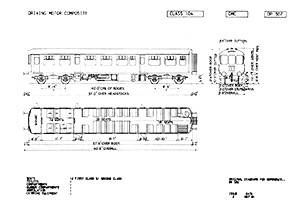

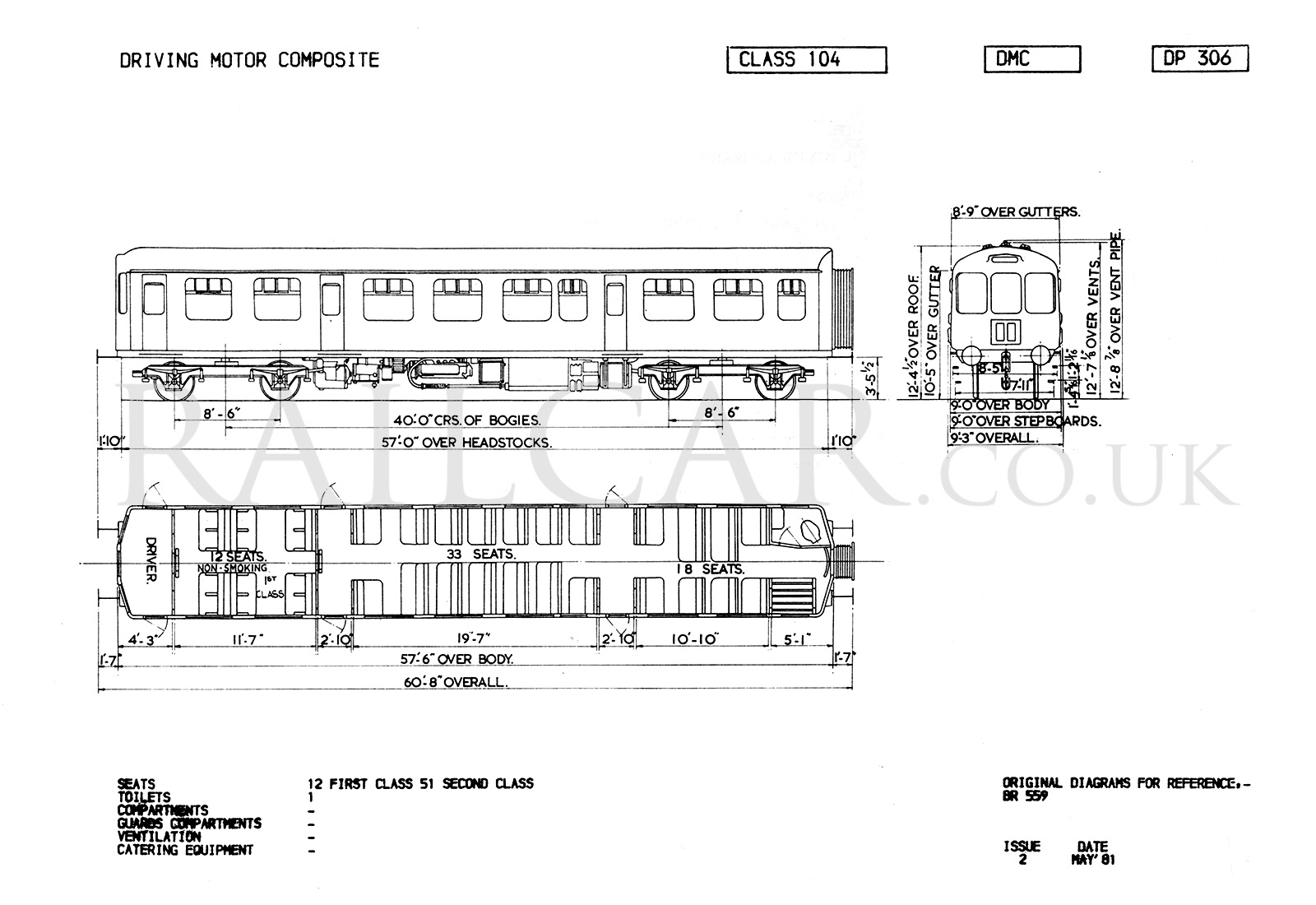

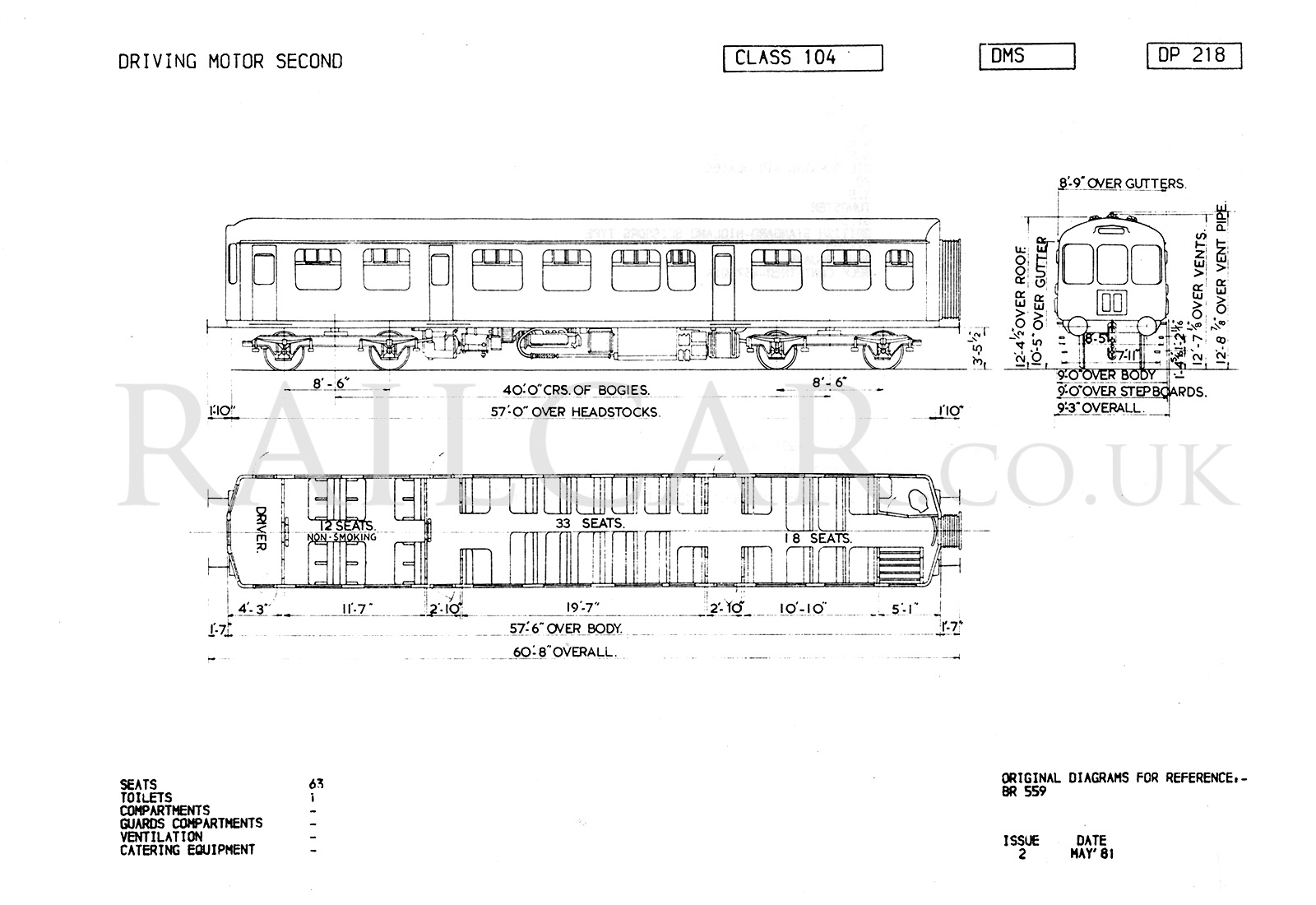

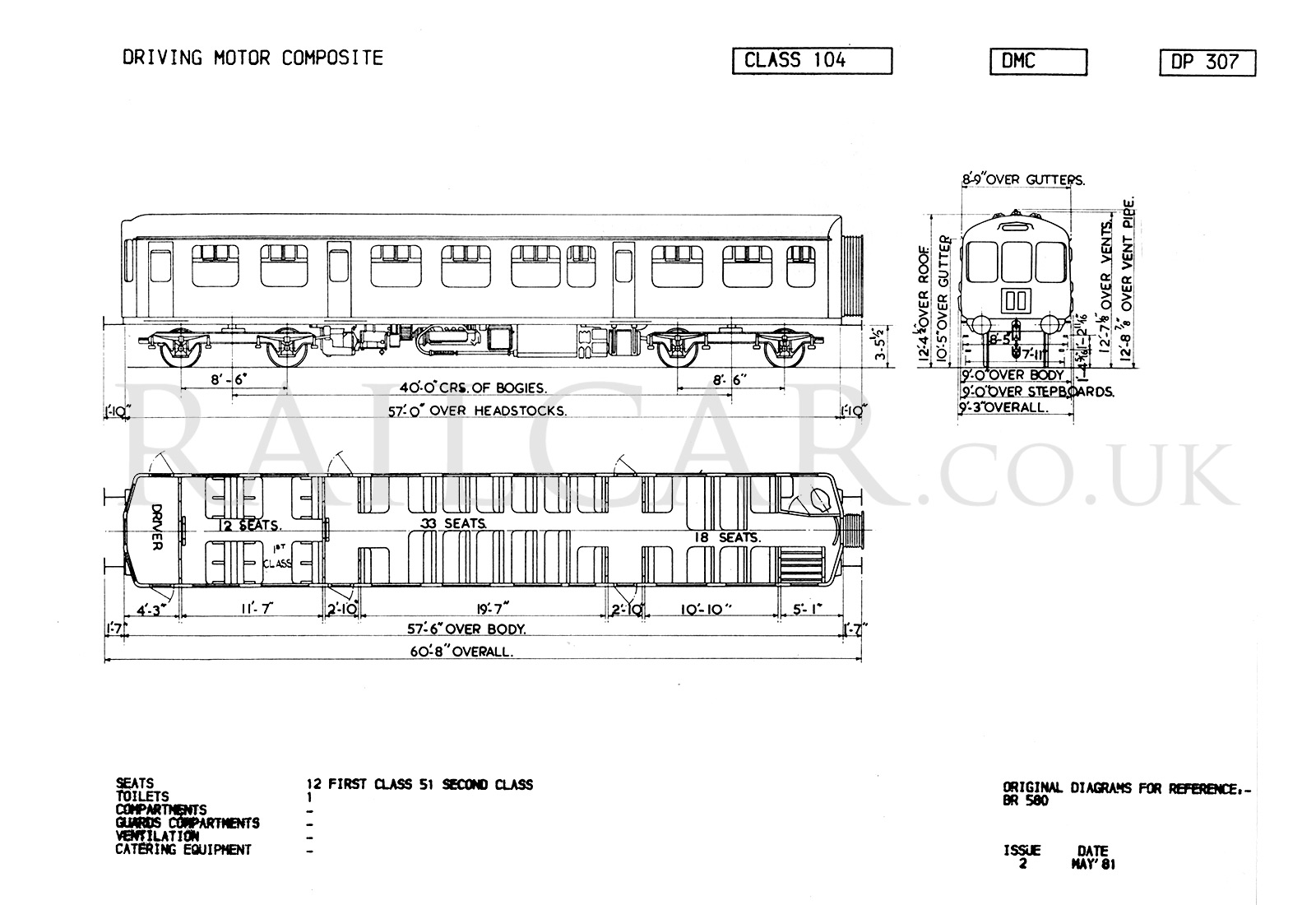

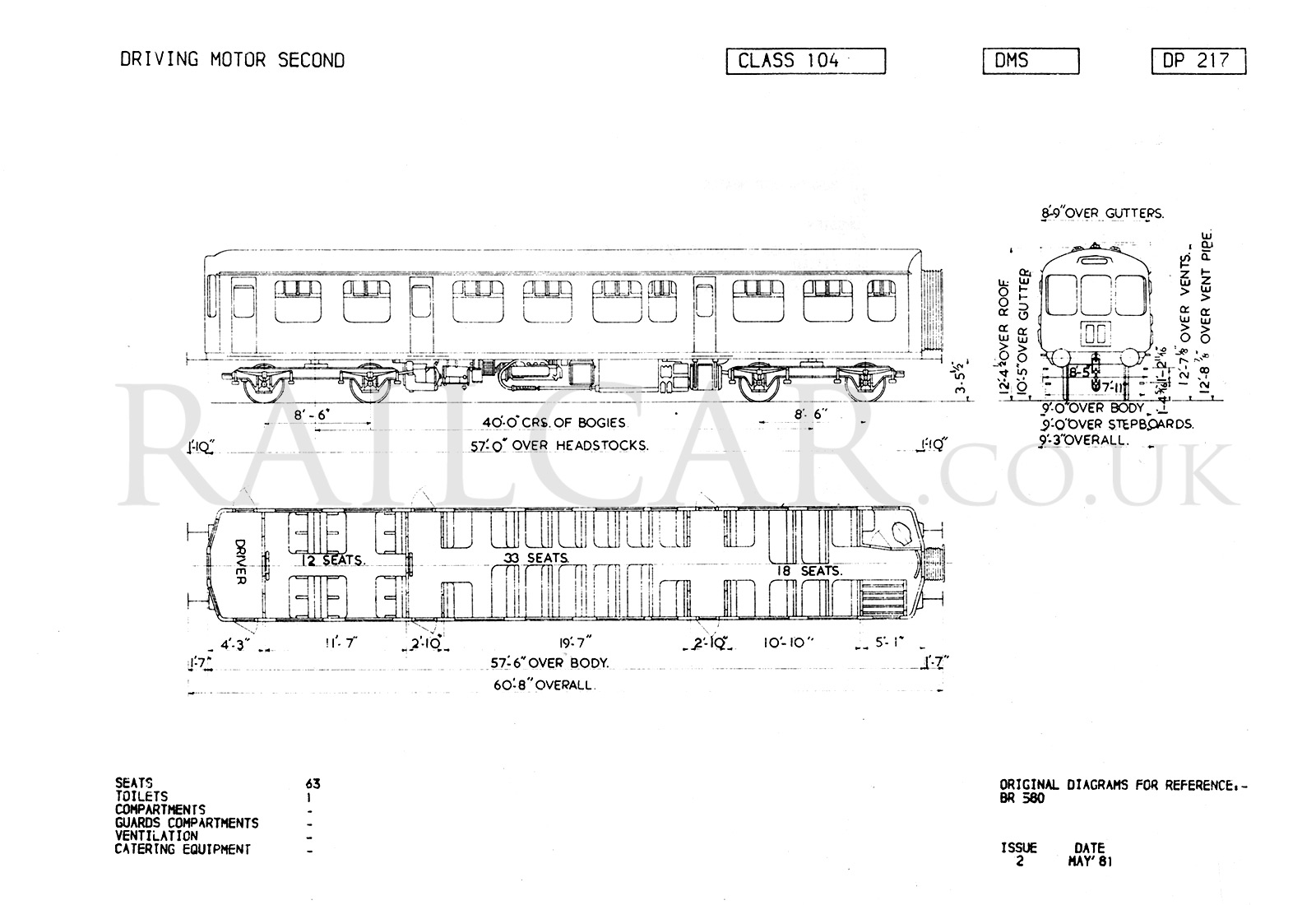

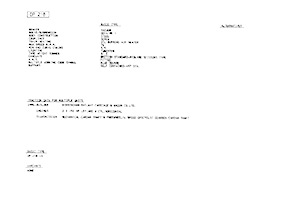

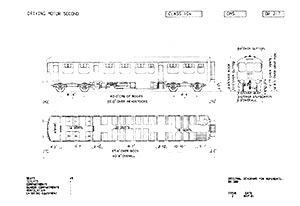

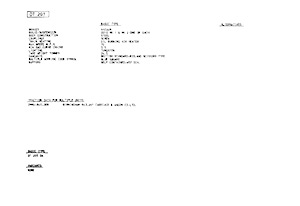

These replaced Diagrams in 1980. DMCLs - DP 306 (DP 218 as DMSL) and DP 307 (DP 217 as DMSL), TSL - DT 203, TBSL - DU 204:


Works Photographs

BRC&W

I only have one from this series, taken circa December 1958, if you can help with any of the missing images please get in touch.

Interior view of Class 104 TBSL brake van

Negative B15/76
The rear of the TBSL brake van with the handbrake in view.

Derby Works

These were taken at Cleobury Mortimer on the Tenbury Wells branch circa September 1958:

Exterior view of four-car DMU

Negative 58/729
Exterior view of E50572 + E59197 + E59218 + E50551.

Cab front of a new Class 104 with whiskers

Negative 58/730
The cab front of DMCL E50572.

Class 104 DMU underframe items

Negative 58/731
Underframe items on the number two side of a power car. Upper left is a Smiths heater, beneath is a vacuum reservoir and the electrical box to its right is the heater relay/control box (meaning the heating controls were of the through train type). The lighter coloured box on the right contains the relays that operate the throttle motors, gearboxes and final drive.

Class 104 drivers compartment with driver posing at the controls

Negative 58/732
A driver posing in the cab of E50572.

Interior view of the brake van in a Class 104 vehicle looking to rear

Negative 58/733
The van area of TBSL E59218.

Interior view of the brake van in a Class 104 vehicle looking to front

Negative 58/734
The van area of TBSL E59218.

Interior view of the first class saloon in a Class 104 DMCL

Negative 58/735
The first class saloon in DMCL E50572.

Interior view of a Class 104 TBSL

Negative 58/736
The interior of TBSL E59218 (looking towards the van).

Interior view of the second class saloons in a Class 104 DMCL

Negative 58/737
The second class saloons in DMCL E50572.

The luggage area opposite the toiled at the rear of a Class 104 DMCL

Negative 58/738
A luggage area, thought to be in DMCL E50572 looking through to E59218.

Details about preserved Class 104s can be found here.

Many thanks to Kevin Dowd for his assistance in the preparation of these pages, and to Eddie Knorn for further data.
