An early system of vehicle type classification saw the 3-car sets contain:
DMBS - | A3 | type motor coach | |
TC - | D | type trailer | |
DMC - | B1 | type motor coach |
When TOPS was introduced each vehicle type was allocated a different class / sub class as shown in the table below. Later the TOPS classes were rationalised and all simply became Class 104.
DMC: | 104/1 | DTC: | 140 | TS: | 160 | |||
DMBS: | 104/2 | TBS: | 166 | |||||
DMS: | 104/3 | TC: | 169 |
Alterations to TOPS in the early 1980s saw the need to avoid duplicated numbers, so 50xxx and 56xxx vehicles had to be renumbered to 53xxx and 54xxx respectively, keeping the last three digits.
Vehicles | Type | Intro. | Lot No. | Dgm | Design | Seats | Weight | Roof Lamp | ||
---|---|---|---|---|---|---|---|---|---|---|
50420 - 50423 | DMBS | LMR | 3-car | 1957 | 30290 | 556 | DQ205 | 52 | 31 tons | Yes |
50424 - 50427 | DMCL | LMR | 3-car | 1957 | 30291 | 558 | DP305 | 12 / 54 | 31 tons | Yes |
as a | DMSL | DP209 | 66 | |||||||
50428 - 50479 | DMBS | LMR | 3-car | 1957 | 30293 | 556 | DQ205 | 52 | 31 tons | 50428-43 |
50480 - 50531 | DMCL | LMR | 3-car | 1957 | 30294 | 558 | DP305 | 12 / 54 | 31 tons | 50480-95 + 50529 |
as a | DMSL | DP209 | 66 | |||||||
50532 - 50541 | DMBS | LMR | P.trailer | 1958 | 30296 | 556 | DQ205 | 52 | 31 tons | No |
50542 - 50593 | DMCL | ER | 4-car | 1958 | (see below) | 12 / 51 | 31 tons | No | ||
50594 - 50598 | DMBS | ER | P.trailer | 1958 | 30404 | 557 | DQ206 | 52 | 31 tons | No |
56175 - 56184 | DTCL | LMR | P.trailer | 1958 | 30297 | 585 | DS305 | 12 / 54 | 24.5 tons | No |
as a | DTSL | DS205 | 66 | |||||||
56185 - 56189 | DTCL | ER | P.trailer | 1958 | 30405 | 581 | DS306 | 12 / 51 | 24.5 tons | No |
59132 - 59187 | TCL | LMR | 3-car | 1957 | (See below) | 12 / 51 | 24 tons | - | ||
59188 - 59208 | TSL | ER | 4-car | 1958 | 30299 | 583 | DT203 | 69 | 24 tons | - |
59209 - 59229 | TBSL | ER | 4-car | 1958 | 30300 | 584 | DU204 | 51 | 25 tons | - |
59230 - 59234 | TSL | ER | 4-car | 1958 | 30302 | 583 | DT203 | 69 | 24 tons | - |
59240 - 59244 | TBSL | ER | 4-car | 1958 | 30303 | 584 | DU204 | 51 | 25 tons | - |
50446 / 78851 | DHBS | LMR | 2-car | 1982 | 30293 | - | DY204 | 52 | 30.5 tons | No |
50521 / 78601 | DHCL | LMR | 2-car | 1982 | 30294 | - | DW303 | 12 / 54 | 30.5 tons | No |
ER DMCLs 50542-93 were composed of two different Lot numbers, one for each of the batches, and with each Lot number they were built to two Diagrams. The difference between each was allocation of the (non) smoking sections, and a 4-car set would have one of each Diagram.
50542 - 50562 | Lot no. 30298 | Diagram 580 | Design Code DP307 (DMC), DP217 (DMS) |
50563 - 50583 | Lot no. 30298 | Diagram 559 | Design Code DP306 (DMC), DP218 (DMS) |
50584 - 50588 | Lot no. 30301 | Diagram 580 | Design Code DP307 (DMC), DP217 (DMS) |
50589 - 50593 | Lot no. 30301 | Diagram 559 | Design Code DP306 (DMC), DP218 (DMS) |
LMR TCLs 59132-87 had two different Lot numbers, as they were part of two batches.
59132 - 59135 | Lot no. 30292 | Diagram 582 | Design Code DT302 (TCL), DT218 (TSL) |
59136 - 59187 | Lot no. 30295 | Diagram 582 | Design Code DT302 (TCL), DT218 (TSL) |
Original Set Formations
Power Trailer (15) | |||||
DMBS | M50532 - 50541 | DTC | M56175 - 56184 | ||
DMBS | E50594 - 50598 | DTC | E56185 - 56189 | ||
3-car sets (56) | |||||
DMBS | M50420 - 50423 | TC | M59132 - 59135 | DMC | M50424 - 50427 |
DMBS | M50428 - 50479 | TC | M59136 - 59187 | DMC | M50480 - 50531 |
4-car set (26) | |||||
2 x DMCL | E50542 - 50583 | TS | E59188 - 59208 | TBS | E59209 - 59229 |
2 x DMCL | E50584 - 50593 | TS | E59230 - 59234 | TBS | E59240 - 59244 |
Worksplates were carried on the vehicle solebars to identify the builder and lot number. Many of the worksplate images on the website are from the collections of Simeon Gaskell, John Horne and Tony Spencer.
Many of these Class 104 plates are courtesy of Adrian Northcott.

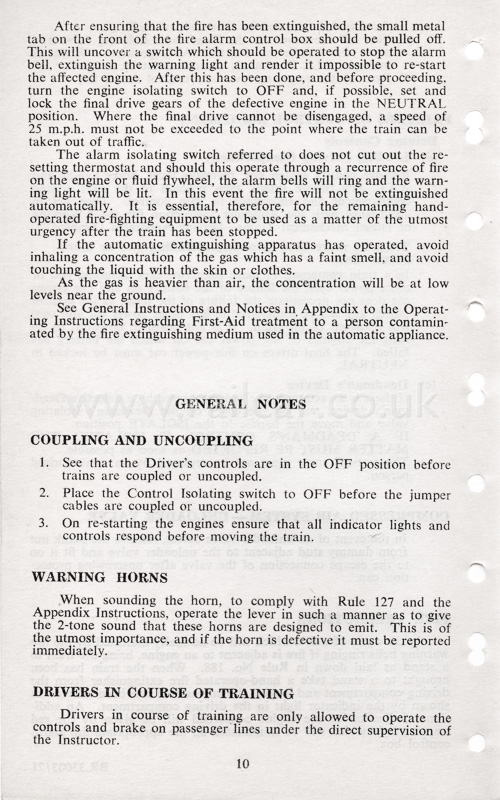

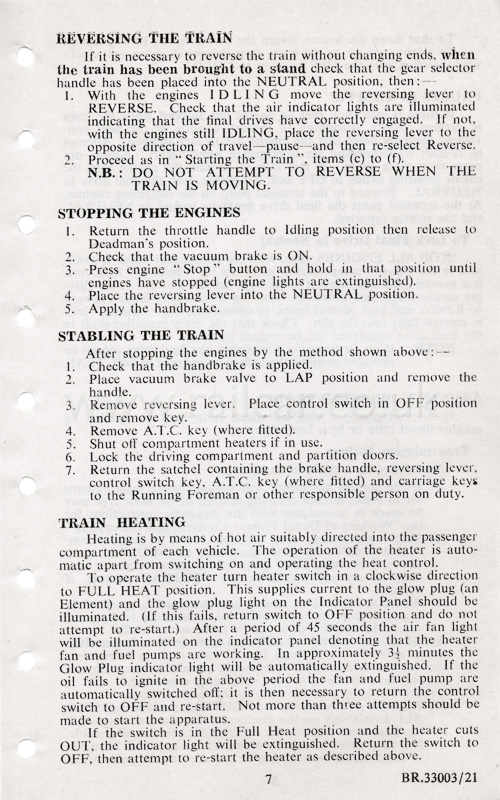

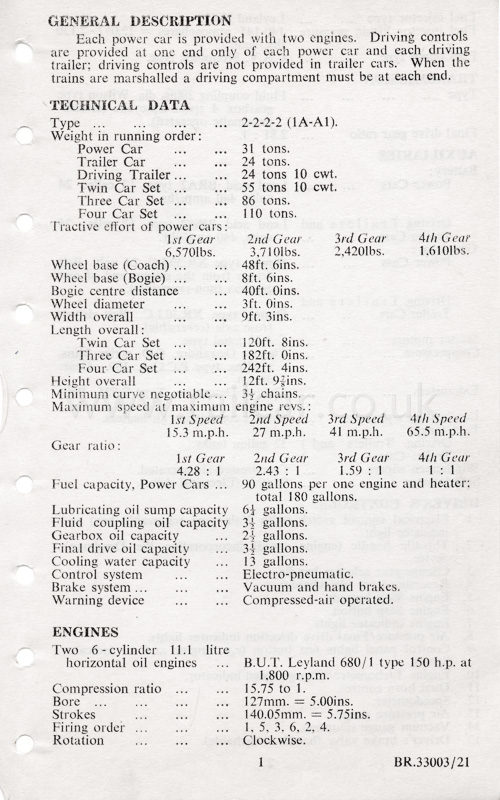

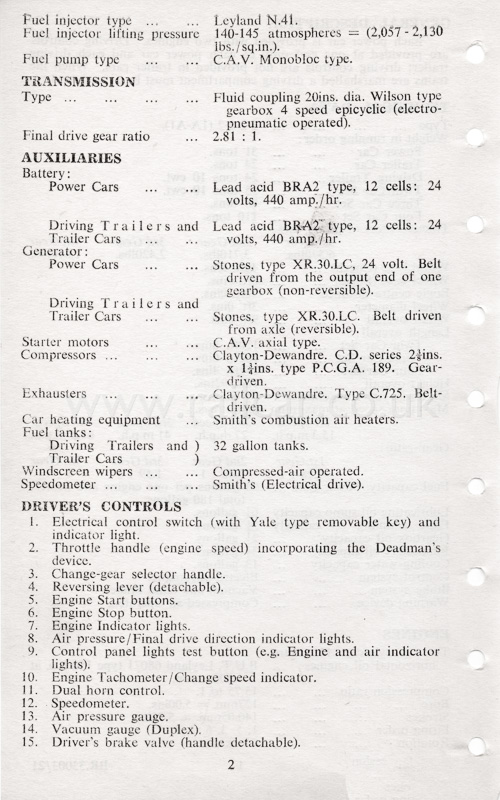

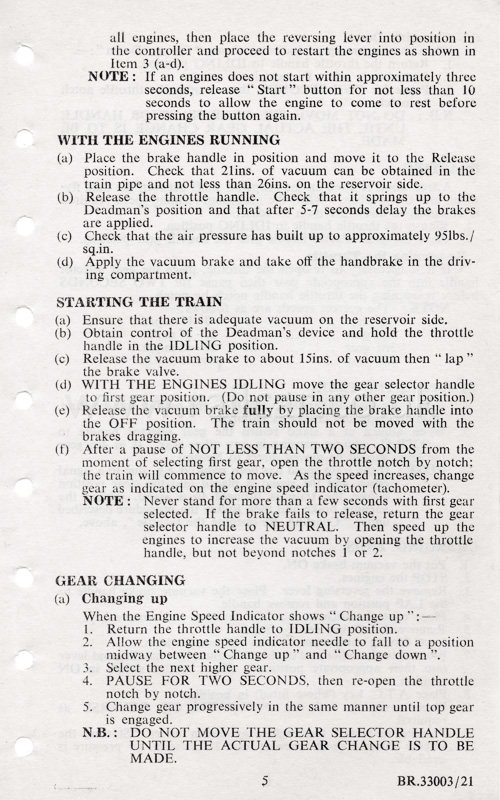

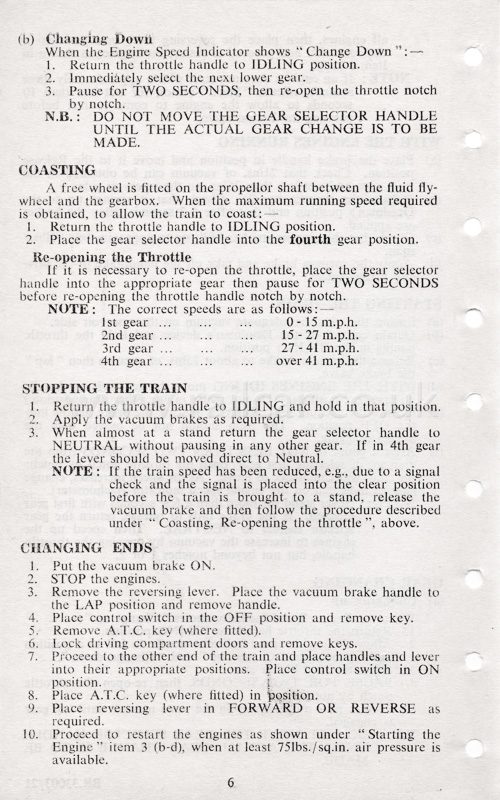

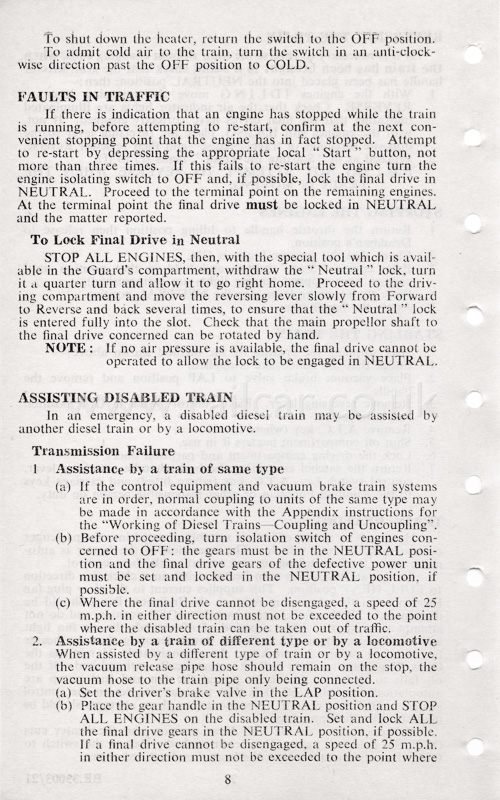

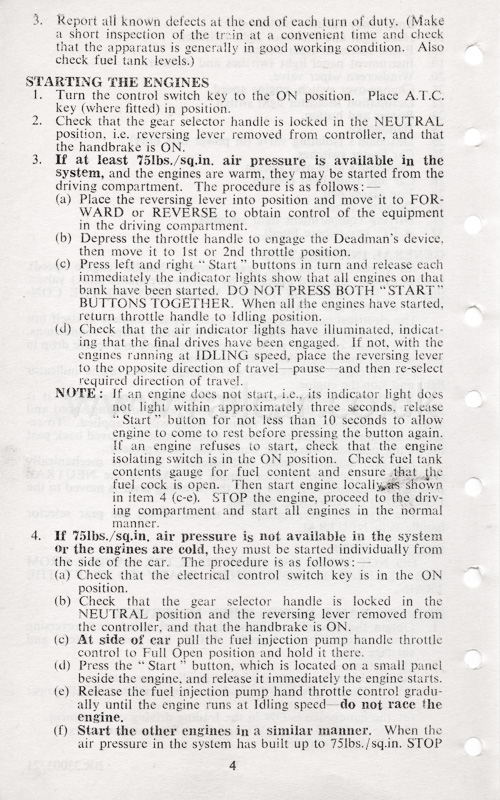

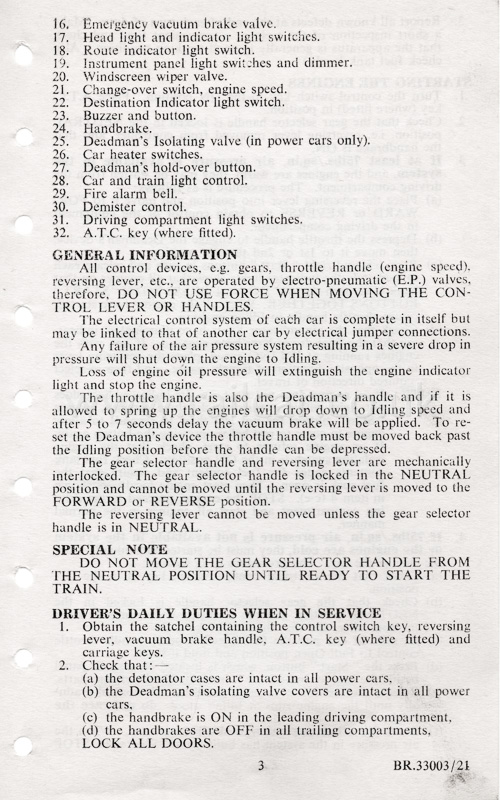

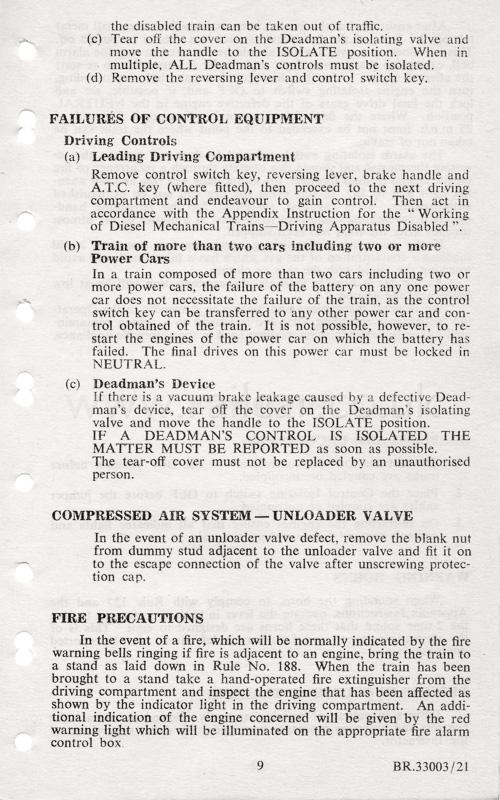

This was a booklet from the 33003 series, specific to these vehicles.
