Class 109 Wickham 2-car DMUs


Diagrams

DMBS: BR 606 and DTC: BR 607

BR Diagram 606 BR Diagram 607

Driving Instructions

BR33003/22, this was an edition from the 33003 series.

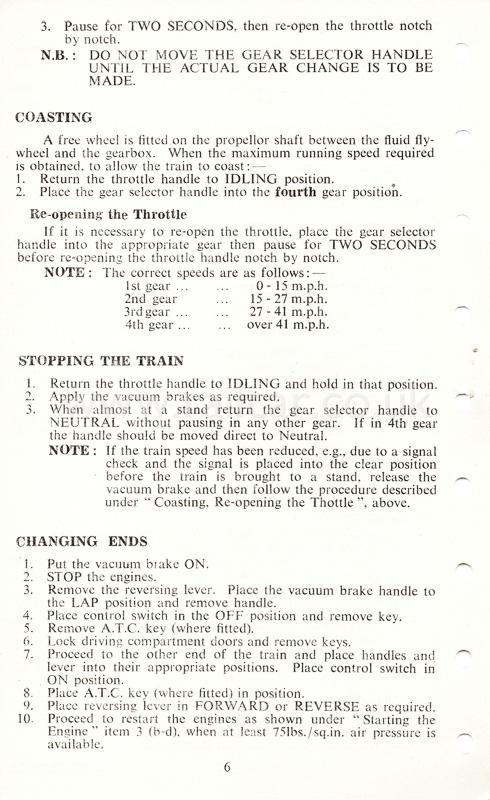

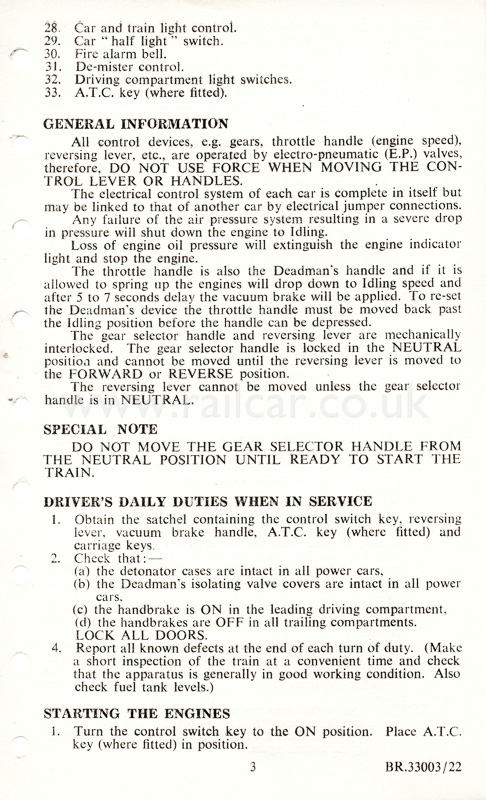

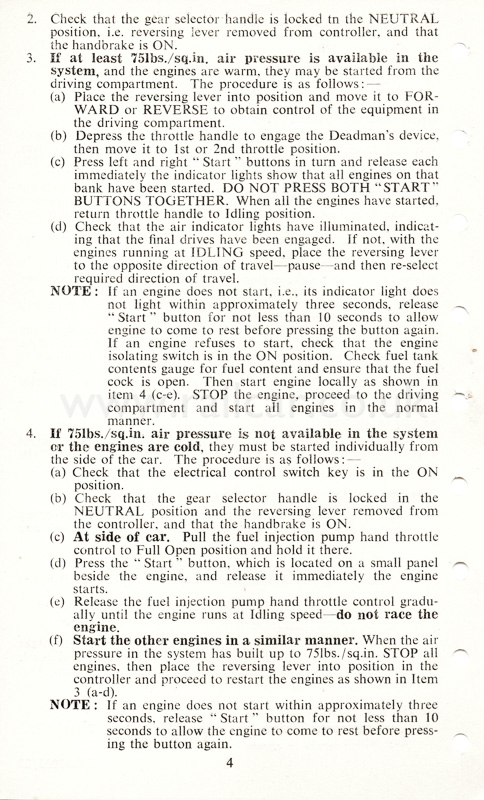

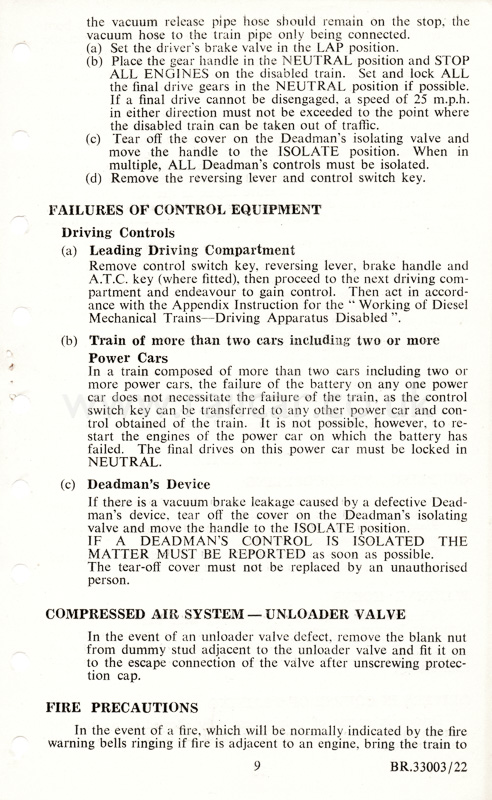

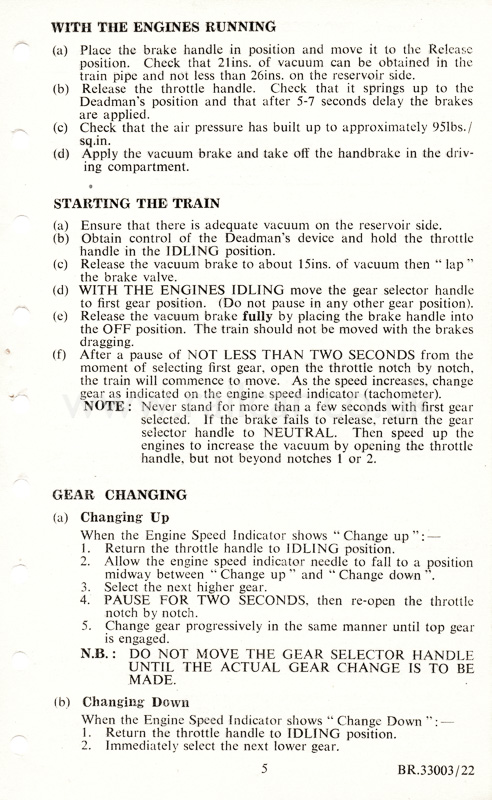

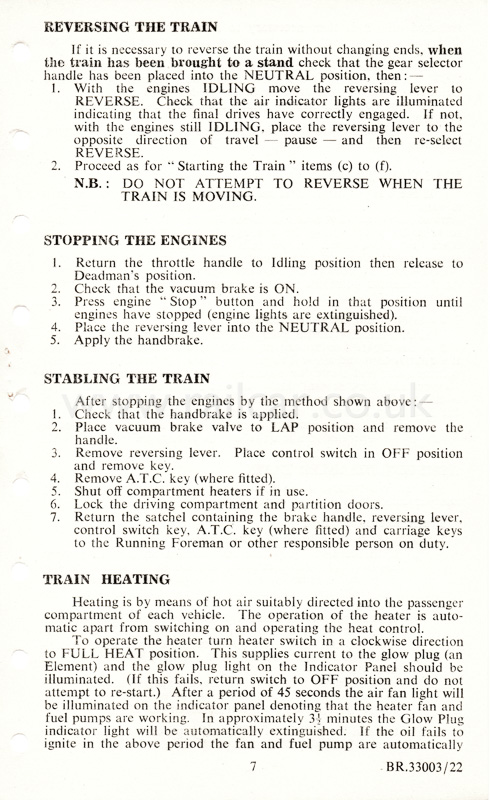

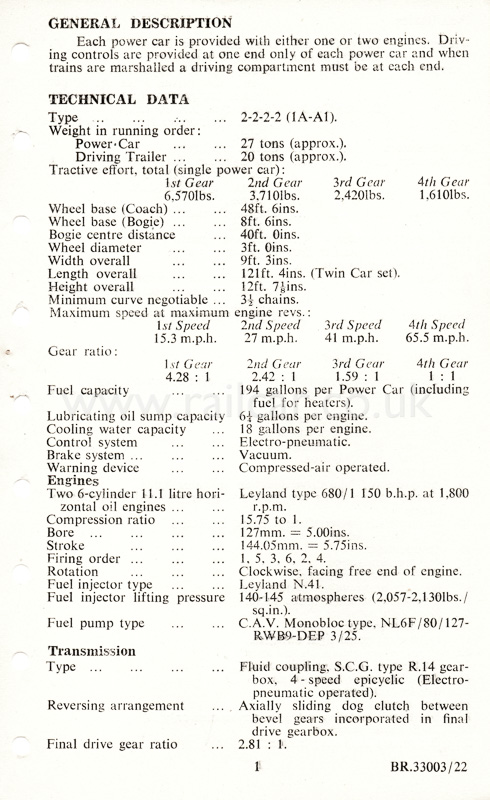

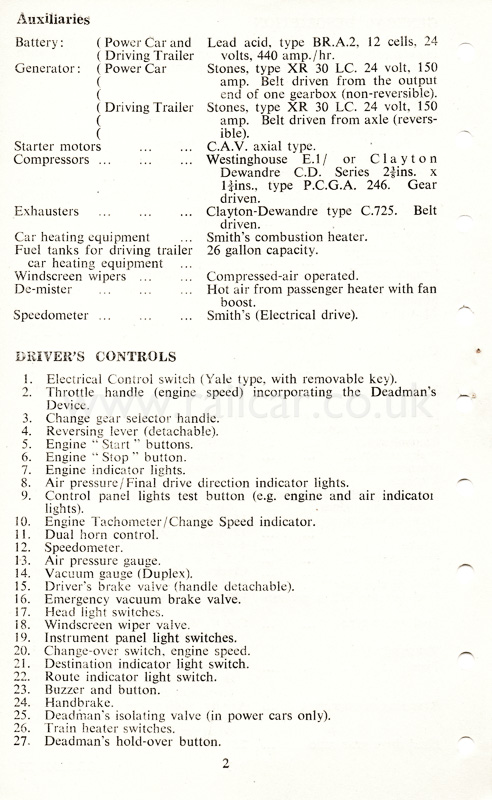

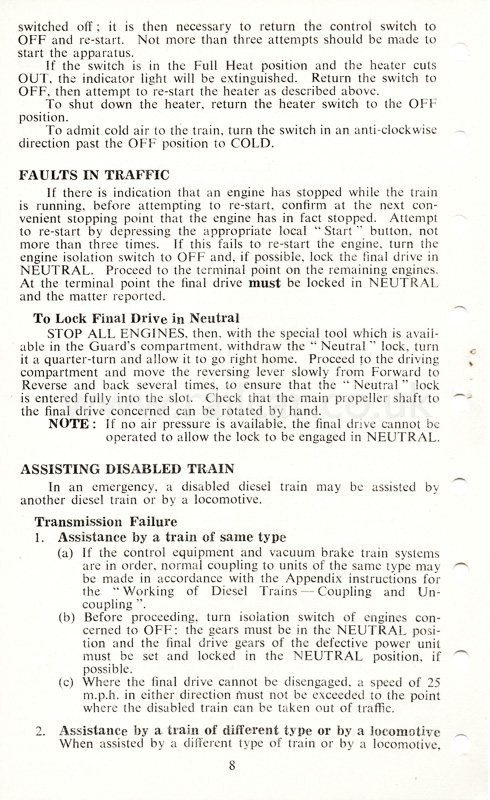

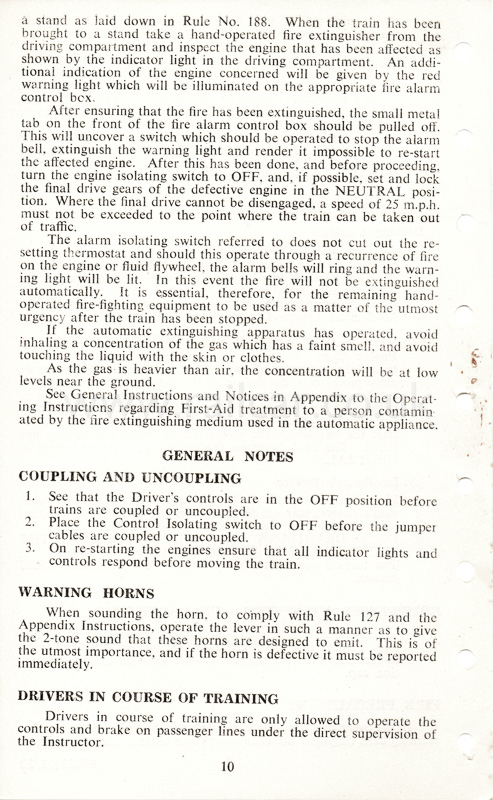

BR. 33003/22 cover BR. 33003/22 page 1 BR. 33003/22 page 2 BR. 33003/22 page 3 BR. 33003/22 page 4 BR. 33003/22 page 5 BR. 33003/22 page 6 BR. 33003/22 page 7 BR. 33003/22 page 8 BR. 33003/22 page 9 BR. 33003/22 page 10

PDF (1.1mb)

Replacements

In 1961 a new version was issued covering all Blue Square vehicles - BR 33003-92. A companion to this was a "Preparation and Disposal" booklet BR 33003/211.

In 1968 the booklets were replaced by a three part set for Blue Square vehicles Mechanical Transmission):
BR 33003/247 1 - General Data And Equipment
BR 33003/248 2 - Driving Instructions Including Standard Preparation and Disposal Duties
BR 33003/249 3 - Fault Finding Data and Charts

The preserved Wickham unit (external site).

Thanks to Andrew Middleton and Keith Gunner for additional information.
