Derby Lightweight (Yellow Diamond) 1, 2 & 4-car DMUs


Four-car sets (for Middlesbrough - Newcastle)

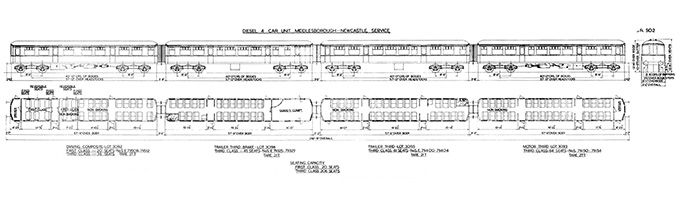

Formation diagram

Five of these sets were built for the North Eastern Region for Newcastle - Middlesbrough services, and all four vehicle types were unique to this batch. All other Yellow Diamond DMUs were formed into two-car sets, and so these were the only Yellow Diamond centre cars. In most cases DMUs would have the first class in an unpowered vehicle (either a centre car or driver trailer) for a quieter ride but these were one of a handful of types that had the the first class in a power car, no doubt the view was more important than the noise.

Seating was 2 + 2 thoughout all vehicles. All the first class was in the Driving Motor Composite, with a twelve seater smoking compartment directly behind the cab, and an eight seat non-smoking compartment. Both had a row of reversible seats. They had light creamy wall coverings and flooring. Seats were blue, with a leaf pattern on the seats in gold.

The second (initally third) class in the DMC vehicle also had smoking and non-smoking areas, but no sliding doors separating them to prevent smoke drifting.

Second class had green PVC (vyanide) wall and partition coverings and a green floor. Seats were shaped in a different style from the earlier LMR sets with lower curved backs. They were a deep red colour and an almost leaf type pattern.

Vehicles Type Diagram Lot. No Seats Weight
79508 - 79512 DMC 502 30192 20 / 36 27t
79325 - 79329 TBTL 508 30194 45 21t
79400 - 79404 TTL 517 30195 61 21t
79150 - 79154 DMT 518 30193 64 27t

The sets were formed from a Driving Motor Composite (20 1st + 36 3rd), Trailer Brake Third (45 3rd), Trailer Third (61 3rd) and Driving Motor Third (64 3rd), giving a total setting capacity of 20 first and 206 third. There were only two lavatories on each set, one in each trailer car.

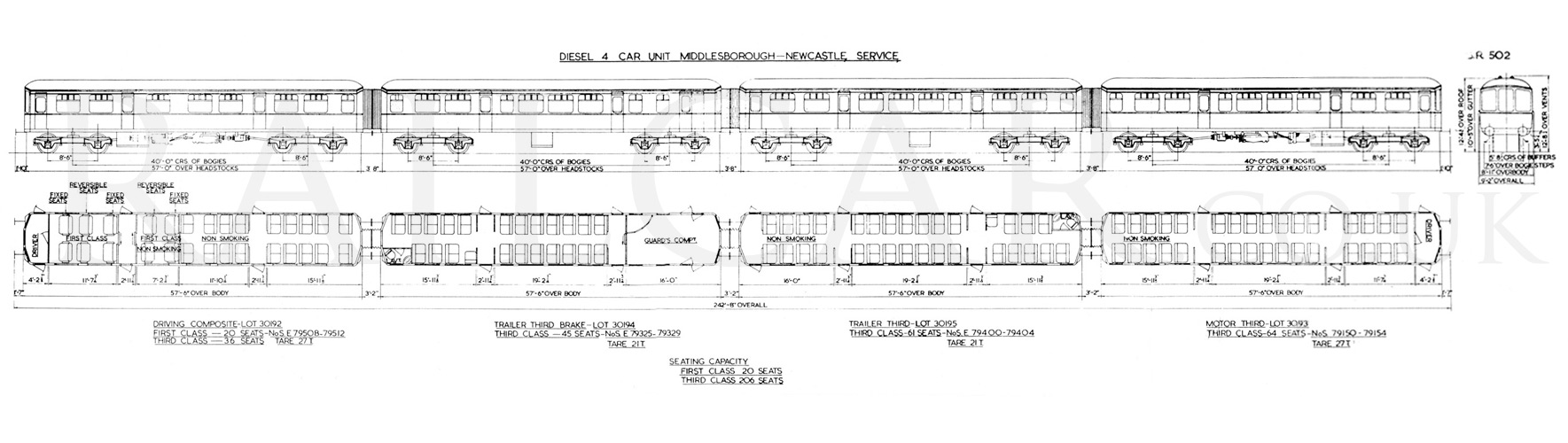

Diagrams

Works Photographs

The first five are from the Derby Works collection, circa September 1955.

Derby image 55-677

Negative 55/677
79508 + 79325 + 79400 + 79150 on the Wirksworth branch

Derby image 55-679

Negative 55/679
The first class smoking compartment in Motor Composite E79508. The row of seats closest were reversible.

Derby image 55-680

Negative 55/680
Inside Motor Composite E79508, taken from the second class saloon looking through two different first class compartments (non-smoking / smoking) towards the cab.

Derby image 55-681

Negative 55/681
The guards van of E79325. Note the vehicle number above the end door. The adjacent vehicle, 79150 has 2 + 2 seating and no interior doors dividing the three saloons.

Derby image 55-682

Negative 55/682
The guards van of E79325.

These four colour images were possibly hand tinted, probably from British Railways images that were part of the above series. They appeared in a trade magazine as part of an advert for ICI / Vyanide who supplied the interior wall and part of the seat coverings.

First Class

The first class smoking compartment in the Motor Composite.

End of vehicle

The rear end of the Motor Third. Normally there would be a toilet on the left, but one is available just through the doors on the right.

Third Class

The interior of a Trailer Third.
