Class 114 Derby 2-car DMUs


Diagrams

DMBS: BR 516 & DTC: BR 641

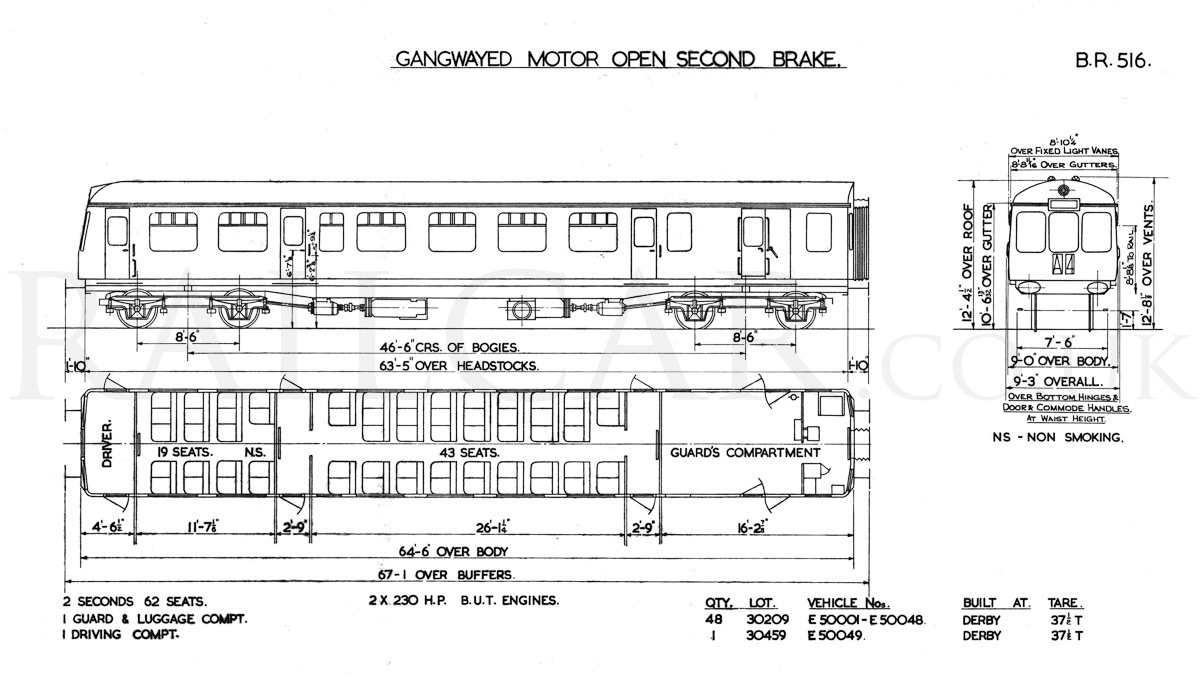

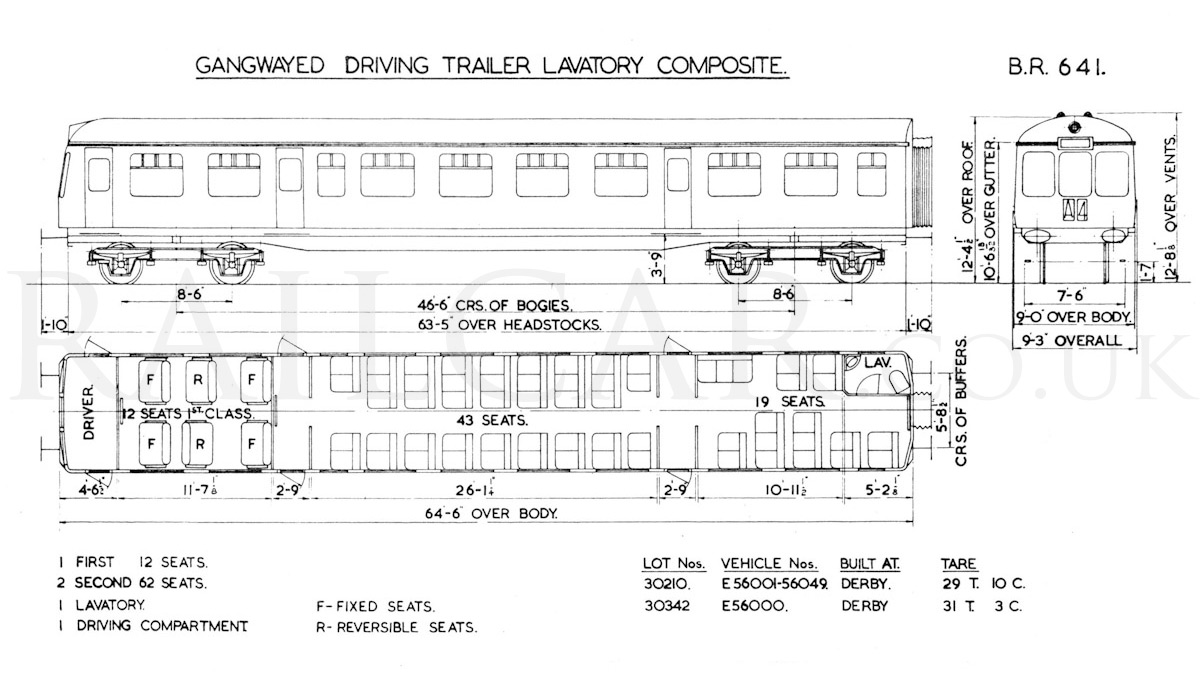

BR Diagram 516 BR Diagram 641

These show the vehicles in their re-engined form. Diagram BR 641 was also used for 56000 as the body and interiors were identical, only differering in control systems.

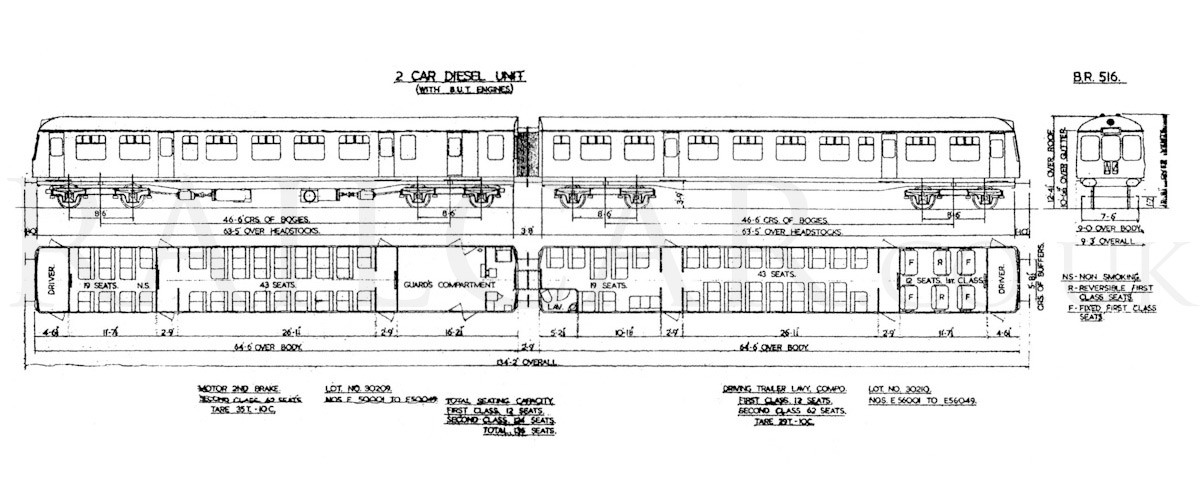

There was also an earlier alternative version BR 516 showing both vehicles as a set. This still shows 50049 as lot no. 30209 (it became 30459)

BR Diagram 516

Works Pictures - British Railways

Photographed as part of the Derby collection. The interior images were taken circa late 1957.

New bogie for Class 114 DMU

Negative 56/659
Taken during construction circa mid-1956. It shows a completed bogie being lifted (or dropped), and an underframe with vacuum pipes being fitted.

Exterior view new Class 114 DMU

Negative 56/834
The first set formed E50001/E56001, circa October 1956.

First Class saloon in new Class 114 DMU

Negative 57/833
The first class saloon of E56048, with the closed pair being reversible.

Middle saloon of new Class 114 DTCL

Negative 57/834
The second class saloons of E56048, looking to the rear of the vehicle.

Rear saloon of new Class 114 DTCL looking forwards

Negative 57/835
The rear second class saloon of E56048, the toilet just seen on the right.

Front saloon of new Class 114 DMBS looking towards cab

Negative 57/836
The front saloon of DMBS E50048, which is non-smoking. The small signs ('tablets') on the seat backs warn about hitting your head on the luggage rack as you stand up.

Guard's van in new Class 114 DMU looking towards the gangway

Negative 57/837
This is the guard's van of E50048 looking to the rear of the vehicle with the DTC E56048 visible at the other side of the gangway. The guard's seat is behind the left partition.

Guard's van in new Class 114 DMU looking forwards

Negative 57/838
This is the guard's van of E50048 looking to the front of the vehicle with the passenger saloons through the sliding door.

The drivers compartment of a new Class 114 DMU

Negative 57/839
This is the driver's compartment of DTCL E56048.

A driver at the controls of a new Class 114 DMU

Negative 57/840
This is the driver's compartment of DMBS E50048 with driver.

The guard's seat area of a new Class 114 DMU

Negative 57/841
This is the guard's area in the van of E50048.

Locker and oven in a new Class 114 DMU

Negative 57/842
This is the area opposite the guards seated area on DMBS E50048 with a pie warmer and locker.

Class 114 cab mock-up

Negative 57/882
A cab mock-up circa late 1957. One big difference in the mock-up is the visible door into the cab is hinged on the opposite side from normal.
