M/TS(L) (Motor / Trailer Second(Lavatory))
W60644-9
42 2nd class seats
45 1/2 tons
Lot no. 30555

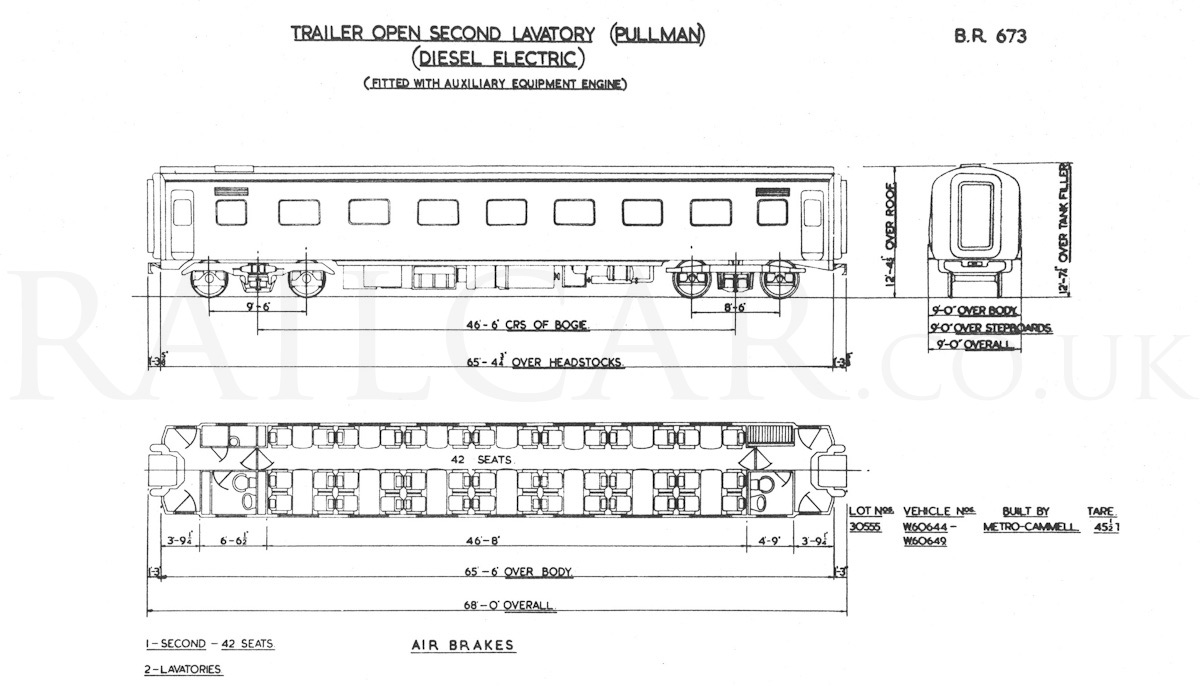

Diagram BR673
This vehicle had two traction motors on the bogie nearest the motor car only, which had a 9' 6" wheelbase rather than the 8' 6" of the inner end, hence the half motor / half trailer car status. The motor end also carried an auxiliary engine, with the exhaust silencer running up the secondmans' side of the gangway DMU style at the inner end of the train.
At either end of the vehicle were lavatories (for use by either gender), both on the drivers side of the nearest motor car. On the opposite side of the toilet of the end coupled to the motor car was a panel of instruments, and at the other end a luggage rack.
Summary
Development
Press run 24/6/60
Press run 7/9/60
Staff difficulties
Ownership agreement
Manufacturer's Publicity
Description
Type 1 - LMR motor car
Type 2 - WR motor car
Type 3 - WR parlour 2nd car
Type 4 - LMR kitchen car
Type 5 - WR kitchen car
Type 6 - LMR/WR parlour 1st car
Interior
Air conditioning
Motor cars
Auxiliary power
Bogies & couplings
Brakes
Data
Sub contractors
Staff instructions
LMR services begin
LMR Publicity
LMR brochure
LMR handbills
Controversy
WR services begin
WR publicity
WR publicity brochure
WR publicity leaflet
LMR Operations
WR Operations
Liveries
Rundown & withdrawal
After service & preservation
Disposal
Maintenance Manuals
Miscellaneous
Acknowledgments & Further Reading
Images
No vehicles were preserved.
