Class 101 Met-Camm 2,3 & 4-car DMUs
Numbering
All the TOPS classes changed in later years making all vehicles Class 101.
In 1983 the vehicles that were numbered in the 50xxx and 56xxx series were renumbered in the 53xxx and 54xxx series respectively.
By the mid 1980s almost all DMC, DTC & TC vehicles had been declassified to DMS, DTS & TS.
Most Regional Railways DMS and DTS vehicles were re-seated into a 2+3 configuration in the former first class sections, increasing capacity of each to 72.
| Numbers | Type | Order | Class | Seating | Wgt. | Lot No. | Diagram | Formation | Built |
|---|---|---|---|---|---|---|---|---|---|

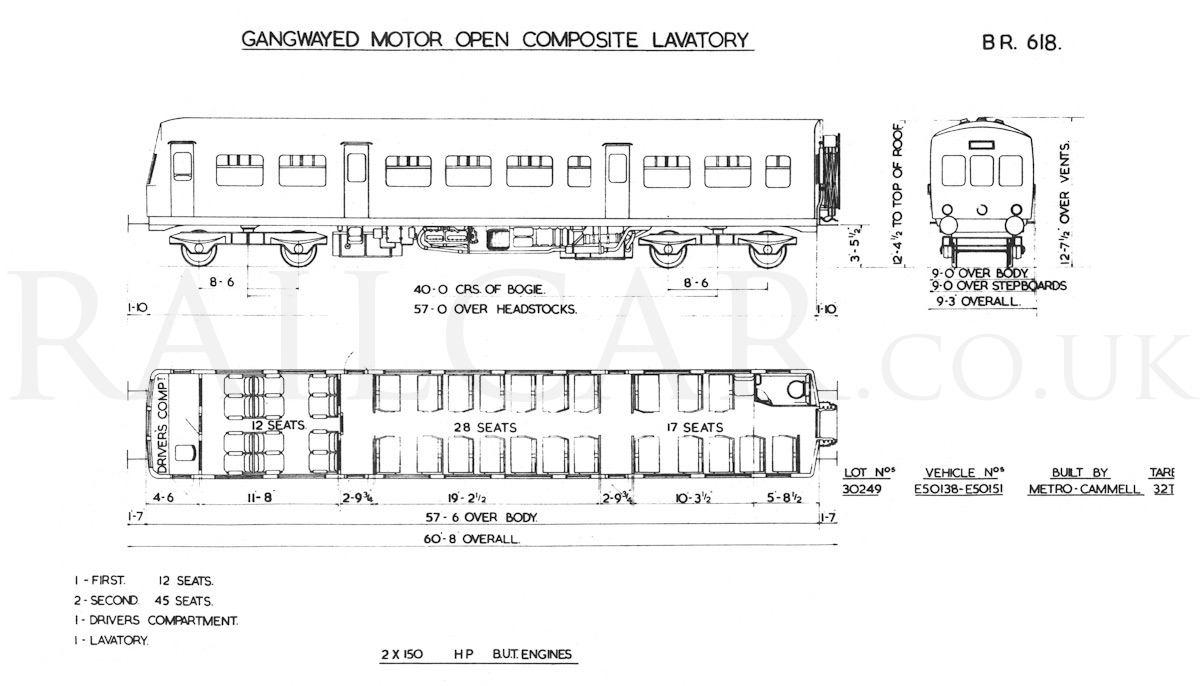

| E50138 - E50151 | DMC(L) | 2a | 101/1 | 12F + 45S (2+2) | 32t | 30249 | BR 618 | 4-car | 1956 |

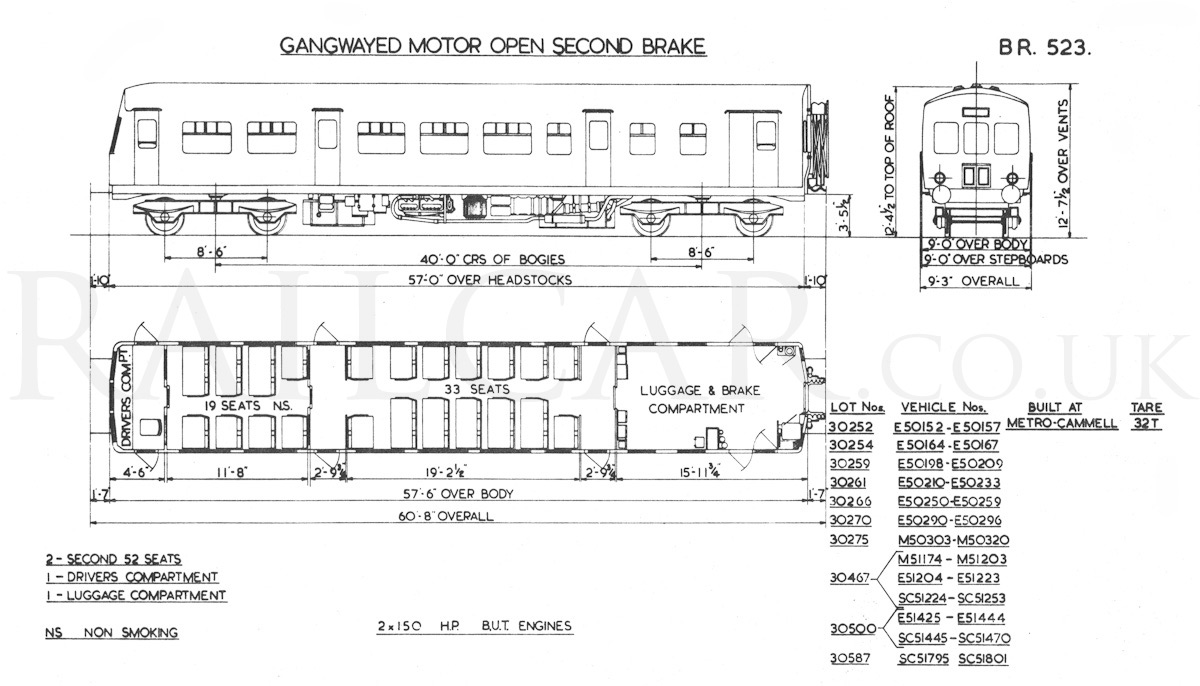

| E50152 - E50157 | DMBS | 2b | 101/2 | 52S | 32t | 30252 | BR 523 | P/ Twin | 1956/7 |

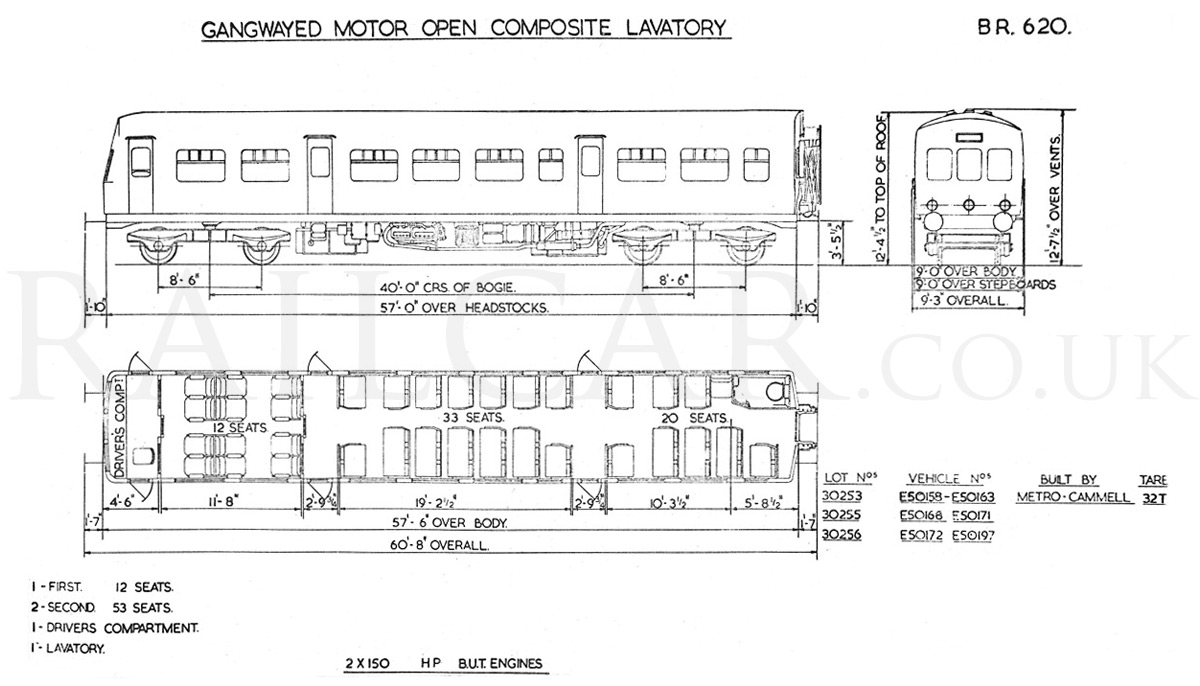

| E50158 - E50163 | DMC(L) | 2b | 101/1 | 12F + 53S | 32t | 30253 | BR 620 | P/Twin | 1956/7 |
| E50164 - E50167 | DMBS | 2b | 101/2 | 52S | 32t | 30254 | BR 523 | P/Twin | 1956/7 |
| E50168 - E50171 | DMC(L) | 2b | 101/1 | 12F + 53S | 32t | 30255 | BR 620 | P/Twin | 1956/7 |
| E50172 - E50197 | DMC(L) | 2c | 101/1 | 12F + 53S | 32t | 30256 | BR 620 | 4-car | 1957 |
| E50198 - E50209 | DMBS | 2e | 101/2 | 52S | 32t | 30259 | BR 523 | P/Trailer | 1957 |
| E50210 - E50233 | DMBS | 2f | 101/2 | 52S | 32t | 30261 | BR 523 | P/Trailer | 1957 |

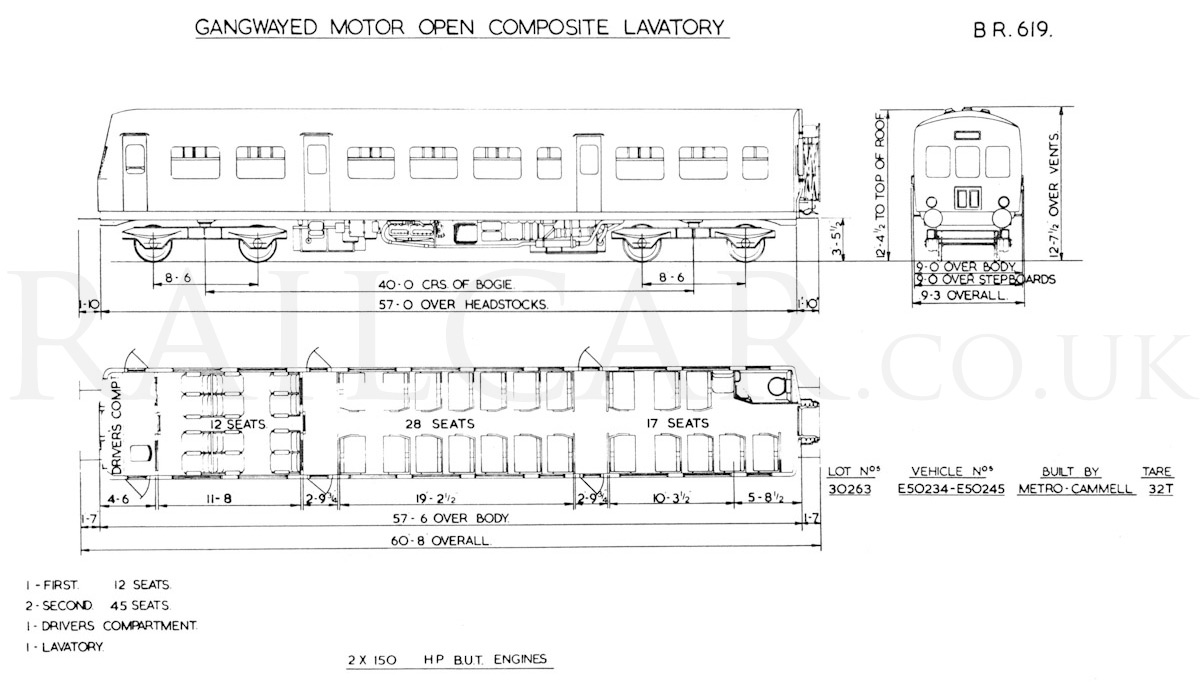

| E50234 - E50245 | DMC(L) | 2h | 101/1 | 12F + 45S (2+2) | 32t | 30263 | BR 619 | 4-car | 1957 |

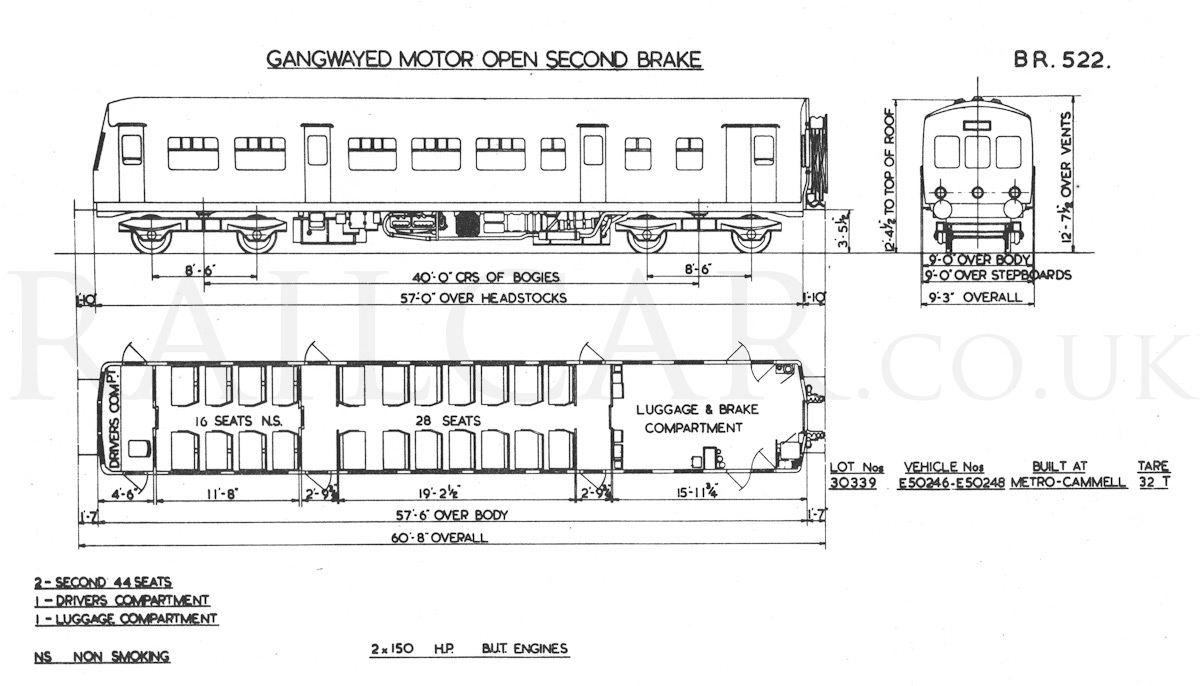

| E50246 - E50248 | DMBS | 2g | 101/2 | 44S (2+2) | 32t | 30339 | BR 522 | P/Trailer | 1957 |
| E50250 - E50259 | DMBS | 2xa | 101/2 | 52S | 32t | 30266 | BR 523 | P/Twin | 1957 |

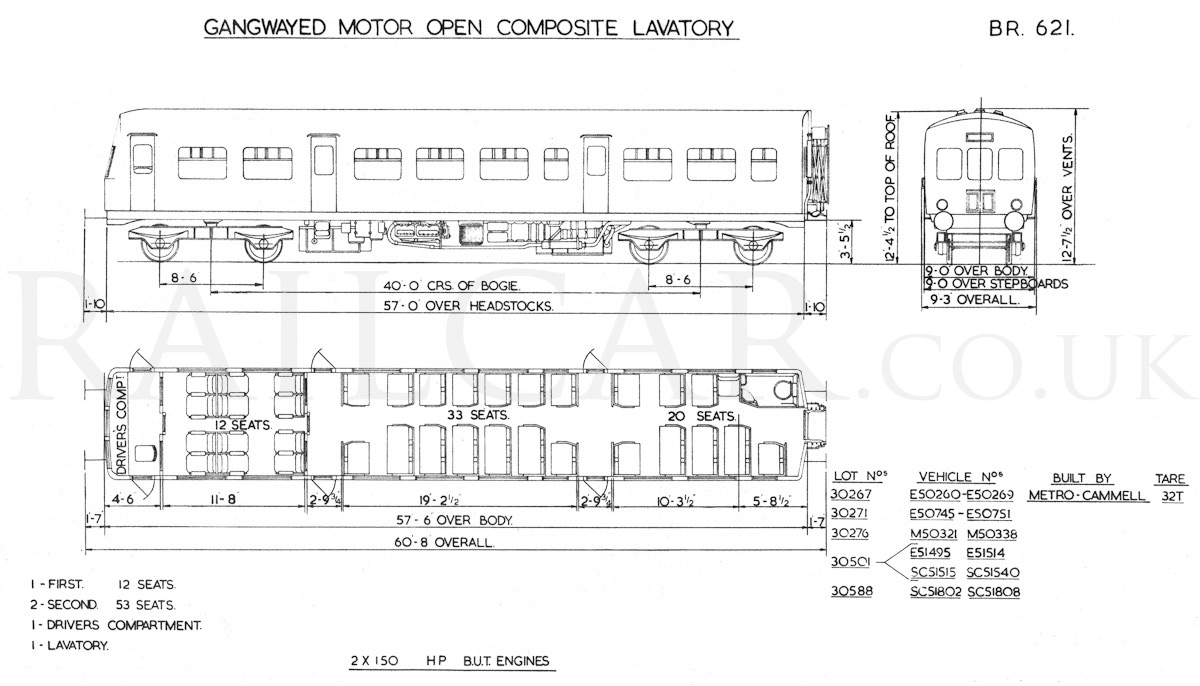

| E50260 - E50269 | DMC(L) | 2xa | 101/1 | 12F + 53S | 32t | 30267 | BR 621 | P/Twin | 1957 |
| E50290 - E50292 | DMBS | 2i | 101/2 | 52S | 32t | 30270 | BR 523 | 3-car | 1957 |
| E50293 - E50296 | DMBS | 2k | 101/2 | 52S | 32t | 30270 | BR 523 | P/Trailer | 1957 |
| M50303 - M50320 | DMBS | 2l | 101/2 | 52S | 32t | 30275 | BR 523 | 3-car | 1958 |
| M50321 - M50338 | DMC(L) | 2l | 101/1 | 12F + 53S | 32t | 30276 | BR 621 | 3-car | 1958 |
| E50745 - E50747 | DMC(L) | 2i | 101/1 | 12F + 53S | 32t | 30271 | BR 621 | 3-car | 1957 |
| E50748 - E50751 | DMC(L) | 2j | 101/1 | 12F + 53S | 32t | 30271 | BR 621 | 4-car | 1957 |
| M51174 - M51203 | DMBS | 3c | 101/1 | 52S | 32t | 30467 | BR 523 | P/Trailer | 1958 |
| E51204 - E51223 | DMBS | 3b | 101/2 | 52S | 32t | 30467 | BR 523 | P/Trailer | 1958 |
| Sc51224 - Sc51253 | DMBS | 3a | 101/2 | 52S | 32t | 30467 | BR 523 | P/Trailer | 1958 |
| E51425 - E51434 | DMBS | 4a | 102/2 | 52S | 32t | 30500 | BR 523 | P/Twin | 1959 |
| E51435 - E51444 | DMBS | 4a | 102/2 | 52S | 32t | 30500 | BR 523 | 4-car | 1959 |
| Sc51445 - Sc51470 | DMBS | 4b | 102/2 | 52S | 32t | 30500 | BR 523 | 3-car | 1959 |
| E51495 - E51504 | DMC(L) | 4a | 102/1 | 12F + 53S | 32t | 30501 | BR 621 | P/Twin | 1959 |
| E51505 - E51514 | DMC(L) | 4a | 102/1 | 12F + 53S | 32t | 30501 | BR 621 | 4-car | 1959 |
| Sc51515 - Sc51540 | DMC(L) | 4b | 102/1 | 12F + 53S | 32t | 30501 | BR 621 | 3-car | 1959 |
| Sc51795 - Sc51801 | DMBS | 5 | 102/2 | 52S | 32t | 30587 | BR 523 | 3-car | 1959 |
| Sc51802 - Sc51808 | DMC(L) | 5 | 102/1 | 12F - 53S | 32t | 30588 | BR 621 | 3-car | 1959 |

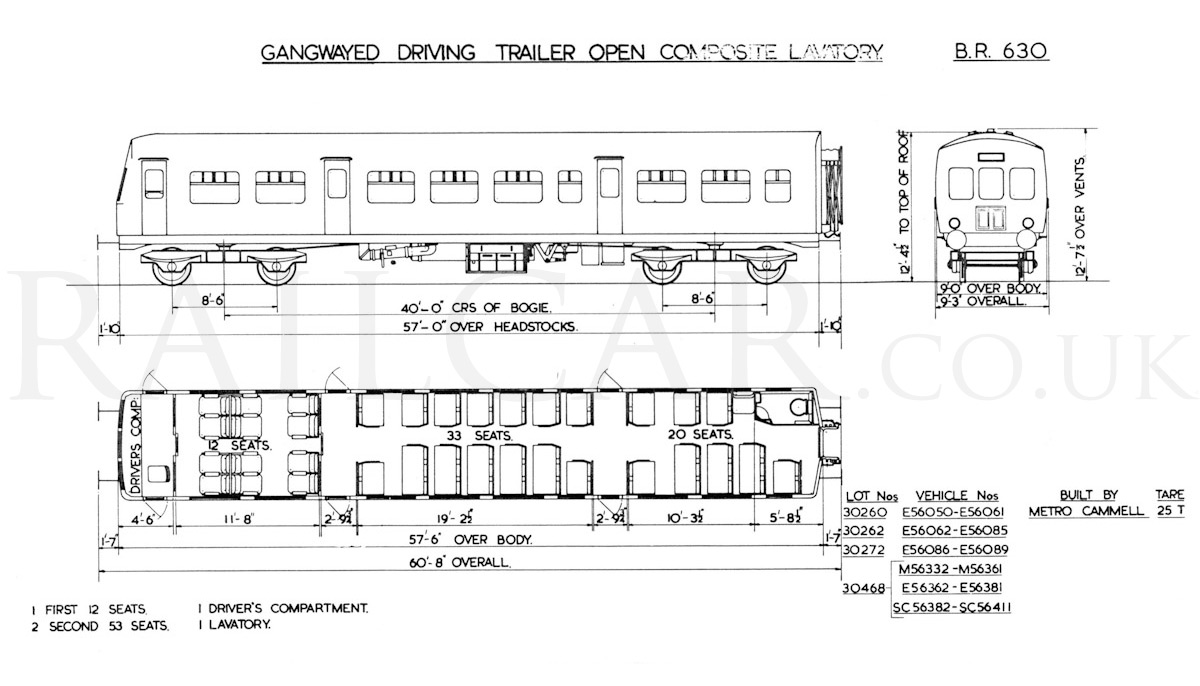

| E56050 - E56061 | DTC(L) | 2e | 144 | 12F + 53S | 25t | 30260 | BR 630 | P/Trailer | 1957 |
| E56062 - E56085 | DTC(L) | 2f | 144 | 12F + 53S | 25t | 30262 | BR 630 | P/Trailer | 1957 |
| E56086 - E56089 | DTC(L) | 2k | 144 | 12F + 53S | 25t | 30272 | BR 630 | P/Trailer | 1957 |

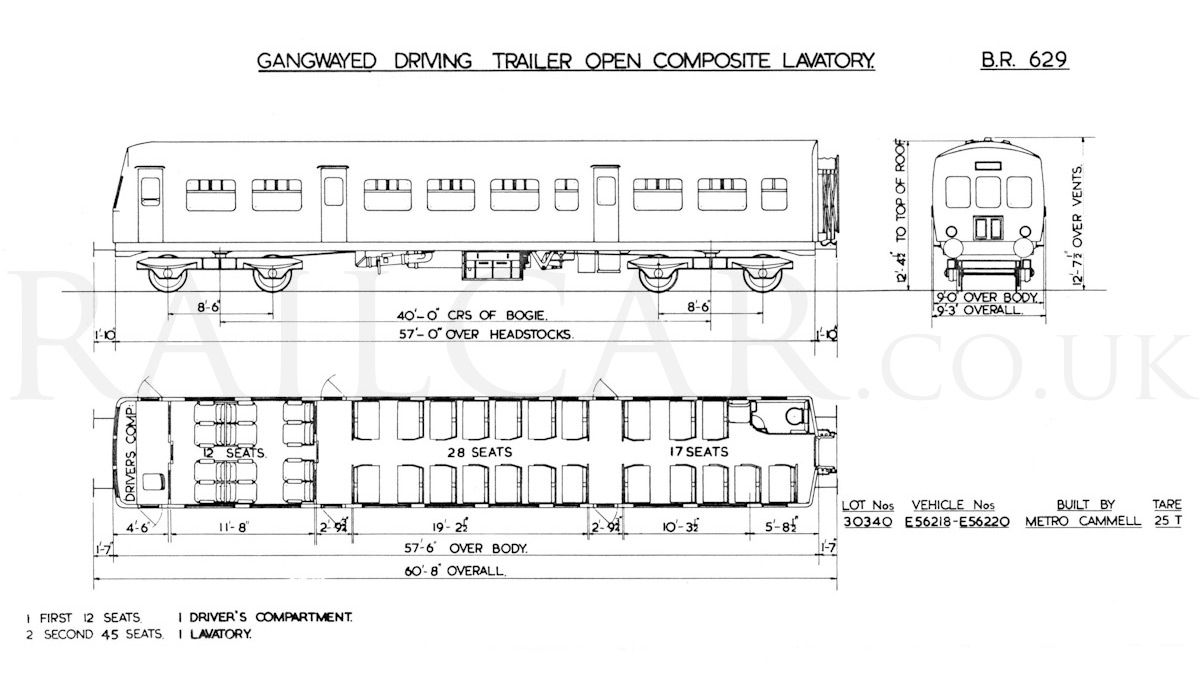

| E56218 - E56220 | DTC(L) | 2g | 144 | 12F + 45S (2+2) | 25t | 30340 | BR 629 | P/Trailer | 1957 |
| M56332 - M56361 | DTC(L) | 3c | 144 | 12F + 53S | 25t | 30468 | BR 630 | P/Trailer | 1957 |
| E56362 - E56381 | DTC(L) | 3b | 144 | 12F + 53S | 25t | 30468 | BR 630 | P/Trailer | 1957 |
| Sc56382 - Sc56411 | DTC(L) | 3a | 144 | 12F + 53S | 25t | 30468 | BR 630 | P/Trailer | 1957 |

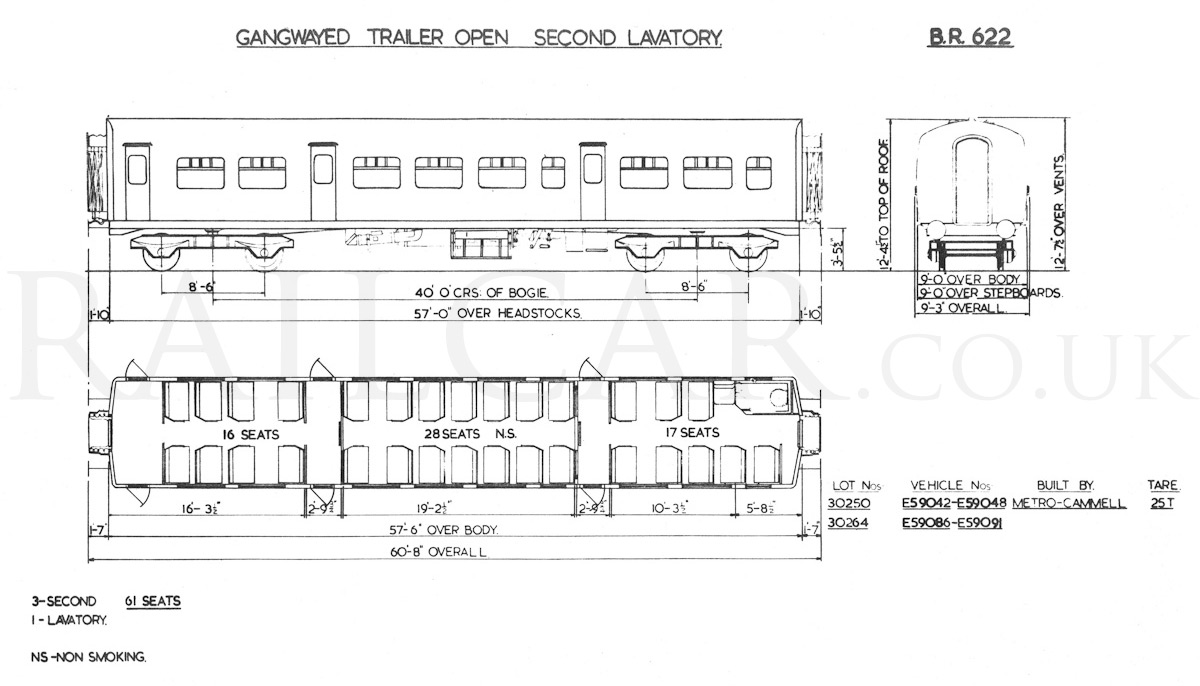

| E59042 - E59048 | TS(L) | 2a | 162 | 61S (2+2) | 25t | 30250 | BR 622 | 4-car | 1956 |
| E59049 - E59055 | TBS(L) | 2a | 168 | 45S (2+2) | 25t | 30251 | BR 626 | 4-car | 1956 |
| E59060 - E59072 | TS(L) | 2c | 162 | 71S | 25t | 30257 | BR 623 | 4-car | 1957 |

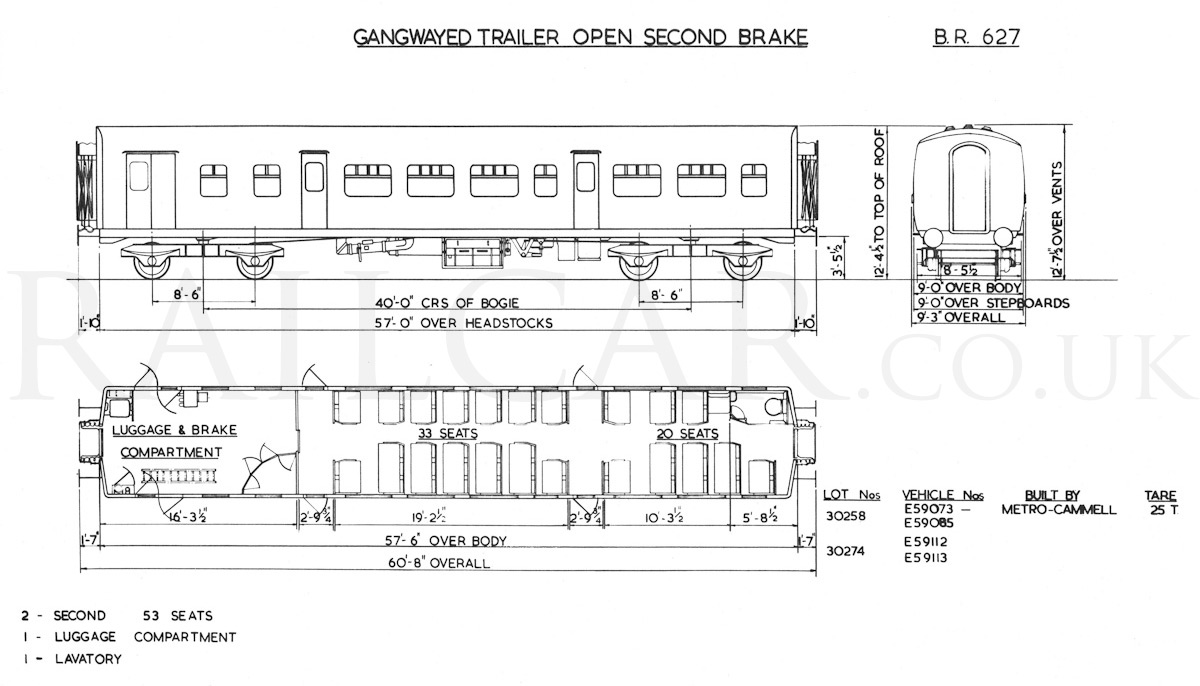

| E59073 - E59085 | TBS(L) | 2c | 168 | 53S | 25t | 30258 | BR 627 | 4-car | 1957 |
| E59086 - E59091 | TS(L) | 2h | 162 | 61S (2+2) | 25t | 30264 | BR 622 | 4-car | 1957 |
| E59092 - E59097 | TBS(L) | 2h | 168 | 45S (2+2) | 25t | 30265 | BR 626 | 4-car | 1957 |
| E59112 - E59113 | TBS(L) | 2j | 168 | 53S | 25t | 30274 | BR 627 | 4-car | 1957 |

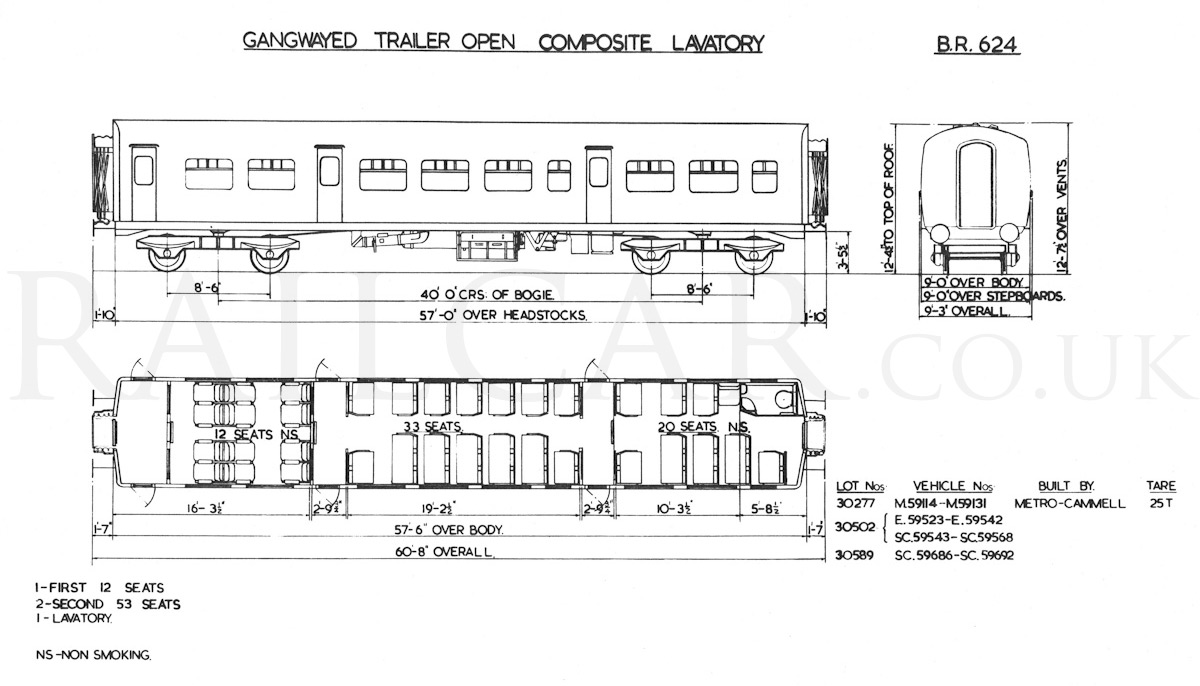

| M59114 - M59131 | TC(L) | 2l | 171 | 12F + 53S | 25t | 30277 | BR 624 | 3-car | 1958 |
| E59302 - E59304 | TS(L) | 2i | 162 | 71S | 25t | 30273 | BR 623 | 3-car | 1957 |
| E59305 - E59306 | TS(L) | 2j | 162 | 71S | 25t | 30273 | BR 623 | 4-car | 1957 |
| E59523 - E59542 | TC(L) | 4a | 171 | 12F + 53S | 25t | 30502 | BR 624 | 4-car | 1959 |
| Sc59543 - Sc59568 | TC(L) | 4b | 171 | 12F + 53S | 25t | 30502 | BR 624 | 3-car | 1959 |
| Sc59686 - Sc59692 | TC(L) | 5 | 171 | 12F + 53S | 25t | 30589 | BR 624 | 3-car | 1959 |
| E59569 - E59572 | TS(L) | 4c | 164 | 71S | 25t | 30510 | BR 623 | 1960 | |
| E59573 - E59578 | TSB(L) | 4c | 165 | 53S | 25t | 30511 | BR 625 | * | 1960 |
*The buffet cars, although generally regarded as Class 111 vehicles, also worked with the Class 101s.
Original Formations
| Power Trailers (123 sets) | ||||
| DMBS E50198 - 50233 | DTC(L) E56050 - 56085 | 2e + f | 12F + 105S | 1957 |
| DMBS E50246 - 50248 | DTC(L) E56218 - 56220 | 2g | 12F + 89 S (2+2) | 1957 |
| DMBS E50293 - 50296 | DTC(L) E56086 - 56089 | 2k | 12F + 105S | 1957 |
| DMBS M51174 - 51203 | DTC(L) M56332 - 56361 | 3c | 12F + 105S | 1958 |
| DMBS E51204 - 51223 | DTC(L) E56362 - 56381 | 3b | 12F + 105S | 1958 |
| DMBS Sc51224 - 51253 | DTC(L) Sc56382 - 56411 | 3a | 12F + 105S | 1958 |
| Power Twins (30 sets) | ||||
| DMBS E50152 - 50157 | DMC(L) E50158 - 50163 | 2b | 12F + 105S | 1956/7 |
| DMBS E50164 - 50167 | DMC(L) E50168 - 50171 | 2b | 12F + 105S | 1956/7 |
| DMBS E50250 - 50259 | DMC(L) E50260 - 50269 | 2xa | 12F + 105S | 1957 |
| DMBS E51425 - 51434 | DMC(L) E51495 - 51504 | 4a | 12F + 105S | 1959 |
| 3-car (54 sets) | |||||
| DMBS E50290 - 50292 | TS(L) E59302 - 59304 | DMC(L) E50745 - 50747 | 2i | 12F + 176S | 1957 |
| DMBS M50303 - 50320 | TC(L) M59114 - 59131 | DMC(L) M50321 - 50338 | 2l | 24F + 158S | 1958 |
| DMBS Sc51445 - 51470 | TC(L) Sc59543 - 59568 | DMC(L) Sc51515 - 51540 | 4b | 24F + 158S | 1959 |
| DMBS Sc51795 - 51801 | TC(L) Sc59686 - 59692 | DMC(L) Sc51802 - 51808 | 5 | 24F + 158S | 1959 |
| 4-car (28 sets) | ||||||||
| 2x DMC(L) | E50138 - 50151 | TS(L) | E59042 - 59048 | TBS(L) | E59049 - 59055 | 2a | 24F + 196S (2+2) | 1956 |
| 2x DMC(L) | E50172 - 50197 | TS(L) | E59060 - 59072 | TBS(L) | E59073 - 59085 | 2c | 24F + 230S | 1957 |
| 2x DMC(L) | E50234 - 50245 | TS(L) | E59086 - 59091 | TBS(L) | E59092 - 59097 | 2h | 24F + 196S (2+2) | 1957 |
| 2x DMC(L) | E50748 - 50751 | TS(L) | E59305 - 59306 | TBS(L) | E59112 - 59113 | 2j | 24F + 228S | 1957 |
| *DMBS | E51435 - 51444 | 2x TC(L) | E59523 - 59542 | DMC(L) | E51505 - E51514 | 4a | 24F + 158S | 1959 |
* note that some of these trailers ran with Class 111 power cars while buffet cars ran in these formations.

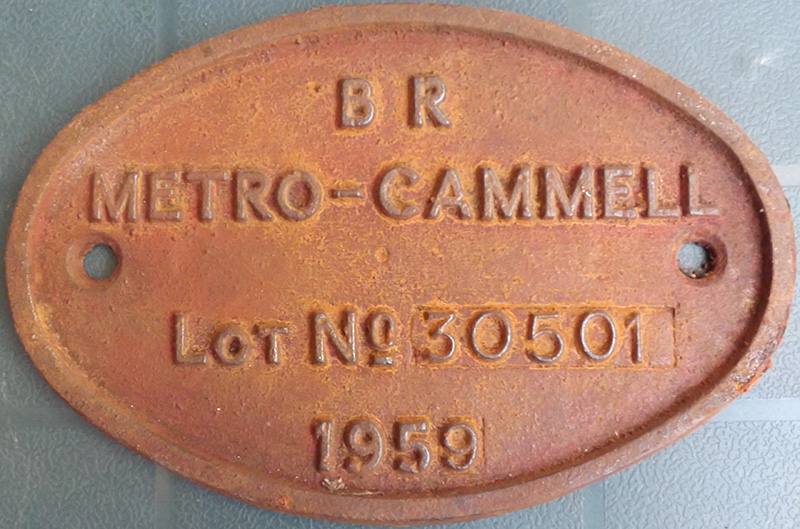

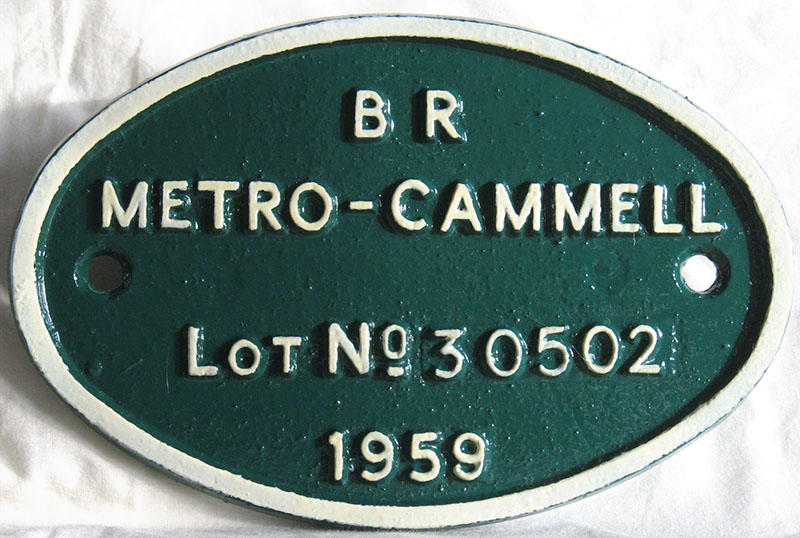

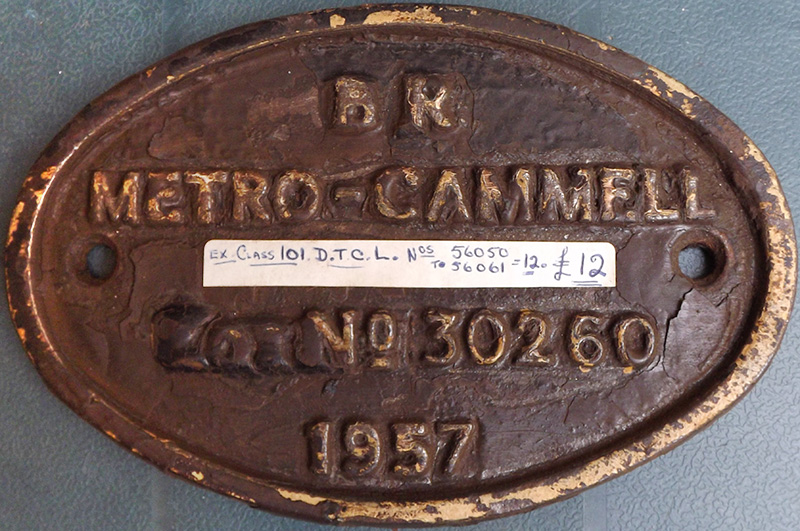

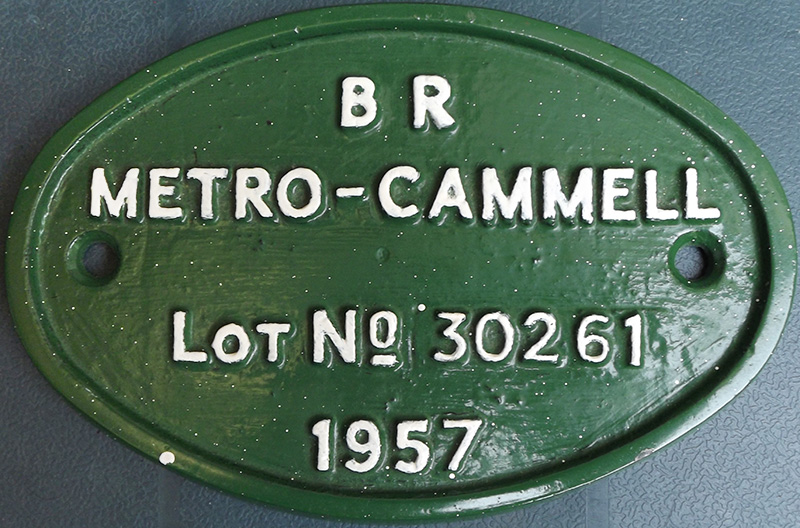

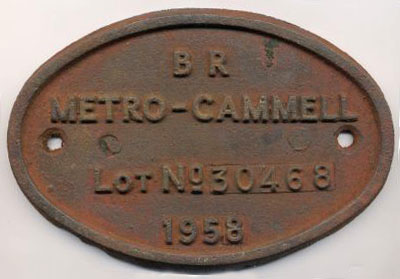

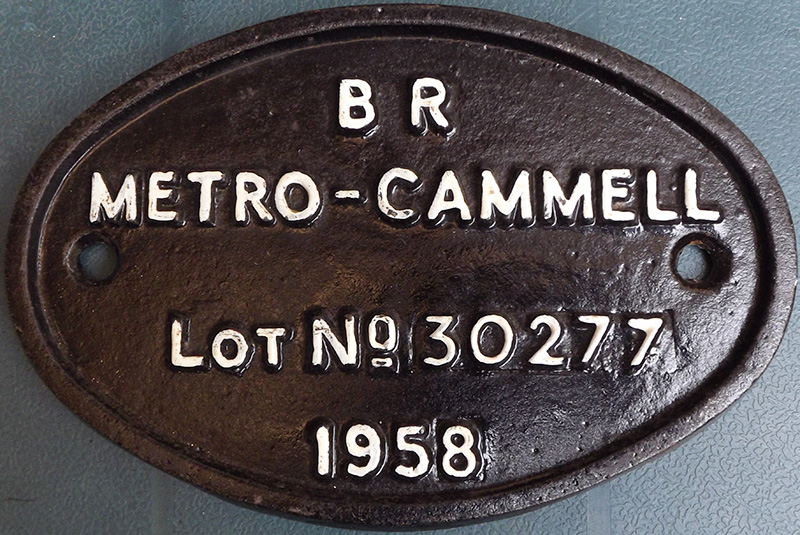

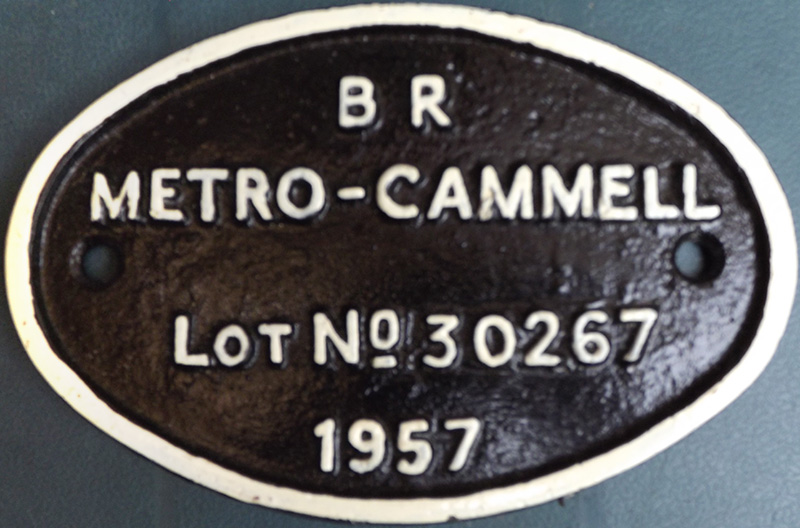

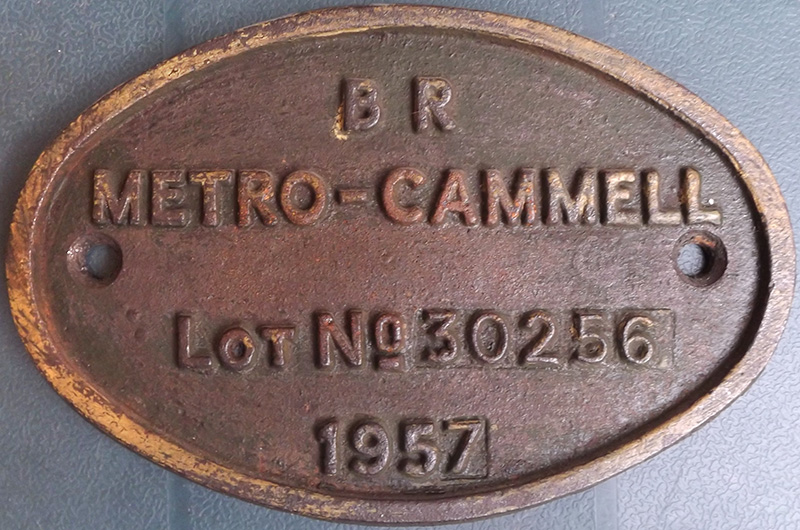

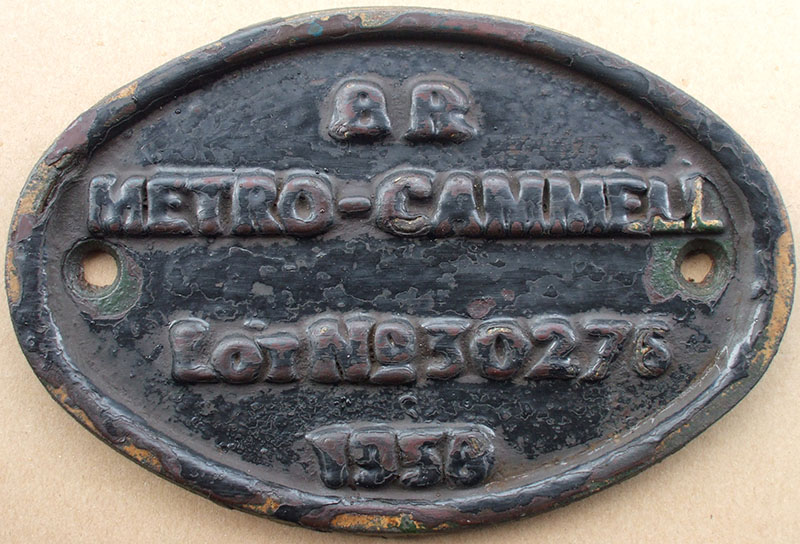

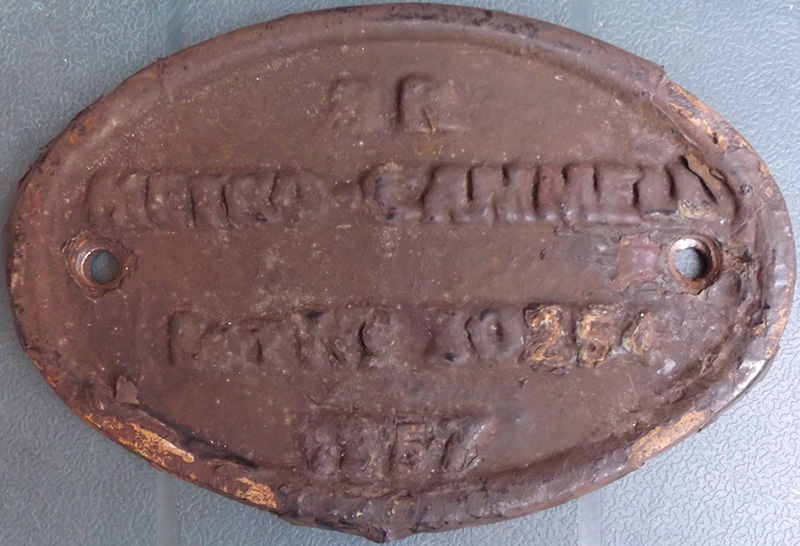

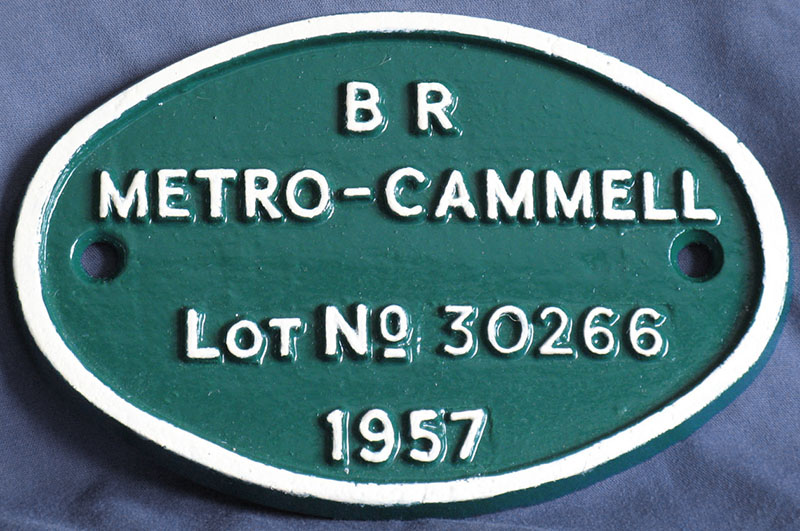

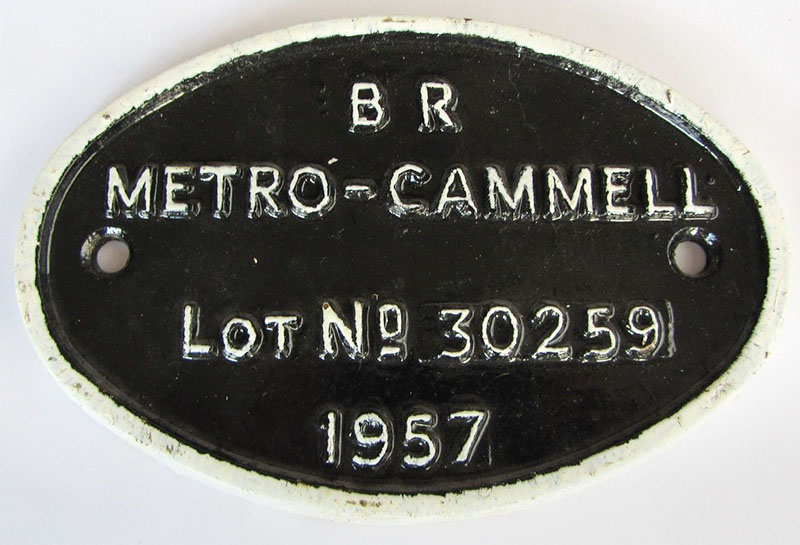

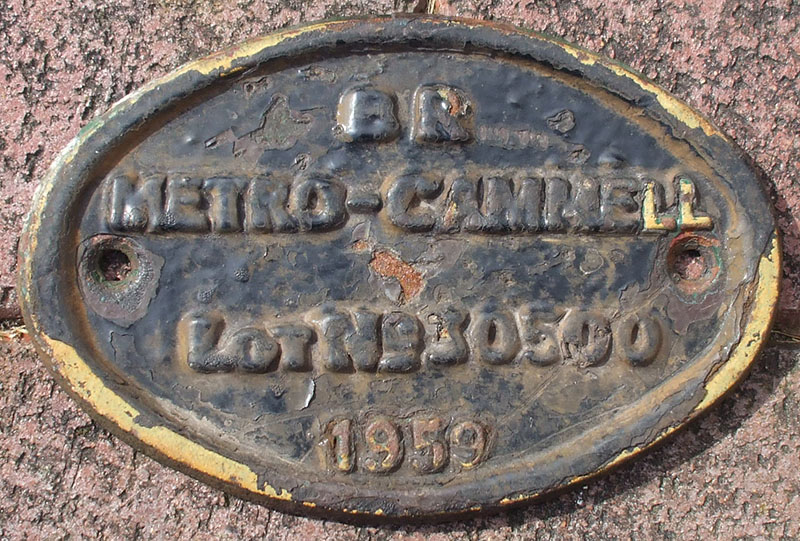

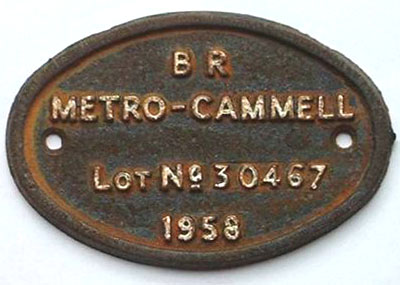

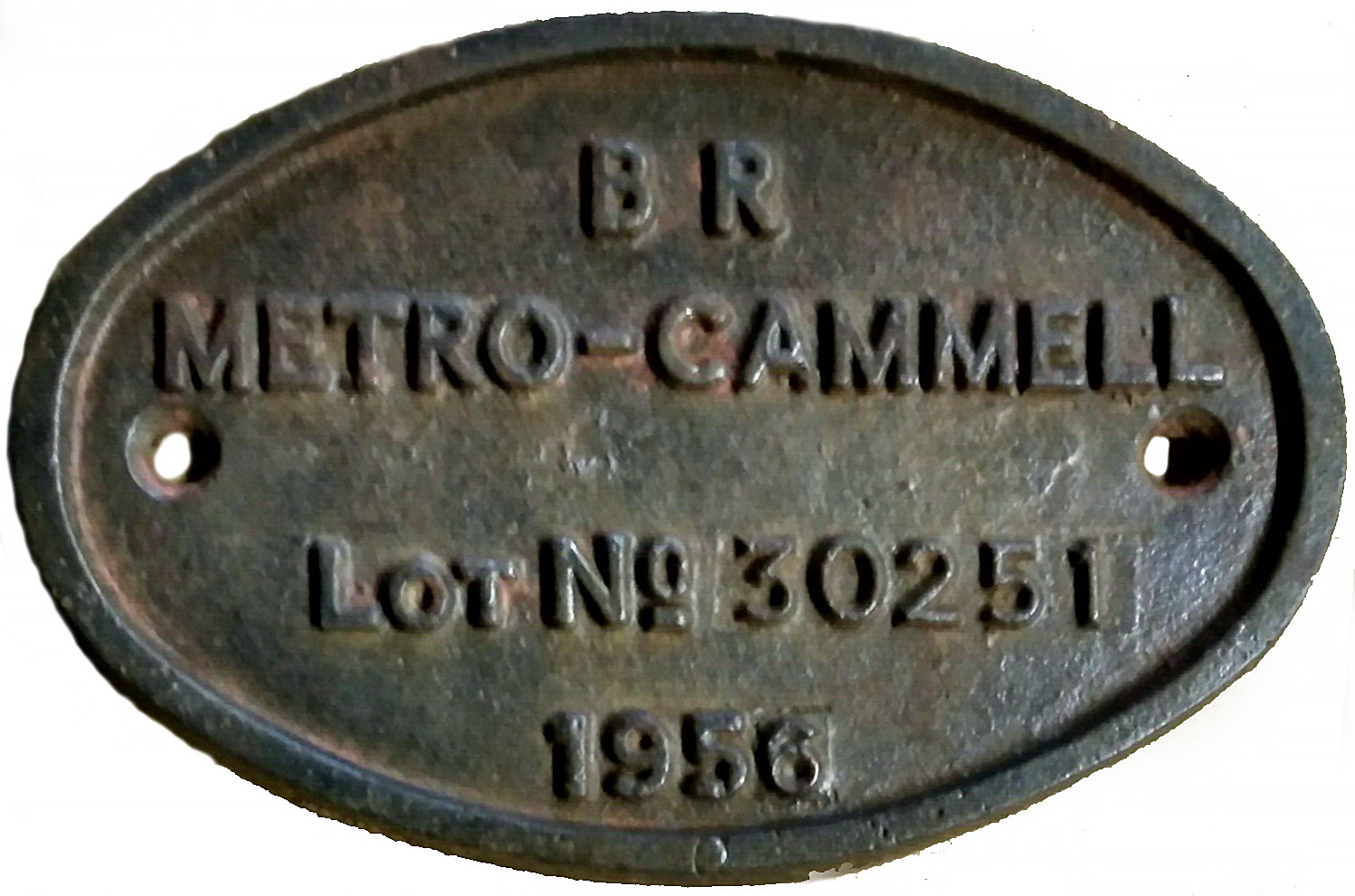

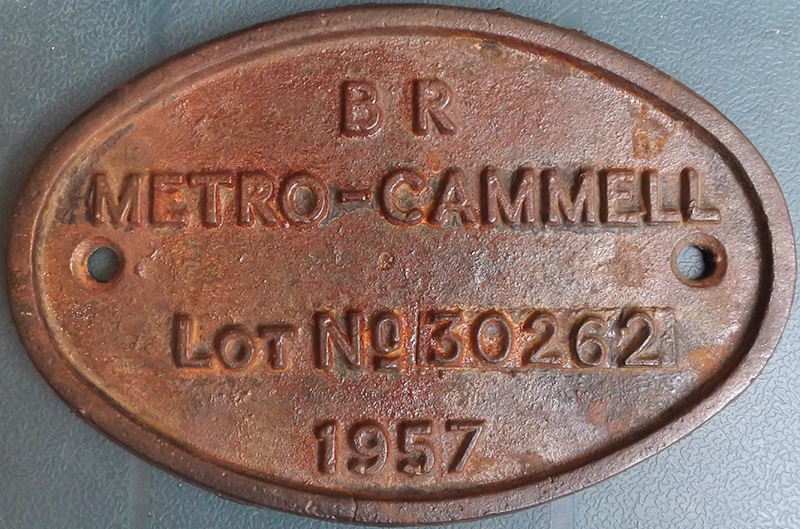

Worksplates
Worksplates were carried on the vehicle solebars to identify the builder and lot number. Many of the worksplate images on the website are from the collections of Simeon Gaskell, John Horne and Tony Spencer.
