Class 101 Met-Camm 2,3 & 4-car DMUs


Daisy - 101 685 the Green Unit

In 1994 unit 101 685 was repainted in a version of the old green livery and reformed as a 3-car set with cars 53164 / 59539 / 53160. Another unit 101683 was also reformed as a 3-car unit with cars 51177 / 59303 / 53269 these two units being designated for use on the Blaneau Ffestiniog branch in 3-car form for summer timetable use and with trailers removed during the winter. The green unit picked up the nickname "Daisy" after the DMU characted in the Rev. W. Awdry childrens book series.

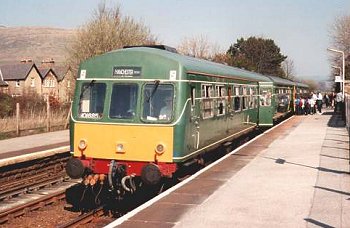

Daisy DMU

Pictured at Edale on 9/4/97 Peter, Lincolnshire & East Yorkshire Transport Review

The background of the three individual vehicles is as follows. All were new to the NER but parts of different units.

The DMBS vehicle originally E50164 was delivered from the Washwood Heath Works in January 1957 paired with DMC E50168 as a power twin set and allocated to 56G. They were part of batch 2b. TC(L) E59539 was delivered in April 1959 to the NER as part of a 4-car set with E51442 / E59540 / E51512, and the set was from batch 4a. DMC(L) E50160 was from batch 2b and delivered in December 1956 to 56G as part of a power twin with E50154.

As was common at the time these formations would remain fixed for some years as originally sets tended to be maintained in fixed formations for some time but eventually would be split up after breakdowns or overhauls when usually vehicles of the same batch would become mixed. In 1965 the power cars were still working in their original pairings at Hammerton Street but the TC(L) was now at 55H working with Class 111 power cars.

Two Class 101 DMUs in Whitby station

Met Camm three-car units in the image at Whitby, with 50164 and 51205 nearest the camera, early morning of July 2nd 1981. Bruce Galloway.

The records show that by 1983 E50164, now E53164, was still a north-eastern machine allocated to Heaton depot (HT) while its one time partner E50168, now E53168, had moved to Norwich (NR). The TC(L) E59539 was at this time at Cardiff (CF) working in a Pressed Steel Class 117 set (C454 W51352 / 59539 / 51394). By contrast the DMC vehicle E50160 which also was a north-eastern car had by this time moved to Edinburgh Haymarket (HA) becoming Sc53160.

In 1985 W59539 moved with its Class 117 set to Bristol Bath Road (BR) with consequential set renumbering 'B450'. 1986 saw Sc53160 still operating in Scotland but now moved from (HA) to Ayr (AY) in set 101360 with cars Sc59074 and Sc53158 both ex HT vehicles, but now displaying the Strathclyde Orange and Black livery.

1988 saw E53164 make its first move from the north east when transferred to HA where it joined set 101359 with trailer Sc59116, originally based at Tyseley (TS), and another DMBS car, Sc51210, which itself has survived and is currently operating in Regional Railways North West Trains set 101678, along with another ex-NE car DMC (now downgraded to DMS) 53746, Trailer W59539 moved back to CF and stored.

In July 1988 Scottish set 101360 containing 53160 moved from Ayr to Eastfield (ED).

By 1989 DMBS Sc53164 transferred to a Swindon Class 120 set still based at HA its new set number becoming 120535 with vehicles 59065 (Class 101) and 53733 (Class 120). As can be seen this was hardly still a 120 set with two of its three cars being Met Camms!

1990 saw TC(L) 59539 move from CF to LE as a spare trailer for that depots mainly Class 108 power twin fleet, trailers occasionally being used when necessary (though fixed formations were maintained and set numbers carried at this depot, trailers would not necessarily remain in the same set). The year also saw the reallocation of ScR set 101360 containing 53160 south to Chester (CH), on arrival the set was split with 53160 being paired as a power twin again, with blue and grey liveried Class 101 DMBS 51245 as set CH641, 53158 was treated similarly and paired with DMBS 51425 as set CH642, the trailer car TBSL 59074 being stored.

Class 101 DMU with one vehicle in Strathclyde livery and one in Blue Grey

CH641 (53160 + 51245) seen departing from Chester station on 28/8/90. Mac Winfield.

At this time the Scottish Class 120 set 120535 was reformed using substitute Met-Camm car Sc53215. This resulted in 53164 returning to English soil, at NL paired with DTC 54365 becoming set NL232.

During 1991 59539 was transferred to Plymouth Laira (LA) joining a 3-car set made up of two DMBS vehicles transferred from Scotland, the set becoming P831 containing 51210 / 59539 / 53253.

At the same time 53164 moved from NL to LO where it was assigned to a 3-car unit becoming set LO344 containing 53164 / 59387 / 53203 the latter formerly of Norwich set No. 87. In October of 1991 this set was transferred to CF and became C388 set This was a hybrid unit containing two DMBS's both of ER origin and a class 108 TS(L) from Hull Botanic Gardens (BG).

1991 also saw the transfer of 53160 and 53158 to (LO) where the latter was withdrawn from service. 53160 however was dispatched to TS with its partner 51245 to become set T075 at that depot.

During 1992 selections were being made from the remaining Met Camm Class 101 units for a final facelift/refurbishment and repaint into Regional Railways livery. The vehicles selected were moved to Doncaster works for the work to be carried out.

TC(L) 59539 was still at LA but now in set no. P821 with cars 53216 and 53294 when selected.

53164 returned to LO with 53203 but minus trailer 59387. 53160 and 51245 were returned from TS becoming LO604. By the end of 1992 the three vehicles had been overhauled at Doncaster and returned to service in Regional Railways colours, 53164 with 53160 carried set number 101685 and were returned to LO. However trailer 59539 was formed into the 3-car set 101694 with power cars 51188 and 53268 and allocated to HA.

Regional Railways Class 101 DMU with Blue Grey Class 108 on rear

The image shows 101685 (53160 + 53164) working with LO280 (53971 + 54504) on 2H65, the 09:38 Manchester Piccadilly to New Mills Central at Hague Bar, 19-10-92. Kevin Dowd.

Two years later in 1994 the HA allocation of Class 101s were transferred to Glasgow Corkerhill (CK) minus their centre trailers which were stored.

That same year it was decided to repaint a Class 101 set in the original green livery, 101685 was chosen, it was also decided to dedicate this set to the Llandudno - Blaenau Ffestiniog service and to strengthen to 3-cars in the summer timetable. 59539 was chosen and was transferred from HA along with a second vehicle 59303 which would create another 3-car unit as back up, though retaining Regional Railways livery. The units operated as a 3-car set during the summer and 2-car power twins in the winter time until 1997 after which they remained as 2-car sets.

Three-car green Class 101 DMU in Blaenau Ffestiniog station

As a three car the set is seen at Blaenau Ffestiniog, about to work the 15:07 to Llandudno, on 12/9/94. Hamish Stevenson.

It was originally scheduled for withdrawal after services on Saturday 12th May 2001. On this day "Daisy" spent that Saturday morning on Sheffield services, then worked the 13:43 to New Mills Central, laid over until 16:02 & then back to Piccadilly. Another trip to Sheffield, and then the final round trip, the 19:43 to New Mills and 20:30 return to Piccadilly. Car 53160 was the oldest vehicle in the UK still in front line passenger service at the time, and whilst at New Mills 53163 passed, making it possible for a photo of the 3 oldest vehicles still in service.

The withdrawal didn't happened as planned, it would be extended to a new last day of Saturday 30th June. In this date (also scheduled to be the last for 679 and 689), "Daisy" was booked to work a Newton Heath diagram in response to a plea from a young fNW customer. Kevin Dowd notes "on "Daisy's" last run, a young lad was picked up at Bamford for a trip up front. He had written to FNW after Daisy was withdrawn on May 12th asking then "not to scrap the green DMU." The Manchester Evening News were also at Piccadilly on her arrival from Sheffield on what turned out to be her last run. (Full marks to the FNW PR dept for arranging this treat). However, an EP valve connected to the AWS system on 53164 blew on the outskirts of Sheffield on the first run, and although it was OK to run the 2S13 09:15 ex-Sheffield with 53160 leading, 'Daisy' was failed at Piccadilly, with FNW rearranging the diagrams and substituting 101689 to work in its place."

The withdrawal would be postponed again with it staying in use until December 2003.
