Batch | Type | TOPS | Seats | Lot No. | Diagram | Design Code | Formation | Year | |
M50134 - 50137 | 1 (2d) | DMBS | 111/2 | 52 2nd | 30248 | BR 520 | DQ 214 | P/Trailer | 1957 |

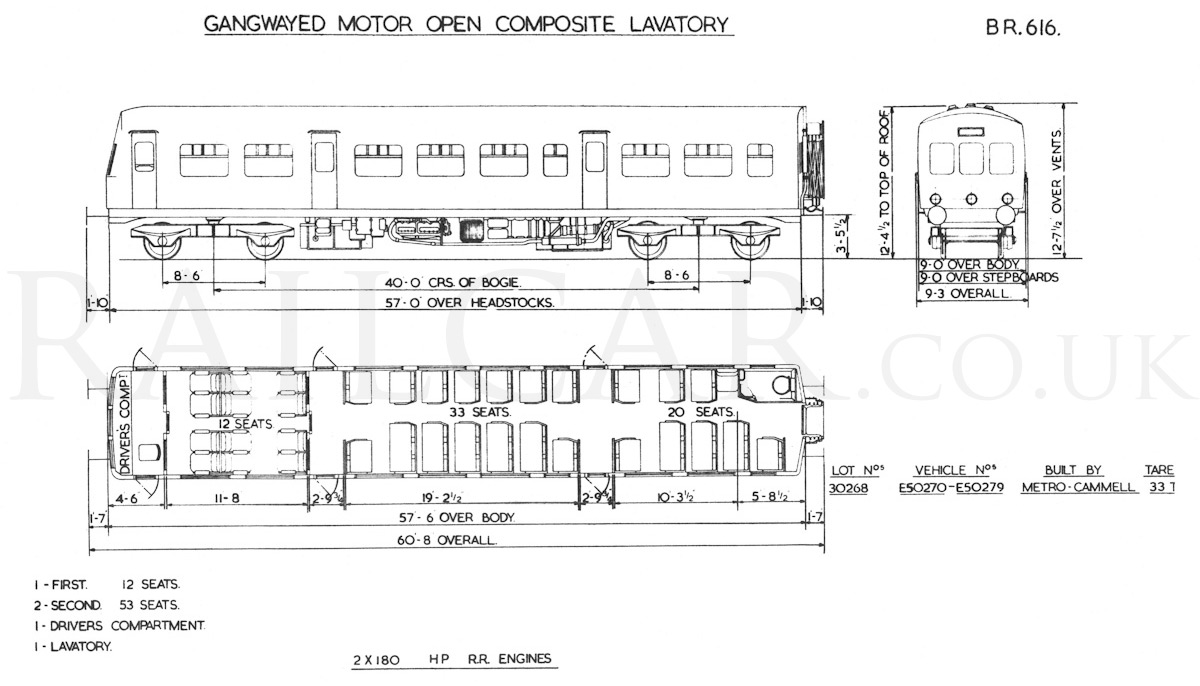

E50270 - 50279 | 2 (2xb) | DMC(L) | 111/1 | 12 1st 53 2nd | 30268 | BR 616 | DP 314 | 3-car | 1957 |

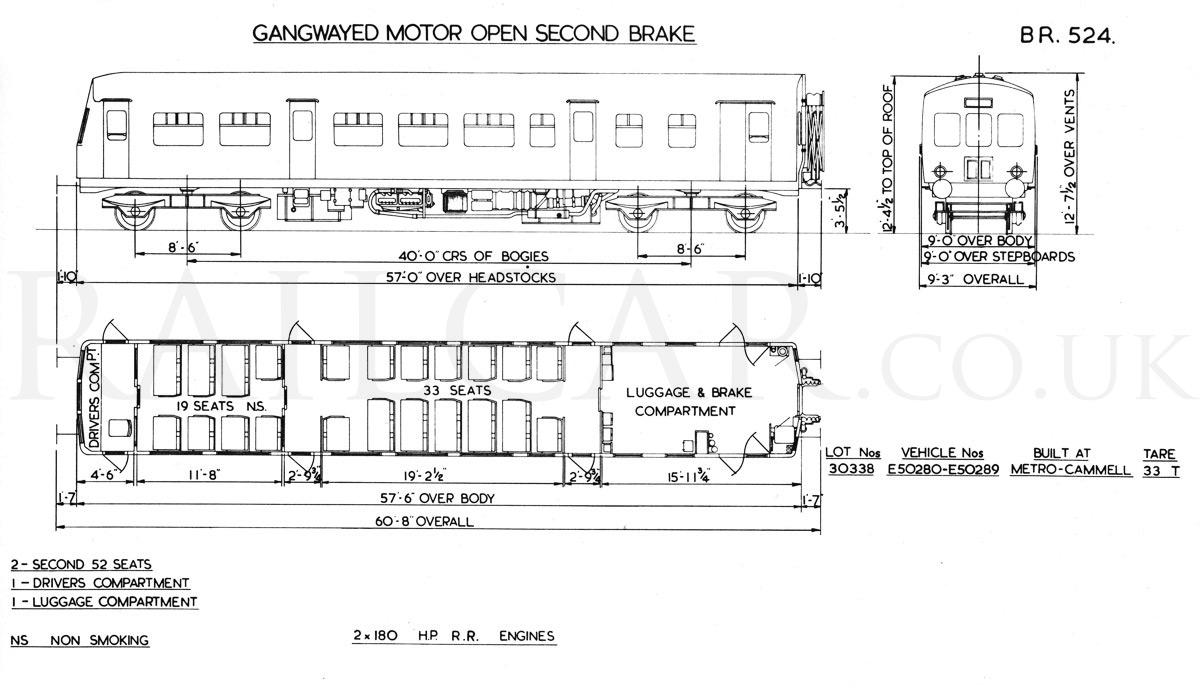

E50280 - 50289 | 2 (2xb) | DMBS | 111/2 | 52 2nd | 30338 | BR 524 | DQ 215 | 3-car | 1957 |
E51541 - 51550 | 3 (4c) | DMBS | 111/2 | 52 2nd | 30508 | BR 615 | DQ 216 | 2/3-car | 1959/60 |
E51551 - 51560 | 3 (4c) | DMC | 111/1 | 12 1st 53 2nd | 30509 | BR 617 | DP 315 | 2/3-car | 1959/60 |
M56090 - 56093 | 1 (2d) | DTC(L) | 147 | 12 1st 53 2nd | 30337 | BR 628 | DS 312 | P/Trailer | 1957 |
E59100 - 59109 | 2 (2xb) | TS(L) | 164 | 71 2nd | 30269 | BR 623 | DT 202 | 3-car | 1957 |
E59569 - 59572 | 3 (4c) | TS(L) | 164 | 71 2nd | 30510 | BR 623 | DT 202 | 3-car | 1959/60 |
E59573 - 59578 | 3 (4c) | TSBL | 165 | 53 2nd | 30615 | BR 625 | DT 221 | 3-car | 1960 |
The second batch number in brackets are my own (not official) to show how they tie in with the rest of the Met-Camm vehicles; details can be found here.
The 1957 ER 3-car sets were unusual in that the DMCs were numbered lower than the DMBSs.
Power cars weighed 33tons, trailers 25tons.
Two of the trailer seconds were renumbered in 1990 to avoid clashing with the new Class 59 locos: 59101 to 59110 and 59105 to 59111.
LMR Power Trailer - Batch 1 (2d) | |||||
DMBS | 50134 - 50137 | DTC | 56090 - 56093 | ||
ER 3-car sets - Batch 2 (2xd) | |||||
DMBS | 50280 - 50289 | TS | 59100 - 59109 | DMS | 50570 - 50579 |
ER 3-car sets - Batch 3 (4c) | |||||
DMBS | 51541 - 51544 | TS | 59569 - 59572 | DMS | 51551 - 51554 |
ER 2-car sets - Batch 3 (4c) | |||||
DMBS | 51545 - 51550 | DMS | 51555 - 51560 | ||
ER buffets - Batch 3 (4c) | |||||
TBS | 59573 - 59578 |
Original | Converted | Original | Converted | Date | ||
DMBS | DHBS | DHS(L) | DMC(L) | |||
53286 | 78956 | 78706 | 53279 | p/e 05/09/82 | ||
53287 | 78957 | 78707 | 53274 | p/e 31/10/82 | ||
53281 | 78958 | 78708 | 53271 | p/e 28/11/82 | ||
53288 | 78959 | 78709 | 53273 | circa Sep-83 | ||
53282 | 78960 | 78710 | 53276 | circa Sep-83 | ||
53280 | 78961 | 78711 | 53275 | circa Jun-84 | ||
53283 | 78962 | 78712 | 53278 | circa Sep-84 | ||
53289 | 78963 | 78713 | 53272 | period 2/85 | ||
53284 | 78964 | 78714 | 53277 | Aug-85 | ||
51546 | 78966 | 78716 | 51554 | p/e 26/12/82 | ||
51542 | 78967 | 78717 | 51552 | Jun-83 | ||
51543 | 78968 | 78718 | 51557 | p/e 11/09/83 | ||
51544 | 78969 | 78719 | 51553 | circa Sep-83 | ||
51541 | 78970 | 78720 | 51551 | circa Nov-83 | ||
51549 | 78971 | 78721 | 51559 | Aug-84 | ||
51545 | 78972 | 78722 | 51555 | circa Nov-84 | ||
51548 | 78973 | 78723 | 51556 | circa Mar-85 | ||
51550 | 78974 | 78724 | 51558 | May-85 |

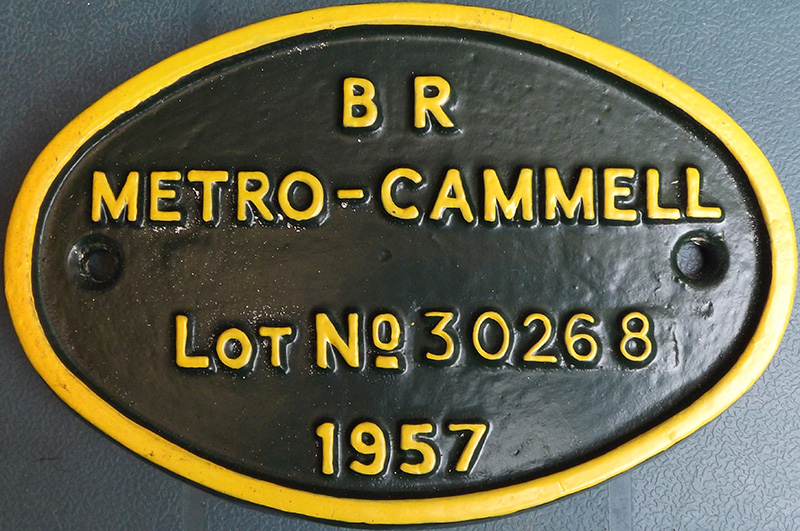

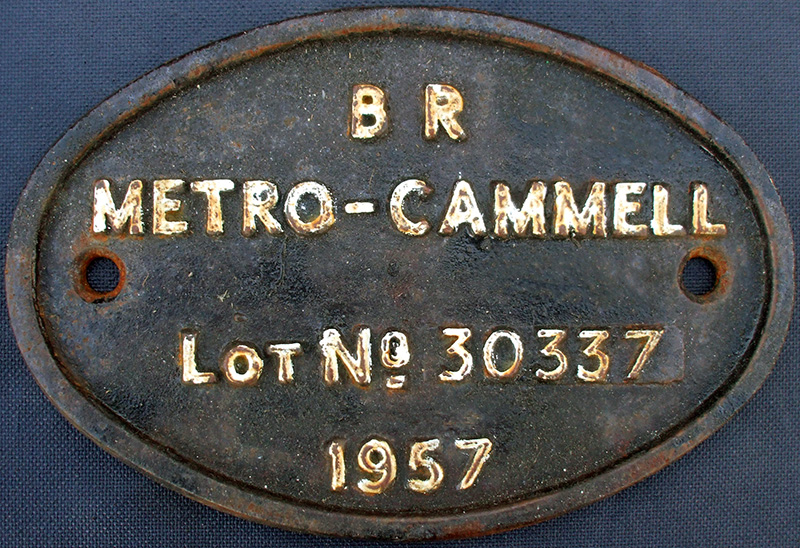

Worksplates were carried on the vehicle solebars to identify the builder and lot number. Many of the worksplate images on the website are from the collections of Simeon Gaskell, John Horne and Tony Spencer.
